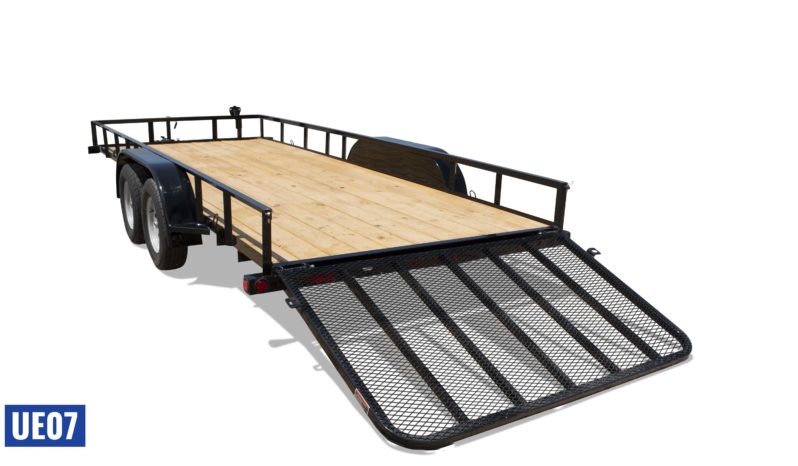

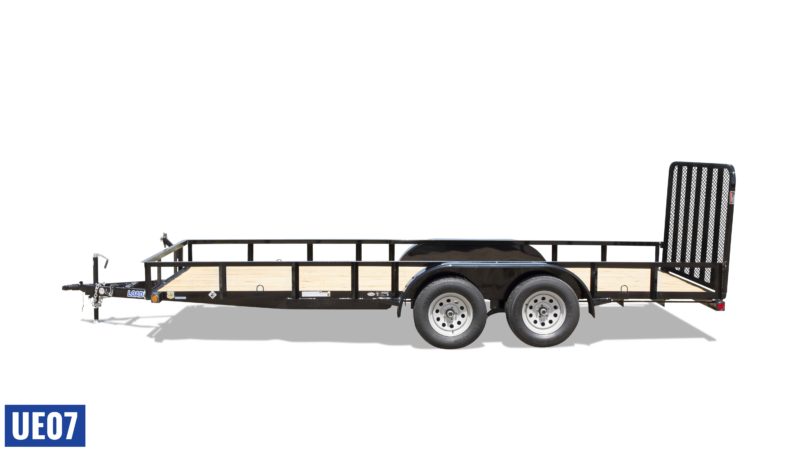

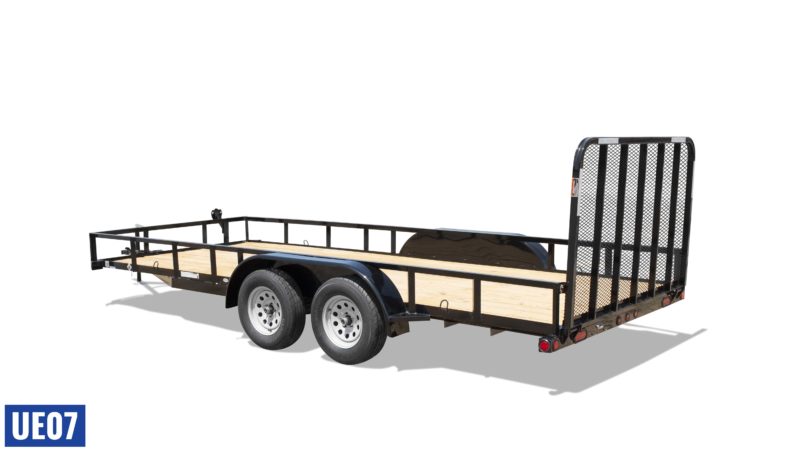

UE | ANGLE FRAME UTILITY

BEST SELLER

UE07

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 lbs

LENGTH

10′ – 20′

WIDTH

60″ – 83″

DECK HEIGHT

19″

COUPLER

Bumper Pull

AXLES

(2) 3,500 Lb

EST. WEIGHT

1,045 – 1,812 Lbs

G.A.W.R.

5,200 lbs / Axle

UE07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	3,500 lbs/axle
TONGUE	3″ Channel
FRAME	2″ x 3″ x 3/16″ Angle Iron
CROSSMEMBERS	2″ x 3” Angle Iron, 24” On-center
AXLES	(2) 3,500 lb Dexter 1 Elec/NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2″ A-frame (7K)
JACK	(1) 2,000 lb Top-wind
WHEELS	15” 5-Hole Wheels
TIRES	ST205/75 R15 LRC
SIDE RAILS	2″ x 2” Square Tube w/2″ x 2″ Angle Iron Uprights (weld-on)

DECK	Straight Deck w/Board Slides
FENDERS	Smooth Plate, Weld-on
FLOOR	Treated Wood Flooring
U-HOOKS	(4) 3/8″ x 2.75″ Cargo Tie-downs
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Plug
SAFETY CHAINS	(2) 5/16″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Axles are available with electric or hydraulic brakes. 2′ dove tail options are only available on 12′ – 20′ models.

UE07

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 lbs

LENGTH

10′ – 20′

WIDTH

60″ – 83″

DECK HEIGHT

19″

COUPLER

Bumper Pull

AXLES

(2) 3,500 Lb

EST. WEIGHT

1,045 – 1,812 Lbs

G.A.W.R.

5,200 lbs / Axle

UE07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	3,500 lbs/axle
TONGUE	3″ Channel
FRAME	2″ x 3″ x 3/16″ Angle Iron
CROSSMEMBERS	2″ x 3” Angle Iron, 24” On-center
AXLES	(2) 3,500 lb Dexter 1 Elec/NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2″ A-frame (7K)
JACK	(1) 2,000 lb Top-wind
WHEELS	15” 5-Hole Wheels
TIRES	ST205/75 R15 LRC
SIDE RAILS	2″ x 2” Square Tube w/2″ x 2″ Angle Iron Uprights (weld-on)

DECK	Straight Deck w/Board Slides
FENDERS	Smooth Plate, Weld-on
FLOOR	Treated Wood Flooring
U-HOOKS	(4) 3/8″ x 2.75″ Cargo Tie-downs
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Plug
SAFETY CHAINS	(2) 5/16″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Axles are available with electric or hydraulic brakes. 2′ dove tail options are only available on 12′ – 20′ models.

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLERS

2” A-frame Cast Coupler	C01
2” Hydraulic Coupler	C03
2” Adjustable Coupler (4hole)	C04
2-5/16” Cast A-Frame Coupler	C05
2-5/16” A-frame Stamped Coupler	C06
2-5/16” Adjustable Coupler (4-hole)	C07
3” Adjustable Pintle Ring (4-hole)	C11
2” A-frame Cast Bulldog Coupler	C25

AXLESS & SUSPENSION

(2) 3,500 Lb Dexter (1 Elec)/Spring Axles	ESA
(2) 3,500 Lb Dexter (2 Elec)/Spring Axles	ESB
(2) 3,500 Lb Dexter (1 Hyd.Drum)/Spring Axle	HS1
(2) 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axle	HS2

WHEELS & TIRES

ST205/75 R15 LRC 6 Ply w/Silver Wheels	AO2
ST205/75 R15 LRC 6 Ply w/Black Wheels	A26
ST205/75 R15 LRC 6 Ply w/Aluminum Wheels	A24
Spare ST205/75 R15 LRC 6 Ply 5-Hole (silver)	STC
Spare ST205/75 R15 LRC 6 Ply 5-Hole (black)	STA
Spare ST205/75 R15 LRC 6 Ply 5-Hole (aluminum)	STV

LANDING GEAR

2,000 lb. Jack	J00
5,000 lb. Swivel Jack	J01
7,000 lb. Drop-leg Jack	J02

TAIL, GATE, & RAMPS

2’ Dove Tail (12ft & up models only)	D01
2’ Dove w/Steel Diamond Plate (12ft & up models only)	D02
Board Slides	G00
Rear Tailgate (even with sides)	G01
3’ Angle Iron Fold Gate	G08
4’ Angle Iron Fold Gate	G09
4’ Angle Iron Split Fold Gate	G29
4’ Angle Iron Fold-in Gate	G19
4’ Tubing Bi-fold Gate	G94
5’ Tubing Bi-fold Gate w/Spring Assist	G95
3’ Tubing Fold Gate	G03
4’ Tubing Fold Gate	G04
5’ Tubing Fold Gate	G05
3’ Tubing Fold-in Gate	G13
4’ Tubing Fold-in Gate	G14
5’ Tubing Fold-in Gate	G15
4’ Tubing Split Fold Gate	G24
5’ Tubing Split Fold Gate	G25
3’ HD Fold Gate w/Spring Assist	G33
4’ HD Fold Gate w/Spring Assist	G34
5’ HD Fold Gate w/Spring Assist	G35
4’ HD Split Fold Gate w/Spring Assist	G44
5’ HD Split Fold Gate w/Spring Assist	G45
Spring Assist On Fold Gate	SA1
4’ Side Fold Gate	GS1
Side Rail Ramps	GS4
Front Fold Gate	GF1

SIDE RAILS

Angle Iron Side Rails	P02
2-3/8” Weld-on Pipe-top Side Rails	P03
2” x 2” Weld-on Square Tupe-top Side Rails	P04
16” Weld-on Expanded Metal Sides	Q01
16” Weld-on Solid Metal Sides	R01

FENDERS

Smooth Plate Tear Drop Fenders (removable)	F04
Smooth Plate Tear Drop Fenders (weld-on)	F03
Steel Diamond Plate Fenders (weld-on)	F05
Steel Diamond Plate Fenders (removable)	F06
Aluminum Fenders (removable)	F07

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Tilt Deck	GA1
Wrap-around Tongue (standard on 14ft model)	GA2
24” On-Center Crossmembers	I00
16” On-Center Crossmembers	I01
LED Lights w/Cold Weather Harness	L07
LED Back-Up Lights	L08
(4) U-Hooks	M04
(6) U-Hooks	M06
(8) U-Hooks	M08
3” Weld-on D-rings	M03
3” Removable D-Rings	M33
Mud Flaps	MF1
In-Tongue Tool Tray	T00
Tongue-Mount Toolbox	T01
Tongue-Mount Aluminum Toolbox	T17
Running Boards	RB1
2” Rub Rail	RR1
2 – Pipes (mount only) For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
4 – Additional Stake Pockets	SP1
Weedeater Rack	WE1
Front Tool Cage w/Exp. Metal	TC1
Spare Tire Mount	TM1
Removable Spare Tire Mount	TM2

POPULAR OPTIONS

Running Boards	RB1
4’ Fold-in Gate	G14
Spare Tire Mount	TM1
Wrap-around Tongue	GA2
Spring Assist On Gate	SA1
16” Weld-on Solid Metal Sides	R01
Side Rail Ramps	GS4

60″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE6010032	60” X 10’	1045
UE6012032	60” X 12’	1158
UE6014032	60” X 14’	1265
UE6016032	60” X 16’	1373
UE6018032	60” X 18’	N/A

72″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE7210032	72” X 10’	1045
UE7212032	72” X 12’	1158
UE7214032	72” X 14’	1265
UE7216032	72” X 16’	1373
UE7218032	72” X 18’	N/A

77″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE7710032	77” X 10’	1253
UE7712032	77” X 12’	1324
UE7714032	77” X 14’	1446
UE7716032	77” X 16’	1587
UE7718032	77” X 18’	N/A
UE7720032	77” X 20’	N/A

83″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE8310032	83” X 10’	1252
UE8312032	83” X 12’	1391
UE8314032	83” X 14’	1523
UE8316032	83” X 16’	1670
UE8318032	83” X 18’	1812
UE8320032	83” X 20’	N/A

Estimated weights for base models only.

OPTIONS

COUPLERS

2” A-frame Cast Coupler	C01
2” Hydraulic Coupler	C03
2” Adjustable Coupler (4hole)	C04
2-5/16” Cast A-Frame Coupler	C05
2-5/16” A-frame Stamped Coupler	C06
2-5/16” Adjustable Coupler (4-hole)	C07
3” Adjustable Pintle Ring (4-hole)	C11
2” A-frame Cast Bulldog Coupler	C25

AXLESS & SUSPENSION

(2) 3,500 Lb Dexter (1 Elec)/Spring Axles	ESA
(2) 3,500 Lb Dexter (2 Elec)/Spring Axles	ESB
(2) 3,500 Lb Dexter (1 Hyd.Drum)/Spring Axle	HS1
(2) 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axle	HS2

WHEELS & TIRES

ST205/75 R15 LRC 6 Ply w/Silver Wheels	AO2
ST205/75 R15 LRC 6 Ply w/Black Wheels	A26
ST205/75 R15 LRC 6 Ply w/Aluminum Wheels	A24
Spare ST205/75 R15 LRC 6 Ply 5-Hole (silver)	STC
Spare ST205/75 R15 LRC 6 Ply 5-Hole (black)	STA
Spare ST205/75 R15 LRC 6 Ply 5-Hole (aluminum)	STV

LANDING GEAR

2,000 lb. Jack	J00
5,000 lb. Swivel Jack	J01
7,000 lb. Drop-leg Jack	J02

TAIL, GATE, & RAMPS

2’ Dove Tail (12ft & up models only)	D01
2’ Dove w/Steel Diamond Plate (12ft & up models only)	D02
Board Slides	G00
Rear Tailgate (even with sides)	G01
3’ Angle Iron Fold Gate	G08
4’ Angle Iron Fold Gate	G09
4’ Angle Iron Split Fold Gate	G29
4’ Angle Iron Fold-in Gate	G19
4’ Tubing Bi-fold Gate	G94
5’ Tubing Bi-fold Gate w/Spring Assist	G95
3’ Tubing Fold Gate	G03
4’ Tubing Fold Gate	G04
5’ Tubing Fold Gate	G05
3’ Tubing Fold-in Gate	G13
4’ Tubing Fold-in Gate	G14
5’ Tubing Fold-in Gate	G15
4’ Tubing Split Fold Gate	G24
5’ Tubing Split Fold Gate	G25
3’ HD Fold Gate w/Spring Assist	G33
4’ HD Fold Gate w/Spring Assist	G34
5’ HD Fold Gate w/Spring Assist	G35
4’ HD Split Fold Gate w/Spring Assist	G44
5’ HD Split Fold Gate w/Spring Assist	G45
Spring Assist On Fold Gate	SA1
4’ Side Fold Gate	GS1
Side Rail Ramps	GS4
Front Fold Gate	GF1

SIDE RAILS

Angle Iron Side Rails	P02
2-3/8” Weld-on Pipe-top Side Rails	P03
2” x 2” Weld-on Square Tupe-top Side Rails	P04
16” Weld-on Expanded Metal Sides	Q01
16” Weld-on Solid Metal Sides	R01

FENDERS

Smooth Plate Tear Drop Fenders (removable)	F04
Smooth Plate Tear Drop Fenders (weld-on)	F03
Steel Diamond Plate Fenders (weld-on)	F05
Steel Diamond Plate Fenders (removable)	F06
Aluminum Fenders (removable)	F07

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Tilt Deck	GA1
Wrap-around Tongue (standard on 14ft model)	GA2
24” On-Center Crossmembers	I00
16” On-Center Crossmembers	I01
LED Lights w/Cold Weather Harness	L07
LED Back-Up Lights	L08
(4) U-Hooks	M04
(6) U-Hooks	M06
(8) U-Hooks	M08
3” Weld-on D-rings	M03
3” Removable D-Rings	M33
Mud Flaps	MF1
In-Tongue Tool Tray	T00
Tongue-Mount Toolbox	T01
Tongue-Mount Aluminum Toolbox	T17
Running Boards	RB1
2” Rub Rail	RR1
2 – Pipes (mount only) For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
4 – Additional Stake Pockets	SP1
Weedeater Rack	WE1
Front Tool Cage w/Exp. Metal	TC1
Spare Tire Mount	TM1
Removable Spare Tire Mount	TM2

POPULAR OPTIONS

POPULAR OPTIONS

Running Boards	RB1
4’ Fold-in Gate	G14
Spare Tire Mount	TM1
Wrap-around Tongue	GA2
Spring Assist On Gate	SA1
16” Weld-on Solid Metal Sides	R01
Side Rail Ramps	GS4

SIZE & WEIGHT

60″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE6010032	60” X 10’	1045
UE6012032	60” X 12’	1158
UE6014032	60” X 14’	1265
UE6016032	60” X 16’	1373
UE6018032	60” X 18’	N/A

72″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE7210032	72” X 10’	1045
UE7212032	72” X 12’	1158
UE7214032	72” X 14’	1265
UE7216032	72” X 16’	1373
UE7218032	72” X 18’	N/A

77″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE7710032	77” X 10’	1253
UE7712032	77” X 12’	1324
UE7714032	77” X 14’	1446
UE7716032	77” X 16’	1587
UE7718032	77” X 18’	N/A
UE7720032	77” X 20’	N/A

83″ WIDE
UE07 | 7,000 LB. G.V.W.R.
(TANDEM 3.5K AXLES)

UE8310032	83” X 10’	1252
UE8312032	83” X 12’	1391
UE8314032	83” X 14’	1523
UE8316032	83” X 16’	1670
UE8318032	83” X 18’	1812
UE8320032	83” X 20’	N/A

Estimated weights for base models only.

UE SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

UE | ANGLE FRAME UTILITY

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

UE07 | STANDARD FEATURES

UE07 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

UE07 | STANDARD FEATURES

UE07 | STANDARD FEATURES

UE SERIES HIGHLIGHTS
