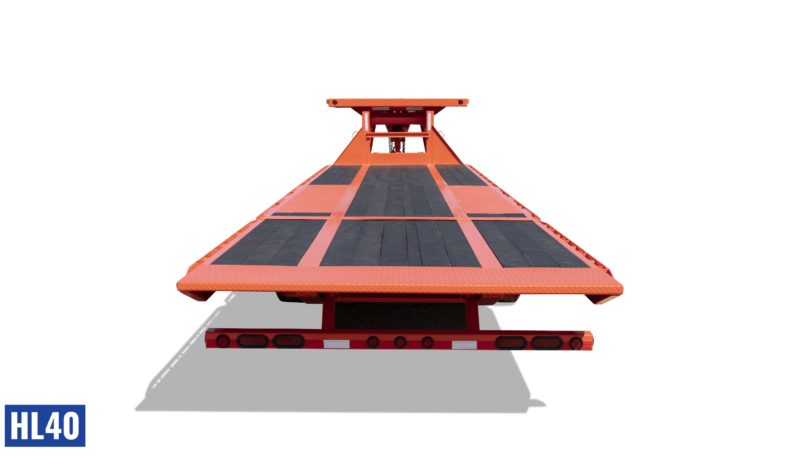

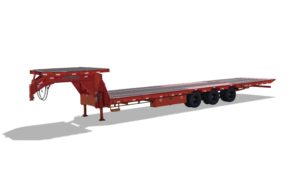

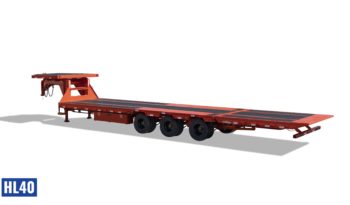

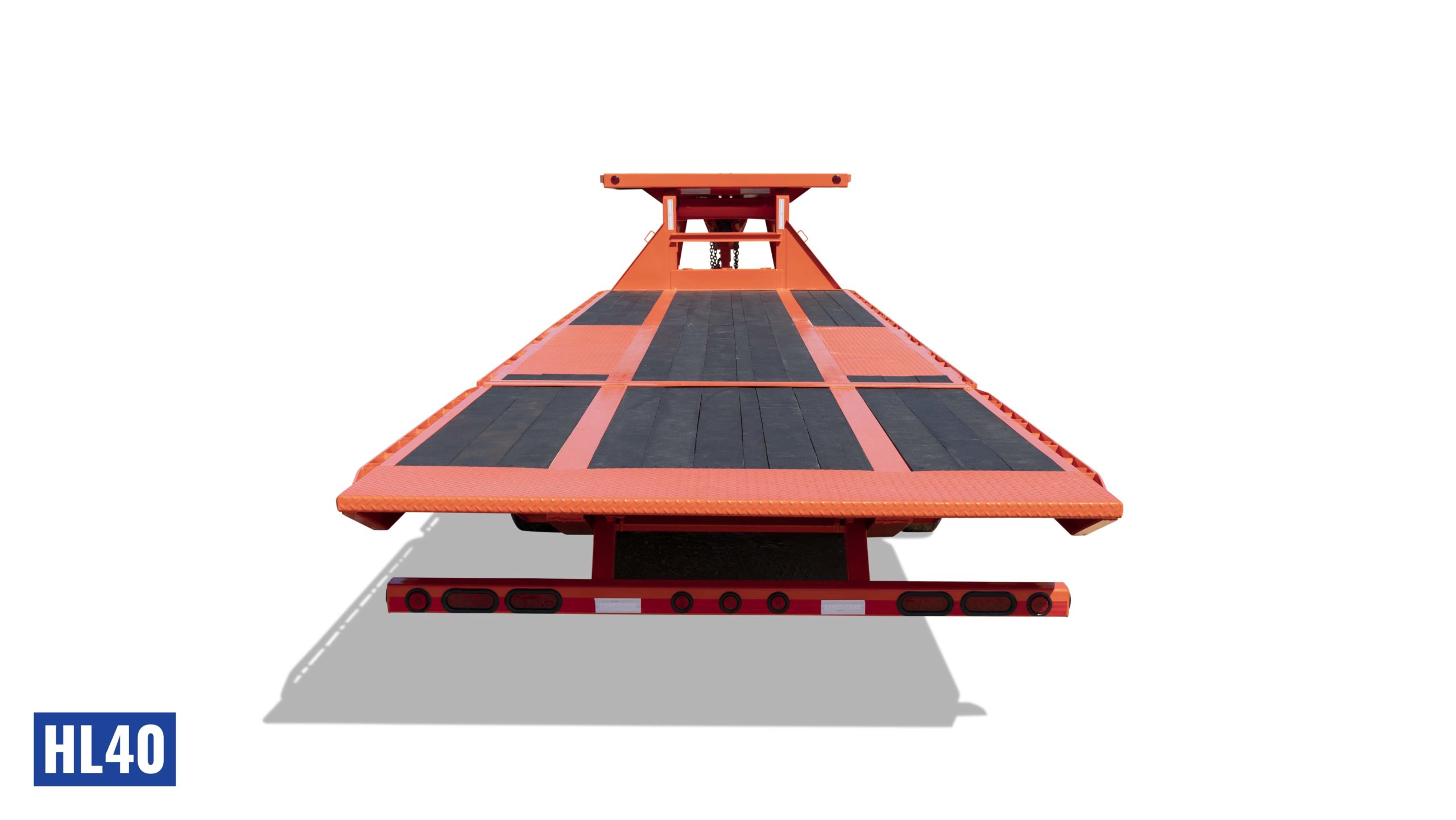

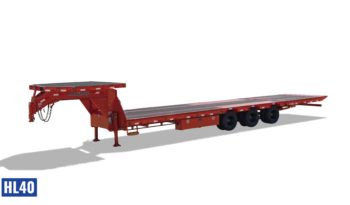

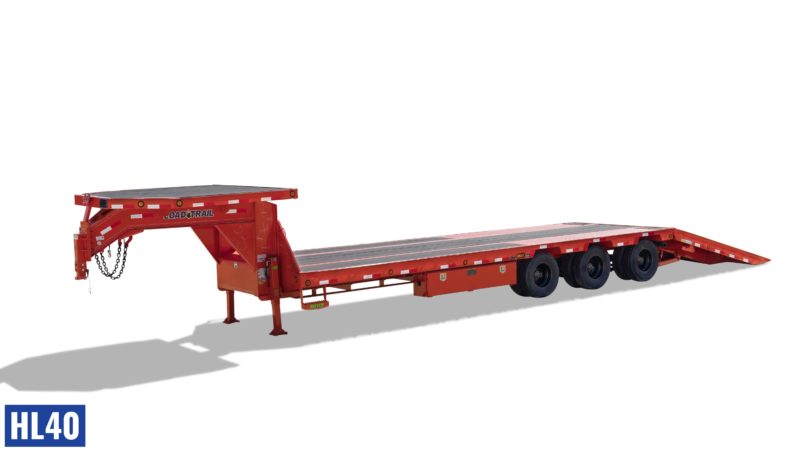

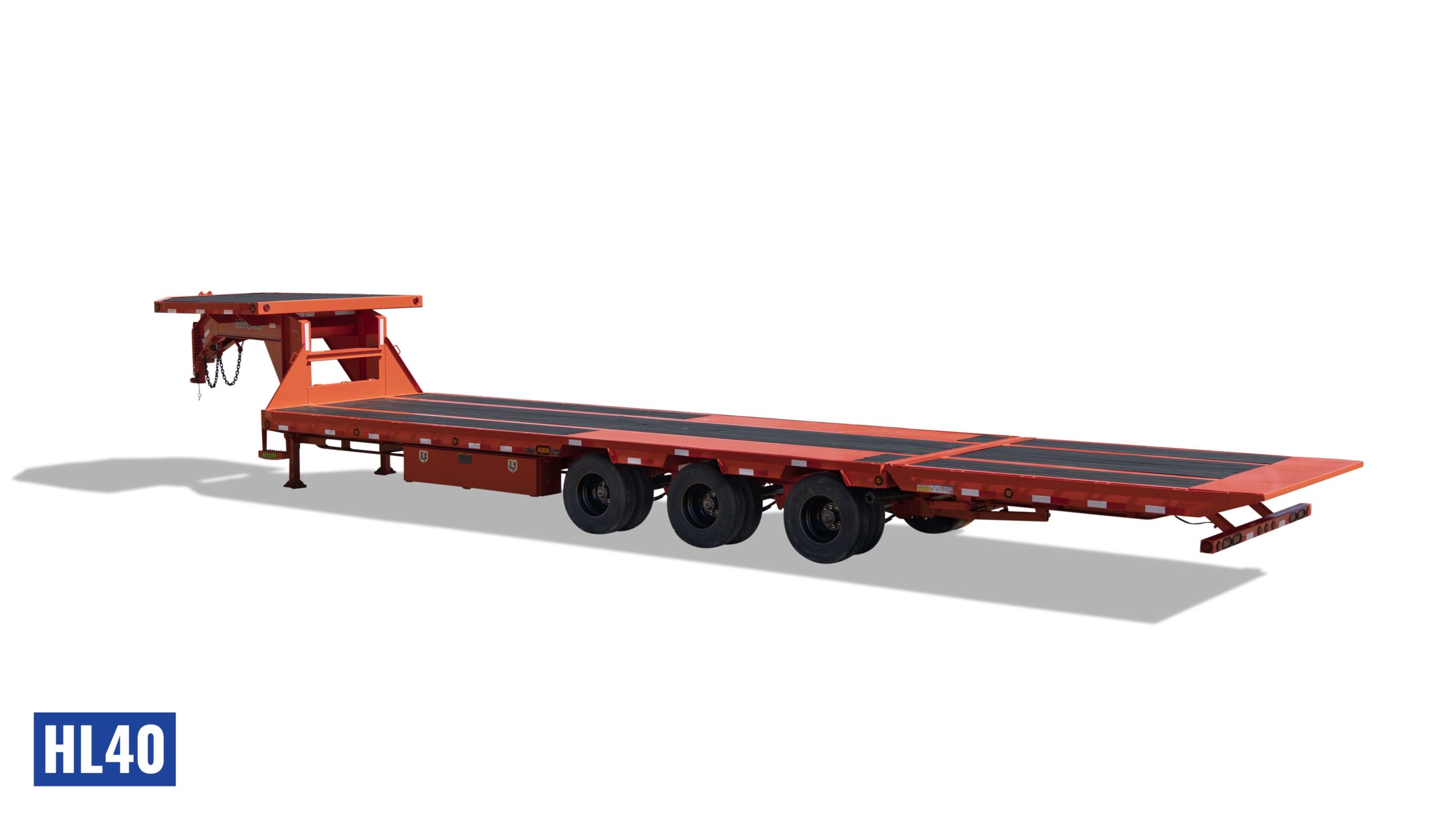

HL | 40K Low-Pro Deckover w/Hyd. Dove

HL40

CONFIGURATIONS SUMMARY

G.V.W.R.

40,000 Lbs

LENGTH

28′ – 44′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

40K Gooseneck

AXLES

(2/3) 12,000 – 15,000 Lbs

EST. WEIGHT

N/A lbs

G.A.W.R.

12,000 – 16,000 Lbs/Axle

HL40 | STANDARD FEATURES

G.V.W.R.	40,000 lbs
G.A.W.R.	12,000 lbs / Axle
NECK	14″ I-Beam
FRAME	14″ Pierced I-Beam
AXLES	(3) 12,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Dexter Heavy-Duty Suspension System
COUPLER	3” Adjustable Square Gooseneck
JACK	(2) 25,000 lb Drop-Leg
WHEELS	16” 8-Hole Tandem Dual Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)
CROSSMEMBERS	4” Channel, 16” On-center
TOOLBOX	Full-width Front
WINCH PLATE	8″ Channel Winch Plate
FLOOR	Treated Wood Flooring

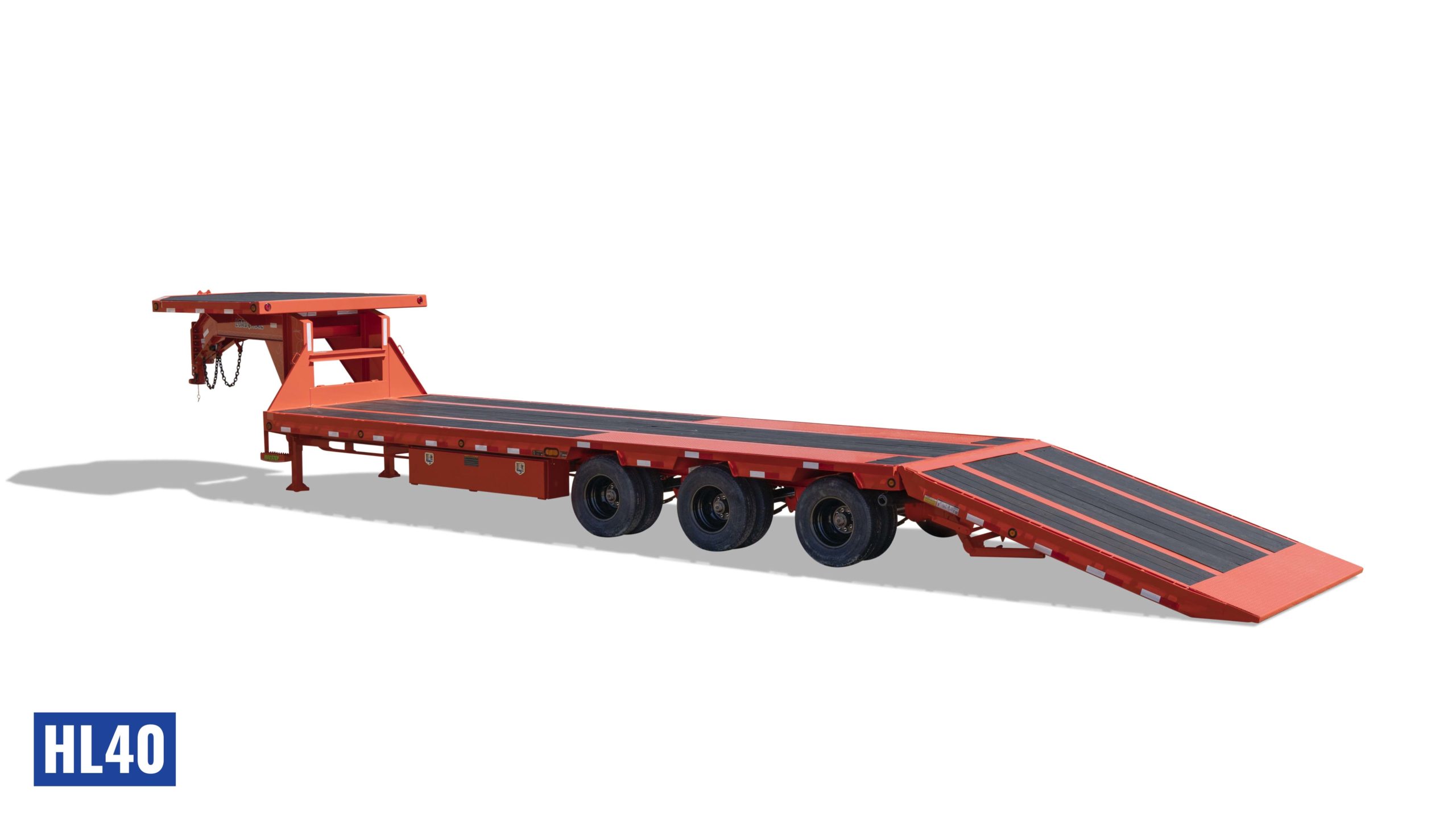

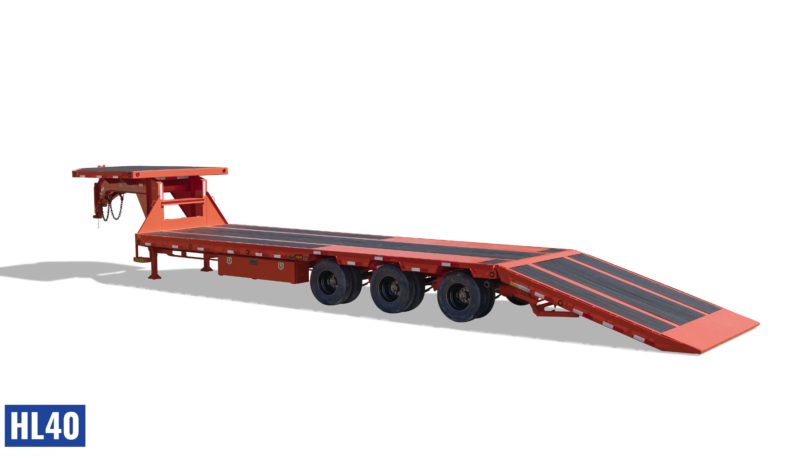

DECK	Straight Deck w/9 ft. Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/12v Battery + 5amp Charger
CYLINDER	3″ x 10″ x 1.25″
FRONT STORAGE	Full-width Front Tool Box
SIDE STORAGE	48″ Side-mount Tool Box (hyd. system storage)
RUB RAIL	2″ Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/2” x 42″ Grade 80 (48,000 lb)
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Axles are also available with hydraulic brakes. Under-frame bridge & pipe bridge standard on 36ft + up models.

PINTLE MODEL ALSO AVAILABLE

HL40

CONFIGURATIONS SUMMARY

G.V.W.R.

40,000 Lbs

LENGTH

28′ – 44′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

40K Gooseneck

AXLES

(2/3) 12,000 – 15,000 Lbs

EST. WEIGHT

N/A lbs

G.A.W.R.

12,000 – 16,000 Lbs/Axle

HL40 | STANDARD FEATURES

G.V.W.R.	40,000 lbs
G.A.W.R.	12,000 lbs / Axle
NECK	14″ I-Beam
FRAME	14″ Pierced I-Beam
AXLES	(3) 12,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Dexter Heavy-Duty Suspension System
COUPLER	3” Adjustable Square Gooseneck
JACK	(2) 25,000 lb Drop-Leg
WHEELS	16” 8-Hole Tandem Dual Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)
CROSSMEMBERS	4” Channel, 16” On-center
TOOLBOX	Full-width Front
WINCH PLATE	8″ Channel Winch Plate
FLOOR	Treated Wood Flooring

DECK	Straight Deck w/9 ft. Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/12v Battery + 5amp Charger
CYLINDER	3″ x 10″ x 1.25″
FRONT STORAGE	Full-width Front Tool Box
SIDE STORAGE	48″ Side-mount Tool Box (hyd. system storage)
RUB RAIL	2″ Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/2” x 42″ Grade 80 (48,000 lb)
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Axles are also available with hydraulic brakes. Under-frame bridge & pipe bridge standard on 36ft + up models.

PINTLE MODEL ALSO AVAILABLE

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLER & NECK

40K 3” Adjustable Sq. Gooseneck Coupler *Bulldog	C29
40K 3” Adjustable Square Gooseneck Coupler	C20

AXLES & SUSPENSION

2 – 15000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 15000 Lb Dexter (2 Air) Brake Axles	AS2
3 – 12000 Lb Dexter (3 Electric)/Spring Axles	ES3
3 – 12000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS3
3 – 12000 Lb Dexter (3 Air) Brake Axles	AS3

WHEELS & TIRES

ST235/80 R16 LRE 10 Ply With Silver Duals	A05
ST235/80 R16 LRE 10 Ply With Black Duals	A33
ST235/85 R16 LRG 14 Ply With Silver Duals	A06
ST235/85 R16 LRG 14 Ply With White Duals	A42
ST235/75 R17.5 LRJ 18 Ply With White Wheels	A30
ST235/75 R17.5 LRJ 18 Ply With Black Wheels	A43
ST215/75 R17.5 LRH 16 Ply With White Duals	A21
ST215/75 R17.5 LRH 16 Ply Duals *Black Wheels	A35

LANDING GEAR

(2) – 25K 2-Speed Drop-leg Jacks

J06

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

DOVETAIL

9’ Hydraulic Dovetail	DH9
9’ Self-Clean Hydraulic Dovetail	DHS
10’ Hydraulic Dovetail	DH10
10’ Self-Clean Hydraulic Dovetail	DHS0
Angle Cleats On DoveTail (outside only)	Cl1
Angle Cleats On DoveTail (whole dovetail)	Cl2
Square Bar Cleats On DoveTail (outside only)	Cl3
Bolt-on Cleats on Dovetail	Cl6
Blackwood On Dovetail	E02BW1
Blackwood PRO On Dovetail	E02BW2

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hy. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charing System (PowerMAX)	BC3
18 Amp Ra[id Battery Wall Charger	BC4

WINCH PACKAGE

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
Steel Diamond Plate Over Wheels	F99
16” OC Cross-Members	I01
12” OC Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
1 Set of Tool Box Brackets	TB1
Additional Sets of Tool Box Brackets	TB2
48” Side-Mount Tool Box	T03
72” Side-Mount Tool Box	T09
Top Riser Toolbox	T12
Under-Frame Bridge	U01
Pipe Bridge	U02
Under-frame Wood Rack	WR1
Ratchets (weld-on, 1 every 5 ft)	Z01
Ratchets (adjustable, 1 every 5 ft)	Z02
Ratchet Track (weld-on)	Z03
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
(1) – 6” Side Step	SS0
(1) – 15” MAX-Step	SM1
Spare Tire Mount *Fold-down	TM3
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8
Wheel Simulators	WS1

POPULAR OPTIONS

Locking Chain Rack	CR1
Blackwood Lumber Decking	E09
15” MAX-Step	SM1
Top Riser Tool Box	T12
17.5K Winch Package	W18
Adjustable Ratchets	Z02

HL40 | 40,000 LB. G.V.W.R.
(TRIPLE 12,000 LB. AXLES)

HL0230123	102” X 30’	N/A
HL0232123	102” X 32’	N/A
HL0234123	102” X 34’	N/A
HL0236123	102” X 36’	N/A
HL0238123	102” X 38′	N/A
HL0240123	102” X 40’	N/A
HL0242123	102” X 42’	N/A
HL0244123	102” X 44’	N/A

HL40 | 40,000 LB. G.V.W.R.
(TANDEM 15,000 LB. AXLE)

HL0230152	102” X 30’	N/A
HL0232152	102” X 32’	N/A
HL0234152	102” X 34’	N/A
HL0236152	102” X 36’	N/A
HL0238152	102” X 38’	N/A
HL0240152	102” X 40’	N/A
HL0242152	102” X 42’	N/A
HL0244152	102” X 44’	N/A

HL40 | 40,000 LB. G.V.W.R.
(TRIPLE 15,000 LB. AXLES)

HL0230153	102” X 30’	N/A
HL0232153	102” X 32’	N/A
HL0234153	102” X 34’	N/A
HL0236153	102” X 36’	N/A
HL0238153	102” X 38’	N/A
HL0240153	102” X 40’	N/A
HL0242153	102” X 42’	N/A
HL0244153	102” X 44’	N/A

Estimated weights for base models only.

OPTIONS

COUPLER & NECK

40K 3” Adjustable Sq. Gooseneck Coupler *Bulldog	C29
40K 3” Adjustable Square Gooseneck Coupler	C20

AXLES & SUSPENSION

2 – 15000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 15000 Lb Dexter (2 Air) Brake Axles	AS2
3 – 12000 Lb Dexter (3 Electric)/Spring Axles	ES3
3 – 12000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS3
3 – 12000 Lb Dexter (3 Air) Brake Axles	AS3

WHEELS & TIRES

ST235/80 R16 LRE 10 Ply With Silver Duals	A05
ST235/80 R16 LRE 10 Ply With Black Duals	A33
ST235/85 R16 LRG 14 Ply With Silver Duals	A06
ST235/85 R16 LRG 14 Ply With White Duals	A42
ST235/75 R17.5 LRJ 18 Ply With White Wheels	A30
ST235/75 R17.5 LRJ 18 Ply With Black Wheels	A43
ST215/75 R17.5 LRH 16 Ply With White Duals	A21
ST215/75 R17.5 LRH 16 Ply Duals *Black Wheels	A35

LANDING GEAR

(2) – 25K 2-Speed Drop-leg Jacks

J06

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

DOVETAIL

9’ Hydraulic Dovetail	DH9
9’ Self-Clean Hydraulic Dovetail	DHS
10’ Hydraulic Dovetail	DH10
10’ Self-Clean Hydraulic Dovetail	DHS0
Angle Cleats On DoveTail (outside only)	Cl1
Angle Cleats On DoveTail (whole dovetail)	Cl2
Square Bar Cleats On DoveTail (outside only)	Cl3
Bolt-on Cleats on Dovetail	Cl6
Blackwood On Dovetail	E02BW1
Blackwood PRO On Dovetail	E02BW2

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hy. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charing System (PowerMAX)	BC3
18 Amp Ra[id Battery Wall Charger	BC4

WINCH PACKAGE

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
Steel Diamond Plate Over Wheels	F99
16” OC Cross-Members	I01
12” OC Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
1 Set of Tool Box Brackets	TB1
Additional Sets of Tool Box Brackets	TB2
48” Side-Mount Tool Box	T03
72” Side-Mount Tool Box	T09
Top Riser Toolbox	T12
Under-Frame Bridge	U01
Pipe Bridge	U02
Under-frame Wood Rack	WR1
Ratchets (weld-on, 1 every 5 ft)	Z01
Ratchets (adjustable, 1 every 5 ft)	Z02
Ratchet Track (weld-on)	Z03
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
(1) – 6” Side Step	SS0
(1) – 15” MAX-Step	SM1
Spare Tire Mount *Fold-down	TM3
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8
Wheel Simulators	WS1

POPULAR OPTIONS

POPULAR OPTIONS

Locking Chain Rack	CR1
Blackwood Lumber Decking	E09
15” MAX-Step	SM1
Top Riser Tool Box	T12
17.5K Winch Package	W18
Adjustable Ratchets	Z02

SIZE & WEIGHT

HL40 | 40,000 LB. G.V.W.R.
(TRIPLE 12,000 LB. AXLES)

HL0230123	102” X 30’	N/A
HL0232123	102” X 32’	N/A
HL0234123	102” X 34’	N/A
HL0236123	102” X 36’	N/A
HL0238123	102” X 38′	N/A
HL0240123	102” X 40’	N/A
HL0242123	102” X 42’	N/A
HL0244123	102” X 44’	N/A

HL40 | 40,000 LB. G.V.W.R.
(TANDEM 15,000 LB. AXLE)

HL0230152	102” X 30’	N/A
HL0232152	102” X 32’	N/A
HL0234152	102” X 34’	N/A
HL0236152	102” X 36’	N/A
HL0238152	102” X 38’	N/A
HL0240152	102” X 40’	N/A
HL0242152	102” X 42’	N/A
HL0244152	102” X 44’	N/A

HL40 | 40,000 LB. G.V.W.R.
(TRIPLE 15,000 LB. AXLES)

HL0230153	102” X 30’	N/A
HL0232153	102” X 32’	N/A
HL0234153	102” X 34’	N/A
HL0236153	102” X 36’	N/A
HL0238153	102” X 38’	N/A
HL0240153	102” X 40’	N/A
HL0242153	102” X 42’	N/A
HL0244153	102” X 44’	N/A

Estimated weights for base models only.

HL SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

HL | 40K Low-Pro Deckover w/Hyd. Dove

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

HL40 | STANDARD FEATURES

HL40 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

HL40 | STANDARD FEATURES

HL40 | STANDARD FEATURES

HL SERIES HIGHLIGHTS
