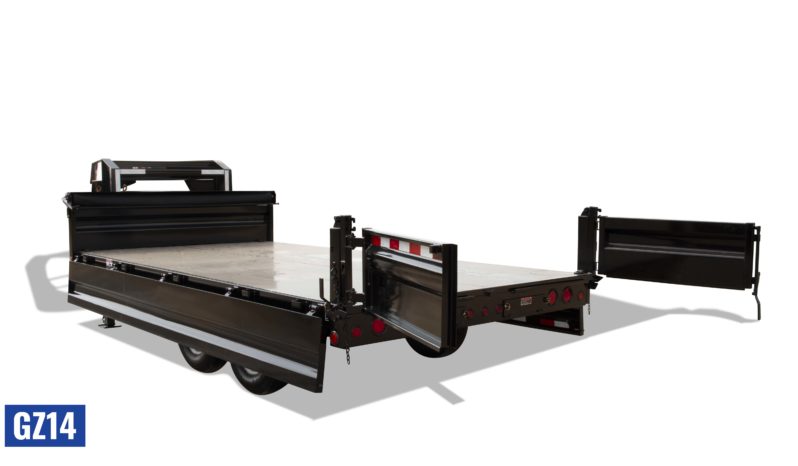

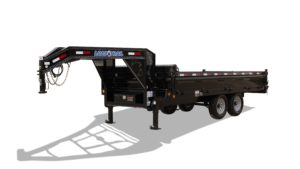

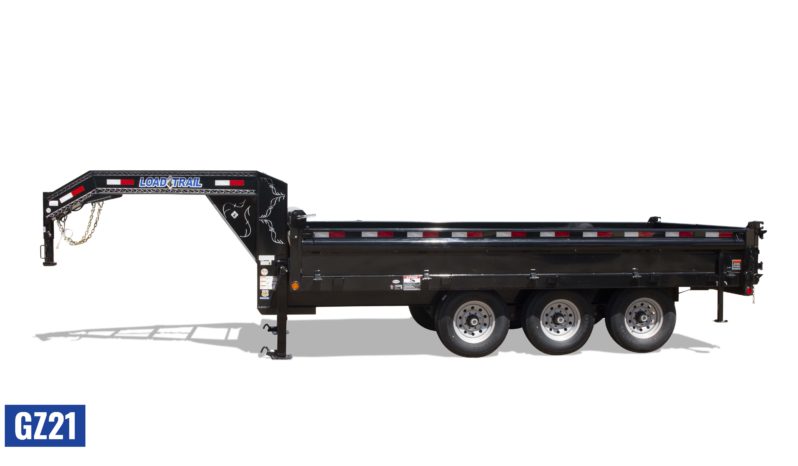

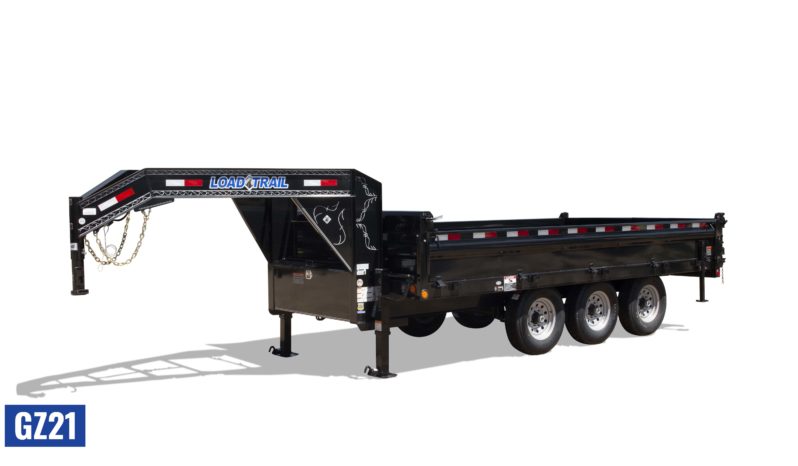

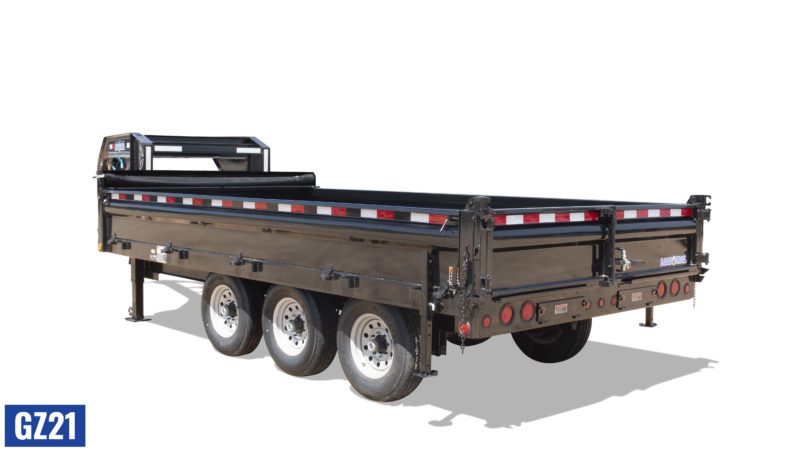

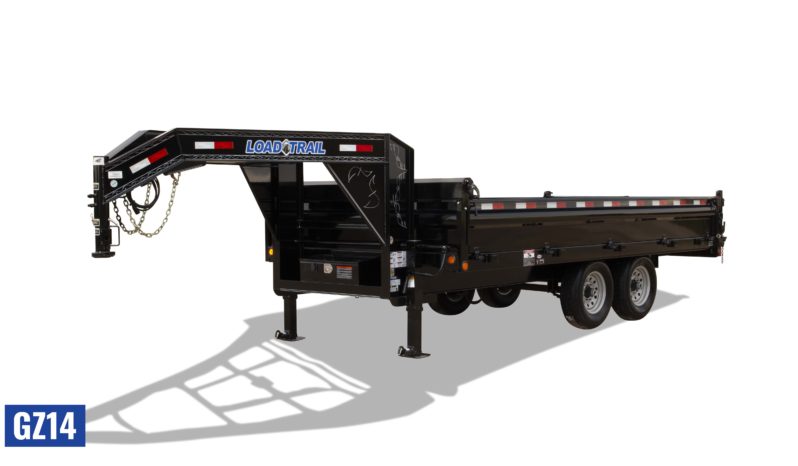

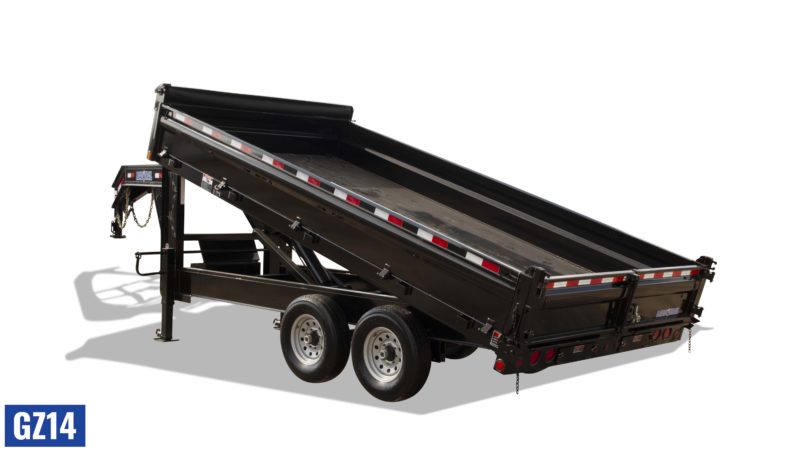

GZ | Gooseneck Deckover Dump

GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full
GZ | Gooseneck Deckover Dump full

FIND A DEALER

SHOP GZ INVENTORY

CUSTOM QUOTE

FINANCING

VIEW BROCHURE

VIEW DRAWING

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

12′ – 16′

WIDTH

96″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ Fold-down

LOAD CAPACITY

8,930 – 9,550 Lbs

BED CAPACITY

5.33 –  7.11 yd³

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

4,450 – 5,070 Lbs

GZ14 | STANDARD FEATURES

GZ14 | STANDARD FEATURES

G.V.W.R. 14,000 lbs
G.A.W.R. 7,000 lbs / Axle
NECK 10” I-Beam
FRAME 10” I-Beam
CROSSMEMBERS 4″ Channel
BED FRAME 2″ x 6″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Round Adjustable Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
SIDES 18″ High, 10 Gauge
FLOOR 10 Gauge Smooth Plate
STORAGE Full-width Front Toolbox
SPARE Fold-down Spare Tire Mount (spare included)
FENDERS Steel Diamond Plate
RAMPS 7′ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting axles. Manual gravity-down valve included on the hydraulic unit. 96” Ramps are only available on 16 ft models. 16ft models come standard with a 5”x21-1/2”x2” cylinder. The side-mount toolbox is available on 16ft model only. 50” Side door is only available with the 24” tall weld-on sides. Side options S02, S03, & S04 are weld-on sides, NOT fold-down sides.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

G.A.W.R.

8,000 Lbs/Axle

LENGTH

14′ – 16′

WIDTH

96″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ Fold-down

LOAD CAPACITY

10,700 – 11,820 Lbs

BED CAPACITY

6.22 –  7.11 yd³

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

4,180 – 5,300 Lbs

GZ16 | STANDARD FEATURES

GZ16 | STANDARD FEATURES

G.V.W.R. 16,000 lbs
G.A.W.R. 8,000 lbs / Axle
NECK 10” I-Beam
FRAME 10” I-Beam
CROSSMEMBERS 4″ Channel
BED FRAME 2″ x 6″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Round Adjustable Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
SIDES 18″ High, 10 Gauge
FLOOR 10 Gauge Smooth Plate
STORAGE Full-width Front Toolbox
SPARE HD Fold-down Spare Tire Mount (spare included)
FENDERS Steel Diamond Plate
RAMPS 7′ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting axles. Manual gravity-down valve included on the hydraulic unit. 96” Ramps are only available on 16 ft models. 16ft models come standard with a 5”x21-1/2”x2” cylinder. The side-mount toolbox is available on 16ft model only. 50” Side door is only available with the 24” tall weld-on sides. Side options S02, S03, & S04 are weld-on sides, NOT fold-down sides.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

16′

WIDTH

96″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ Fold-down

LOAD CAPACITY

14,820 Lbs

BED CAPACITY

7.11 yd³

COUPLER

Gooseneck

AXLES

(3) 7,000 Lb

EST. WEIGHT

6,180 Lbs

GZ21 | STANDARD FEATURES

GZ21 | STANDARD FEATURES

G.V.W.R. 21,000 lbs
G.A.W.R. 7,000 lbs / Axle
NECK 10” I-Beam
FRAME 10” I-Beam
CROSSMEMBERS 4″ Channel
BED FRAME 2″ x 6″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (3) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Round Adjustable Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
SIDES 18″ High, 10 Gauge
FLOOR 10 Gauge Smooth Plate
STORAGE Full-width Front Toolbox
SPARE Fold-down Spare Tire Mount (spare included)
FENDERS Steel Diamond Plate
RAMPS 7′ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 6″ x 21-1/2″ x 2″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting axles. Manual gravity-down valve included on the hydraulic unit. 96” Ramps are only available on 16 ft models. The side-mount toolbox is available on 16ft model only. 50” Side door is only available with the 24” tall weld-on sides. Side options S02, S03, & S04 are weld-on sides, NOT fold-down sides.
GZ14

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

12′ – 16′

WIDTH

96″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ Fold-down

LOAD CAPACITY

8,930 – 9,550 Lbs

BED CAPACITY

5.33 –  7.11 yd³

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

4,450 – 5,070 Lbs

GZ14 | STANDARD FEATURES

GZ14 | STANDARD FEATURES

G.V.W.R. 14,000 lbs
G.A.W.R. 7,000 lbs / Axle
NECK 10” I-Beam
FRAME 10” I-Beam
CROSSMEMBERS 4″ Channel
BED FRAME 2″ x 6″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Round Adjustable Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
SIDES 18″ High, 10 Gauge
FLOOR 10 Gauge Smooth Plate
STORAGE Full-width Front Toolbox
SPARE Fold-down Spare Tire Mount (spare included)
FENDERS Steel Diamond Plate
RAMPS 7′ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting axles. Manual gravity-down valve included on the hydraulic unit. 96” Ramps are only available on 16 ft models. 16ft models come standard with a 5”x21-1/2”x2” cylinder. The side-mount toolbox is available on 16ft model only. 50” Side door is only available with the 24” tall weld-on sides. Side options S02, S03, & S04 are weld-on sides, NOT fold-down sides.
GZ16

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

G.A.W.R.

8,000 Lbs/Axle

LENGTH

14′ – 16′

WIDTH

96″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ Fold-down

LOAD CAPACITY

10,700 – 11,820 Lbs

BED CAPACITY

6.22 –  7.11 yd³

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

4,180 – 5,300 Lbs

GZ16 | STANDARD FEATURES

GZ16 | STANDARD FEATURES

G.V.W.R. 16,000 lbs
G.A.W.R. 8,000 lbs / Axle
NECK 10” I-Beam
FRAME 10” I-Beam
CROSSMEMBERS 4″ Channel
BED FRAME 2″ x 6″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Round Adjustable Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
SIDES 18″ High, 10 Gauge
FLOOR 10 Gauge Smooth Plate
STORAGE Full-width Front Toolbox
SPARE HD Fold-down Spare Tire Mount (spare included)
FENDERS Steel Diamond Plate
RAMPS 7′ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting axles. Manual gravity-down valve included on the hydraulic unit. 96” Ramps are only available on 16 ft models. 16ft models come standard with a 5”x21-1/2”x2” cylinder. The side-mount toolbox is available on 16ft model only. 50” Side door is only available with the 24” tall weld-on sides. Side options S02, S03, & S04 are weld-on sides, NOT fold-down sides.

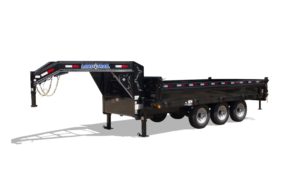

GZ21

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

16′

WIDTH

96″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ Fold-down

LOAD CAPACITY

14,820 Lbs

BED CAPACITY

7.11 yd³

COUPLER

Gooseneck

AXLES

(3) 7,000 Lb

EST. WEIGHT

6,180 Lbs

GZ21 | STANDARD FEATURES

GZ21 | STANDARD FEATURES

G.V.W.R. 21,000 lbs
G.A.W.R. 7,000 lbs / Axle
NECK 10” I-Beam
FRAME 10” I-Beam
CROSSMEMBERS 4″ Channel
BED FRAME 2″ x 6″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (3) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Round Adjustable Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
SIDES 18″ High, 10 Gauge
FLOOR 10 Gauge Smooth Plate
STORAGE Full-width Front Toolbox
SPARE Fold-down Spare Tire Mount (spare included)
FENDERS Steel Diamond Plate
RAMPS 7′ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 6″ x 21-1/2″ x 2″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting axles. Manual gravity-down valve included on the hydraulic unit. 96” Ramps are only available on 16 ft models. The side-mount toolbox is available on 16ft model only. 50” Side door is only available with the 24” tall weld-on sides. Side options S02, S03, & S04 are weld-on sides, NOT fold-down sides.
COUPLERS & NECK
2-5/16” Adjustable Round Gooseneck Coupler C14
2-5/16” Adjustable Square Gooseneck Coupler C15
2-5/16” Adjustable Square Gooseneck Coupler (30K) C17
5th Wheel Adjustable Round Kingpin Adapter C50
5th Wheel Adjustable Square Kingpin Adapter C51
6” Raised Neck N01
12” Raised Neck N02
2-5/16” Coupler at Standard Height with 6” Taller Neck C32
AXLES & SUSPENSION
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles ESB
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles DS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ESB0
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles ETBD
2 – 8,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ES20
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring/Oil Bath DS20
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring/EZ Lube DS2E
2 – 8,000 Lb Dexter (2 Elec.)/Torsion/Oil Bath ETD0
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles ESC
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles Oil Bath ESC0
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles ETCD
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles DS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath DS30
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles HT3D
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Torsion Axles DT3D
3 – 8,000 Lb Dexter (3 Elec.)/Spring Axles *Oil Bath ES30
3 – 8,000 Lb Dexter (3 Elec.)/Torsion Axles *Oil Bath ET3D
3 – 8,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath DS30
3 – 8,000 Lb Dexter (3 Hyd. Drum)/Torsion *Oil Bath HT3D0
WHEELS & TIRES
ST235/80 R16 LRE 10 Ply (Silver Wheels) A05
ST235/80 R16 LRE 10 Ply (Black Wheels) A28
ST235/80 R16 LRE 10 Ply (Silver Wheels) A06
ST235/80 R16 LRE 10 Ply (Black Wheels) A29
ST215/75 R17.5 LRH 16 Ply A15
ST215/75 R17.5 LRH 16 Ply *Provider (Black Wheels) A25
ST215/75 R17.5 LRH 16 Ply *Provider (White Wheels) A38
ST235/75 R17.5 LRJ 18 Ply A30
ST235/75 R17.5 LRJ 18 Ply (Black Wheels) A43
ST235/85 R16 LRG 14 Ply A06
LANDING GEAR
(1) – 10K Drop-leg Jack J04
(1) – 12K, 2-Speed Jack J12
(1) – MAX-Jack (hydraulic) J11
(2) – 10K Drop-leg Jacks J05
(2) – 25K 2-Speed Drop-leg Jacks J06
(2) – MAX-Jacks (hydraulic – 4-button) J07
GATES & RAMPS
80”x 16” Rear Slide-In Ramps H55
80”x 16” Heavy-Duty Rear Slide-In Ramps H58
96”x 16” Rear Slide-in Ramps H65
96”x 16” Heavy-Duty Rear Slide-in Ramps H59
FLOOR, SIDES & EXTENSIONS
18” Fold-down Dump Sides S00
24” Dump Sides S02
36” Dump Sides S03
48” Dump Sides S04
7-Gauge Floor 7GF
50” Side Door SD2
HYDRAULICS & CHARGERS
Telescopic Cylinder V01
Dual-acting Hydraulic Unit w/Scissor Hoist V02
3-way Hydraulic Unit w/Scissor Hoist V03
621 Scissor Hoist V04
Gas Powered Hydraulic System V06
(1) Solar Panel Charger SC1
(2) Solar Panel Charger SC2
5 Amp Battery Wall Charger BC1
8 Amp Battery Wall Charger BC2
20 Amp, 12v In-line Battery Charging System BC3
18 Amp Ra[id Battery Wall Charger BC4
Wireless Remote For Dual Acting Hd. System RC1
Wireless Remote For 4-Button System RC4
Remote Switch w/Voltage Indicator RC5
Bluetooth Wireless Remote For (Dual-acting System) RC6
2nd 12v Battery BT1
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Fork Holders FH1
16” On-center Crossmembers I01
12” On-center Crossmembers I02
LED Light Bar, Single Row L10
LED Light Bar, Dual Row L11
7-way RV w/Cold Weather Harness L07
LED Back Up Lights w/Cold Weather Harness L08
Additional 3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
Mud Flaps MF1
Full-width Tool Box T20
Top Riser Toolbox T12
Winch Plate (8” Channel) W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
Tarp Kit TP1
102” x 96” Deck-Over-Neck D01
102” x 96” Deck-Over-Neck, w/45° Front Corners D02
102” x 96” Deck-Over-Neck w/Front Rail D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail D04
Bumper Attached Receiver Hitch RH1
2 – Pipes For Rear Support Stands RS0
2 – Rear Support Stands (5K swivel jacks) RS1
2 – Rear Support Stands (2” x 2” Tubing) RS2
2 – Rear Support Stands (7k Jacks) RS3
(1) – 30” MAX-Step SM11
(2) – 30” MAX-Steps SM12
Fold-Down Spare Tire Mount TM3
HD Fold-Down Spare Tire Mount TM5
4 – Additional Stake Pockets Sp1
8 – Additional Stake Pockets SP8
POPULAR OPTIONS
LED Light Bar, Dual Row L11
20 Amp, 12v In-line Battery Charging System BC3
Solar Panel Charger SC1
Tandem 10K Drop-leg Jacks J05
Wireless Remote For Dual Acting Hyd. System RC1
Telescopic Cylinder V01
14,000 GVWR
TANDEM AXLE
GZ9612072 96″ x 12′ 3686
GZ9614072 96″ x 14′ 3991
GZ9616072 96″ x 16′ 4296
16,000 GVWR
TANDEM AXLE
GZ9612082 83″ x 16′ N/A
GZ9614082 83″ x 14′ 4,180
GZ9616082 83″ x 16′ 5,300
21,000 GVWR
TRIPLE AXLE
GZ9616073 96″ x 16′ 4296
GZ9616083 96″ x 16′ 5,300
Estimated weights for base models only.
OPTIONS
COUPLERS & NECK
2-5/16” Adjustable Round Gooseneck Coupler C14
2-5/16” Adjustable Square Gooseneck Coupler C15
2-5/16” Adjustable Square Gooseneck Coupler (30K) C17
5th Wheel Adjustable Round Kingpin Adapter C50
5th Wheel Adjustable Square Kingpin Adapter C51
6” Raised Neck N01
12” Raised Neck N02
2-5/16” Coupler at Standard Height with 6” Taller Neck C32
AXLES & SUSPENSION
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles ESB
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles DS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ESB0
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles ETBD
2 – 8,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ES20
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring/Oil Bath DS20
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring/EZ Lube DS2E
2 – 8,000 Lb Dexter (2 Elec.)/Torsion/Oil Bath ETD0
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles ESC
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles Oil Bath ESC0
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles ETCD
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles DS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath DS30
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles HT3D
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Torsion Axles DT3D
3 – 8,000 Lb Dexter (3 Elec.)/Spring Axles *Oil Bath ES30
3 – 8,000 Lb Dexter (3 Elec.)/Torsion Axles *Oil Bath ET3D
3 – 8,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath DS30
3 – 8,000 Lb Dexter (3 Hyd. Drum)/Torsion *Oil Bath HT3D0
WHEELS & TIRES
ST235/80 R16 LRE 10 Ply (Silver Wheels) A05
ST235/80 R16 LRE 10 Ply (Black Wheels) A28
ST235/80 R16 LRE 10 Ply (Silver Wheels) A06
ST235/80 R16 LRE 10 Ply (Black Wheels) A29
ST215/75 R17.5 LRH 16 Ply A15
ST215/75 R17.5 LRH 16 Ply *Provider (Black Wheels) A25
ST215/75 R17.5 LRH 16 Ply *Provider (White Wheels) A38
ST235/75 R17.5 LRJ 18 Ply A30
ST235/75 R17.5 LRJ 18 Ply (Black Wheels) A43
ST235/85 R16 LRG 14 Ply A06
LANDING GEAR
(1) – 10K Drop-leg Jack J04
(1) – 12K, 2-Speed Jack J12
(1) – MAX-Jack (hydraulic) J11
(2) – 10K Drop-leg Jacks J05
(2) – 25K 2-Speed Drop-leg Jacks J06
(2) – MAX-Jacks (hydraulic – 4-button) J07
GATES & RAMPS
80”x 16” Rear Slide-In Ramps H55
80”x 16” Heavy-Duty Rear Slide-In Ramps H58
96”x 16” Rear Slide-in Ramps H65
96”x 16” Heavy-Duty Rear Slide-in Ramps H59
FLOOR, SIDES & EXTENSIONS
18” Fold-down Dump Sides S00
24” Dump Sides S02
36” Dump Sides S03
48” Dump Sides S04
7-Gauge Floor 7GF
50” Side Door SD2
HYDRAULICS & CHARGERS
Telescopic Cylinder V01
Dual-acting Hydraulic Unit w/Scissor Hoist V02
3-way Hydraulic Unit w/Scissor Hoist V03
621 Scissor Hoist V04
Gas Powered Hydraulic System V06
(1) Solar Panel Charger SC1
(2) Solar Panel Charger SC2
5 Amp Battery Wall Charger BC1
8 Amp Battery Wall Charger BC2
20 Amp, 12v In-line Battery Charging System BC3
18 Amp Ra[id Battery Wall Charger BC4
Wireless Remote For Dual Acting Hd. System RC1
Wireless Remote For 4-Button System RC4
Remote Switch w/Voltage Indicator RC5
Bluetooth Wireless Remote For (Dual-acting System) RC6
2nd 12v Battery BT1
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Fork Holders FH1
16” On-center Crossmembers I01
12” On-center Crossmembers I02
LED Light Bar, Single Row L10
LED Light Bar, Dual Row L11
7-way RV w/Cold Weather Harness L07
LED Back Up Lights w/Cold Weather Harness L08
Additional 3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
Mud Flaps MF1
Full-width Tool Box T20
Top Riser Toolbox T12
Winch Plate (8” Channel) W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
Tarp Kit TP1
102” x 96” Deck-Over-Neck D01
102” x 96” Deck-Over-Neck, w/45° Front Corners D02
102” x 96” Deck-Over-Neck w/Front Rail D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail D04
Bumper Attached Receiver Hitch RH1
2 – Pipes For Rear Support Stands RS0
2 – Rear Support Stands (5K swivel jacks) RS1
2 – Rear Support Stands (2” x 2” Tubing) RS2
2 – Rear Support Stands (7k Jacks) RS3
(1) – 30” MAX-Step SM11
(2) – 30” MAX-Steps SM12
Fold-Down Spare Tire Mount TM3
HD Fold-Down Spare Tire Mount TM5
4 – Additional Stake Pockets Sp1
8 – Additional Stake Pockets SP8
POPULAR OPTIONS
POPULAR OPTIONS
LED Light Bar, Dual Row L11
20 Amp, 12v In-line Battery Charging System BC3
Solar Panel Charger SC1
Tandem 10K Drop-leg Jacks J05
Wireless Remote For Dual Acting Hyd. System RC1
Telescopic Cylinder V01
SIZE & WEIGHT
14,000 GVWR
TANDEM AXLE
GZ9612072 96″ x 12′ 3686
GZ9614072 96″ x 14′ 3991
GZ9616072 96″ x 16′ 4296
16,000 GVWR
TANDEM AXLE
GZ9612082 83″ x 16′ N/A
GZ9614082 83″ x 14′ 4,180
GZ9616082 83″ x 16′ 5,300
21,000 GVWR
TRIPLE AXLE
GZ9616073 96″ x 16′ 4296
GZ9616083 96″ x 16′ 5,300
Estimated weights for base models only.

GZ SERIES HIGHLIGHTS

null

Dealer Network
Image is not available
I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

Image is not available
FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

Image is not available
DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

null
null
null
null

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

Left Menu Icon
