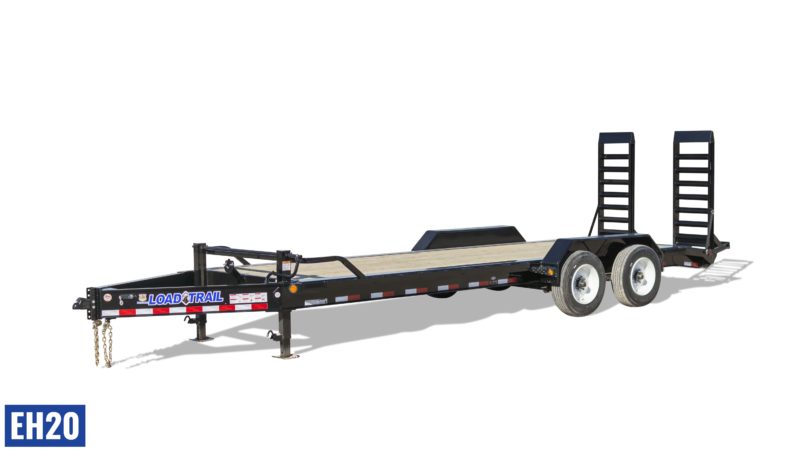

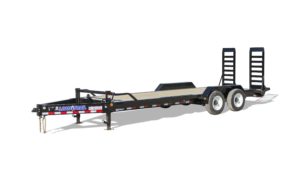

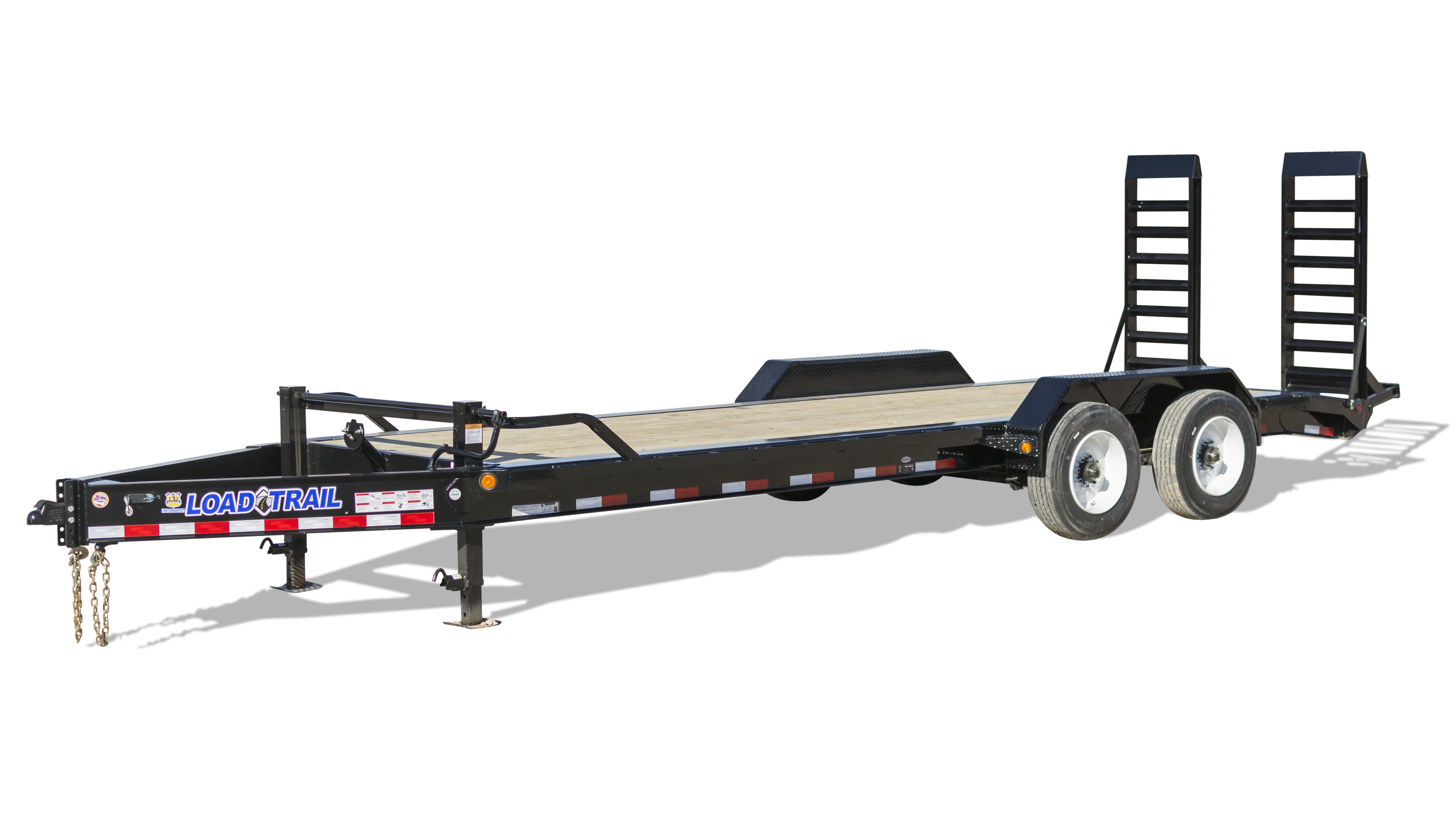

EH | I-Beam Equipment Hauler

EH20

CONFIGURATIONS SUMMARY

G.V.W.R.

20,000 Lbs

G.A.W.R.

10,000 Lbs/Axle

LENGTH

16′ – 40′

WIDTH

82″ – 102″

DECK HEIGHT

27″

AXLES

(2) 7,000 Lb

COUPLER

Bumper Pull & Pintle

EST. WEIGHT

N/A

EH20 | STANDARD FEATURES

G.V.W.R.	20,000 lbs
G.A.W.R.	7,000 lbs / Axle
TONGUE	10″ I-Beam
FRAME	10″ I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 10,000 lb Dexter Torsion, 2 Electric Brake
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable
JACK	(1) 10,000 lb Drop-leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
FENDERS	Steel Diamond Plate, Weld-on

STORAGE	Front Tool Tray
DECK	Straight Deck w/Slide-in Ramps
RAMPS	60″ x 22″′ Slide-in Ramps
FLOOR	Treated Wood Floor
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 3/8” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Models 18′ and up come with rear slide-in ramps. Models 16′ and down come with side slide-in ramps. Diamond plate drive-over fenders are standard on 102″ wide models. 16′ – 22′ models are built with a 6″ channel tongue & frame, 24′ models and up are built with an 8″ channel tongue & frame.

EH20

CONFIGURATIONS SUMMARY

G.V.W.R.

20,000 Lbs

G.A.W.R.

10,000 Lbs/Axle

LENGTH

16′ – 40′

WIDTH

82″ – 102″

DECK HEIGHT

27″

AXLES

(2) 7,000 Lb

COUPLER

Bumper Pull & Pintle

EST. WEIGHT

N/A

EH20 | STANDARD FEATURES

G.V.W.R.	20,000 lbs
G.A.W.R.	7,000 lbs / Axle
TONGUE	10″ I-Beam
FRAME	10″ I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 10,000 lb Dexter Torsion, 2 Electric Brake
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable
JACK	(1) 10,000 lb Drop-leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
FENDERS	Steel Diamond Plate, Weld-on

STORAGE	Front Tool Tray
DECK	Straight Deck w/Slide-in Ramps
RAMPS	60″ x 22″′ Slide-in Ramps
FLOOR	Treated Wood Floor
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 3/8” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLER

2-5/16” Adjustable Flat Mount Coupler	C09
2-5/16” Adjustable Coupler, (6-Hole)	C10
3” Adjustable Pintle Ring, (Plate Mount)	C12

AXLES & SUSPENSION

2 – 10,000 Lb Dexter 2 Electric/Torsion Axles

ET2

WHEELS & TIRES

ST215/75 R17.5 LRH 16 Ply w/White Wheels	A15
ST215/75 R17.5 LRH 16 Ply Provider w/White Wheels	A38
ST215/75 R17.5 LRH 16 Ply Provider w/Black Wheels	A25
ST215/75 R17.5 (Singles) w/Aluminum Wheels	A22

TAIL, GATE, & RAMPS

2’ Dovetail w/Treated Wood	D01
2’ Dovetail w/Steel Diamond Plate	D02
5’ x 16” Rear Slide-in Ramps	H64
5’ x 24” x 4” Fold-up Ramps	H25
MAX-Ramps	H08

LANDING GEAR

(2) – 10K Drop-Leg Jacks	J05
(2) – MAX-Jacks (hydraulic)	J07

FENDERS

Steel Diamond Plate Fenders (weld-on)

F05

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Fork Holders	FH1
16” On-Center Crossmembers	I01
12” On-Center Crossmembers	I02
LED Light Bar – Single Row	L10
LED Light Bar – Dual Row	L11
7-Way RV Plug w/Cold Weather Harness	L07
LED Back-Up Lights	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
In-Tongue Tool Tray	T00
Tongue-Mount Toolbox	T01
In-Tongue Tool Tray + Tongue-mount Toolbox	T00T01
Tongue-Mount Aluminum Toolbox	T17
22” Tongue-Mount Toolbox	T13
22” Double-deck Tongue-mount Toolbox	T15
Winch Plate (8” Channel)	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18
1/2” Winch Plate w/Winch-ready Kit	W22
Running Boards	RB1
Receiver Hitch	RH1
2” Rub Rail	RR1
2 – Pipes For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
2 – Rear Support Stands (7k Jacks)	RS3
(1) – 30” MAX-Step	SM11
(2) – 30” MAX-Steps	SM12
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8
Spare Tire Mount	TM1
Removable Spare Tire Mount	TM2

POPULAR OPTIONS

2′ Dove Tail	D01
Drive-Over Fenders	F09
Tongue-Mount Toolbox	T01
Running Boards	RB1
2” Rub Rail	RR1
Spare Tire Mount	TM1

82″ WIDE
EH20 | 20,000 Lb. G.V.W.R.
TANDEM 10K AXLES

EH8220102	82″ x 20′	N/A
EH8222102	82″ x 22′	N/A
EH8224102	82″ x 24′	N/A
EH8226102	82″ x 26′	N/A
EH8228102	82″ x 28′	N/A
EH8230102	82″ x 30′	N/A
EH8232102	82″ x 32′	N/A
EH8234102	82″ x 34′	N/A
EH8236102	82″ x 36′	N/A

102″ WIDE
EH20 | 20,000 Lb. G.V.W.R.
TANDEM 10K AXLES

EH0220102	102″ x 20′	N/A
EH0222102	102″ x 22′	N/A
EH0224102	102″ x 24′	N/A
EH0226102	102″ x 26′	N/A
EH0228102	102″ x 28′	N/A
EH0230102	102″ x 30′	N/A
EH0232102	102″ x 32′	N/A
EH0234102	102″ x 34′	N/A
EH0236102	102″ x 36′	N/A

Estimated weights for base models only.

OPTIONS

COUPLER

2-5/16” Adjustable Flat Mount Coupler	C09
2-5/16” Adjustable Coupler, (6-Hole)	C10
3” Adjustable Pintle Ring, (Plate Mount)	C12

AXLES & SUSPENSION

2 – 10,000 Lb Dexter 2 Electric/Torsion Axles

ET2

WHEELS & TIRES

ST215/75 R17.5 LRH 16 Ply w/White Wheels	A15
ST215/75 R17.5 LRH 16 Ply Provider w/White Wheels	A38
ST215/75 R17.5 LRH 16 Ply Provider w/Black Wheels	A25
ST215/75 R17.5 (Singles) w/Aluminum Wheels	A22

TAIL, GATE, & RAMPS

2’ Dovetail w/Treated Wood	D01
2’ Dovetail w/Steel Diamond Plate	D02
5’ x 16” Rear Slide-in Ramps	H64
5’ x 24” x 4” Fold-up Ramps	H25
MAX-Ramps	H08

LANDING GEAR

(2) – 10K Drop-Leg Jacks	J05
(2) – MAX-Jacks (hydraulic)	J07

FENDERS

Steel Diamond Plate Fenders (weld-on)

F05

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Fork Holders	FH1
16” On-Center Crossmembers	I01
12” On-Center Crossmembers	I02
LED Light Bar – Single Row	L10
LED Light Bar – Dual Row	L11
7-Way RV Plug w/Cold Weather Harness	L07
LED Back-Up Lights	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
In-Tongue Tool Tray	T00
Tongue-Mount Toolbox	T01
In-Tongue Tool Tray + Tongue-mount Toolbox	T00T01
Tongue-Mount Aluminum Toolbox	T17
22” Tongue-Mount Toolbox	T13
22” Double-deck Tongue-mount Toolbox	T15
Winch Plate (8” Channel)	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18
1/2” Winch Plate w/Winch-ready Kit	W22
Running Boards	RB1
Receiver Hitch	RH1
2” Rub Rail	RR1
2 – Pipes For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
2 – Rear Support Stands (7k Jacks)	RS3
(1) – 30” MAX-Step	SM11
(2) – 30” MAX-Steps	SM12
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8
Spare Tire Mount	TM1
Removable Spare Tire Mount	TM2

POPULAR OPTIONS

POPULAR OPTIONS

2′ Dove Tail	D01
Drive-Over Fenders	F09
Tongue-Mount Toolbox	T01
Running Boards	RB1
2” Rub Rail	RR1
Spare Tire Mount	TM1

SIZE & WEIGHT

82″ WIDE
EH20 | 20,000 Lb. G.V.W.R.
TANDEM 10K AXLES

EH8220102	82″ x 20′	N/A
EH8222102	82″ x 22′	N/A
EH8224102	82″ x 24′	N/A
EH8226102	82″ x 26′	N/A
EH8228102	82″ x 28′	N/A
EH8230102	82″ x 30′	N/A
EH8232102	82″ x 32′	N/A
EH8234102	82″ x 34′	N/A
EH8236102	82″ x 36′	N/A

102″ WIDE
EH20 | 20,000 Lb. G.V.W.R.
TANDEM 10K AXLES

EH0220102	102″ x 20′	N/A
EH0222102	102″ x 22′	N/A
EH0224102	102″ x 24′	N/A
EH0226102	102″ x 26′	N/A
EH0228102	102″ x 28′	N/A
EH0230102	102″ x 30′	N/A
EH0232102	102″ x 32′	N/A
EH0234102	102″ x 34′	N/A
EH0236102	102″ x 36′	N/A

Estimated weights for base models only.
