DT | Bumper Pull Dump

DT07
DT10
DT14

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

3,500 Lbs/Axle

LENGTH

10′

WIDTH

60″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 24″ H

LOAD CAPACITY

4,216 – 4,816 Lbs

BED CAPACITY

2.78 – 10.25 yd³

COUPLER

Bumper Pull

AXLES

(2) 3,500 Lb

EST. WEIGHT

2,177 – 2,784 Lbs

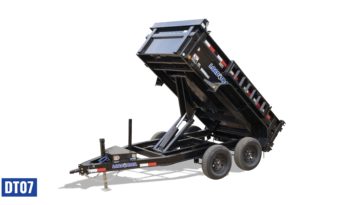

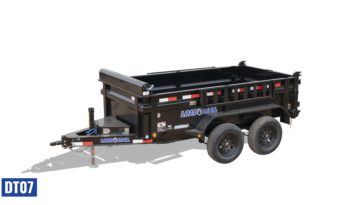

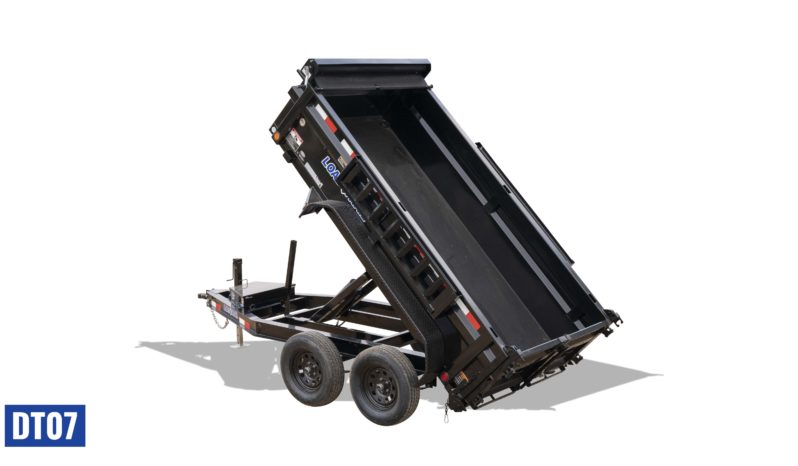

DT07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	3,500 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(2) 3,500 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 5-Hole Wheels
TIRES	ST205/75 R15 LRC
SIDES	18″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units. Rear slide-in ramps are standard only on models 12ft & up. 10ft models do not come with ramps, a side-mount ramp option is available. The 50” Side Door option is only available on 14’ and 16’ models with 24” tall sides. Deck height on the base model is 32″. Deck height with the drop axle configuration changes to 28”. 96” ramp option is available on the 16 ft model. Cannot combine the drop axle configuration with the MAX-Bed configuration (flared sides). Tandem 10K jacks are standard with the telescopic cylinder configuration.

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

10′ – 16′

WIDTH

60″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 48″ H

LOAD CAPACITY

5,621 – 5,721 Lbs

BED CAPACITY

2,78 – 16.40 yd³

COUPLER

Bumper Pull & Pintle

AXLES

(2) 5,200 Lb

EST. WEIGHT

4,269 – 4,369 Lbs

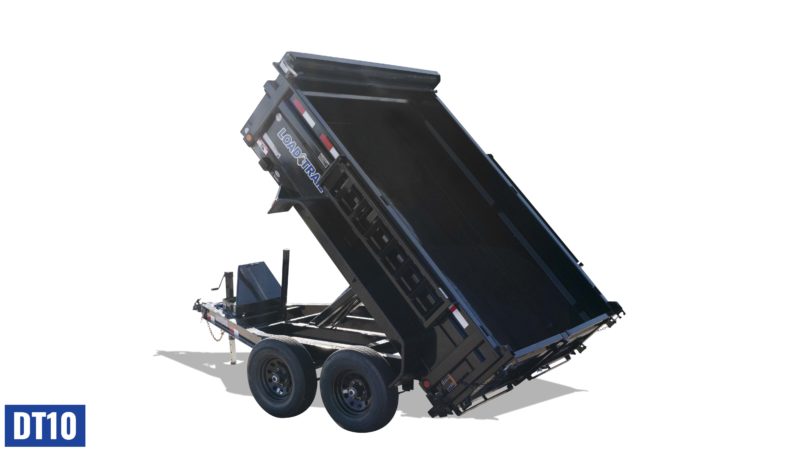

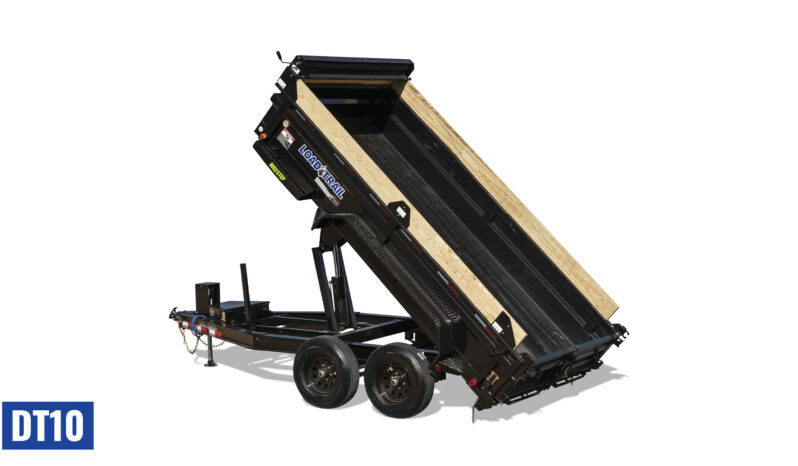

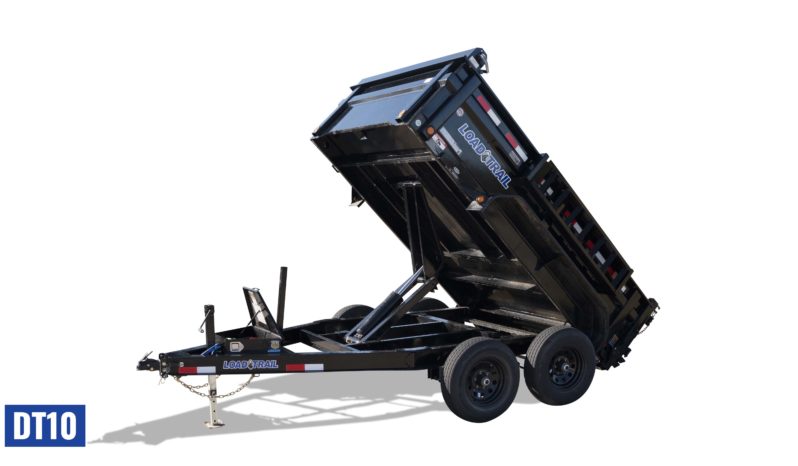

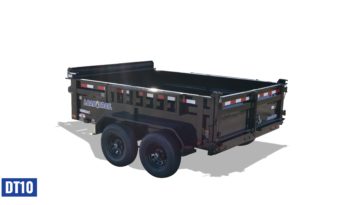

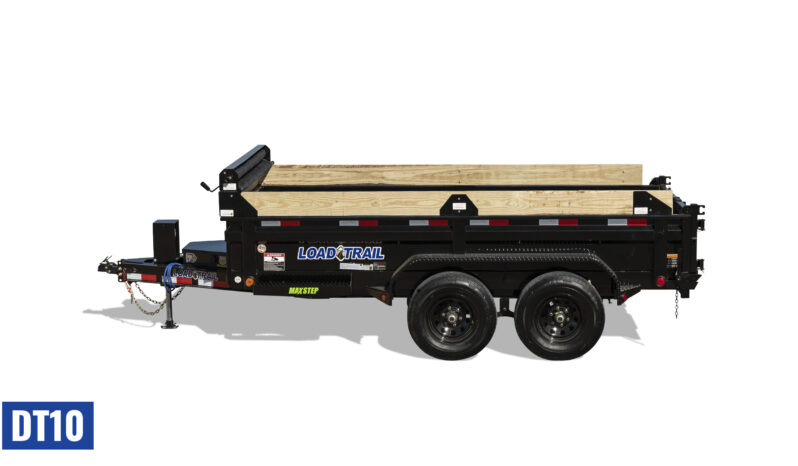

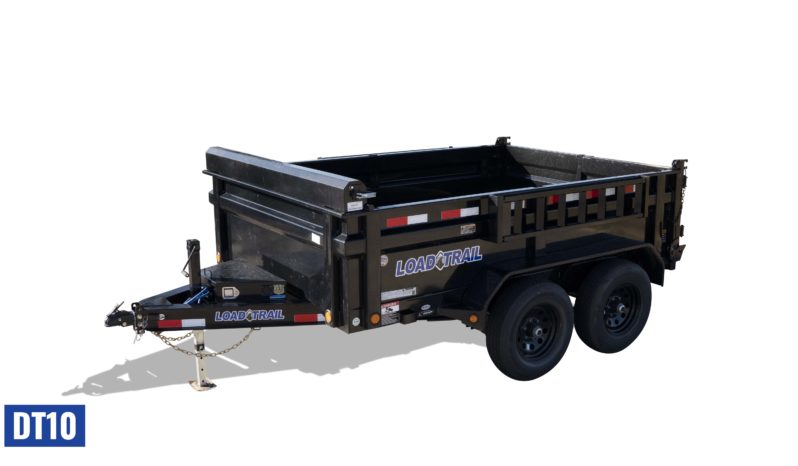

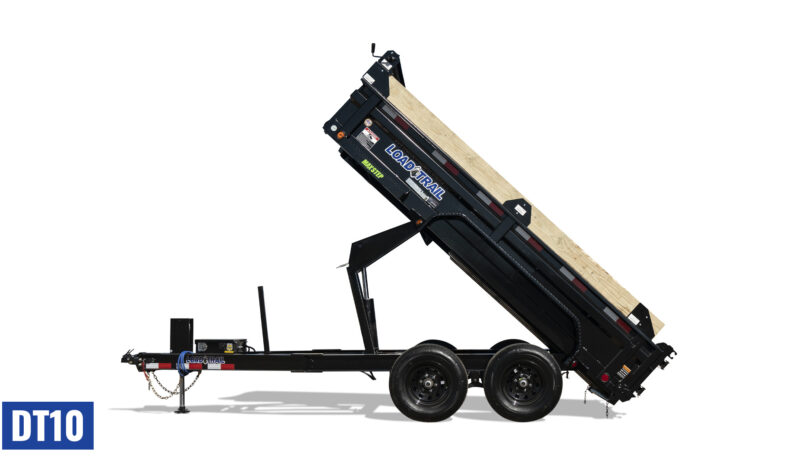

DT10 | STANDARD FEATURES

G.V.W.R.	9,990 lbs
G.A.W.R.	5,200 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(2) 5,200 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
SIDES	24″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate

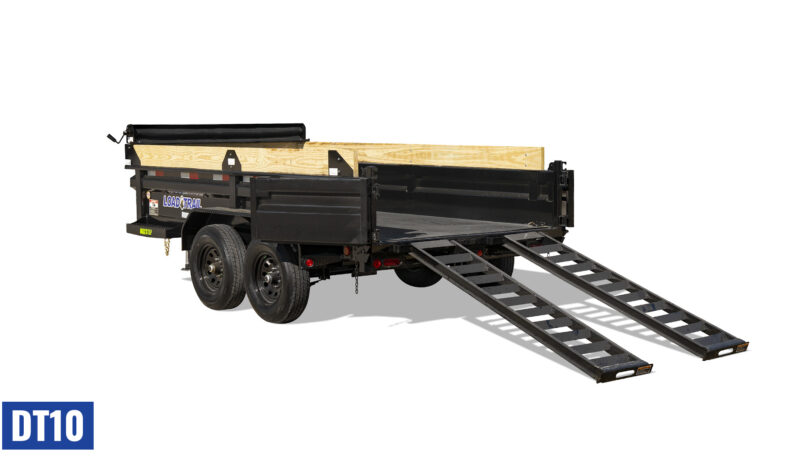

RAMPS	80″ x 16″ Rear Slide-In Ramps
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units. The 60″ x 10′ model comes standard with 18″ tall sides. Rear slide-in ramps are standard only on models 12ft & up. 10ft models do not come with ramps, a side-mount ramp option is available. The 50” Side Door option is only available on 14’ and 16’ models with 24” tall sides. Deck height on the base model is 32″. Deck height with the drop axle configuration changes to 28”. 96” ramp option is available on the 16 ft model. Cannot combine the drop axle configuration with the MAX-Bed configuration (flared sides). Tandem 10K jacks are standard with the telescopic cylinder configuration. 16ft models come standard with a 5”x21-1/2”x2” cylinder.

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

10′ – 16′

WIDTH

60 – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

24″ – 48″ H

LOAD CAPACITY

9,490 – 9,770 Lbs

BED CAPACITY

4.44 – 7.11 yd³

COUPLER

Bumper Pull & Pintle

AXLES

(2) 7,000 Lb

EST. WEIGHT

3,170 – 4,510 Lbs

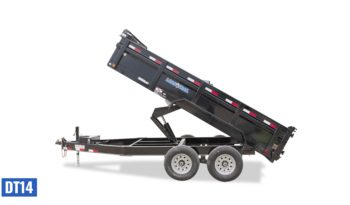

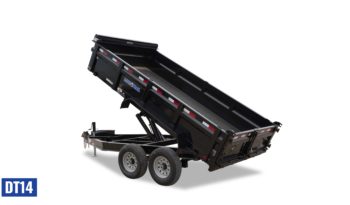

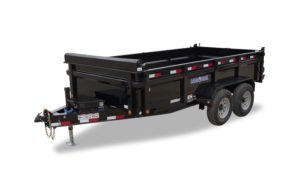

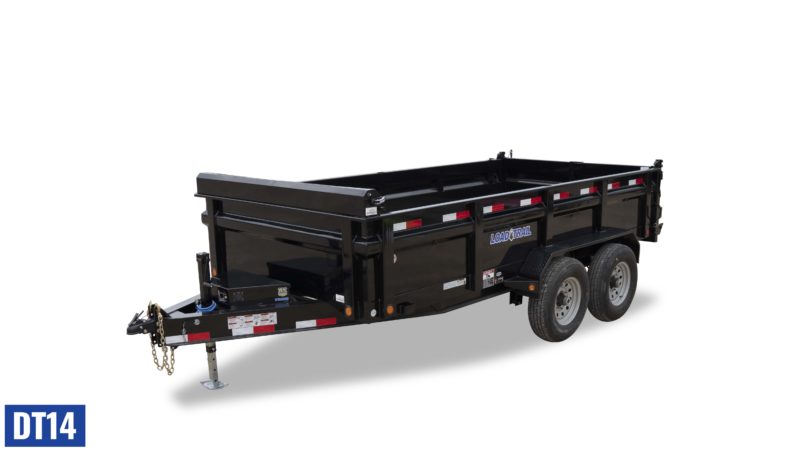

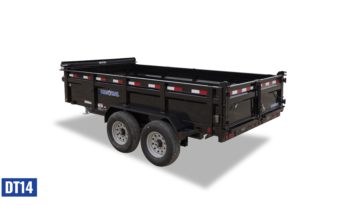

DT14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
TONGUE	8” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 6″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SIDES	24″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
RAMPS	80″ x 16″ Rear Slide-In Ramps
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units. Rear slide-in ramps are standard only on models 12ft & up. 10ft models do not come with ramps. Deck height on the base model is 32″. Deck height with the drop axle configuration changes to 28”. Cannot combine the drop axle configuration with the MAX-Bed configuration (flared sides). Tandem 10K jacks are standard with the telescopic cylinder configuration. 16ft models come standard with a 5”x21-1/2”x2” cylinder

DT07

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

3,500 Lbs/Axle

LENGTH

10′

WIDTH

60″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 24″ H

LOAD CAPACITY

4,216 – 4,816 Lbs

BED CAPACITY

2.78 – 10.25 yd³

COUPLER

Bumper Pull

AXLES

(2) 3,500 Lb

EST. WEIGHT

2,177 – 2,784 Lbs

DT07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	3,500 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(2) 3,500 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 5-Hole Wheels
TIRES	ST205/75 R15 LRC
SIDES	18″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

DT10

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

10′ – 16′

WIDTH

60″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 48″ H

LOAD CAPACITY

5,621 – 5,721 Lbs

BED CAPACITY

2,78 – 16.40 yd³

COUPLER

Bumper Pull & Pintle

AXLES

(2) 5,200 Lb

EST. WEIGHT

4,269 – 4,369 Lbs

DT10 | STANDARD FEATURES

G.V.W.R.	9,990 lbs
G.A.W.R.	5,200 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(2) 5,200 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
SIDES	24″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
RAMPS	80″ x 16″ Rear Slide-In Ramps
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

DT14

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

10′ – 16′

WIDTH

60 – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

24″ – 48″ H

LOAD CAPACITY

9,490 – 9,770 Lbs

BED CAPACITY

4.44 – 7.11 yd³

COUPLER

Bumper Pull & Pintle

AXLES

(2) 7,000 Lb

EST. WEIGHT

3,170 – 4,510 Lbs

DT14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
TONGUE	8” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 6″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SIDES	24″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
RAMPS	80″ x 16″ Rear Slide-In Ramps
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units. Rear slide-in ramps are standard only on models 12ft & up. 10ft models do not come with ramps. Deck height on the base model is 32″. Deck height with the drop axle configuration changes to 28”. Cannot combine the drop axle configuration with the MAX-Bed configuration (flared sides). Tandem 10K jacks are standard with the telescopic cylinder configuration. 16ft models come standard with a 5”x21-1/2”x2” cylinder

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLERS

3” Adjustable Pintle Ring	C12
2-5/16” Adjustable Coupler (6-Hole – 21K)	C13
2-5/16” Adjustable Coupler (6-hole)	C10
2-5/16” Adjustable Hydraulic Coupler	C08
3” Adjustable Hydraulic Pintle Ring	C18
2-5/16” Adjustable Coupler (8-hole)	C21
3” Adjustable Pintle Ring (6-hole)	C22
2-5/16” Adjustable Bulldog Coupler (6-hole)	C31

AXLES & SUSPENSION

2 – 3,500 Lb Dexter (2 Elec)/Spring Axles	ESB
2 – 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axles	HS2
2 – 5,200 Lb Dexter (2 Elec)/Spring Axles	ESB
2 – 5,200 Lb Dexter (2 Hyd.Drum)/Spring Axles	HS2
2 – 5,200 Lb Dexter (2 Elec)/Drop Axles	EDB
2 – 5,200 Lb Dexter (2 Elec)/Drop Axles	EDB
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring/Oil Bath	ESB0
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBD
Slipper Spring (for 5.2K & 3.5K axles)	Y12

WHEELS & TIRES

ST205/75 R15 LRC 6 Ply (Silver Wheels)	A02
ST205/75 R15 LRC 6 Ply (Black Wheels)	A26
ST235/80 R16 LRE 10 Ply (Silver Wheels)	A05
ST235/80 R16 LRE 10 Ply (Black Wheels)	A28
ST235/80 R16 LRE 10 Ply (Silver Wheels)	A06
ST235/80 R16 LRE 10 Ply (Black Wheels)	A29
ST235/80 R16 LRE 10 Ply *Provider	A48
ST235/85 R16 LRG 14 Ply *Provider (Black Wheels)	A44
ST235/75 R17.5 LRJ 18 Ply	A30
ST235/75 R17.5 LRJ 18 Ply (Black Wheels)	A43
Spare ST235/80 R16 LRE 10 Ply 8-hole (Silver)	STI
Spare ST205/75 R15 LRC 6 Ply 5-Hole (Silver)	STC
Spare ST205/75 R15 LRC 6 Ply 5-Hole (Black)	STA
Spare ST235/80 R16 LRE 10 Ply 8-hole (Black)	STD
Spare ST235/85 R16 LRG 14 Ply 8-hole (Silver)	STK
Spare ST235/85 R16 LRG 14 Ply 8-hole (Black)	STF
Spare ST235/85 R16 LRG 14 Ply 8-hole *Provider	ST4
Spare ST235/85 R16 LRG 14 Ply 8-Hole *Provider	ST2

LANDING GEAR

(1) – 7000 Lb Drop Leg Jack	J02
(1) – 10K Drop-leg Jack	J04
(1) – 12K, 2-Speed Jack	J12
(1) – MAX-Jack (hydraulic)	J11
(2) – 10K Drop-leg Jacks	J05
(2) – MAX-Jacks (hydraulic – 4-button)	J07

GATES & RAMPS

No Ramps	H00
58”x12” Side-mount Ramps	H01
24” Dump Sides w/5’ Spreader Gate	S02G51
80”x16” Rear Slide-In Ramps	H55
80”x 16” Heavy-Duty Rear Slide-In Ramps	H58
24” Dump Sides w/5’ Spreader Gate	S02G51

FLOOR, SIDES & EXTENSIONS

18” Dump Sides (DT07 only)	S01
24” Dump Sides	S02
36” Dump Sides	S03
48” Dump Sides	S04
MAX-Bed (24” Flared Sides)	S05
24” Expanded Metal Extensions	X01
24” Solid Metal Extensions	X02
7-Gauge Floor	7GF
24” Expanded Metal Extensions For MAX-Bed	X11
24” Solid Metal Extensions For MAX-Bed	X12

HYDRAULICS & CHARGERS

Telescopic Cylinder	V01
Dual-acting Hydraulic Unit w/Scissor Hoist	V02
3-way Hydraulic Unit w/Scissor Hoist	V03
621 Scissor Hoist	V04
Gas Powered Hydraulic System	V06
(1) Solar Panel Charger	SC1
(2) Solar Panel Charger	SC2
5 Amp Battery Wall Charger	BC1
8 Amp Battery Wall Charger	BC2
20 Amp, 12v In-line Battery Charging System	BC3
18 Amp Ra[id Battery Wall Charger	BC4
Wireless Remote For Dual Acting Hd. System	RC1
Wireless Remote For 4-Button System	RC4
Remote Switch w/Voltage Indicator	RC5
Bluetooth Wireless Remote For (Dual-acting System)	RC6
2nd 12v Battery	BT1

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Steel Diamond Plate Fenders	F05
Fork Holders	FH1
16” On-center Crossmembers	I01
12” On-center Crossmembers	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back Up Lights w/Cold Weather Harness	L08
Additional 3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
Mud Flaps	MF1
Tongue-mount Tool Box	T01
22” Double-deck Tongue-mount Tool Box	T02
Wet Bolt Kit (equalizer lubrication)	EL1
Tarp Kit	TP1
Bumper Attached Receiver Hitch	RH1
2 – Pipes For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
2 – Rear Support Stands (7k Jacks)	RS3
(1) – 30” MAX-Step	SM11
(2) – 30” MAX-Steps	SM12
Spare Tire Mount	TM1
4 – Additional Stake Pockets	Sp1
8 – Additional Stake Pockets	SP8
D-ring Door Hold-back	DB1

POPULAR OPTIONS

MAX-Bed (24” Flared Sides)	S05
24” Solid Metal Extensions	X02
Solar Panel Charger	SC1
Tandem 10K Drop-leg Jacks	J05
Wireless Remote For Dual Acting Hyd. System	RC1
50” Side Door	SD2

DT07 | 7,000 G.V.W.R.
(TANDEM 3.5K AXLES)

DT6010032	60″ x 10′	2,177
DT7210032	72″ x 10′	2,543

DT10 | 9,990 G.V.W.R.
(TANDEM 5.2K AXLES)

DT6010052	60″ x 10′	4,269
DT7210052	72″ x 10′	4,550
DT7212052	72″ x 12′	4,853

DT14 | 14,000 G.V.W.R.
(TANDEM 7K AXLES)

DT7210072	72″ x 10′	3,200
DT7212072	72″ x 12′	3,250
DT7214072	72″ x 14′	4,160

Estimated weights for base models only.

OPTIONS

COUPLERS

3” Adjustable Pintle Ring	C12
2-5/16” Adjustable Coupler (6-Hole – 21K)	C13
2-5/16” Adjustable Coupler (6-hole)	C10
2-5/16” Adjustable Hydraulic Coupler	C08
3” Adjustable Hydraulic Pintle Ring	C18
2-5/16” Adjustable Coupler (8-hole)	C21
3” Adjustable Pintle Ring (6-hole)	C22
2-5/16” Adjustable Bulldog Coupler (6-hole)	C31

AXLES & SUSPENSION

2 – 3,500 Lb Dexter (2 Elec)/Spring Axles	ESB
2 – 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axles	HS2
2 – 5,200 Lb Dexter (2 Elec)/Spring Axles	ESB
2 – 5,200 Lb Dexter (2 Hyd.Drum)/Spring Axles	HS2
2 – 5,200 Lb Dexter (2 Elec)/Drop Axles	EDB
2 – 5,200 Lb Dexter (2 Elec)/Drop Axles	EDB
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring/Oil Bath	ESB0
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBD
Slipper Spring (for 5.2K & 3.5K axles)	Y12

WHEELS & TIRES

ST205/75 R15 LRC 6 Ply (Silver Wheels)	A02
ST205/75 R15 LRC 6 Ply (Black Wheels)	A26
ST235/80 R16 LRE 10 Ply (Silver Wheels)	A05
ST235/80 R16 LRE 10 Ply (Black Wheels)	A28
ST235/80 R16 LRE 10 Ply (Silver Wheels)	A06
ST235/80 R16 LRE 10 Ply (Black Wheels)	A29
ST235/80 R16 LRE 10 Ply *Provider	A48
ST235/85 R16 LRG 14 Ply *Provider (Black Wheels)	A44
ST235/75 R17.5 LRJ 18 Ply	A30
ST235/75 R17.5 LRJ 18 Ply (Black Wheels)	A43
Spare ST235/80 R16 LRE 10 Ply 8-hole (Silver)	STI
Spare ST205/75 R15 LRC 6 Ply 5-Hole (Silver)	STC
Spare ST205/75 R15 LRC 6 Ply 5-Hole (Black)	STA
Spare ST235/80 R16 LRE 10 Ply 8-hole (Black)	STD
Spare ST235/85 R16 LRG 14 Ply 8-hole (Silver)	STK
Spare ST235/85 R16 LRG 14 Ply 8-hole (Black)	STF
Spare ST235/85 R16 LRG 14 Ply 8-hole *Provider	ST4
Spare ST235/85 R16 LRG 14 Ply 8-Hole *Provider	ST2

LANDING GEAR

(1) – 7000 Lb Drop Leg Jack	J02
(1) – 10K Drop-leg Jack	J04
(1) – 12K, 2-Speed Jack	J12
(1) – MAX-Jack (hydraulic)	J11
(2) – 10K Drop-leg Jacks	J05
(2) – MAX-Jacks (hydraulic – 4-button)	J07

GATES & RAMPS

No Ramps	H00
58”x12” Side-mount Ramps	H01
24” Dump Sides w/5’ Spreader Gate	S02G51
80”x16” Rear Slide-In Ramps	H55
80”x 16” Heavy-Duty Rear Slide-In Ramps	H58
24” Dump Sides w/5’ Spreader Gate	S02G51

FLOOR, SIDES & EXTENSIONS

18” Dump Sides (DT07 only)	S01
24” Dump Sides	S02
36” Dump Sides	S03
48” Dump Sides	S04
MAX-Bed (24” Flared Sides)	S05
24” Expanded Metal Extensions	X01
24” Solid Metal Extensions	X02
7-Gauge Floor	7GF
24” Expanded Metal Extensions For MAX-Bed	X11
24” Solid Metal Extensions For MAX-Bed	X12

HYDRAULICS & CHARGERS

Telescopic Cylinder	V01
Dual-acting Hydraulic Unit w/Scissor Hoist	V02
3-way Hydraulic Unit w/Scissor Hoist	V03
621 Scissor Hoist	V04
Gas Powered Hydraulic System	V06
(1) Solar Panel Charger	SC1
(2) Solar Panel Charger	SC2
5 Amp Battery Wall Charger	BC1
8 Amp Battery Wall Charger	BC2
20 Amp, 12v In-line Battery Charging System	BC3
18 Amp Ra[id Battery Wall Charger	BC4
Wireless Remote For Dual Acting Hd. System	RC1
Wireless Remote For 4-Button System	RC4
Remote Switch w/Voltage Indicator	RC5
Bluetooth Wireless Remote For (Dual-acting System)	RC6
2nd 12v Battery	BT1

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Steel Diamond Plate Fenders	F05
Fork Holders	FH1
16” On-center Crossmembers	I01
12” On-center Crossmembers	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back Up Lights w/Cold Weather Harness	L08
Additional 3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
Mud Flaps	MF1
Tongue-mount Tool Box	T01
22” Double-deck Tongue-mount Tool Box	T02
Wet Bolt Kit (equalizer lubrication)	EL1
Tarp Kit	TP1
Bumper Attached Receiver Hitch	RH1
2 – Pipes For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
2 – Rear Support Stands (7k Jacks)	RS3
(1) – 30” MAX-Step	SM11
(2) – 30” MAX-Steps	SM12
Spare Tire Mount	TM1
4 – Additional Stake Pockets	Sp1
8 – Additional Stake Pockets	SP8
D-ring Door Hold-back	DB1

POPULAR OPTIONS

POPULAR OPTIONS

MAX-Bed (24” Flared Sides)	S05
24” Solid Metal Extensions	X02
Solar Panel Charger	SC1
Tandem 10K Drop-leg Jacks	J05
Wireless Remote For Dual Acting Hyd. System	RC1
50” Side Door	SD2

SIZE & WEIGHT

DT07 | 7,000 G.V.W.R.
(TANDEM 3.5K AXLES)

DT6010032	60″ x 10′	2,177
DT7210032	72″ x 10′	2,543

DT10 | 9,990 G.V.W.R.
(TANDEM 5.2K AXLES)

DT6010052	60″ x 10′	4,269
DT7210052	72″ x 10′	4,550
DT7212052	72″ x 12′	4,853

DT14 | 14,000 G.V.W.R.
(TANDEM 7K AXLES)

DT7210072	72″ x 10′	3,200
DT7212072	72″ x 12′	3,250
DT7214072	72″ x 14′	4,160

Estimated weights for base models only.

DT SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

DT | Bumper Pull Dump

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DT07 | STANDARD FEATURES

DT07 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DT10 | STANDARD FEATURES

DT10 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DT14 | STANDARD FEATURES

DT14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DT07 | STANDARD FEATURES

DT07 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.
