DS | Single Axle Dump

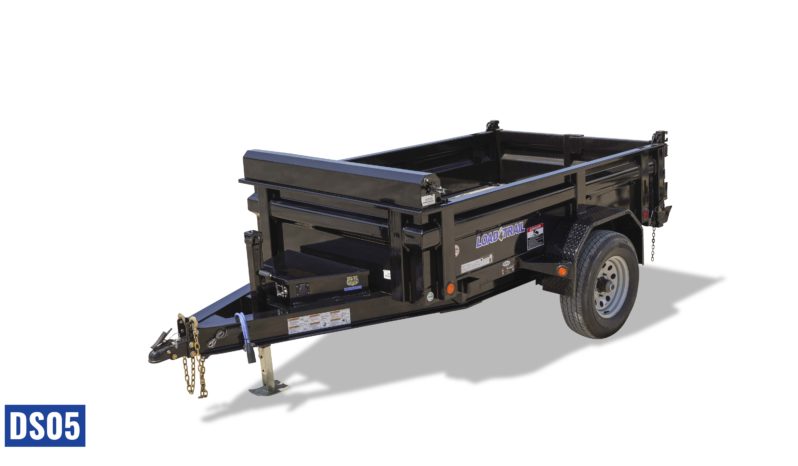

DS05
DS07

CONFIGURATIONS SUMMARY

G.V.W.R.

5,200 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

8′ – 10′

WIDTH

48″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 24″ H

LOAD CAPACITY

3,559 – 3,183 Lbs

BED CAPACITY

1.78 – 4.44 yd³

COUPLER

Bumper Pull

AXLES

(1) 5,200 Lb

EST. WEIGHT

3,509 – 3,735 Lbs

DS05 | STANDARD FEATURES

G.V.W.R.	5,200 lbs
G.A.W.R.	5,200 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	4″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(1) 5,200 lb Dexter Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
SIDES	18″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	3.5″ x 9.25″ x 1.5″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward self-adjusting.

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

8′ – 10′

WIDTH

48″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 24″ H

LOAD CAPACITY

3,559 – 3,183 Lbs

BED CAPACITY

1.78 – 4.44 yd³

COUPLER

Bumper Pull

AXLES

(1) 7,000 Lb

EST. WEIGHT

3,509 – 3,735 Lbs

DS07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	7,000 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(1) 7,000 lb Dexter Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SIDES	18″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ x 29″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward self-adjusting.

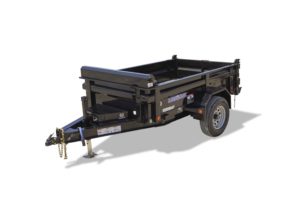

DS05

CONFIGURATIONS SUMMARY

G.V.W.R.

5,200 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

8′ – 10′

WIDTH

48″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 24″ H

LOAD CAPACITY

3,559 – 3,183 Lbs

BED CAPACITY

1.78 – 4.44 yd³

COUPLER

Bumper Pull

AXLES

(1) 5,200 Lb

EST. WEIGHT

3,509 – 3,735 Lbs

DS05 | STANDARD FEATURES

G.V.W.R.	5,200 lbs
G.A.W.R.	5,200 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	4″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(1) 5,200 lb Dexter Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
SIDES	18″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	3.5″ x 9.25″ x 1.5″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward self-adjusting.

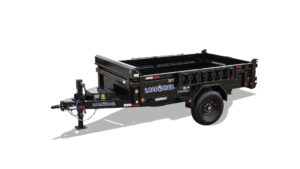

DS07

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

8′ – 10′

WIDTH

48″ – 72″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

18″ – 24″ H

LOAD CAPACITY

3,559 – 3,183 Lbs

BED CAPACITY

1.78 – 4.44 yd³

COUPLER

Bumper Pull

AXLES

(1) 7,000 Lb

EST. WEIGHT

3,509 – 3,735 Lbs

DS07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	7,000 lbs / Axle
TONGUE	6” I-Beam
FRAME	6” I-Beam
CROSSMEMBERS	5″ Channel
BED FRAME	2″ x 4″ Tubing
BED CROSSMEMBERS	3″ Channel
AXLES	(1) 7,000 lb Dexter Electric NEV-R-ADJUST Brake
SUSPENSION	Multi-Leaf Spring
COUPLER	2” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SIDES	18″ High, 10 Gauge
FLOOR	10 Gauge Smooth Plate
STORAGE	Tongue-mount Toolbox (hyd. storage)

FENDERS	Steel Diamond Plate
GATE	2-Way Spreader Gate
PUMP	12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER	2-Button w/12′ Control Cable
BATTERY	12v Battery w/5amp Trickle Charger
CYLINDER	5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
TARP	E-Z Lock Mesh Tarp System w/Cover
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ x 29″ Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward self-adjusting.

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLERS

2” Adjustable Coupler (4-hole)	C04
2-5/16” Adjustable Coupler (4-hole)	C07
3” Adjustable Pintle Ring (4-hole)	C11

AXLES & SUSPENSION

1 – 5,200 Lb Dexter (1 Elec.)/Spring Axle	ESA
1 – 5,200 Lb Dexter (1 Hyd. Drum)/Spring Axle	HS1
1 – 7,000 Lb Dexter (1 Elec.)/Spring Axle	ESA
Slipper Spring	Y12

WHEELS & TIRES

ST225/75 R15 LRD 8 Ply (Silver Wheels)	A04
ST225/75 R15 LRD 8 Ply (Black Wheels)	A27
ST235/80 R16 LRE 10 Ply (Silver Wheels)	A05
ST235/80 R16 LRE 10 Ply (Black Wheel)s	A28
ST235/85 R16 LRG 14 Ply (Silver Wheels)	A06
ST235/85 R16 LRG 14 Ply (Black Wheels)	A29
Spare ST225/75 R15 LRD 8 Ply 6-Hole (Silver)	STG
Spare ST225/75 R15 LRD 8 Ply 6-Hole (Black)	STB
Spare ST235/80 R16 LRE 10 Ply 6-Hole (Silver)	STH
Spare ST235/80 R16 LRE 10 Ply 6-Hole (Black)	STD
Spare ST235/85 R16 LRE 14 Ply 6-Hole (Silver)	STX
Spare ST235/80 R16 LRE 10 PLY 8-Hole (Silver)	STI
Spare ST235/80 R16 LRE 10 PLY 8-Hole (Black)	STD
Spare ST235/85 R16 LRG 14 PLY 8-Hole (Silver)	STK
Spare ST235/85 R16 LRG 14 PLY 8-Hole (Black)	STF

LANDING GEAR

(1) – 7,000 Lb Drop Leg Jack

J02

GATES & RAMPS

No Ramps	H00
58”x12” Side-mount Ramps	H01

FLOOR, DUMP SIDES, & SIDE EXTENSIONS

18” Dump Sides	S01
24” Dump Sides	S02
24” Expanded Metal Extensions	X01
24” Solid Metal Extensions	X02

HYDRAULICS & CHARGERS

Dual-acting Hydraulic Unit w/Scissor Hoist	V02
3-way Hydraulic Unit w/Scissor Hoist	V03
(1) Solar Panel Charger	SC1
(2) Solar Panel Charger	SC2
5 Amp Battery Wall Charger	BC1
8 Amp Battery Wall Charger	BC2
20 Amp, 12v In-line Battery Charging System	BC3
18 Amp Ra[id Battery Wall Charger	BC4
Wireless Remote For Dual Acting Hd. System	RC1
Wireless Remote For 4-Button System	RC4
Remote Switch w/Voltage Indicator	RC5
Bluetooth Wireless Remote For (Dual-acting System)	RC6
2nd 12v Battery	BT1

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Steel Diamond Plate Fenders	F05
16” On-center Crossmembers	I01
7-way RV w/Cold Weather Harness	L07
LED Back Up Lights w/Cold Weather Harness	L08
Additional 3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
Mud Flaps	MF1
Tongue-mount Tool Box	T01
22” Double-deck Tongue-mount Tool Box	T02
Wet Bolt Kit (equalizer lubrication)	EL1
Tarp Kit	TP1
2 – Pipes For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
2 – Rear Support Stands (7k Jacks)	RS3
(1) – 30” MAX-Step	SM11
(2) – 30” MAX-Steps	SM12
Spare Tire Mount	TM1
4 – Additional Stake Pockets	Sp1
8 – Additional Stake Pockets	SP8
D-ring Door Hold-back	DB1

POPULAR OPTIONS

58”x12” Side-mount Ramps	H01
24” Solid Metal Extensions	X02
Solar Panel Charger	SC1
Spare Tire Mount	TM1
Wireless Remote For Dual Acting Hyd. System	RC1
8 Amp Battery Wall Charger	BC2

5,200 GVWR
SINGLE AXLE

DS4808051

48″ x 8′

2177

5,200 GVWR
SINGLE AXLE

DS6008051	60″ x 8′	2543
DS6010051	60″ x 10′	2784

5,200 GVWR
SINGLE AXLE

DS7210051

72″ x 10′

2784

7,000 GVWR
SINGLE AXLE

DS4808071

48″ x 8′

N/A

7,000 GVWR
SINGLE AXLE

DS6008071	60″ x 8′	N/A
DS6010071	60″ x 10′	N/A

7,000 GVWR
SINGLE AXLE

DS7210071

72″ x 10′

N/A

Estimated weights for base models only.

OPTIONS

COUPLERS

2” Adjustable Coupler (4-hole)	C04
2-5/16” Adjustable Coupler (4-hole)	C07
3” Adjustable Pintle Ring (4-hole)	C11

AXLES & SUSPENSION

1 – 5,200 Lb Dexter (1 Elec.)/Spring Axle	ESA
1 – 5,200 Lb Dexter (1 Hyd. Drum)/Spring Axle	HS1
1 – 7,000 Lb Dexter (1 Elec.)/Spring Axle	ESA
Slipper Spring	Y12

WHEELS & TIRES

ST225/75 R15 LRD 8 Ply (Silver Wheels)	A04
ST225/75 R15 LRD 8 Ply (Black Wheels)	A27
ST235/80 R16 LRE 10 Ply (Silver Wheels)	A05
ST235/80 R16 LRE 10 Ply (Black Wheel)s	A28
ST235/85 R16 LRG 14 Ply (Silver Wheels)	A06
ST235/85 R16 LRG 14 Ply (Black Wheels)	A29
Spare ST225/75 R15 LRD 8 Ply 6-Hole (Silver)	STG
Spare ST225/75 R15 LRD 8 Ply 6-Hole (Black)	STB
Spare ST235/80 R16 LRE 10 Ply 6-Hole (Silver)	STH
Spare ST235/80 R16 LRE 10 Ply 6-Hole (Black)	STD
Spare ST235/85 R16 LRE 14 Ply 6-Hole (Silver)	STX
Spare ST235/80 R16 LRE 10 PLY 8-Hole (Silver)	STI
Spare ST235/80 R16 LRE 10 PLY 8-Hole (Black)	STD
Spare ST235/85 R16 LRG 14 PLY 8-Hole (Silver)	STK
Spare ST235/85 R16 LRG 14 PLY 8-Hole (Black)	STF

LANDING GEAR

(1) – 7,000 Lb Drop Leg Jack

J02

GATES & RAMPS

No Ramps	H00
58”x12” Side-mount Ramps	H01

FLOOR, DUMP SIDES, & SIDE EXTENSIONS

18” Dump Sides	S01
24” Dump Sides	S02
24” Expanded Metal Extensions	X01
24” Solid Metal Extensions	X02

HYDRAULICS & CHARGERS

Dual-acting Hydraulic Unit w/Scissor Hoist	V02
3-way Hydraulic Unit w/Scissor Hoist	V03
(1) Solar Panel Charger	SC1
(2) Solar Panel Charger	SC2
5 Amp Battery Wall Charger	BC1
8 Amp Battery Wall Charger	BC2
20 Amp, 12v In-line Battery Charging System	BC3
18 Amp Ra[id Battery Wall Charger	BC4
Wireless Remote For Dual Acting Hd. System	RC1
Wireless Remote For 4-Button System	RC4
Remote Switch w/Voltage Indicator	RC5
Bluetooth Wireless Remote For (Dual-acting System)	RC6
2nd 12v Battery	BT1

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Steel Diamond Plate Fenders	F05
16” On-center Crossmembers	I01
7-way RV w/Cold Weather Harness	L07
LED Back Up Lights w/Cold Weather Harness	L08
Additional 3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
Mud Flaps	MF1
Tongue-mount Tool Box	T01
22” Double-deck Tongue-mount Tool Box	T02
Wet Bolt Kit (equalizer lubrication)	EL1
Tarp Kit	TP1
2 – Pipes For Rear Support Stands	RS0
2 – Rear Support Stands (5K swivel jacks)	RS1
2 – Rear Support Stands (2” x 2” Tubing)	RS2
2 – Rear Support Stands (7k Jacks)	RS3
(1) – 30” MAX-Step	SM11
(2) – 30” MAX-Steps	SM12
Spare Tire Mount	TM1
4 – Additional Stake Pockets	Sp1
8 – Additional Stake Pockets	SP8
D-ring Door Hold-back	DB1

POPULAR OPTIONS

POPULAR OPTIONS

58”x12” Side-mount Ramps	H01
24” Solid Metal Extensions	X02
Solar Panel Charger	SC1
Spare Tire Mount	TM1
Wireless Remote For Dual Acting Hyd. System	RC1
8 Amp Battery Wall Charger	BC2

SIZE & WEIGHT

5,200 GVWR
SINGLE AXLE

DS4808051

48″ x 8′

2177

5,200 GVWR
SINGLE AXLE

DS6008051	60″ x 8′	2543
DS6010051	60″ x 10′	2784

5,200 GVWR
SINGLE AXLE

DS7210051

72″ x 10′

2784

7,000 GVWR
SINGLE AXLE

DS4808071

48″ x 8′

N/A

7,000 GVWR
SINGLE AXLE

DS6008071	60″ x 8′	N/A
DS6010071	60″ x 10′	N/A

7,000 GVWR
SINGLE AXLE

DS7210071

72″ x 10′

N/A

Estimated weights for base models only.

DS SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

DS | Single Axle Dump

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DS05 | STANDARD FEATURES

DS05 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DS07 | STANDARD FEATURES

DS07 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DS05 | STANDARD FEATURES

DS05 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

G.A.W.R.

LENGTH

WIDTH

DUMP ANGLE

HYDRAULICS

DUMP SIDES

LOAD CAPACITY

BED CAPACITY

COUPLER

AXLES

EST. WEIGHT

DS07 | STANDARD FEATURES

DS07 | STANDARD FEATURES

DS SERIES HIGHLIGHTS
