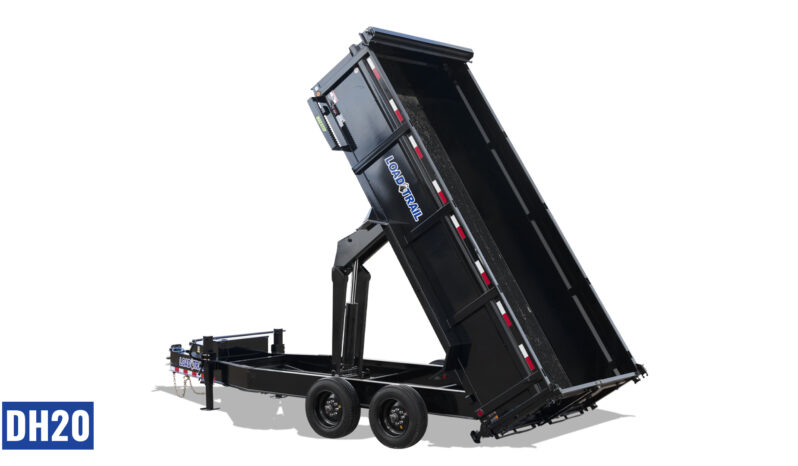

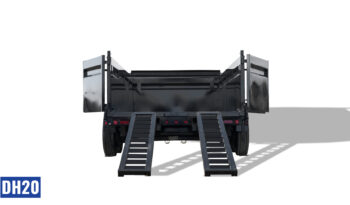

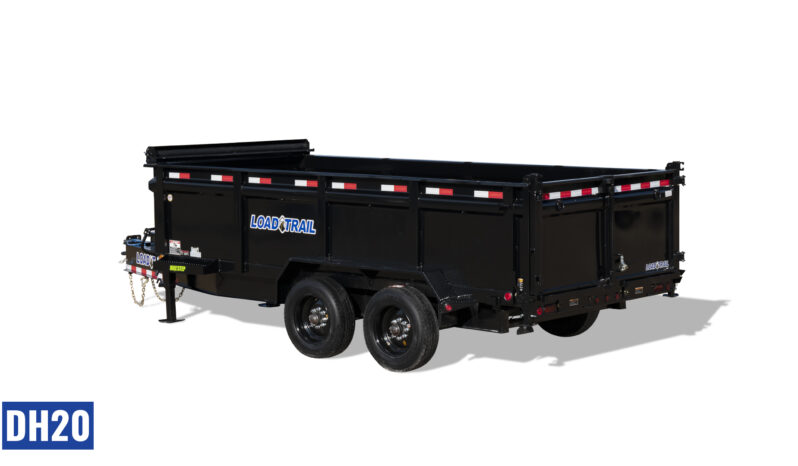

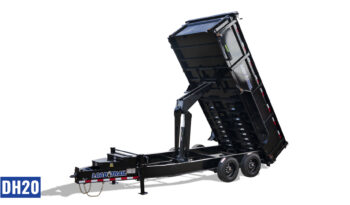

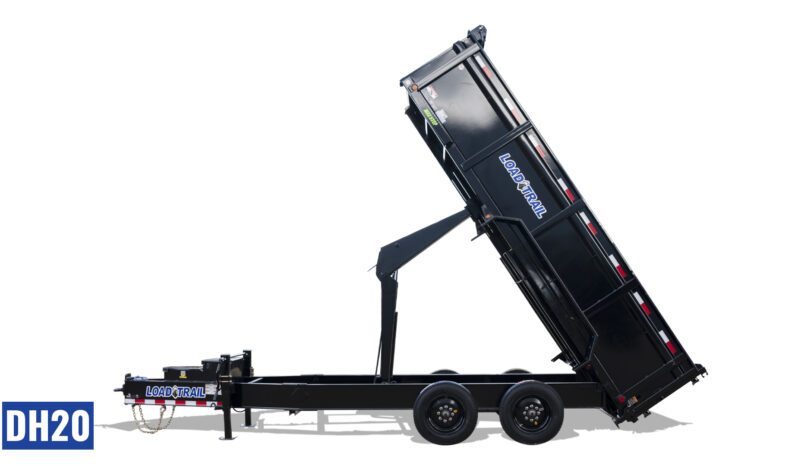

DH | Heavy-Duty Bumper Pull Dump

DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full
DH | Heavy-Duty Bumper Pull Dump full

FIND A DEALER

SHOP DH INVENTORY

CUSTOM QUOTE

FINANCING

VIEW BROCHURE

VIEW DRAWING

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

20,000 Lbs

G.A.W.R.

10,000 Lbs/Axle

LENGTH

16′ – 20′

WIDTH

83″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

24″

LOAD CAPACITY

12,410 – 12,950 Lbs

BED CAPACITY

8.20 – 10.25 yd³

COUPLER

Pintle

AXLES

(2) 10,000 Lb TORSION

EST. WEIGHT

7,050 – 7,590 Lbs

DH20 | STANDARD FEATURES

DH20 | STANDARD FEATURES

G.V.W.R. 20,000 lbs
G.A.W.R. 10,000 lbs / Axle
TONGUE 12” I-Beam
FRAME 12” I-Beam
CROSSMEMBERS 2″ x 5″ Tubing
BED FRAME 2″ x 5″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (2) 10,000 lb Dexter Torsion, 2 Electric NEV-R-ADJUST Brake
SUSPENSION Torsion
COUPLER 3″ Pintle
JACK (2) 10,000 lb Drop-Leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
SIDES 24″ High, 10 Gauge w/MAX-Rail
FLOOR 7 Gauge Smooth Plate
STORAGE Tongue-mount 2-Tier MAX-Storage Toolbox
FENDERS Steel Diamond Plate
RAMPS 96″ x 16″ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 6″ x 29″ x 2-3/4″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units. Deck height on the base model is 32″. 96” ramp option is available on the 16 ft model. Tandem 10K jacks are standard with the telescopic cylinder configuration.
DH20

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

20,000 Lbs

G.A.W.R.

10,000 Lbs/Axle

LENGTH

16′ – 20′

WIDTH

83″

DUMP ANGLE

45°

HYDRAULICS

Power Up/Power Down

DUMP SIDES

24″

LOAD CAPACITY

12,410 – 12,950 Lbs

BED CAPACITY

8.20 – 10.25 yd³

COUPLER

Pintle

AXLES

(2) 10,000 Lb TORSION

EST. WEIGHT

7,050 – 7,590 Lbs

DH20 | STANDARD FEATURES

DH20 | STANDARD FEATURES

G.V.W.R. 20,000 lbs
G.A.W.R. 10,000 lbs / Axle
TONGUE 12” I-Beam
FRAME 12” I-Beam
CROSSMEMBERS 2″ x 5″ Tubing
BED FRAME 2″ x 5″ Tubing
BED CROSSMEMBERS 3″ Channel
AXLES (2) 10,000 lb Dexter Torsion, 2 Electric NEV-R-ADJUST Brake
SUSPENSION Torsion
COUPLER 3″ Pintle
JACK (2) 10,000 lb Drop-Leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
SIDES 24″ High, 10 Gauge w/MAX-Rail
FLOOR 7 Gauge Smooth Plate
STORAGE Tongue-mount 2-Tier MAX-Storage Toolbox
FENDERS Steel Diamond Plate
RAMPS 96″ x 16″ Rear Slide-In Ramps
GATE 2-Way Spreader Gate
PUMP 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
CONTROLLER 2-Button w/12′ Control Cable
BATTERY 12v Battery w/5amp Trickle Charger
CYLINDER 6″ x 29″ x 2-3/4″ Cylinder w/Scissor Hoist
TARP E-Z Lock Mesh Tarp System w/Cover
D-RINGS (4) 3″ Weld-on D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8″ Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units. Deck height on the base model is 32″. 96” ramp option is available on the 16 ft model. Tandem 10K jacks are standard with the telescopic cylinder configuration.
COUPLERS
3” Adjustable Pintle Ring C12
2-5/16” Adjustable Coupler (6-Hole – 21K) C13
2-5/16” Adjustable Coupler (6-hole) C10
2-5/16” Adjustable Hydraulic Coupler C08
3” Adjustable Hydraulic Pintle Ring C18
2-5/16” Adjustable Coupler (8-hole) C21
3” Adjustable Pintle Ring (6-hole) C22
2-5/16” Adjustable Bulldog Coupler (6-hole) C31
AXLES & SUSPENSION
2 – 10,000 Lb Dexter 2 Elec/Torsion Axles ET2U
WHEELS & TIRES
ST235/85 R16 LRG 14 Ply *Provider (Black Wheels) A44
ST215/75 R17.5 LRH 16 Ply A15
ST215/75 R17.5 LRH 16 Ply *Provider (Black) A25
ST215/75 R17.5 LRH 16 Ply *Provider (White) A38
ST235/75 R17.5 LRJ 18 Ply A30
ST235/75 R17.5 LRJ 18 Ply (Black Wheels) A43
Spare ST235/85 R16 LRG 14 Ply 8-hole (Silver) STK
Spare ST235/85 R16 LRG 14 Ply 8-hole (Black) STF
Spare ST235/85 R16 LRG 14 Ply 8-hole *Provider ST4
Spare ST235/85 R16 LRG 14 Ply 8-Hole *Provider (Black) ST2
Spare ST215/75 R17.5 LRH (Singles) STR
Spare ST215/75 R17.5 LRH *Provider (Black) STZ
LANDING GEAR
(2) – 10K Drop-leg Jacks J05
(2) – 25K 2-Speed Drop-leg Jacks J06
(2) – MAX-Jacks (hydraulic – 4-button) J07
GATES & RAMPS
96”x 16” Rear Slide-in Ramps H65
96”x 16” Heavy-Duty Rear Slide-in Ramps H59
FLOOR & DUMP SIDES
24” Dump Sides S02
24” Expanded Metal Extensions X01
24” Solid Metal Extensions X02
7-Gauge Floor 7GF
HYDRAULICS & CHARGERS
Dual-acting Hydraulic Unit w/Scissor Hoist V02
3-way Hydraulic Unit w/Scissor Hoist V03
Gas Powered Hydraulic System V06
(1) Solar Panel Charger SC1
(2) Solar Panel Charger SC2
5 Amp Battery Wall Charger BC1
8 Amp Battery Wall Charger BC2
20 Amp, 12v In-line Battery Charging System BC3
18 Amp Raid Battery Wall Charger BC4
Wireless Remote For Dual Acting Hyd. System RC1
Wireless Remote For 4-Button System RC4
Remote Switch w/Voltage Indicator RC5
Bluetooth Wireless Remote For (Dual-acting System) RC6
2nd 12v Battery BT1
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Steel Diamond Plate Fenders F05
Fork Holders FH1
16” On-center Crossmembers I01
12” On-center Crossmembers I02
7-way RV w/Cold Weather Harness L07
LED Back Up Lights w/Cold Weather Harness L08
Additional 3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
Mud Flaps MF1
2-Tier Tongue-mount Tool Box T18
22” Double-deck Tongue-mount Tool Box T02
Wet Bolt Kit (equalizer lubrication) EL1
Bumper-attached Receiver Hitch RH1
2 – Pipes For Rear Support Stands RS0
2 – Rear Support Stands (5K swivel jacks) RS
2 – Rear Support Stands (2” x 2” Tubing) RS2
2 – Rear Support Stands (7k Jacks) RS3
(1) – 30” MAX-Step SM11
(2) – 30” MAX-Steps SM12
Tarp Kit TP1
Spare Tire Mount TM1
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
D-ring Door Hold-back DB1
POPULAR OPTIONS
Fork Holders FH1
20 Amp, 12v In-line Battery Charging System BC3
30” MAX-Step SM11
MAX-Jacks (hydraulic) J07
Wireless Remote For Dual Acting Hyd. System RC1
24” Solid Metal Extensions X02
20,000 GVWR
TANDEM AXLE
DH8316102 83″ x 16′ 6,520
DH8320102 83″ x 20′ 7,590
Estimated weights for base models only.
