CZ | Sport Hauler

FIND A DEALER

SHOP CZ INVENTORY

CUSTOM QUOTE

FINANCING

VIEW BROCHURE

VIEW DRAWING

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

3,500 Lbs/Axle

LENGTH

18′ – 22′

WIDTH

83″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 3,500 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

4,160 – 4,500 Lbs

EST. WEIGHT

2,500 – 2,840 lbs

CZ07 | STANDARD FEATURES

CZ07 | STANDARD FEATURES

G.V.W.R. 7,000 lbs
G.A.W.R. 3,500 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 3,500 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 15” 5-Hole Wheels
TIRES ST205/75 R15 LRC
FENDERS Smooth Plate, Weld-on
DECK Straight Deck w/4′ Dove Tail
STEP Running Boards
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR 1/8″ Steel Diamond Plate
D-RINGS Recessed, 360° Rotation
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 30
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

18′ – 22′

WIDTH

83″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 5,200 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

7,059 – 6,986 Lbs

EST. WEIGHT

2,931 – 3,004 lbs

CZ10 | STANDARD FEATURES

CZ10 | STANDARD FEATURES

G.V.W.R. 9,990 lbs
G.A.W.R. 5,200 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 5,200 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 15” 6-Hole Wheels
TIRES ST225/75 R15 LRD
FENDERS Smooth Plate, Weld-on
DECK Straight Deck w/4′ Dove Tail
STEP Running Boards
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR 1/8″ Steel Diamond Plate
D-RINGS Recessed, 360° Rotation
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 1/4” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting.

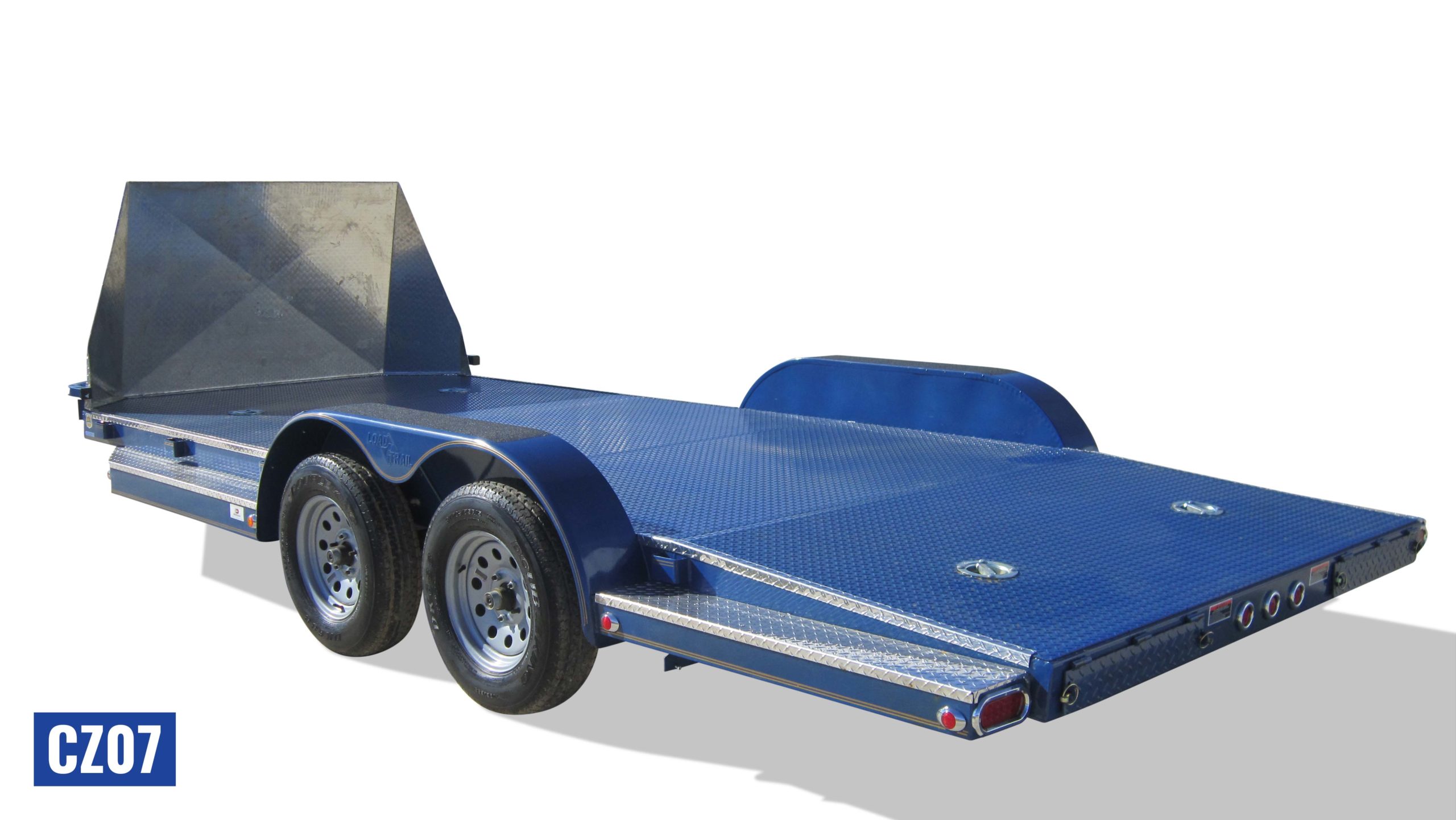

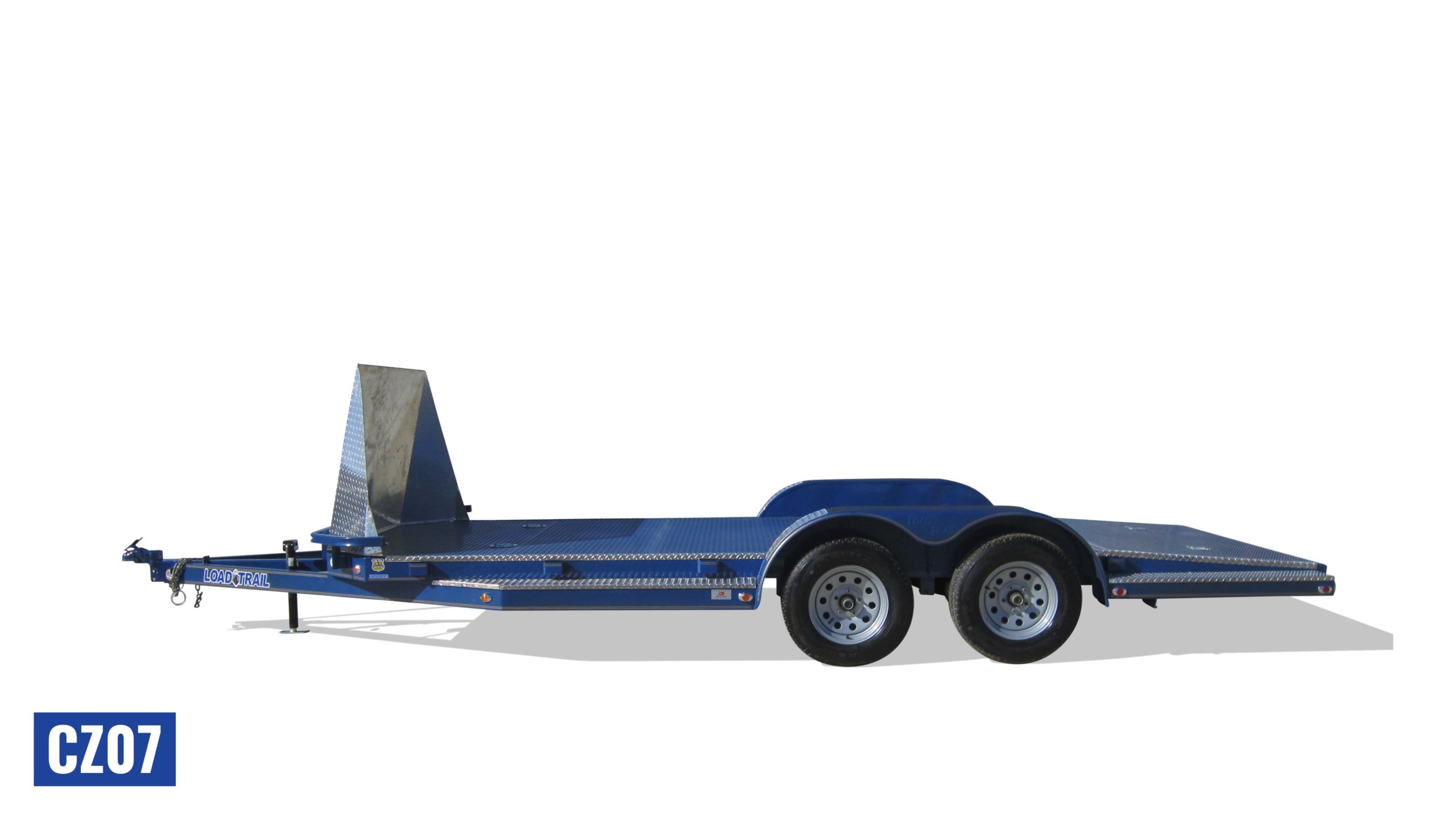

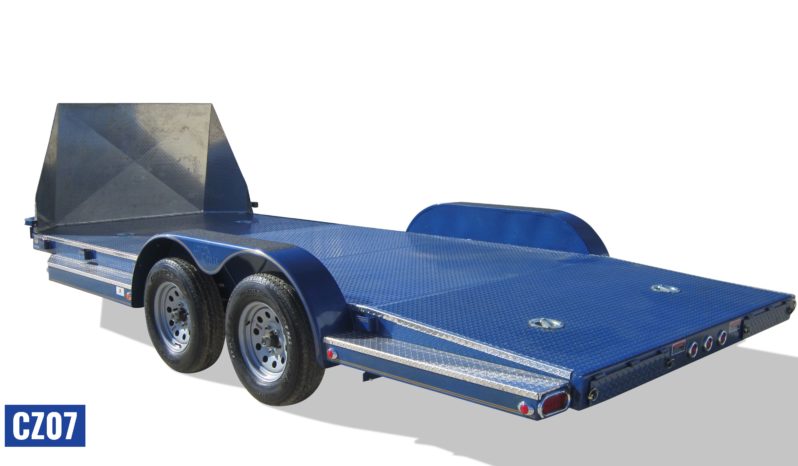

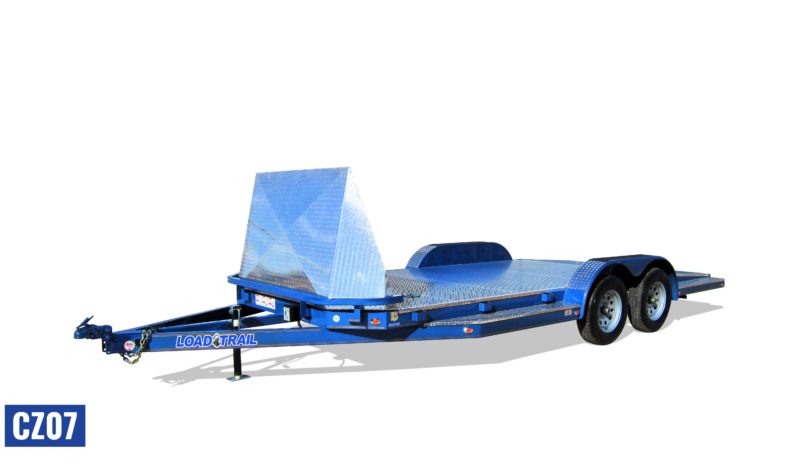

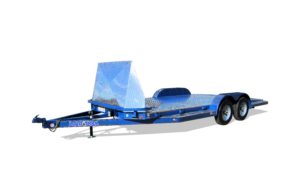

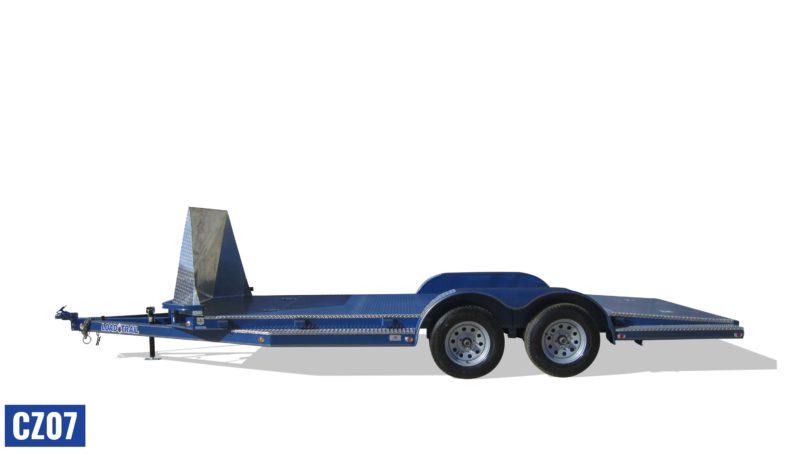

CZ07

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

3,500 Lbs/Axle

LENGTH

18′ – 22′

WIDTH

83″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 3,500 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

4,160 – 4,500 Lbs

EST. WEIGHT

2,500 – 2,840 lbs

CZ07 | STANDARD FEATURES

CZ07 | STANDARD FEATURES

G.V.W.R. 7,000 lbs
G.A.W.R. 3,500 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 3,500 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 15” 5-Hole Wheels
TIRES ST205/75 R15 LRC
FENDERS Smooth Plate, Weld-on
DECK Straight Deck w/4′ Dove Tail
STEP Running Boards
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR 1/8″ Steel Diamond Plate
D-RINGS Recessed, 360° Rotation
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 30
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting.

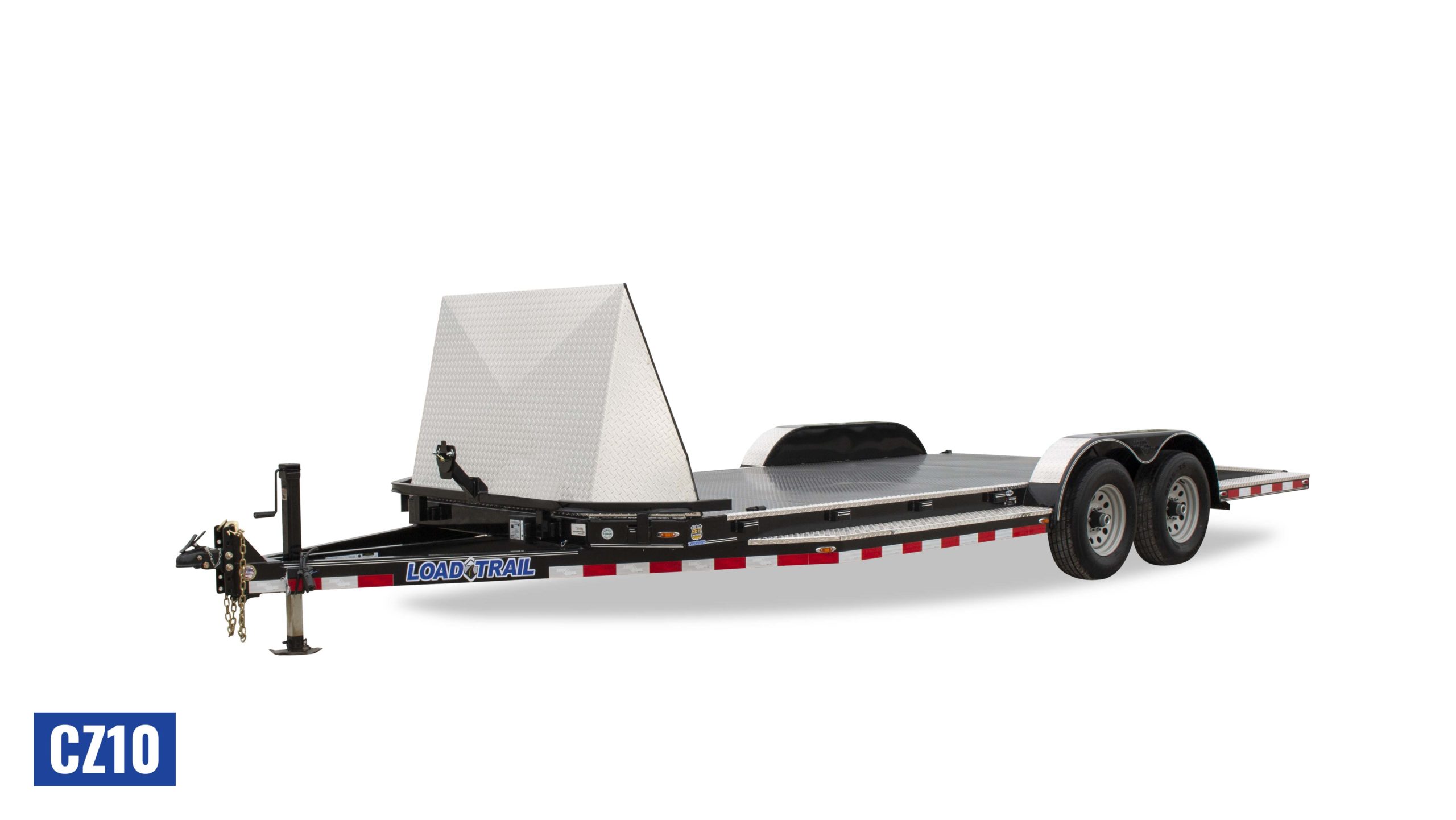

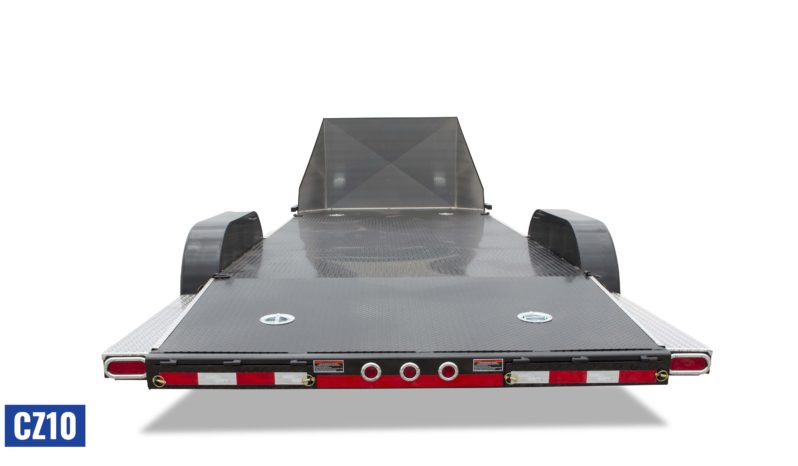

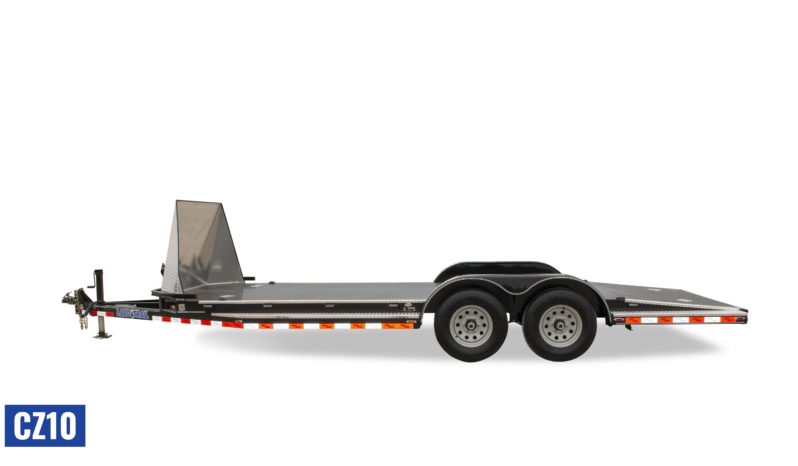

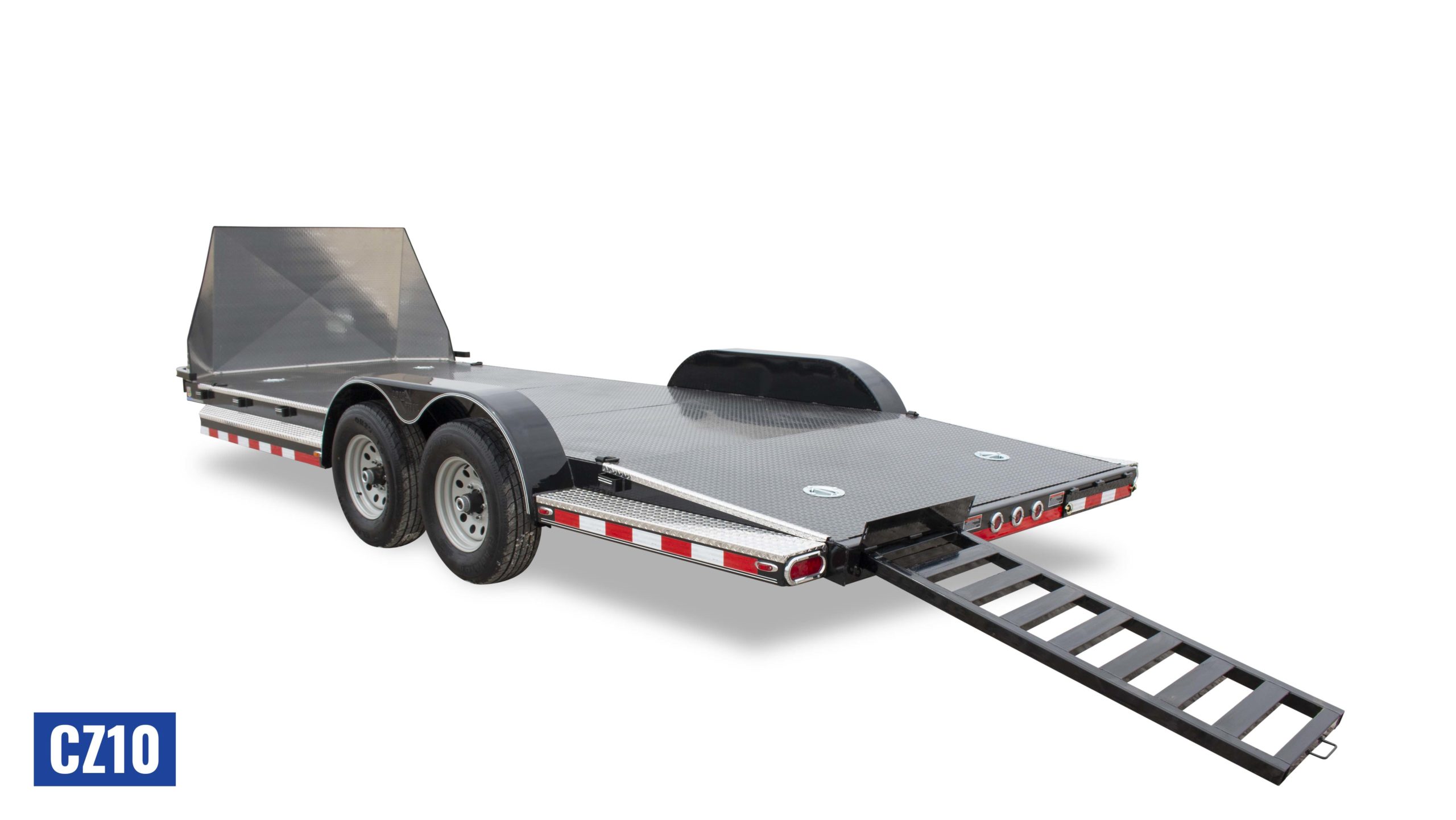

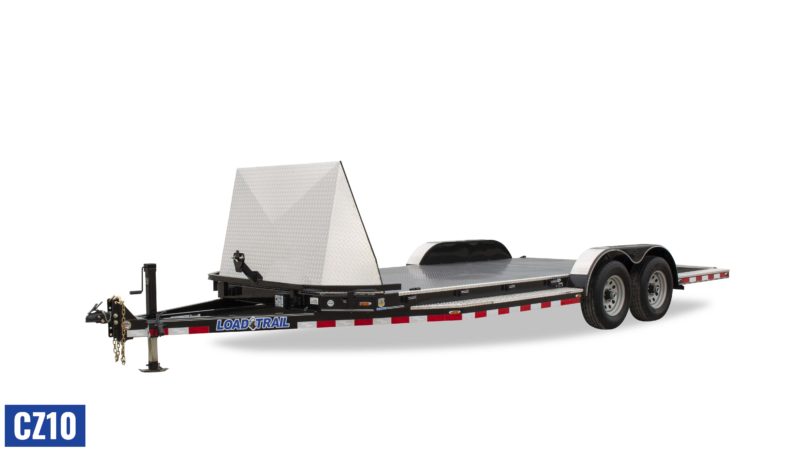

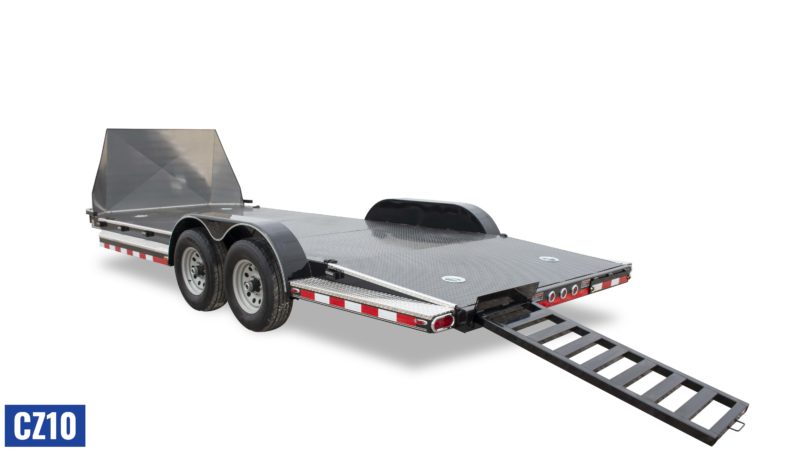

CZ10

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

18′ – 22′

WIDTH

83″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 5,200 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

7,059 – 6,986 Lbs

EST. WEIGHT

2,931 – 3,004 lbs

CZ10 | STANDARD FEATURES

CZ10 | STANDARD FEATURES

G.V.W.R. 9,990 lbs
G.A.W.R. 5,200 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 5,200 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 15” 6-Hole Wheels
TIRES ST225/75 R15 LRD
FENDERS Smooth Plate, Weld-on
DECK Straight Deck w/4′ Dove Tail
STEP Running Boards
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR 1/8″ Steel Diamond Plate
D-RINGS Recessed, 360° Rotation
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 1/4” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting.
COUPLER
2″ Adjustable Couple C28
2-5/16″ Adjustable Coupler C10
3″ adjustable Pintle Ring C22
2-5/16″ Hydraulic Coupler C08
AXLES & SUSPENSION
2 – 3,500 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 3,500 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 3,500 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
2 – 5,200 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 5,200 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 5,200 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 5,200 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
Slipper Spring (for 3.5K & 5.2K axles) Y12
WHEELS & TIRES
ST205/75 R15 LRC 6 Ply w/Silver Wheels A02
ST205/75 R15 LRC 6 Ply w/Black Wheels A26
ST225/75 R15 LRD 8 Ply w/Silver Wheels A04
ST225/75 R15 LRD 8 Ply w/Black Wheels A27
ST235/80 R16 LRE 10 Ply w/Silver Wheels A06
ST235/80 R16 LRE 10 Ply w/Black Wheels A28
Spare ST205/75 R15 LRC 6 Ply (silver) STC
Spare ST205/75 R15 LRC 6 Ply (black) STA
Spare ST225/75 R15 LRD 8 Ply (silver) STG
Spare ST225/75 R15 LRD 8 Ply (black) STB
Spare ST235/80 R16 LRE 10 Ply (silver) STH
Spare ST235/80 R16 LRE 10 Ply (black) STD
LANDING GEAR
5,000 lb. Swivel Jack J01
7,000 lb. Drop-leg Jack J02
(1) – 10K Drop-Leg Jack J04
FRAME
5″ Channel Frame B05
FLOOR
Steel Diamond Plate Floor E03
TAIL & RAMPS
4’ Dove Tail D04
5′ x 22″ Rear Slide-in Ramps H21
FENDERS
Smooth Plate Tear Drop Fenders (weld-on) F03
WINCH
Winch Plate (8” Channel) w/roller W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
16” On-Center Crossmembers I01
12” On-Center Crossmembers I02
LED Light Bar (single row) L10
LED Light Bar (dual row) L11
LED Lights w/Chrome Accents, 7-way RV Plug w/ Cold Weather Harness I07
LED Back-Up Lights L08
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
Tongue-Mount Toolbox T01
Tongue-Mount Aluminum Toolbox T17
22” Tongue-Mount Toolbox T13
42″ Aluminum Stone Guard SG3
Aluminum Trim Package AL1
Running Boards RB1
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
Spare Tire Mount TM1
Removable Spare Tire Mount TM2
Mini LED Deck Lights L010
POPULAR OPTIONS
Aluminum Trim Package SG1
42″ Aluminum Stone Guard SG3
1/2″ Winch Plate W02
Running Boards RB1
Tongue-mount Toolbox T01
Spare Tire Mount TM1
CZ07 | 7,000 GVWR
(TANDEM 3.5K AXLES)
CZ8318032 83″ x 18′ 2500
CZ8320032 83″ x 20′ 2670
CZ8322032 83″ x 22′ 2840
CZ10 | 9,990 GVWR
(TANDEM 5.2K AXLES)
CZ8318052 83″ x 18′ 2931
CZ8320052 83″ x 20′ 2939
CZ8322052 83″ x 22′ 3004
Estimated weights for base models only.
OPTIONS
COUPLER
2″ Adjustable Couple C28
2-5/16″ Adjustable Coupler C10
3″ adjustable Pintle Ring C22
2-5/16″ Hydraulic Coupler C08
AXLES & SUSPENSION
2 – 3,500 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 3,500 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 3,500 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
2 – 5,200 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 5,200 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 5,200 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 5,200 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
Slipper Spring (for 3.5K & 5.2K axles) Y12
WHEELS & TIRES
ST205/75 R15 LRC 6 Ply w/Silver Wheels A02
ST205/75 R15 LRC 6 Ply w/Black Wheels A26
ST225/75 R15 LRD 8 Ply w/Silver Wheels A04
ST225/75 R15 LRD 8 Ply w/Black Wheels A27
ST235/80 R16 LRE 10 Ply w/Silver Wheels A06
ST235/80 R16 LRE 10 Ply w/Black Wheels A28
Spare ST205/75 R15 LRC 6 Ply (silver) STC
Spare ST205/75 R15 LRC 6 Ply (black) STA
Spare ST225/75 R15 LRD 8 Ply (silver) STG
Spare ST225/75 R15 LRD 8 Ply (black) STB
Spare ST235/80 R16 LRE 10 Ply (silver) STH
Spare ST235/80 R16 LRE 10 Ply (black) STD
LANDING GEAR
5,000 lb. Swivel Jack J01
7,000 lb. Drop-leg Jack J02
(1) – 10K Drop-Leg Jack J04
FRAME
5″ Channel Frame B05
FLOOR
Steel Diamond Plate Floor E03
TAIL & RAMPS
4’ Dove Tail D04
5′ x 22″ Rear Slide-in Ramps H21
FENDERS
Smooth Plate Tear Drop Fenders (weld-on) F03
WINCH
Winch Plate (8” Channel) w/roller W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
16” On-Center Crossmembers I01
12” On-Center Crossmembers I02
LED Light Bar (single row) L10
LED Light Bar (dual row) L11
LED Lights w/Chrome Accents, 7-way RV Plug w/ Cold Weather Harness I07
LED Back-Up Lights L08
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
Tongue-Mount Toolbox T01
Tongue-Mount Aluminum Toolbox T17
22” Tongue-Mount Toolbox T13
42″ Aluminum Stone Guard SG3
Aluminum Trim Package AL1
Running Boards RB1
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
Spare Tire Mount TM1
Removable Spare Tire Mount TM2
Mini LED Deck Lights L010
POPULAR OPTIONS
POPULAR OPTIONS
Aluminum Trim Package SG1
42″ Aluminum Stone Guard SG3
1/2″ Winch Plate W02
Running Boards RB1
Tongue-mount Toolbox T01
Spare Tire Mount TM1
SIZE & WEIGHT
CZ07 | 7,000 GVWR
(TANDEM 3.5K AXLES)
CZ8318032 83″ x 18′ 2500
CZ8320032 83″ x 20′ 2670
CZ8322032 83″ x 22′ 2840
CZ10 | 9,990 GVWR
(TANDEM 5.2K AXLES)
CZ8318052 83″ x 18′ 2931
CZ8320052 83″ x 20′ 2939
CZ8322052 83″ x 22′ 3004
Estimated weights for base models only.

CZ SERIES HIGHLIGHTS

Dealer Network
Image is not available
I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

Image is not available
FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

Image is not available
DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

Left Menu Icon
