CH | Channel Frame Car Hauler

BEST SELLER
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full
CH | Channel Frame Car Hauler full

FIND A DEALER

SHOP CH INVENTORY

CUSTOM QUOTE

FINANCING

VIEW BROCHURE

VIEW DRAWING

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

3,500 Lbs/Axle

LENGTH

16′ – 22′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 3,500 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

3,931 – 4,840 Lbs

EST. WEIGHT

2,160 – 3,069 Lbs

CH07 | STANDARD FEATURES

CH07 | STANDARD FEATURES

G.V.W.R. 7,000 lbs
G.A.W.R. 3,500 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 24” On-center
AXLES (2) 3,500 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2” A-Frame
JACK (1) 5,000 lb Top-wind
WHEELS 15” 5-Hole Wheels
TIRES ST205/75 R15 LRC
FENDERS Removable Smooth Plate
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 30
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

16′ – 24′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 5,200 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

7,610 – 6,252 Lbs

EST. WEIGHT

2,380 – 3,738 Lbs

CH10 | STANDARD FEATURES

CH10 | STANDARD FEATURES

G.V.W.R. 9,990 lbs
G.A.W.R. 5,200 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 24” On-center
AXLES (2) 5,200 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 15” 6-Hole Wheels
TIRES ST225/75 R15 LRD
FENDERS Steel Diamond Plate, Weld-on
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 1/4” Grade 30
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

16′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

24″

AXLES

(2) 7,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

8,100- 11,376 Lbs

EST. WEIGHT

2,624 – 5,900 Lbs

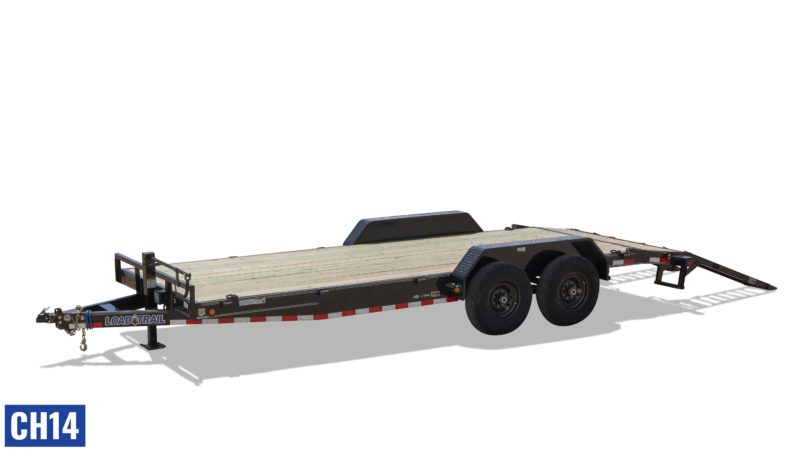

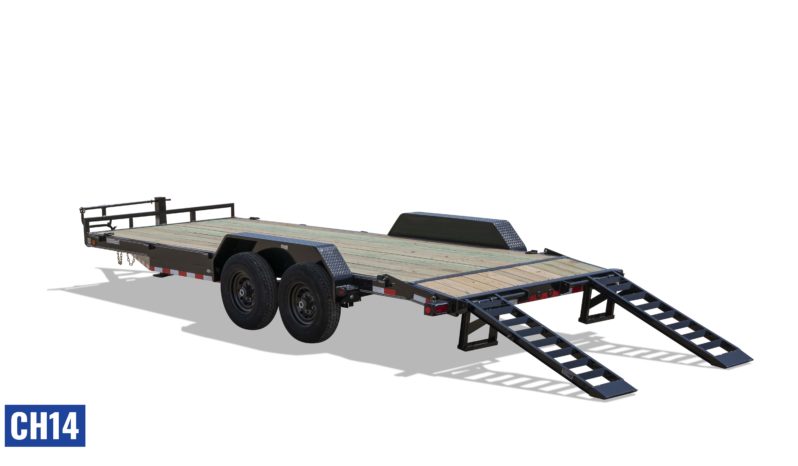

CH14 | STANDARD FEATURES

CH14 | STANDARD FEATURES

G.V.W.R. 14,000 lbs
G.A.W.R. 7,000 lbs / Axle
TONGUE 6″ Channel
FRAME 6″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (1) 10,000 lb Drop-leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
FENDERS Removable Steel Diamond Plate
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

G.A.W.R.

8,000 Lbs/Axle

LENGTH

16′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

25″

AXLES

(2) 8,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

9,350 – 13,392 Lbs

EST. WEIGHT

2,624 – 5,900 Lbs

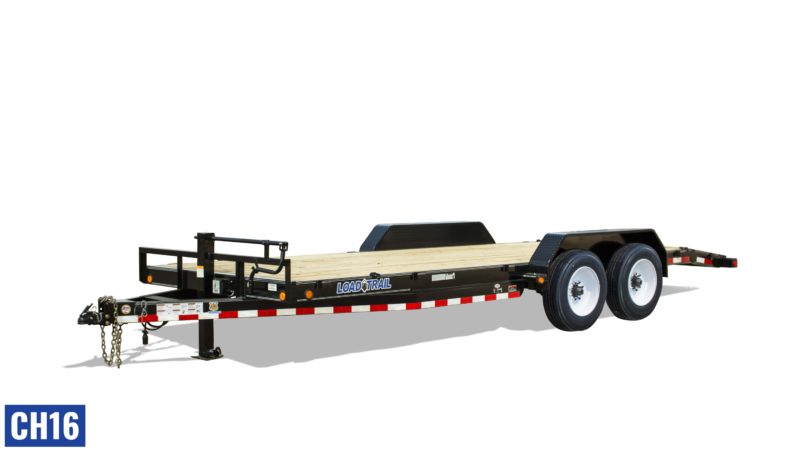

CH16 | STANDARD FEATURES

CH16 | STANDARD FEATURES

G.V.W.R. 16,000 lbs
G.A.W.R. 8,000 lbs / Axle
TONGUE 6″ Channel
FRAME 6″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 8,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (1) 10,000 lb Drop-leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
FENDERS Removable Steel Diamond Plate
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

20′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

27″

AXLES

(3) 7,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

13,900 – 17,289 Lbs

EST. WEIGHT

3,711 – 7,100 Lbs

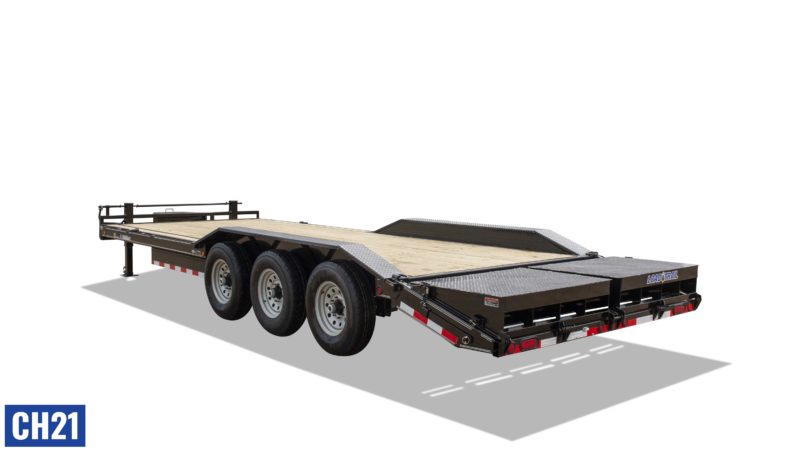

CH21 | STANDARD FEATURES

CH21 | STANDARD FEATURES

G.V.W.R. 21,000 lbs
G.A.W.R. 7,000 lbs / Axle
TONGUE 8″ Channel
FRAME 8″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (3) 7,000 lb Dexter 3 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (2) 10,000 lb Drop-leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/780 R16 LRH
FENDERS Steel Diamond Plate, Weld-on
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

24,000 Lbs

G.A.W.R.

8,000 Lbs/Axle

LENGTH

20′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

27″

AXLES

(3) 8,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

N/A

EST. WEIGHT

N/A

CH24 | STANDARD FEATURES

CH24 | STANDARD FEATURES

G.V.W.R. 24,000 lbs
G.A.W.R. 8,000 lbs / Axle
TONGUE 8″ Channel
FRAME 8″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (3) 8,000 lb Dexter 3 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (2) 10,000 lb Drop-leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
FENDERS Steel Diamond Plate, Weld-on
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.
CH07

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 Lbs

G.A.W.R.

3,500 Lbs/Axle

LENGTH

16′ – 22′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 3,500 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

3,931 – 4,840 Lbs

EST. WEIGHT

2,160 – 3,069 Lbs

CH07 | STANDARD FEATURES

CH07 | STANDARD FEATURES

G.V.W.R. 7,000 lbs
G.A.W.R. 3,500 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 24” On-center
AXLES (2) 3,500 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2” A-Frame
JACK (1) 5,000 lb Top-wind
WHEELS 15” 5-Hole Wheels
TIRES ST205/75 R15 LRC
FENDERS Removable Smooth Plate
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 30
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models.

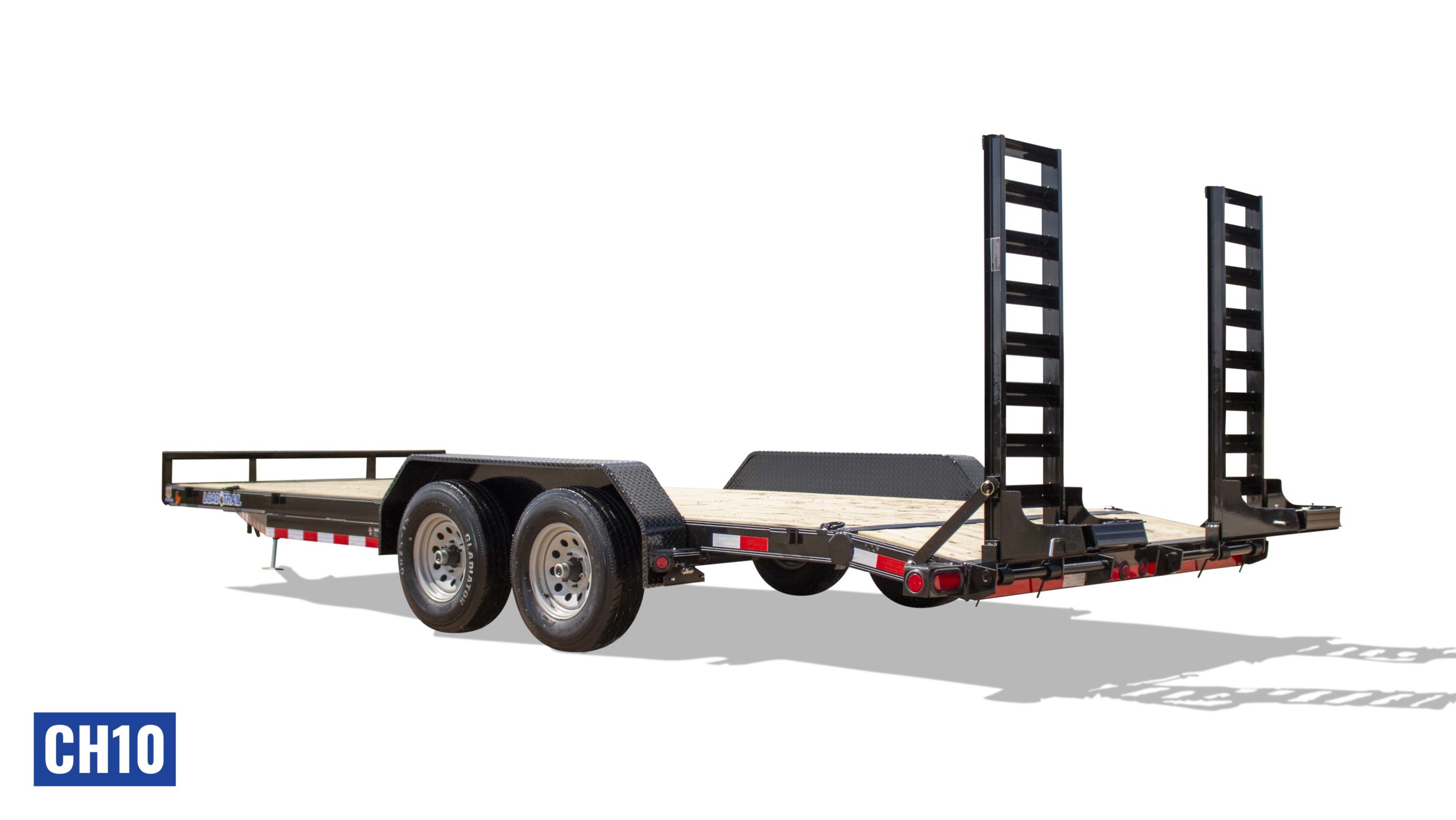

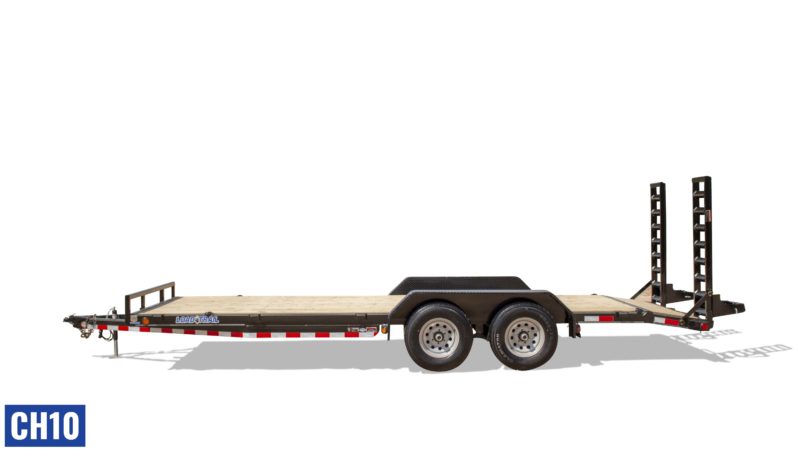

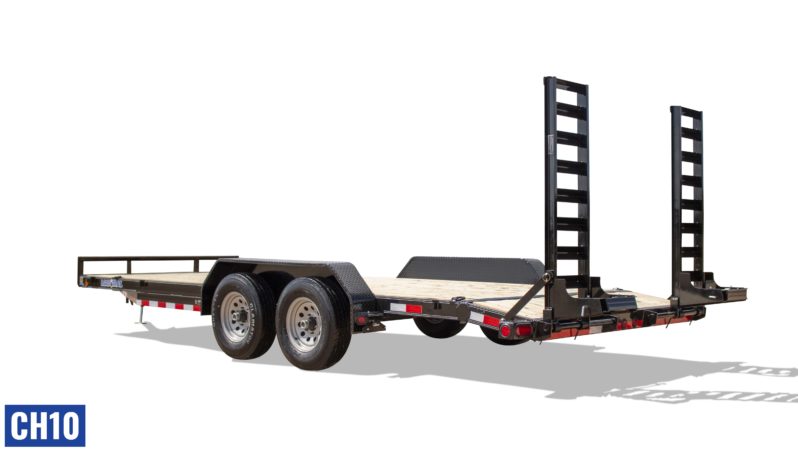

CH10

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

G.A.W.R.

5,200 Lbs/Axle

LENGTH

16′ – 24′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

22″

AXLES

(2) 5,200 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

7,610 – 6,252 Lbs

EST. WEIGHT

2,380 – 3,738 Lbs

CH10 | STANDARD FEATURES

CH10 | STANDARD FEATURES

G.V.W.R. 9,990 lbs
G.A.W.R. 5,200 lbs / Axle
TONGUE 5″ Channel
FRAME 5″ Channel
CROSSMEMBERS 3” Channel, 24” On-center
AXLES (2) 5,200 lb Dexter 1 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 15” 6-Hole Wheels
TIRES ST225/75 R15 LRD
FENDERS Steel Diamond Plate, Weld-on
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 1/4” Grade 30
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.
CH14

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

16′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

24″

AXLES

(2) 7,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

8,100- 11,376 Lbs

EST. WEIGHT

2,624 – 5,900 Lbs

CH14 | STANDARD FEATURES

CH14 | STANDARD FEATURES

G.V.W.R. 14,000 lbs
G.A.W.R. 7,000 lbs / Axle
TONGUE 6″ Channel
FRAME 6″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (1) 10,000 lb Drop-leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
FENDERS Removable Steel Diamond Plate
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.
CH16

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

G.A.W.R.

8,000 Lbs/Axle

LENGTH

16′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

25″

AXLES

(2) 8,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

9,350 – 13,392 Lbs

EST. WEIGHT

2,624 – 5,900 Lbs

CH16 | STANDARD FEATURES

CH16 | STANDARD FEATURES

G.V.W.R. 16,000 lbs
G.A.W.R. 8,000 lbs / Axle
TONGUE 6″ Channel
FRAME 6″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (2) 8,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (1) 10,000 lb Drop-leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
FENDERS Removable Steel Diamond Plate
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 5/16” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.
CH21

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

G.A.W.R.

7,000 Lbs/Axle

LENGTH

20′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

27″

AXLES

(3) 7,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

13,900 – 17,289 Lbs

EST. WEIGHT

3,711 – 7,100 Lbs

CH21 | STANDARD FEATURES

CH21 | STANDARD FEATURES

G.V.W.R. 21,000 lbs
G.A.W.R. 7,000 lbs / Axle
TONGUE 8″ Channel
FRAME 8″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (3) 7,000 lb Dexter 3 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (2) 10,000 lb Drop-leg
WHEELS 16” 8-Hole Wheels
TIRES ST235/780 R16 LRH
FENDERS Steel Diamond Plate, Weld-on
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.
CH24

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

24,000 Lbs

G.A.W.R.

8,000 Lbs/Axle

LENGTH

20′ – 40′

WIDTH

83″ – 102″

INNSIDE FENDER WIDTH

N/A

DECK HEIGHT

27″

AXLES

(3) 8,000 Lb

COUPLER

Bumper Pull & Pintle

LOAD CAPACITY

N/A

EST. WEIGHT

N/A

CH24 | STANDARD FEATURES

CH24 | STANDARD FEATURES

G.V.W.R. 24,000 lbs
G.A.W.R. 8,000 lbs / Axle
TONGUE 8″ Channel
FRAME 8″ Channel
CROSSMEMBERS 3” Channel, 16” On-center
AXLES (3) 8,000 lb Dexter 3 Electric NEV-R-ADJUST Brake
SUSPENSION Multi-Leaf Spring
COUPLER 2-5/16” Adjustable
JACK (2) 10,000 lb Drop-leg
WHEELS 17.5” 8-Hole Wheels
TIRES ST215/75 R17.5 LRH
FENDERS Steel Diamond Plate, Weld-on
DECK Straight Deck
RAMPS 60″ x 22″′ Slide-In Ramps
FLOOR Treated Wood
D-RINGS (4) 3″ D-rings
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Electric brake axles are forward-self-adjusting. Option F09, Weld-On Drive-Over Fenders are standard on all 102” wide models. With an 8″ channel frame, the deck height changes from 25″ to 27″. 102” models 35’ & up are built with a 10” I-Beam frame.
COUPLER
2” A-frame Cast Coupler C01
2” A-frame Coupler C02
2” Hydraulic Coupler C03
2” Adjustable Coupler (4hole) C04
2-5/16” A-frame Stamped Coupler C06
2-5/16” Adjustable Coupler (4-hole) C07
2-5/16” Adjustable Hydraulic Coupler C08
2-5/16” Adjustable Coupler (6-hole) C10
3” Adjustable Pintle Ring (4-hole) C11
3”Adjustable Plate-mount Pintle Ring C12
2-5/16” Adjustable 21K Coupler (6-hole) C13
3” Adjustable Hydraulic Pintle Ring C18
2-5/16” Adjustable Coupler (8-hole) C21
3” Adjustable Pintle Ring (6-hole) C22
2” A-frame Cast Bulldog Coupler C25
2-5/16” Adjustable Bulldog Coupler (4-hole) C27
2-5/16” Adjustable Bulldog Coupler (6-hole) C31
AXLES & SUSPENSION
2 – 3,500 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 3,500 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 3,500 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
2 – 5,200 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 5,200 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 5,200 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 5,200 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles ESB
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles DS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ESBO
2 – 8,000 Lb Dexter (2 Elec.)/Spring/EZ Lube *D 80 N ES2E
2 – 8,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ES2O
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles ESC
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles DS3
3 – 7,000 Lb Dexter (3 Elec.)/Spring/Oil Bath ESCO
3 – 8,000 Lb Dexter (3 Elec.)/Spring/EZ Lube *D 80 N ES3E
3 – 8,000 Lb Dexter (3 Elec.)/Spring/Oil Bath ES3O
Slipper Spring (for 3.5K & 5.2K axles) Y12
WHEELS & TIRES
ST205/75 R15 LRC 6 Ply With Silver Wheels A02
ST205/75 R15 LRC 6 Ply With Black Wheels A26
ST225/75 R15 LRD 8 Ply With Silver Wheels A04
ST225/75 R15 LRD 8 Ply With Black Wheels A27
ST235/80 R16 LRE 10 Ply w With 8-Hole Silver Wheels A05
ST235/80 R16 LRE 10 Ply With 8-Hole Black Wheels A28
ST235/85 R16 LRG 14 Ply With Silver Wheels A06
ST235/85 R16 LRG 14 Ply With Black Wheels A29
ST215/75 R17.5 LRH 16 Ply With White Wheels A15
ST215/75 R17.5 LRH 16 Ply With Black Wheels A25
Spare ST205/75 R15 LRC 6 Ply  (silver) STC
Spare ST205/75 R15 LRC 6 Ply  (black) STA
Spare ST225/75 R15 LRD 8 Ply (silver) STG
Spare ST225/75 R15 LRD 8 Ply (black) STB
Spare ST235/80 R16 LRE 10 Ply (silver) STI
Spare ST235/80 R16 LRE 10 Ply (black) STD
Spare ST235/85 R16 LRG 14 Ply (silver) STK
Spare ST235/85 R16 LRG 14 Ply (black) STF
Spare ST215/75 R17.5 LRH 16 Ply (white) STT
Spare ST215/75 R17.5 LRH 16 Ply (black) STR
LANDING GEAR
5,000 lb. Swivel Jack J01
7,000 lb. Drop-leg Jack J02
(1) – 10K Drop-Leg Jack J04
(2) – 10K Drop-Leg Jacks J05
FRAME
5″ Channel Frame (standard on 7K – 10K models) B00
6″ Channel Frame (standard on 14K – 16K models) B04
8″ Channel Frame (standard on 21K – 24K models) B02
FLOOR
Treated Pine Wood Floor E02
Steel Diamond Plate Floor E03
Rough Oak Floor E05
Douglas Fir Wood Floor E07
Blackwood Lumber (Classic) Floor E09
Blackwood Lumber (PRO) Floor E10
TAIL, GATE, & RAMPS
2’ Dove Tail (14ft & up models only) D01
3’ Dove Tail (14ft & up models only) D03
4’ Dove Tail (14ft & up models only) D04
2’ Dove w/Steel Diamond Plate (14ft & up models only) D02
3’ Dove w/Steel Diamond Plate (14ft & up models only) D05
5’ x 16” Rear Slide-In Ramps H64
MAX-Ramps H08
6’ x 13” Side Slide-in Ramps H09
5’ x 16” Fold-up Ramps H03
3rd. 5’ x 16” Fold-up Ramp H54
4’ HD Fold Gate w/Ramps & Spring Assist G74
5’ HD Fold Gate w/Ramps & Spring Assist G75
6’ HD Fold Gate w/Ramps & Spring Assist G76
4’ HD Split Fold Gate w/Ramps & Spring Assist G84
5’ HD Split Fold Gate w/Ramps & Spring Assist G85
6’ HD Split Fold Gate w/Ramps & Spring Assist G86
6’ Stand-up Ramps w/Center Gate & Springs G89
Double Hinge Assembly K30
Double Hinge Assembly for 3 Ramps K31
FENDERS
Smooth Plate Fenders (weld-on) F04
Smooth Plate Fenders (removable) F03
Steel Diamond Plate Fenders (weld-on) F05
Steel Diamond Plate Fenders (removable) F06
Aluminum Fenders (removable) F08
Steel Diamond Plate Drive-Over Fenders F09
WINCH OPTIONS
Winch Plate (8” Channel) w/roller W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Fork Holders FH1
24” On-Center Crossmembers I00
16” On-Center Crossmembers I01
12” On-Center Crossmembers I02
LED Light Bar – Single Row L10
LED Light Bar – Dual Row L11
7-Way RV Plug w/Cold Weather Harness L07
LED Back-Up Lights L08
3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
In-Tongue Tool Tray T00
Tongue-Mount Toolbox T01
In-Tongue Tool Tray + Tongue-mount Toolbox T00T01
Tongue-Mount Aluminum Toolbox T17
22” Tongue-Mount Toolbox T13
22” Double-deck Tongue-mount Toolbox T15
Running Boards RB1
Receiver Hitch RH1
2” Rub Rail RR1
2 – Pipes For Rear Support Stands RS0
2 – Rear Support Stands (5K swivel jacks) RS1
2 – Rear Support Stands (2” x 2” Tubing) RS2
2 – Rear Support Stands (7k Jacks) RS3
(1) – 30” MAX-Step SM11
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
Spare Tire Mount TM1
Removable Spare Tire Mount TM2
POPULAR OPTIONS
2′ Dove Tail D01
Drive-Over Fenders F09
Tongue-Mount Toolbox T01
Running Boards RB1
2” Rub Rail RR1
Spare Tire Mount TM1
CH07 | 7,000 GVWR
(TANDEM 3.5K AXLES)
CH8310032 77″ x 12′ N/A
CH8310032 77″ x 16′ N/A
CH8310032 83″ x 10′ N/A
CH8312032 83″ x 12′ N/A
CH8314032 83″ x 14′ N/A
CH8316032 83″ x 16′ 2160
CH8318032 83″ x 18′ 2310
CH8320032 83″ x 20′ 2462
CH8322032 83″ x 22′ 2613
CH0212032 102″ x 12′ N/A
CH0214032 102″ x 14′ N/A
CH0216032 102″ x 16′ 2492
CH0218032 102″ x 18′ 2684
CH0220032 102″ x 20′ 2877
CH0222032 102″ x 22′ 3069
CH10 | 9,990 GVWR
(TANDEM 5.2K AXLES)
CH6010052 60″ x 10′ N/A
CH6012052 60″ x 12′ N/A
CH7210052 72″ x 10′ N/A
CH7212052 72″ x 12′ N/A
CH7216052 72″ x 16′ N/A
CH7716052 77″ x 16′ N/A
CH7718052 77″ x 18′ N/A
CH8312052 83″ x 12′ N/A
CH8314052 83″ x 14′ N/A
CH8316052 83″ x 16′ 2380
CH8318052 83″ x 18′ 2540
CH8320052 83″ x 20′ 2702
CH8322052 83″ x 22′ 2909
CH8324052 83″ x 24′ 3437
CH0212052 102″ x 12′ N/A
CH0214052 102″ x 14′ N/A
CH0216052 102″ x 16′ 2706
CH0218052 102″ x 18′ 2964
CH0220052 102″ x 20′ 3222
CH0222052 102″ x 22′ 3480
CH0224052 102″ x 24′ 3738
CH0226052 102″ x 26′ N/A
CH14 | 14,000 GVWR
(TANDEM 7K AXLES)
CH6014072 60″ x 14′ N/A
CH8312072 83″ x 12′ N/A
CH8314072 83″ x 14′ N/A
CH8316072 83″ x 16′ 2624
CH8318072 83″ x 18′ 2783
CH8320072 83″ x 20′ 2945
CH8322072 83″ x 22′ 3153
CH8324072 83″ x 24′ 3723
CH8326072 83″ x 26′ 3881
CH8328072 83″ x 28′ 4350
CH8330072 83″ x 30′ N/A
CH8332072 83″ x 32′ 4570
CH8334072 83″ x 34′ 4890
CH8336072 83″ x 36′ N/A
CH8338072 83″ x 38′ N/A
CH8340072 83″ x 40′ 5860
CH0212072 102″ x 12′ N/A
CH0214072 102″ x 14′ N/A
CH0216072 102″ x 16′ 2945
CH0218072 102″ x 18′ 3202
CH0220072 102″ x 20′ 3459
CH0222072 102″ x 22′ 3716
CH0224072 102″ x 24′ 4525
CH0226072 102″ x 26′ 4782
CH0228072 102″ x 28′ 4800
CH0230072 102″ x 30′ N/A
CH0232072 102″ x 32′ 5500
CH0234072 102″ x 34′ 5800
CH0236072 102″ x 36′ 5900
CH0238072 102″ x 38′ N/A
CH0240072 102″ x 40′ N/A
CH16 | 16,000 GVWR
(TANDEM 8K AXLES)
CH8012082 80″ x 12′ N/A
CH8014082 80″ x 14′ N/A
CH8016082 80″ x 16′ N/A
CH8018082 80″ x 18′ N/A
CH8020082 80″ x 20′ N/A
CH8022082 80″ x 22′ N/A
CH8024082 80″ x 24′ N/A
CH8026082 80″ x 26′ N/A
CH8028082 80″ x 28′ N/A
CH8030082 80″ x 30′ N/A
CH8032082 80″ x 32′ N/A
CH8034082 80″ x 34′ N/A
CH8036082 80″ x 36′ N/A
CH8038082 80″ x 38′ N/A
CH8040082 80″ x 40′ N/A
CH8312082 83″ x 12′ N/A
CH8314082 83″ x 14′ N/A
CH8316082 83″ x 16′ N/A
CH8318082 83″ x 18′ N/A
CH8320082 83″ x 20′ N/A
CH8322082 83″ x 22′ N/A
CH8324082 83″ x 24′ N/A
CH8326082 83″ x 26′ N/A
CH8328082 83″ x 28′ N/A
CH8330082 83″ x 30′ N/A
CH8332082 83″ x 32′ N/A
CH8334082 83″ x 34′ N/A
CH8336082 83″ x 36′ N/A
CH8338082 83″ x 38′ N/A
CH8340082 83″ x 40′ N/A
CH0212082 102″ x 12′ N/A
CH0214082 102″ x 14′ N/A
CH0216082 102″ x 16′ N/A
CH0218082 102″ x 18′ N/A
CH0220082 102″ x 20′ N/A
CH0222082 102″ x 22′ N/A
CH0224082 102″ x 24′ N/A
CH0226082 102″ x 26′ N/A
CH0228082 102″ x 28′ N/A
CH0230082 102″ x 30′ N/A
CH0232082 102″ x 32′ N/A
CH0234082 102″ x 34′ N/A
CH0236082 102″ x 36′ N/A
CH0238082 102″ x 38′ N/A
CH0240082 102″ x 40′ N/A
CH21 | 21,000 GVWR
(TRIPLE 7K AXLES)
CH8316073 83″ x 16′ N/A
CH8318073 83″ x 18′ N/A
CH8320073 83″ x 20′ N/A
CH8322073 83″ x 22′ N/A
CH8324073 83″ x 24′ N/A
CH8326073 83″ x 26′ N/A
CH8328073 83″ x 28′ N/A
CH8330073 83″ x 30′ N/A
CH8332073 83″ x 32′ N/A
CH8334073 83″ x 34′ N/A
CH8336073 83″ x 36′ N/A
CH8338073 83″ x 38′ N/A
CH8340073 83″ x 40′ N/A
CH0216073 102″ x 16′ N/A
CH0218073 102″ x 18′ N/A
CH0220073 102″ x 20′ N/A
CH0222073 102″ x 22′ N/A
CH0224073 102″ x 24′ N/A
CH0226073 102″ x 26′ N/A
CH0228073 102″ x 28′ N/A
CH0230073 102″ x 30′ N/A
CH0232073 102″ x 32′ N/A
CH0234073 102″ x 34′ N/A
CH0236073 102″ x 36′ N/A
CH0238073 102″ x 38′ N/A
CH0240073 102″ x 40′ N/A
CH24 | 24,000 GVWR
(TRIPLE 8K AXLES)
CH8020083 80″ x 20′ N/A
CH0228083 102″ x 28′ N/A
CH0236083 102″ x 36′ N/A



Estimated weights for base models only.
OPTIONS
COUPLER
2” A-frame Cast Coupler C01
2” A-frame Coupler C02
2” Hydraulic Coupler C03
2” Adjustable Coupler (4hole) C04
2-5/16” A-frame Stamped Coupler C06
2-5/16” Adjustable Coupler (4-hole) C07
2-5/16” Adjustable Hydraulic Coupler C08
2-5/16” Adjustable Coupler (6-hole) C10
3” Adjustable Pintle Ring (4-hole) C11
3”Adjustable Plate-mount Pintle Ring C12
2-5/16” Adjustable 21K Coupler (6-hole) C13
3” Adjustable Hydraulic Pintle Ring C18
2-5/16” Adjustable Coupler (8-hole) C21
3” Adjustable Pintle Ring (6-hole) C22
2” A-frame Cast Bulldog Coupler C25
2-5/16” Adjustable Bulldog Coupler (4-hole) C27
2-5/16” Adjustable Bulldog Coupler (6-hole) C31
AXLES & SUSPENSION
2 – 3,500 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 3,500 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 3,500 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 3,500 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
2 – 5,200 Lb Dexter (1 Elec)/Spring Axles ESA
2 – 5,200 Lb Dexter (2 Elec)/Spring Axles ESB
2 – 5,200 Lb Dexter (1 Hyd.Drum)/Spring Axles HS1
2 – 5,200 Lb Dexter (2 Hyd.Drum)/Spring Axles HS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles ESB
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles DS2
2 – 7,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ESBO
2 – 8,000 Lb Dexter (2 Elec.)/Spring/EZ Lube *D 80 N ES2E
2 – 8,000 Lb Dexter (2 Elec.)/Spring/Oil Bath ES2O
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles ESC
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles DS3
3 – 7,000 Lb Dexter (3 Elec.)/Spring/Oil Bath ESCO
3 – 8,000 Lb Dexter (3 Elec.)/Spring/EZ Lube *D 80 N ES3E
3 – 8,000 Lb Dexter (3 Elec.)/Spring/Oil Bath ES3O
Slipper Spring (for 3.5K & 5.2K axles) Y12
WHEELS & TIRES
ST205/75 R15 LRC 6 Ply With Silver Wheels A02
ST205/75 R15 LRC 6 Ply With Black Wheels A26
ST225/75 R15 LRD 8 Ply With Silver Wheels A04
ST225/75 R15 LRD 8 Ply With Black Wheels A27
ST235/80 R16 LRE 10 Ply w With 8-Hole Silver Wheels A05
ST235/80 R16 LRE 10 Ply With 8-Hole Black Wheels A28
ST235/85 R16 LRG 14 Ply With Silver Wheels A06
ST235/85 R16 LRG 14 Ply With Black Wheels A29
ST215/75 R17.5 LRH 16 Ply With White Wheels A15
ST215/75 R17.5 LRH 16 Ply With Black Wheels A25
Spare ST205/75 R15 LRC 6 Ply  (silver) STC
Spare ST205/75 R15 LRC 6 Ply  (black) STA
Spare ST225/75 R15 LRD 8 Ply (silver) STG
Spare ST225/75 R15 LRD 8 Ply (black) STB
Spare ST235/80 R16 LRE 10 Ply (silver) STI
Spare ST235/80 R16 LRE 10 Ply (black) STD
Spare ST235/85 R16 LRG 14 Ply (silver) STK
Spare ST235/85 R16 LRG 14 Ply (black) STF
Spare ST215/75 R17.5 LRH 16 Ply (white) STT
Spare ST215/75 R17.5 LRH 16 Ply (black) STR
LANDING GEAR
5,000 lb. Swivel Jack J01
7,000 lb. Drop-leg Jack J02
(1) – 10K Drop-Leg Jack J04
(2) – 10K Drop-Leg Jacks J05
FRAME
5″ Channel Frame (standard on 7K – 10K models) B00
6″ Channel Frame (standard on 14K – 16K models) B04
8″ Channel Frame (standard on 21K – 24K models) B02
FLOOR
Treated Pine Wood Floor E02
Steel Diamond Plate Floor E03
Rough Oak Floor E05
Douglas Fir Wood Floor E07
Blackwood Lumber (Classic) Floor E09
Blackwood Lumber (PRO) Floor E10
TAIL, GATE, & RAMPS
2’ Dove Tail (14ft & up models only) D01
3’ Dove Tail (14ft & up models only) D03
4’ Dove Tail (14ft & up models only) D04
2’ Dove w/Steel Diamond Plate (14ft & up models only) D02
3’ Dove w/Steel Diamond Plate (14ft & up models only) D05
5’ x 16” Rear Slide-In Ramps H64
MAX-Ramps H08
6’ x 13” Side Slide-in Ramps H09
5’ x 16” Fold-up Ramps H03
3rd. 5’ x 16” Fold-up Ramp H54
4’ HD Fold Gate w/Ramps & Spring Assist G74
5’ HD Fold Gate w/Ramps & Spring Assist G75
6’ HD Fold Gate w/Ramps & Spring Assist G76
4’ HD Split Fold Gate w/Ramps & Spring Assist G84
5’ HD Split Fold Gate w/Ramps & Spring Assist G85
6’ HD Split Fold Gate w/Ramps & Spring Assist G86
6’ Stand-up Ramps w/Center Gate & Springs G89
Double Hinge Assembly K30
Double Hinge Assembly for 3 Ramps K31
FENDERS
Smooth Plate Fenders (weld-on) F04
Smooth Plate Fenders (removable) F03
Steel Diamond Plate Fenders (weld-on) F05
Steel Diamond Plate Fenders (removable) F06
Aluminum Fenders (removable) F08
Steel Diamond Plate Drive-Over Fenders F09
WINCH OPTIONS
Winch Plate (8” Channel) w/roller W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Fork Holders FH1
24” On-Center Crossmembers I00
16” On-Center Crossmembers I01
12” On-Center Crossmembers I02
LED Light Bar – Single Row L10
LED Light Bar – Dual Row L11
7-Way RV Plug w/Cold Weather Harness L07
LED Back-Up Lights L08
3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
In-Tongue Tool Tray T00
Tongue-Mount Toolbox T01
In-Tongue Tool Tray + Tongue-mount Toolbox T00T01
Tongue-Mount Aluminum Toolbox T17
22” Tongue-Mount Toolbox T13
22” Double-deck Tongue-mount Toolbox T15
Running Boards RB1
Receiver Hitch RH1
2” Rub Rail RR1
2 – Pipes For Rear Support Stands RS0
2 – Rear Support Stands (5K swivel jacks) RS1
2 – Rear Support Stands (2” x 2” Tubing) RS2
2 – Rear Support Stands (7k Jacks) RS3
(1) – 30” MAX-Step SM11
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
Spare Tire Mount TM1
Removable Spare Tire Mount TM2
POPULAR OPTIONS
POPULAR OPTIONS
2′ Dove Tail D01
Drive-Over Fenders F09
Tongue-Mount Toolbox T01
Running Boards RB1
2” Rub Rail RR1
Spare Tire Mount TM1
SIZE & WEIGHT
CH07 | 7,000 GVWR
(TANDEM 3.5K AXLES)
CH8310032 77″ x 12′ N/A
CH8310032 77″ x 16′ N/A
CH8310032 83″ x 10′ N/A
CH8312032 83″ x 12′ N/A
CH8314032 83″ x 14′ N/A
CH8316032 83″ x 16′ 2160
CH8318032 83″ x 18′ 2310
CH8320032 83″ x 20′ 2462
CH8322032 83″ x 22′ 2613
CH0212032 102″ x 12′ N/A
CH0214032 102″ x 14′ N/A
CH0216032 102″ x 16′ 2492
CH0218032 102″ x 18′ 2684
CH0220032 102″ x 20′ 2877
CH0222032 102″ x 22′ 3069
CH10 | 9,990 GVWR
(TANDEM 5.2K AXLES)
CH6010052 60″ x 10′ N/A
CH6012052 60″ x 12′ N/A
CH7210052 72″ x 10′ N/A
CH7212052 72″ x 12′ N/A
CH7216052 72″ x 16′ N/A
CH7716052 77″ x 16′ N/A
CH7718052 77″ x 18′ N/A
CH8312052 83″ x 12′ N/A
CH8314052 83″ x 14′ N/A
CH8316052 83″ x 16′ 2380
CH8318052 83″ x 18′ 2540
CH8320052 83″ x 20′ 2702
CH8322052 83″ x 22′ 2909
CH8324052 83″ x 24′ 3437
CH0212052 102″ x 12′ N/A
CH0214052 102″ x 14′ N/A
CH0216052 102″ x 16′ 2706
CH0218052 102″ x 18′ 2964
CH0220052 102″ x 20′ 3222
CH0222052 102″ x 22′ 3480
CH0224052 102″ x 24′ 3738
CH0226052 102″ x 26′ N/A
CH14 | 14,000 GVWR
(TANDEM 7K AXLES)
CH6014072 60″ x 14′ N/A
CH8312072 83″ x 12′ N/A
CH8314072 83″ x 14′ N/A
CH8316072 83″ x 16′ 2624
CH8318072 83″ x 18′ 2783
CH8320072 83″ x 20′ 2945
CH8322072 83″ x 22′ 3153
CH8324072 83″ x 24′ 3723
CH8326072 83″ x 26′ 3881
CH8328072 83″ x 28′ 4350
CH8330072 83″ x 30′ N/A
CH8332072 83″ x 32′ 4570
CH8334072 83″ x 34′ 4890
CH8336072 83″ x 36′ N/A
CH8338072 83″ x 38′ N/A
CH8340072 83″ x 40′ 5860
CH0212072 102″ x 12′ N/A
CH0214072 102″ x 14′ N/A
CH0216072 102″ x 16′ 2945
CH0218072 102″ x 18′ 3202
CH0220072 102″ x 20′ 3459
CH0222072 102″ x 22′ 3716
CH0224072 102″ x 24′ 4525
CH0226072 102″ x 26′ 4782
CH0228072 102″ x 28′ 4800
CH0230072 102″ x 30′ N/A
CH0232072 102″ x 32′ 5500
CH0234072 102″ x 34′ 5800
CH0236072 102″ x 36′ 5900
CH0238072 102″ x 38′ N/A
CH0240072 102″ x 40′ N/A
CH16 | 16,000 GVWR
(TANDEM 8K AXLES)
CH8012082 80″ x 12′ N/A
CH8014082 80″ x 14′ N/A
CH8016082 80″ x 16′ N/A
CH8018082 80″ x 18′ N/A
CH8020082 80″ x 20′ N/A
CH8022082 80″ x 22′ N/A
CH8024082 80″ x 24′ N/A
CH8026082 80″ x 26′ N/A
CH8028082 80″ x 28′ N/A
CH8030082 80″ x 30′ N/A
CH8032082 80″ x 32′ N/A
CH8034082 80″ x 34′ N/A
CH8036082 80″ x 36′ N/A
CH8038082 80″ x 38′ N/A
CH8040082 80″ x 40′ N/A
CH8312082 83″ x 12′ N/A
CH8314082 83″ x 14′ N/A
CH8316082 83″ x 16′ N/A
CH8318082 83″ x 18′ N/A
CH8320082 83″ x 20′ N/A
CH8322082 83″ x 22′ N/A
CH8324082 83″ x 24′ N/A
CH8326082 83″ x 26′ N/A
CH8328082 83″ x 28′ N/A
CH8330082 83″ x 30′ N/A
CH8332082 83″ x 32′ N/A
CH8334082 83″ x 34′ N/A
CH8336082 83″ x 36′ N/A
CH8338082 83″ x 38′ N/A
CH8340082 83″ x 40′ N/A
CH0212082 102″ x 12′ N/A
CH0214082 102″ x 14′ N/A
CH0216082 102″ x 16′ N/A
CH0218082 102″ x 18′ N/A
CH0220082 102″ x 20′ N/A
CH0222082 102″ x 22′ N/A
CH0224082 102″ x 24′ N/A
CH0226082 102″ x 26′ N/A
CH0228082 102″ x 28′ N/A
CH0230082 102″ x 30′ N/A
CH0232082 102″ x 32′ N/A
CH0234082 102″ x 34′ N/A
CH0236082 102″ x 36′ N/A
CH0238082 102″ x 38′ N/A
CH0240082 102″ x 40′ N/A
CH21 | 21,000 GVWR
(TRIPLE 7K AXLES)
CH8316073 83″ x 16′ N/A
CH8318073 83″ x 18′ N/A
CH8320073 83″ x 20′ N/A
CH8322073 83″ x 22′ N/A
CH8324073 83″ x 24′ N/A
CH8326073 83″ x 26′ N/A
CH8328073 83″ x 28′ N/A
CH8330073 83″ x 30′ N/A
CH8332073 83″ x 32′ N/A
CH8334073 83″ x 34′ N/A
CH8336073 83″ x 36′ N/A
CH8338073 83″ x 38′ N/A
CH8340073 83″ x 40′ N/A
CH0216073 102″ x 16′ N/A
CH0218073 102″ x 18′ N/A
CH0220073 102″ x 20′ N/A
CH0222073 102″ x 22′ N/A
CH0224073 102″ x 24′ N/A
CH0226073 102″ x 26′ N/A
CH0228073 102″ x 28′ N/A
CH0230073 102″ x 30′ N/A
CH0232073 102″ x 32′ N/A
CH0234073 102″ x 34′ N/A
CH0236073 102″ x 36′ N/A
CH0238073 102″ x 38′ N/A
CH0240073 102″ x 40′ N/A
CH24 | 24,000 GVWR
(TRIPLE 8K AXLES)
CH8020083 80″ x 20′ N/A
CH0228083 102″ x 28′ N/A
CH0236083 102″ x 36′ N/A



Estimated weights for base models only.

CH SERIES HIGHLIGHTS

null

Dealer Network
Image is not available
I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

Image is not available
FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

Image is not available
DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

null
null
null
null

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

Left Menu Icon
