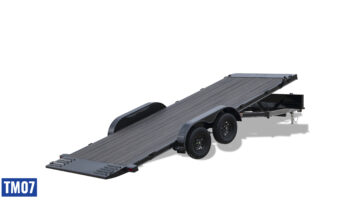

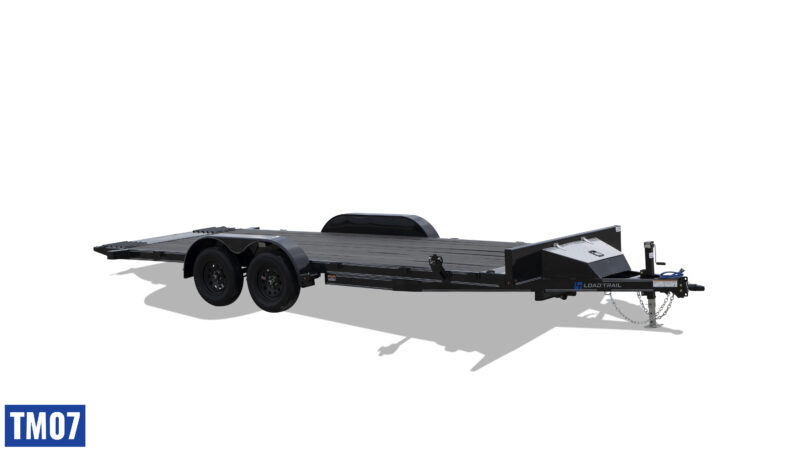

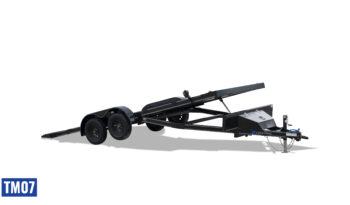

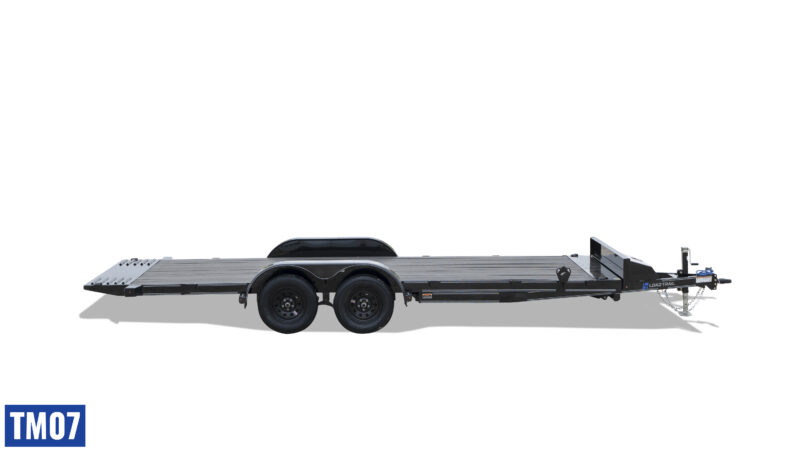

TM | Rapid Loader Tilt

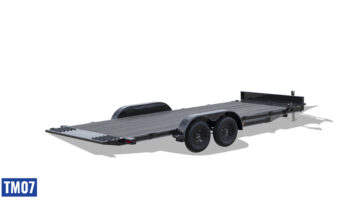

TM07

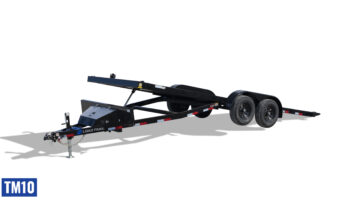

TM10

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 lbs

LENGTH

18′ – 22′

WIDTH

83″

DECK HEIGHT

22″

TILT ANGLE

13°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Bumper Pull

AXLES

(2) 3,500 Lb

EST. WEIGHT

2,800 lbs

G.A.W.R.

3,500 lbs/Axle

TM07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	3,500 lbs / Axle
TONGUE	5” Channel
FRAME	5” Channel
CROSSMEMBERS	3” Channel, 24” On-center
AXLES	(2) 3,500 lb Dexter (1) Elec/Spring (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 5-Hole Wheels
TIRES	ST205/75 R15 LRC
HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder

DECK	20ft Tilt-Deck
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Removable Smooth Plate Tear Drop
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4” Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting.

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 lbs

LENGTH

18′ – 22′

WIDTH

83″

DECK HEIGHT

22″

TILT ANGLE

13°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Bumper Pull

AXLES

(2) 5,200 Lb

EST. WEIGHT

2,800 lbs

G.A.W.R.

5,200 Lbs/Axle

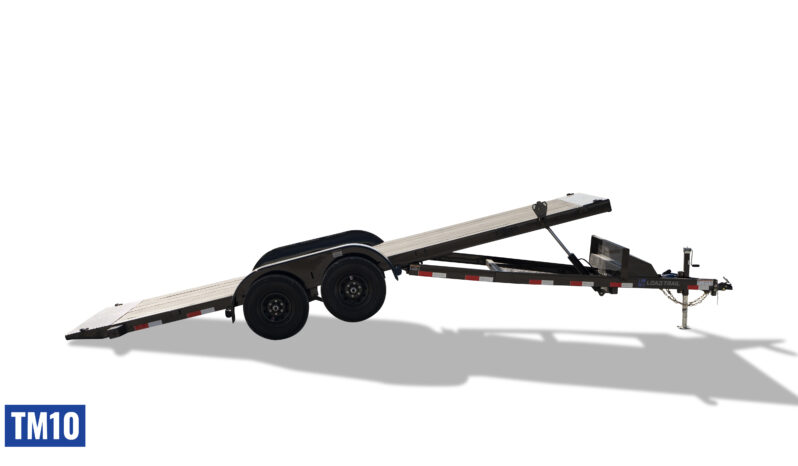

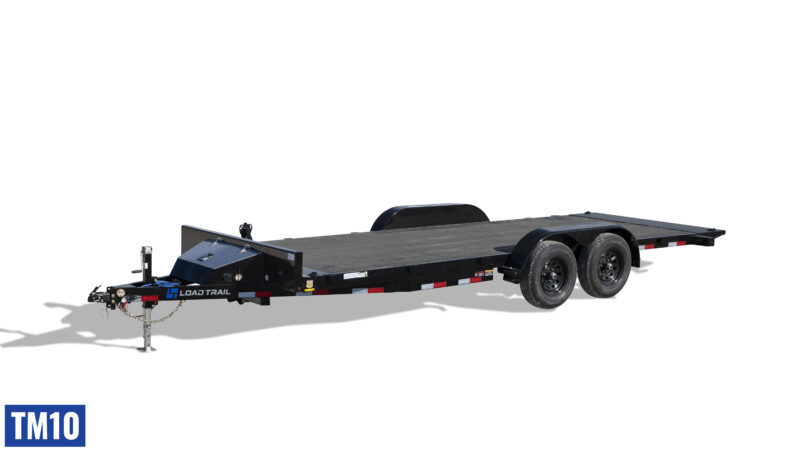

TM10 | STANDARD FEATURES

G.V.W.R.	9,990 lbs
G.A.W.R.	5,200 lbs / Axle
TONGUE	5” Channel
FRAME	5″ Channel
CROSSMEMBERS	3” Channel, 24” On-center
AXLES	(2) 5,200 lb Dexter (1) Elec/Spring (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder

DECK	20ft Tilt-Deck
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Removable Smooth Plate Tear Drop
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Dexter electric brake axles are forward-self-adjusting.

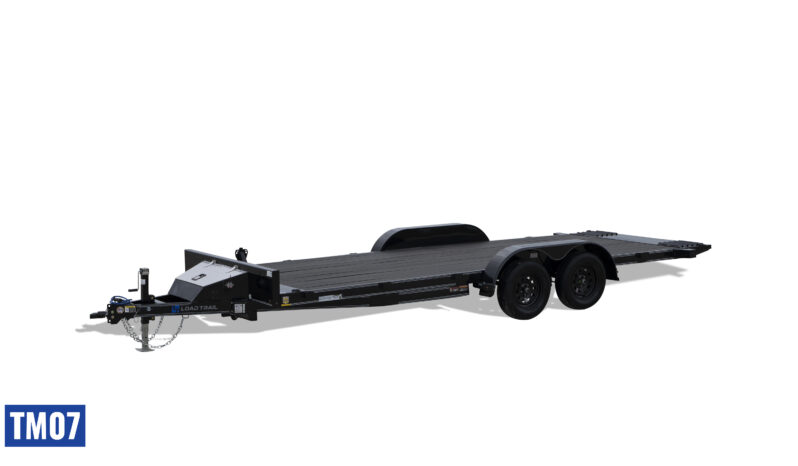

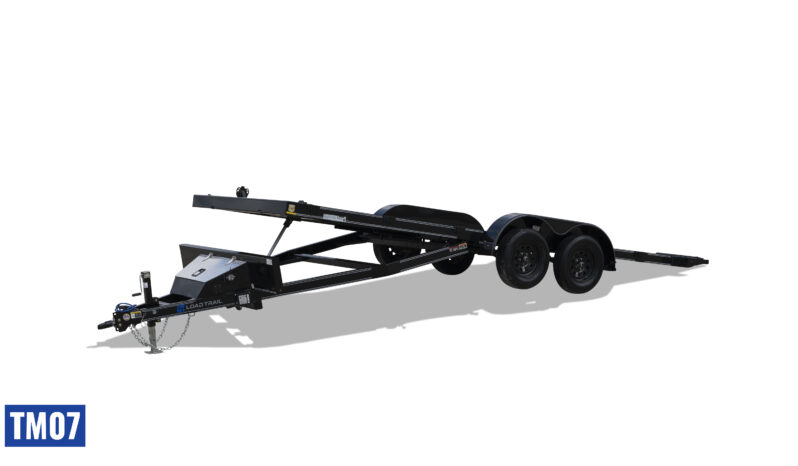

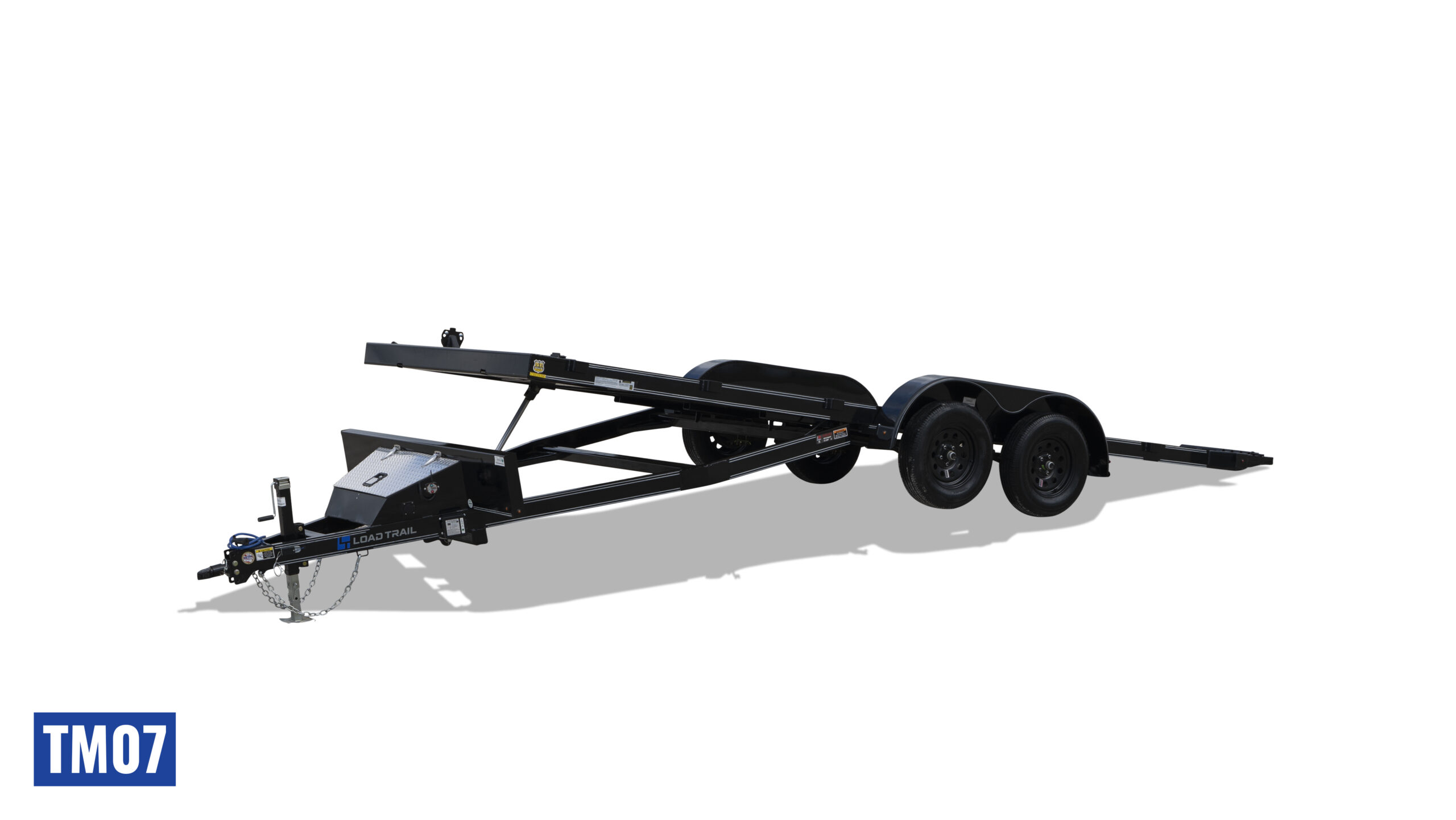

TM07

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 lbs

LENGTH

18′ – 22′

WIDTH

83″

DECK HEIGHT

22″

TILT ANGLE

13°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Bumper Pull

AXLES

(2) 3,500 Lb

EST. WEIGHT

2,800 lbs

G.A.W.R.

3,500 lbs/Axle

TM07 | STANDARD FEATURES

G.V.W.R.	7,000 lbs
G.A.W.R.	3,500 lbs / Axle
TONGUE	5” Channel
FRAME	5” Channel
CROSSMEMBERS	3” Channel, 24” On-center
AXLES	(2) 3,500 lb Dexter (1) Elec/Spring (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 5-Hole Wheels
TIRES	ST205/75 R15 LRC
HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder

DECK	20ft Tilt-Deck
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Removable Smooth Plate Tear Drop
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4” Grade 30
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting.

TM10

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 lbs

LENGTH

18′ – 22′

WIDTH

83″

DECK HEIGHT

22″

TILT ANGLE

13°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Bumper Pull

AXLES

(2) 5,200 Lb

EST. WEIGHT

2,800 lbs

G.A.W.R.

5,200 Lbs/Axle

TM10 | STANDARD FEATURES

G.V.W.R.	9,990 lbs
G.A.W.R.	5,200 lbs / Axle
TONGUE	5” Channel
FRAME	5″ Channel
CROSSMEMBERS	3” Channel, 24” On-center
AXLES	(2) 5,200 lb Dexter (1) Elec/Spring (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable
JACK	(1) 7,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder

DECK	20ft Tilt-Deck
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Removable Smooth Plate Tear Drop
D-RINGS	(4) 3″ Weld-on D-rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 1/4” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Dexter electric brake axles are forward-self-adjusting.

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLERS

2” Adjustable Coupler (4-hole)	C04
2-5/16” Adjustable Coupler (4-hole)	C07
3” Adjustable Pintle Ring (4-hole)	C11

AXLES & SUSPENSION

2 – 3,500 Lb Dexter (1 Elec.)/Spring Axles	ESA
2 – 3,500 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 5,200 Lb Dexter (1 Elec.)/Spring Axles	ESA
2 – 5,200 Lb Dexter (2 Elec.)/Spring Axles	ESB

WHEELS & TIRES

ST205/75 R15 LRC 6 Ply With Silver Wheels	A02
ST205/75 R15 LRC 6 Ply With Black Wheels	A276
ST205/75 R15 LRC 6 Ply With Aluminum Wheels	A24
ST225/75 R15 LRD 8 Ply With Silver Wheels	A04
ST225/75 R15 LRD 8 Ply With Black Wheels	A27
ST225/75 R15 LRD 8 Ply With Aluminum Wheels	A18
Spare ST205/75 R15 LRC 6 Ply (Silver)	STC
Spare ST205/75 R15 LRC 6 Ply (Black)	STA
Spare ST205/75 R15 LRC 6 Ply (Aluminum)	STV
Spare ST225/75 R15 LRD 8 Ply (Silver)	STG
Spare ST225/75 R15 LRD 8 Ply (Black)	STB
Spare ST225/75 R15 LRD 8 Ply (Aluminum)	STJ

LANDING GEAR

(1) 7K Drop-Leg Jack	J02
(1) – Hydraulic Jack w/Selector Valve	J13

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hyd. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charging System (PowerMAX)	BC3
18 Amp Rapid Battery Wall Charger	BC4
2nd 12v Battery	BT1
Gravity Up, Gravity Down	K50
Power Up, Power Down	K02
Power Up, Power Down Full Tilt (dual cylinder)	K00CD2

WINCH PACKAGES

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4
Gun Metal Gray (w/Primer)	CG5
Silver Vein (w/Primer)	CS2

OTHER UPGRADES

Fork Holders	FH1
Smooth Plate Fenders (removable)	F04
Smooth Plate Fenders (weld-on)	F03
Fork Holders	FH1
16” OC Cross-Members	I01
12” OC Cross-Members	I02
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Sport Box	T22
2″ Rubrail	RR1
Spare Tire Mount	TM1
Removable Spare Tire Mount	TM2
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8

POPULAR OPTIONS

Sport Box	T22
Blackwood Lumber Decking	E09
Power Up, Power Down Hyd. System	K02
Spare Tire Mount	TM1
1/2” Winch Plate	W02
16″ On-Center Crossmembers	I01

TM07 | 7,000 G.V.W.R.
(TANDEM 3.5K AXLES)

TM8320032

83” X 20’

2800

TM10 | 9,990 G.V.W.R.
(TANDEM 5.2K AXLES)

TM8320052

83” X 20’

2800

Estimated weights for base models only.

OPTIONS

COUPLERS

2” Adjustable Coupler (4-hole)	C04
2-5/16” Adjustable Coupler (4-hole)	C07
3” Adjustable Pintle Ring (4-hole)	C11

AXLES & SUSPENSION

2 – 3,500 Lb Dexter (1 Elec.)/Spring Axles	ESA
2 – 3,500 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 5,200 Lb Dexter (1 Elec.)/Spring Axles	ESA
2 – 5,200 Lb Dexter (2 Elec.)/Spring Axles	ESB

WHEELS & TIRES

ST205/75 R15 LRC 6 Ply With Silver Wheels	A02
ST205/75 R15 LRC 6 Ply With Black Wheels	A276
ST205/75 R15 LRC 6 Ply With Aluminum Wheels	A24
ST225/75 R15 LRD 8 Ply With Silver Wheels	A04
ST225/75 R15 LRD 8 Ply With Black Wheels	A27
ST225/75 R15 LRD 8 Ply With Aluminum Wheels	A18
Spare ST205/75 R15 LRC 6 Ply (Silver)	STC
Spare ST205/75 R15 LRC 6 Ply (Black)	STA
Spare ST205/75 R15 LRC 6 Ply (Aluminum)	STV
Spare ST225/75 R15 LRD 8 Ply (Silver)	STG
Spare ST225/75 R15 LRD 8 Ply (Black)	STB
Spare ST225/75 R15 LRD 8 Ply (Aluminum)	STJ

LANDING GEAR

(1) 7K Drop-Leg Jack	J02
(1) – Hydraulic Jack w/Selector Valve	J13

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hyd. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charging System (PowerMAX)	BC3
18 Amp Rapid Battery Wall Charger	BC4
2nd 12v Battery	BT1
Gravity Up, Gravity Down	K50
Power Up, Power Down	K02
Power Up, Power Down Full Tilt (dual cylinder)	K00CD2

WINCH PACKAGES

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4
Gun Metal Gray (w/Primer)	CG5
Silver Vein (w/Primer)	CS2

OTHER UPGRADES

Fork Holders	FH1
Smooth Plate Fenders (removable)	F04
Smooth Plate Fenders (weld-on)	F03
Fork Holders	FH1
16” OC Cross-Members	I01
12” OC Cross-Members	I02
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Sport Box	T22
2″ Rubrail	RR1
Spare Tire Mount	TM1
Removable Spare Tire Mount	TM2
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8

POPULAR OPTIONS

POPULAR OPTIONS

Sport Box	T22
Blackwood Lumber Decking	E09
Power Up, Power Down Hyd. System	K02
Spare Tire Mount	TM1
1/2” Winch Plate	W02
16″ On-Center Crossmembers	I01

SIZE & WEIGHT

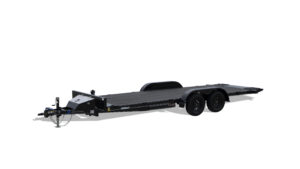

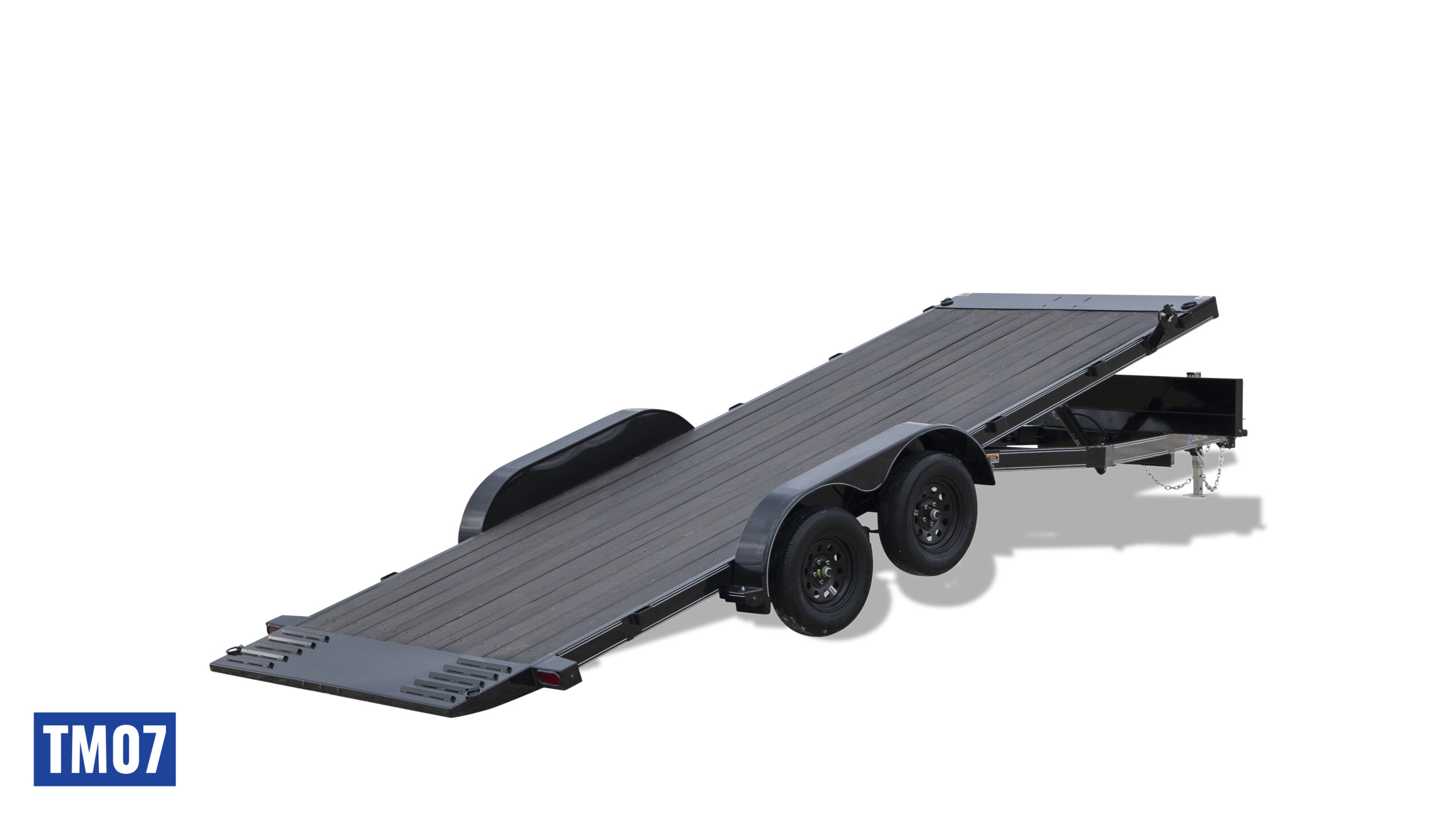

TM07 | 7,000 G.V.W.R.
(TANDEM 3.5K AXLES)

TM8320032

83” X 20’

2800

TM10 | 9,990 G.V.W.R.
(TANDEM 5.2K AXLES)

TM8320052

83” X 20’

2800

Estimated weights for base models only.

TM SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2024 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

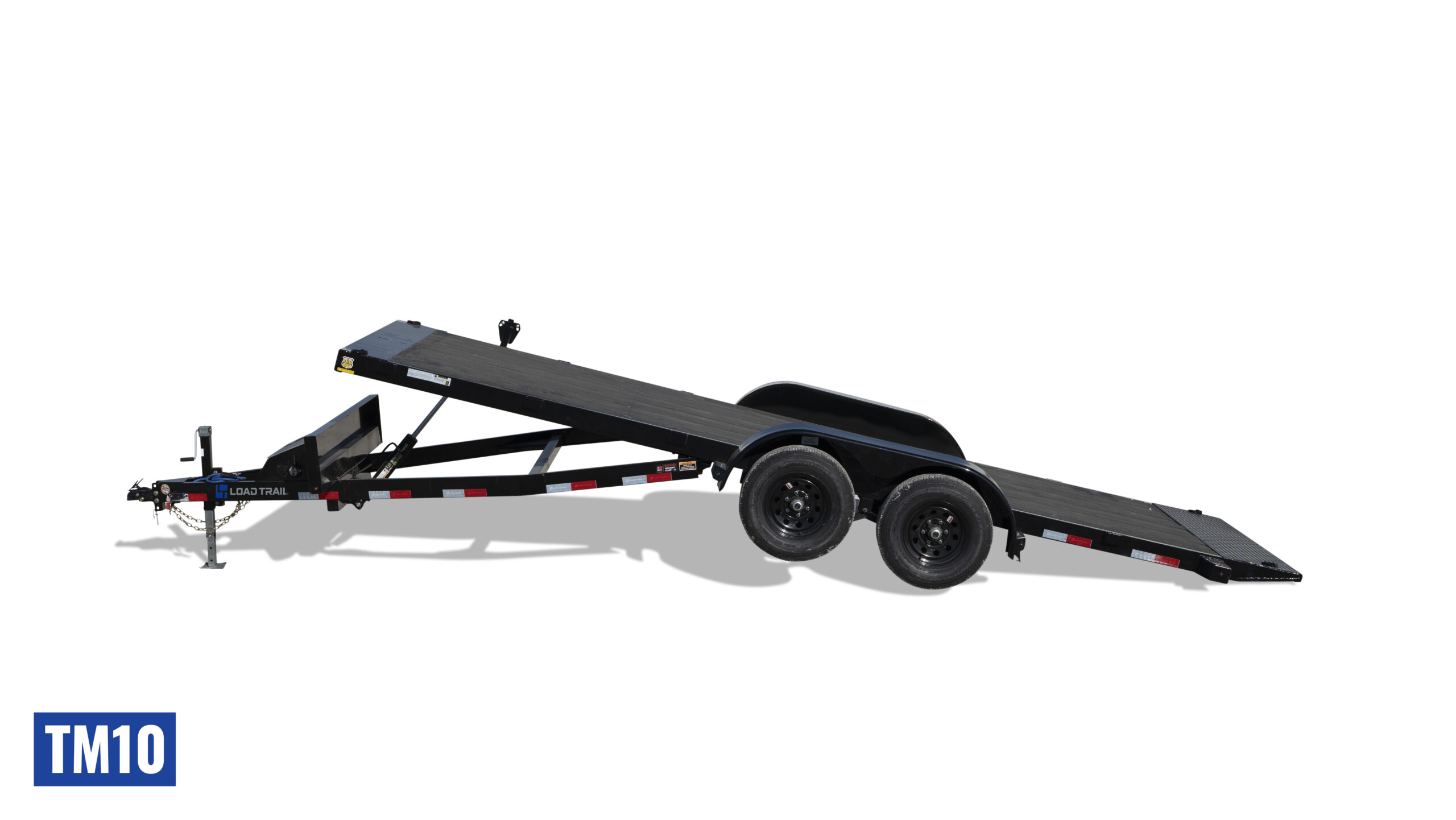

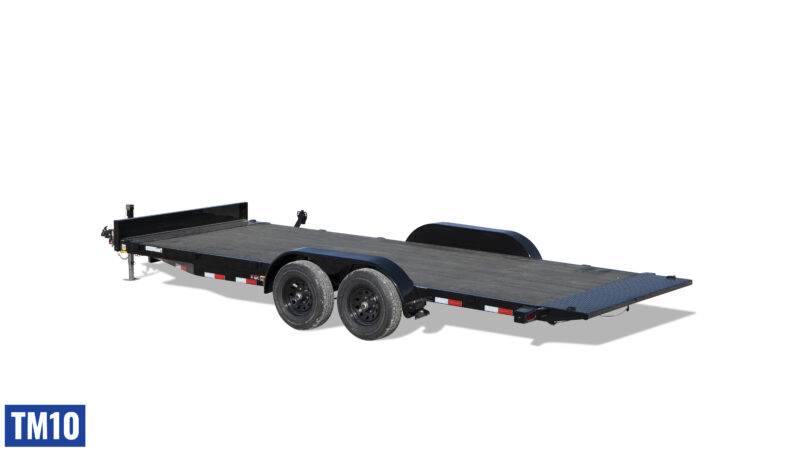

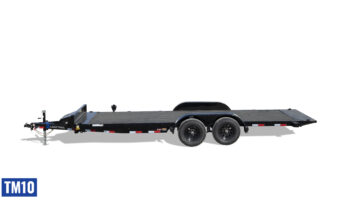

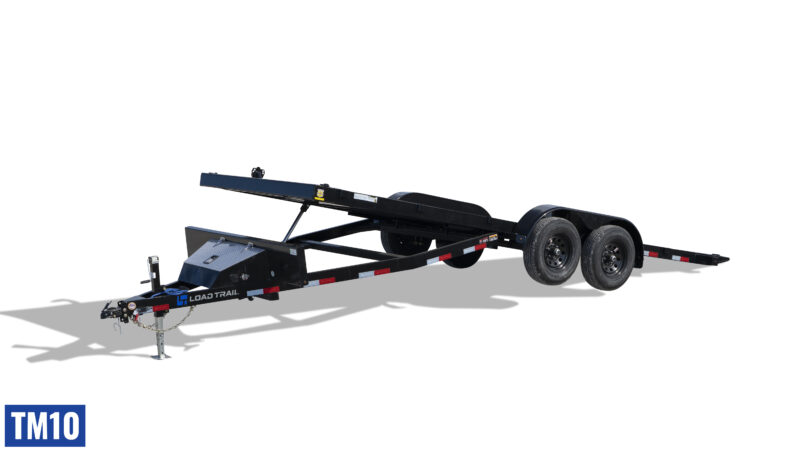

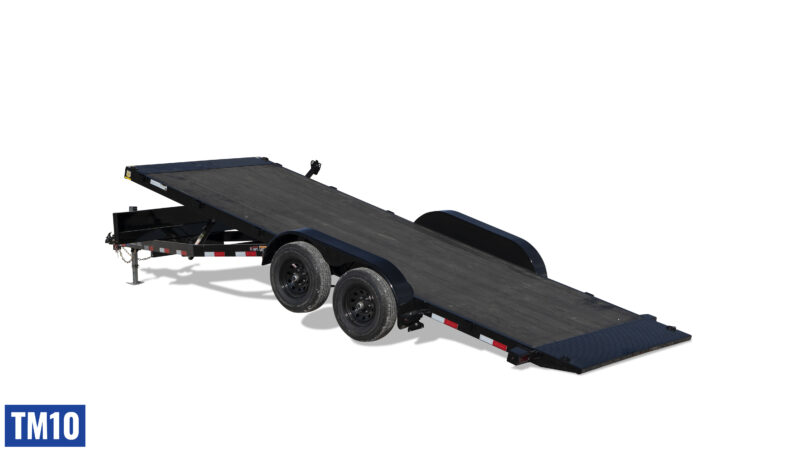

TM | Rapid Loader Tilt

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

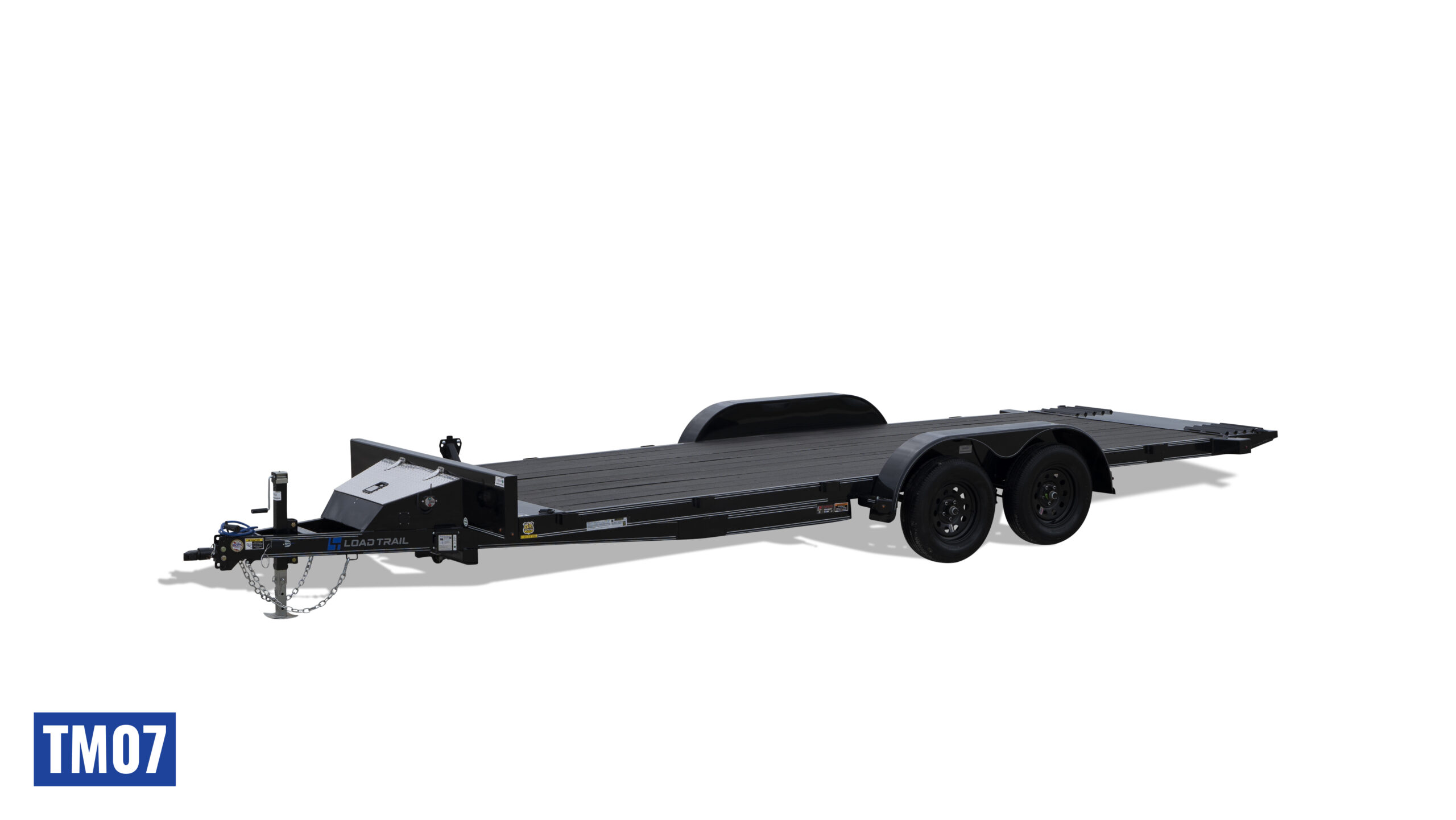

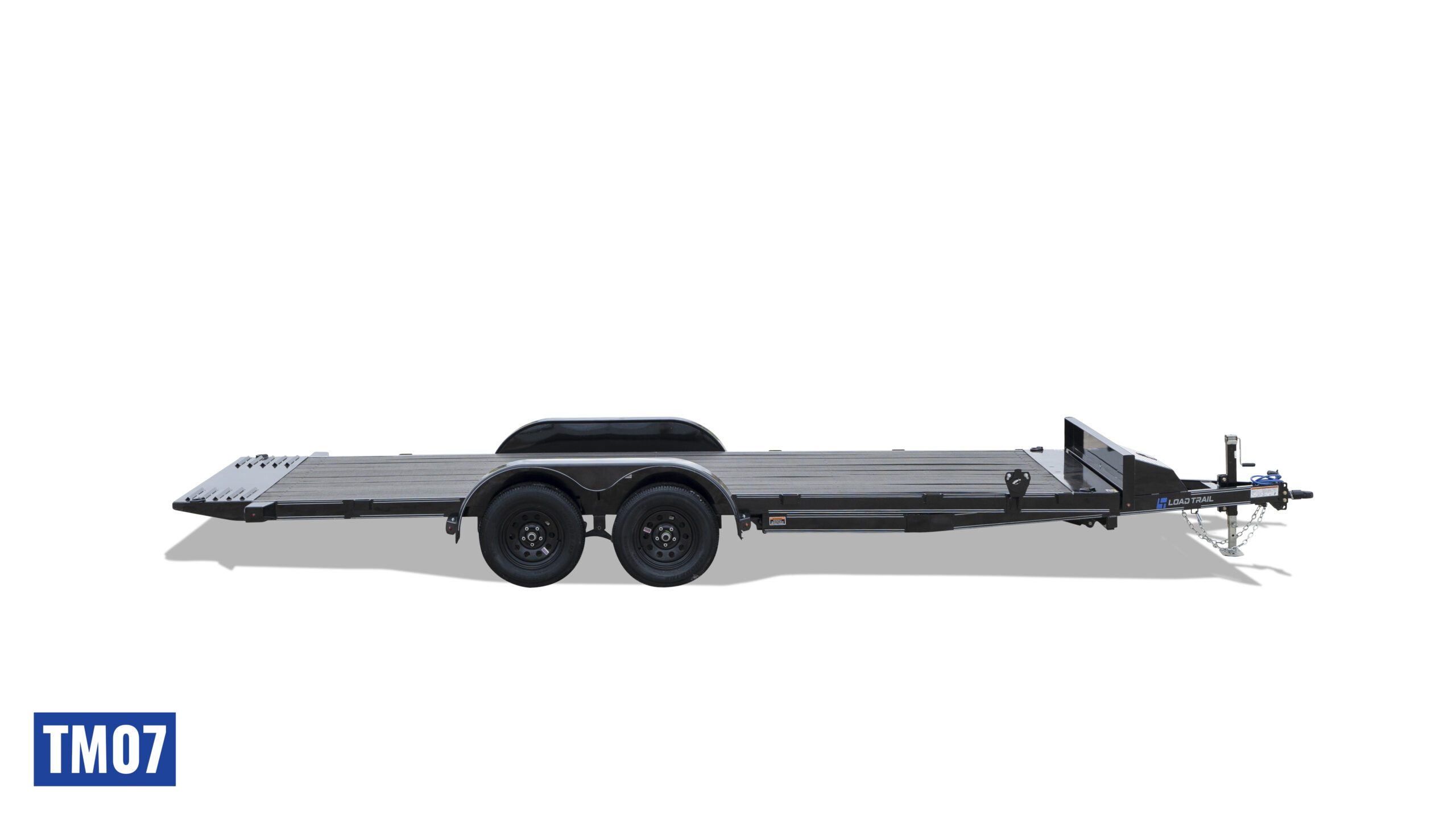

TM07 | STANDARD FEATURES

TM07 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

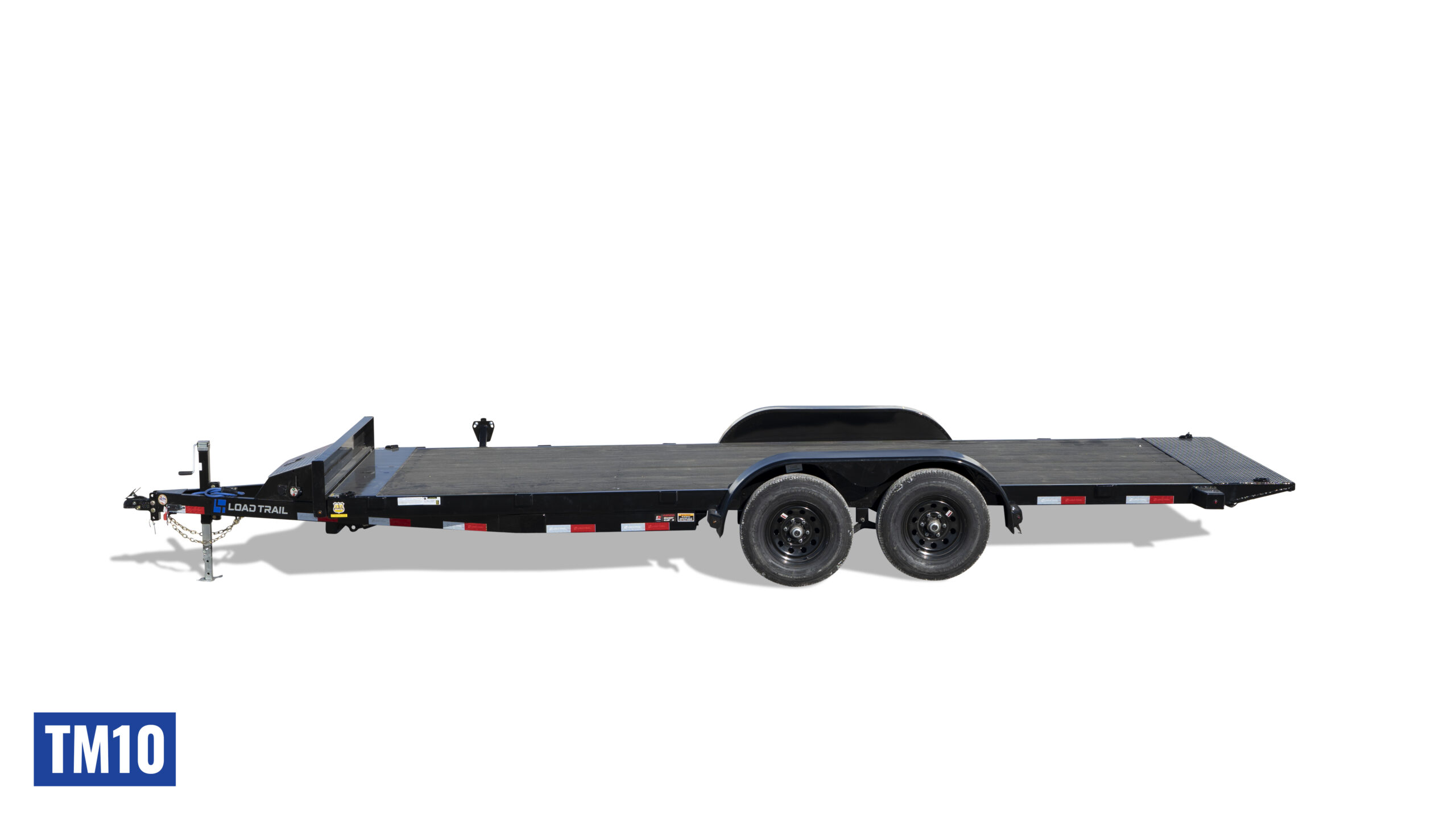

TM10 | STANDARD FEATURES

TM10 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

TM07 | STANDARD FEATURES

TM07 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

TM10 | STANDARD FEATURES

TM10 | STANDARD FEATURES

TM SERIES HIGHLIGHTS
