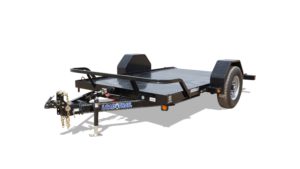

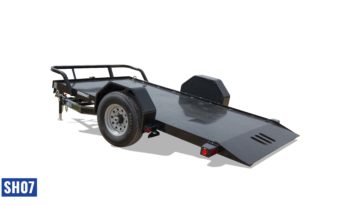

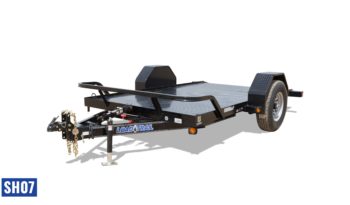

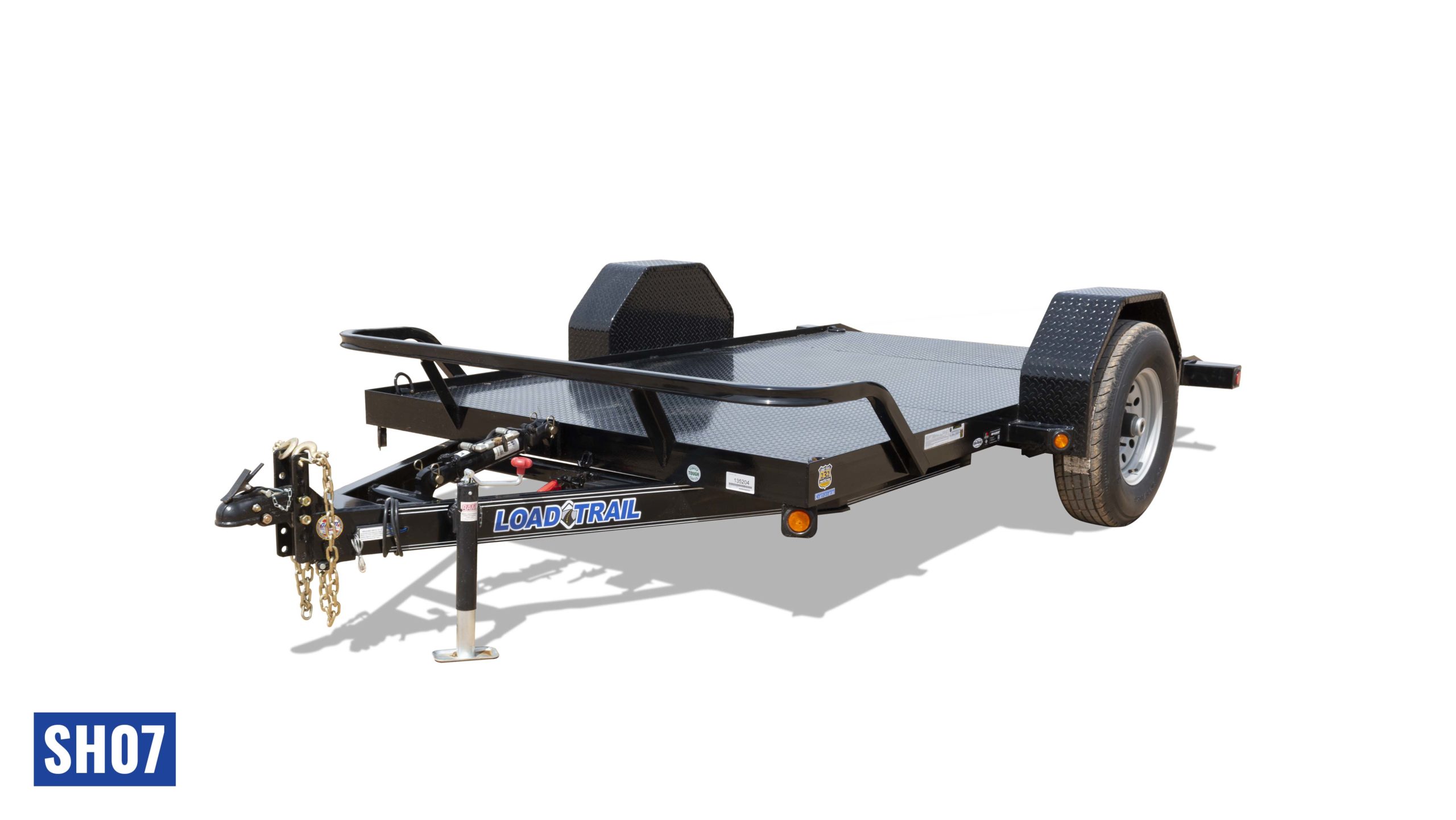

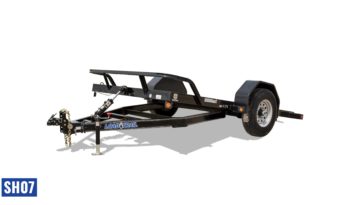

SH | Single Axle Scissor Hauler

BEST SELLER

FIND A DEALER

SHOP SH INVENTORY

CUSTOM QUOTE

FINANCING

VIEW BROCHURE

VIEW DRAWING

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 lbs

LENGTH

10′ – 12′

WIDTH

60″ – 77″

DECK HEIGHT

18″

TILT ANGLE

11°

HYDRAULICS

Gravity

COUPLER

Bumper Pull & Pintle

AXLES

(1) 7,000 lb Dexter Electric Brake

EST. WEIGHT

1,590 – 1,925 lbs

G.A.W.R.

7,000 lbs / Axle

SH07 | STANDARD FEATURES

SH07 | STANDARD FEATURES

G.V.W.R. 7,000 lbs
G.A.W.R. 7,000 lbs / Axle
TONGUE 5″ Channel
FRAME 3” x 5” Angle Iron Frame
AXLES (1) 7,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION Torsion
COUPLER 2-5/16” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
CROSSMEMBERS 3” Channel, 16” On-center
FENDERS Steel Diamond Plate
DECK 18” Deck Height + 11° Tilt Angle
RAMPS 8′ Slide-In Ramps
FLOOR 1/8″ Steel Diamond Plate
TAIL 1/8″ Steel Diamond Plate Knife Edge
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
D-RINGS (4) 3″ Weld-on
SAFETY CHAINS (2) 5/16” Grd. 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are Dexter, forward-self-adjusting.
SH07

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

7,000 lbs

LENGTH

10′ – 12′

WIDTH

60″ – 77″

DECK HEIGHT

18″

TILT ANGLE

11°

HYDRAULICS

Gravity

COUPLER

Bumper Pull & Pintle

AXLES

(1) 7,000 lb Dexter Electric Brake

EST. WEIGHT

1,590 – 1,925 lbs

G.A.W.R.

7,000 lbs / Axle

SH07 | STANDARD FEATURES

SH07 | STANDARD FEATURES

G.V.W.R. 7,000 lbs
G.A.W.R. 7,000 lbs / Axle
TONGUE 5″ Channel
FRAME 3” x 5” Angle Iron Frame
AXLES (1) 7,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION Torsion
COUPLER 2-5/16” Adjustable
JACK (1) 5,000 lb Top-wind
WHEELS 16” 8-Hole Wheels
TIRES ST235/80 R16 LRE
CROSSMEMBERS 3” Channel, 16” On-center
FENDERS Steel Diamond Plate
DECK 18” Deck Height + 11° Tilt Angle
RAMPS 8′ Slide-In Ramps
FLOOR 1/8″ Steel Diamond Plate
TAIL 1/8″ Steel Diamond Plate Knife Edge
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG 7-way Cold Weather Cord
D-RINGS (4) 3″ Weld-on
SAFETY CHAINS (2) 5/16” Grd. 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are Dexter, forward-self-adjusting.
COUPLERS
2-5/16” Adjustable Coupler (6-hole) C10
3” Adjustable Pintle Ring (6-hole) C22
2-5/16” Adjustable Hydraulic Coupler C08
2” Adjustable Coupler (6-hole) C28
AXLES & SUSPENSION
1 – 7,000 Lb Dexter (1 Elec.)/Torsion Axle ETAU
1 – 7,000 Lb Dexter (1 Hyd.)/Torsion Axle HT1U
WHEELS & TIRES
ST235/80 R16 LRE 10 Ply With Silver Wheels A05
ST235/80 R16 LRE 10 Ply With Black Wheels A28
ST235/85 R16 LRG 14 Ply With Silver Wheels A06
ST235/85 R16 LRG 14 Ply With Black Wheels A29
Spare ST235/80 LRE R16 10 Ply (silver) STI
Spare ST235/80 R16 LRE 10 Ply (black) STD
Spare ST235/85 R16 LRG 14 Ply (silver) STI
Spare ST235/85 R16 LRG 14 Ply (black) STD
LANDING GEAR
5,000 Lb Swivel Jack J01
7,000 Lb Drop-Leg Jack J02
FLOOR
Treated Pine Wood Floor E02
Steel Diamond Plate Floor E03
Rough Oak Floor E05
Douglas Fir Wood Floor E07
Blackwood Lumber (Classic) Floor E09
Blackwood Lumber (PRO) Floor E10
HYDRAULICS
Cushion Gravity Down J02
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Diamond Plate Fenders (Weld-On) F05
3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
2” Rub Rail RR1
Spare Tire Mount TM1
Removable Spare Tire Mount TM2
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
SH07 | 7,000 GVWR
(SINGLE 7K AXLE)
SH6010071 60” X 10’ 1590
SH6012071 60” X 12’ 1830
SH7710071 77” X 10’ 1724
SH7712071 77” X 12’ 1925
Estimated weights for base models only.
OPTIONS
COUPLERS
2-5/16” Adjustable Coupler (6-hole) C10
3” Adjustable Pintle Ring (6-hole) C22
2-5/16” Adjustable Hydraulic Coupler C08
2” Adjustable Coupler (6-hole) C28
AXLES & SUSPENSION
1 – 7,000 Lb Dexter (1 Elec.)/Torsion Axle ETAU
1 – 7,000 Lb Dexter (1 Hyd.)/Torsion Axle HT1U
WHEELS & TIRES
ST235/80 R16 LRE 10 Ply With Silver Wheels A05
ST235/80 R16 LRE 10 Ply With Black Wheels A28
ST235/85 R16 LRG 14 Ply With Silver Wheels A06
ST235/85 R16 LRG 14 Ply With Black Wheels A29
Spare ST235/80 LRE R16 10 Ply (silver) STI
Spare ST235/80 R16 LRE 10 Ply (black) STD
Spare ST235/85 R16 LRG 14 Ply (silver) STI
Spare ST235/85 R16 LRG 14 Ply (black) STD
LANDING GEAR
5,000 Lb Swivel Jack J01
7,000 Lb Drop-Leg Jack J02
FLOOR
Treated Pine Wood Floor E02
Steel Diamond Plate Floor E03
Rough Oak Floor E05
Douglas Fir Wood Floor E07
Blackwood Lumber (Classic) Floor E09
Blackwood Lumber (PRO) Floor E10
HYDRAULICS
Cushion Gravity Down J02
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Diamond Plate Fenders (Weld-On) F05
3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
2” Rub Rail RR1
Spare Tire Mount TM1
Removable Spare Tire Mount TM2
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
SIZE & WEIGHT
SH07 | 7,000 GVWR
(SINGLE 7K AXLE)
SH6010071 60” X 10’ 1590
SH6012071 60” X 12’ 1830
SH7710071 77” X 10’ 1724
SH7712071 77” X 12’ 1925
Estimated weights for base models only.
