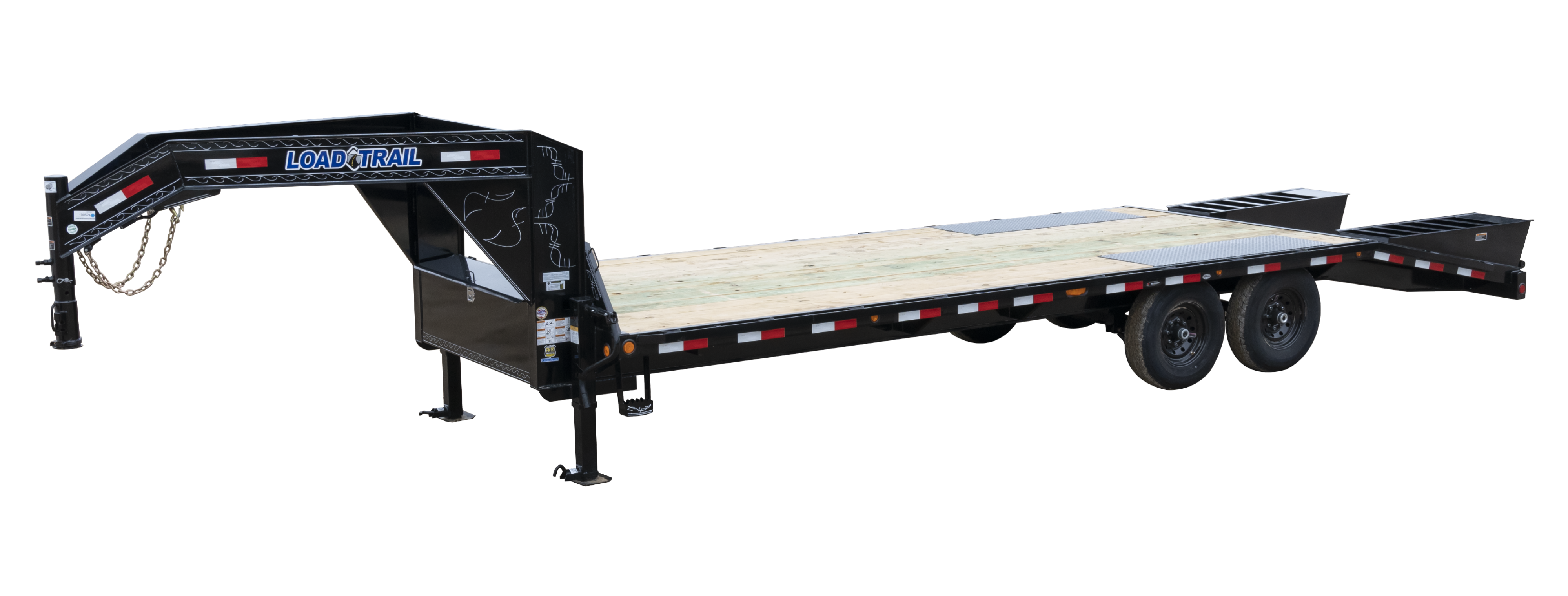

GS | Classic Gooseneck Deckover

GS10

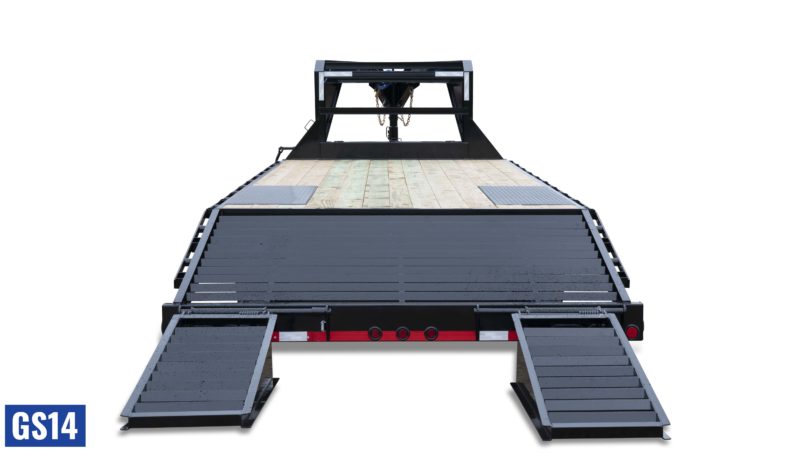

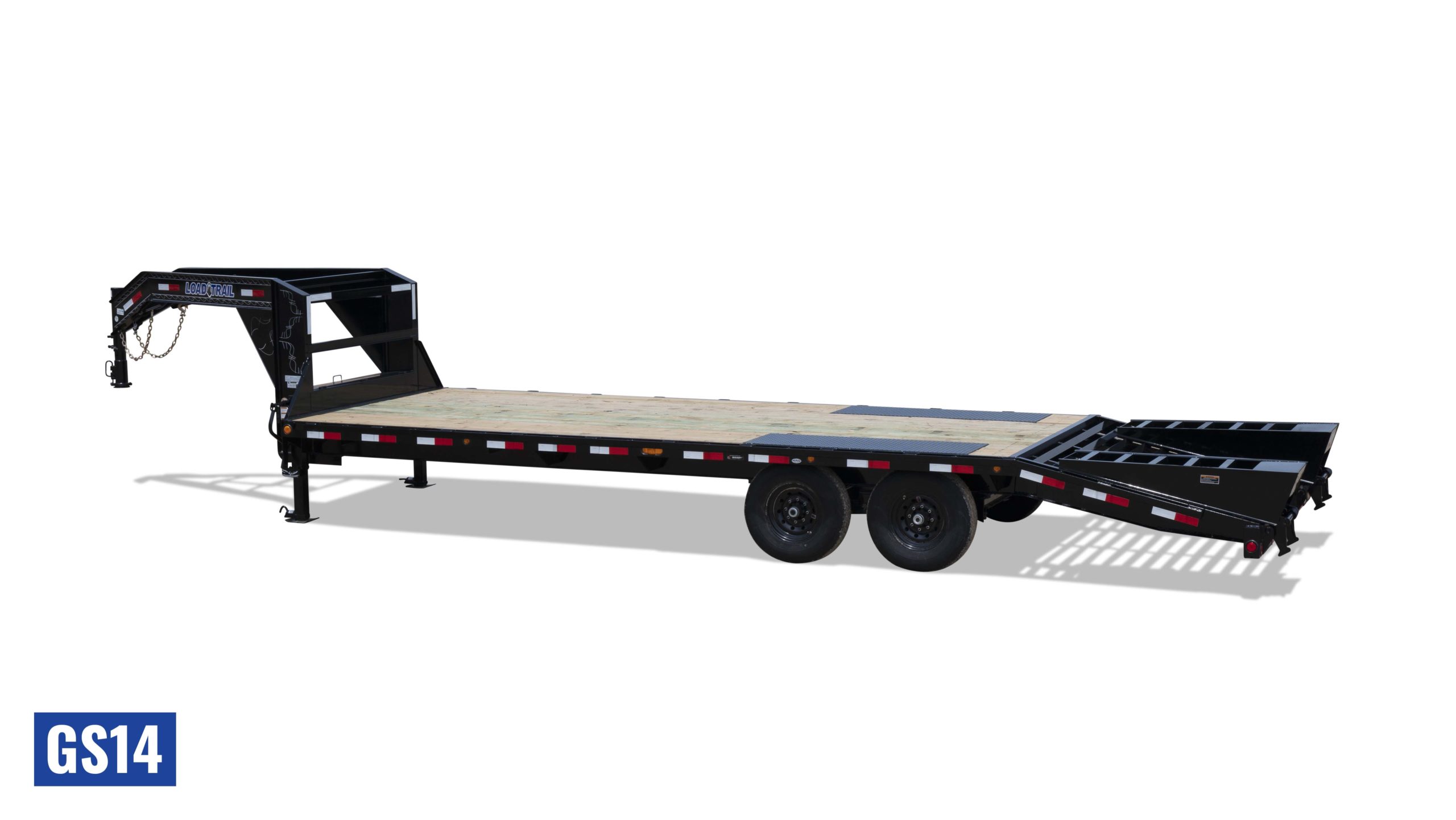

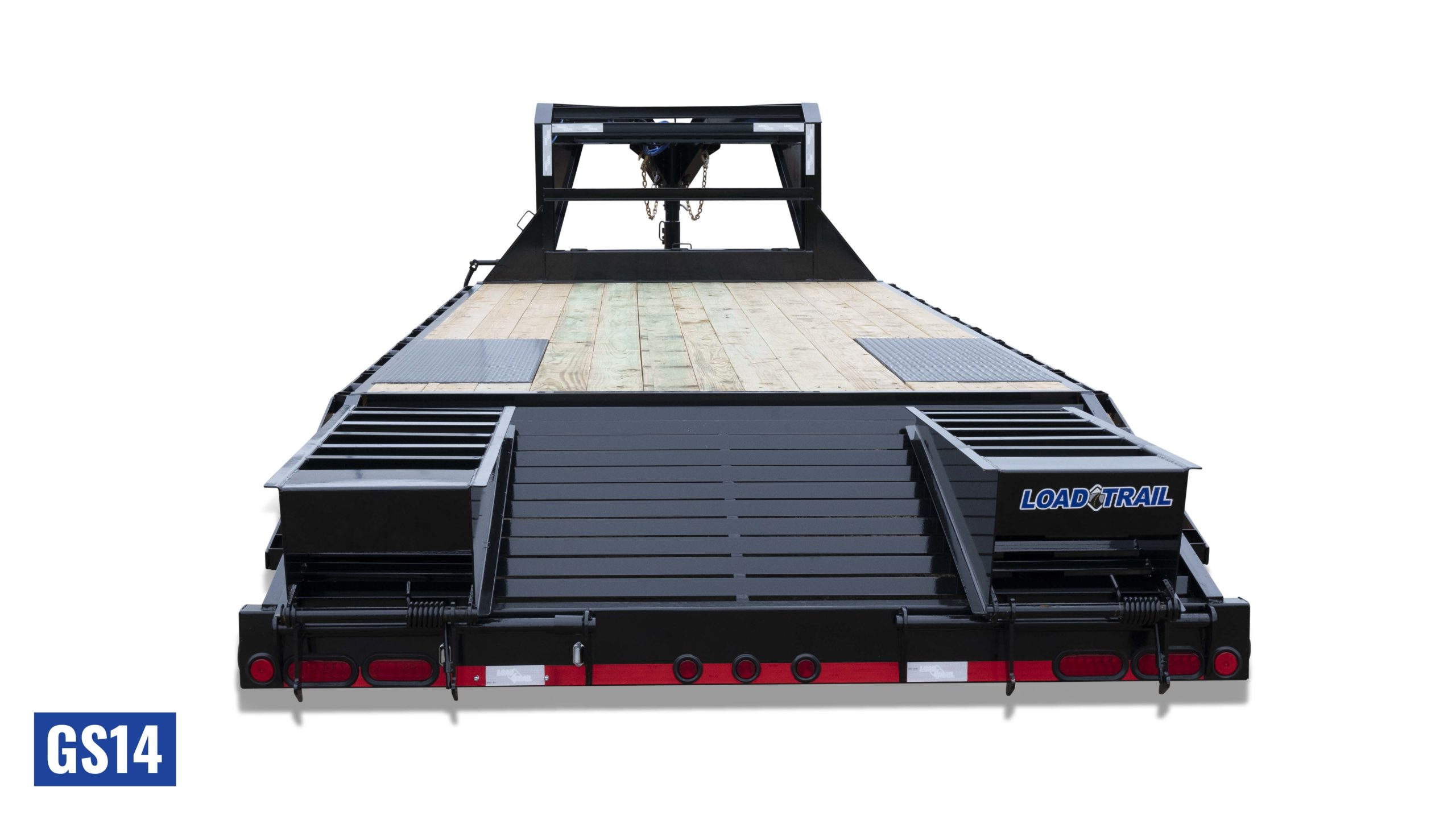

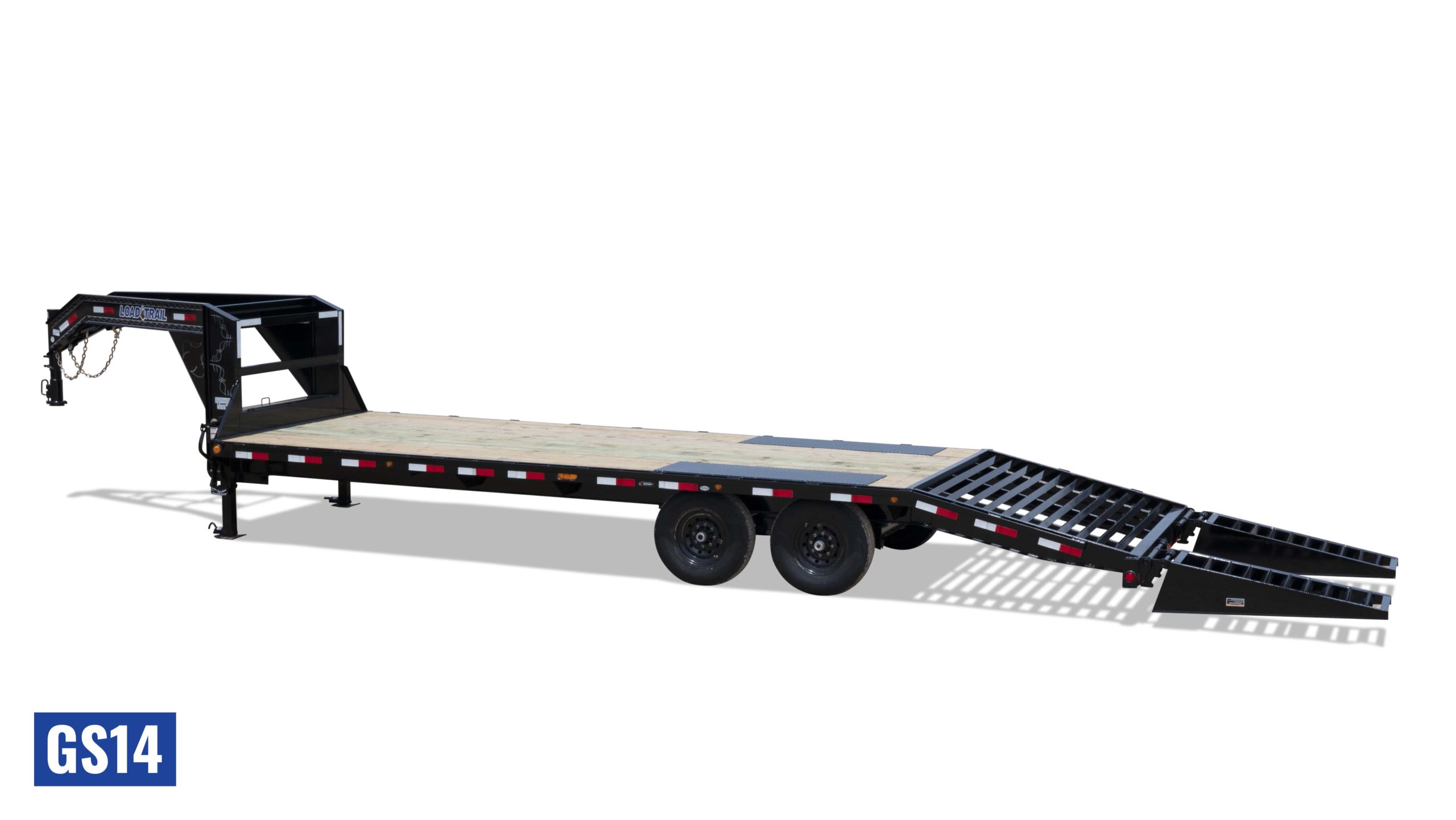

GS14

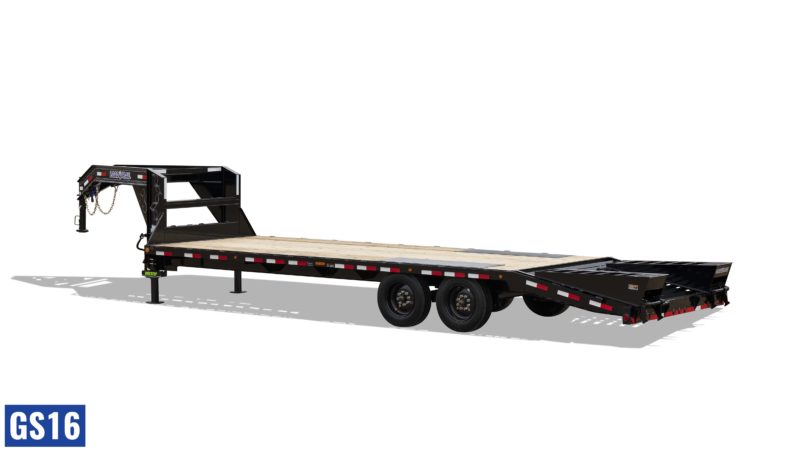

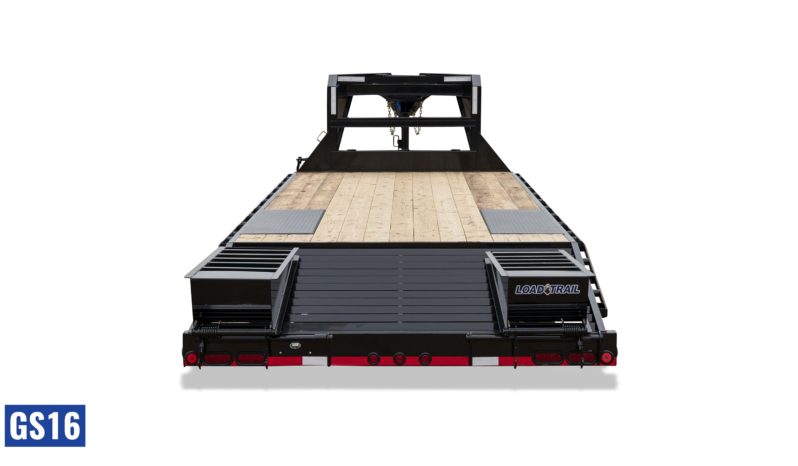

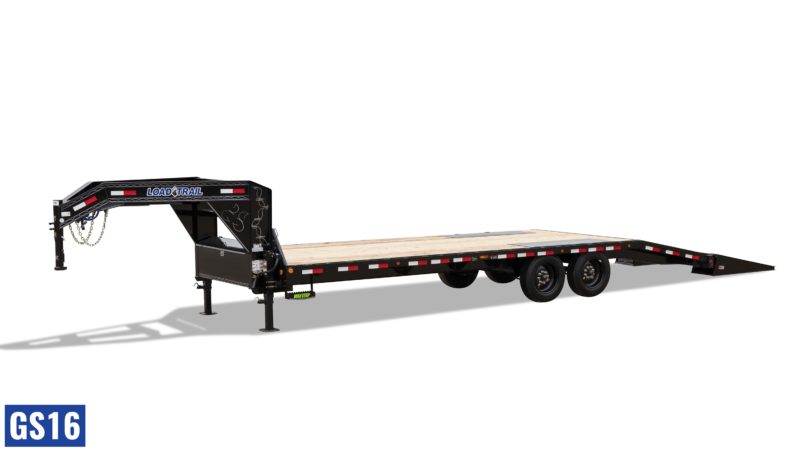

GS16

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

LENGTH

16′ – 18′

WIDTH

102″

DECK HEIGHT

32″

COUPLER

Gooseneck

AXLES

(2) 5,200 Lb

EST. WEIGHT

N/A – N/A Lbs

G.A.W.R.

5,200 Lbs/Axle

GS14 | STANDARD FEATURES

G.V.W.R.	9,990 lbs
G.A.W.R.	5,200 lbs / Axle
NECK	10″ I-Beam
FRAME	8″ I-Beam
AXLES	(2) 5,200 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable Round Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
SPARE	Fold-down Spare Tire Mount (spare included)
WINCH PLATE	8″ Channel Winch Plate

CROSSMEMBERS	3” Channel, 16” On-center
STORAGE	Full-width, Front Toolbox
DECK	Straight Deck
RAMPS	8′ Slide-In Ramps
FLOOR	Treated Wood Flooring
RUB RAIL	2” Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge are standard on 36’ – 44’ length models. Models 24ft & up standard with (2) 10K jacks.

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

LENGTH

16′ – 30′

WIDTH

102″

DECK HEIGHT

32″

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

4,120 – 5,440 lbs.

G.A.W.R.

7,000 Lbs/Axle

GS14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	10″ I-Beam
FRAME	8″ I-Beam
AXLES	(2) 7,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable Round Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)
WINCH PLATE	8″ Channel Winch Plate

CROSSMEMBERS	3” Channel, 16” On-center
STORAGE	Full-width, Front Toolbox
DECK	Straight Deck
RAMPS	8′ Slide-In Ramps
FLOOR	Treated Wood Flooring
RUB RAIL	2” Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge are standard on 36’ – 44’ length models. Models 24ft & up standard with (2) 10K jacks.

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

LENGTH

16′ – 30′

WIDTH

102″

DECK HEIGHT

32″

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

4,120 – 5,440 lbs

G.A.W.R.

8,000 Lbs/Axle

GS16 | STANDARD FEATURES

G.V.W.R.	16,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	10″ I-Beam
FRAME	8″ I-Beam
AXLES	(2) 8,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable Round Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	Fold-down Spare Tire Mount (spare included)
WINCH PLATE	8″ Channel Winch Plate

CROSSMEMBERS	3” Channel, 16” On-center
STORAGE	Full-width, Front Toolbox
DECK	Straight Deck
RAMPS	8′ Slide-In Ramps
FLOOR	Treated Wood Flooring
RUB RAIL	2” Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge are standard on 36’ – 44’ length models. Models 24ft & up standard with (2) 10K jacks.

GS10

CONFIGURATIONS SUMMARY

G.V.W.R.

9,990 Lbs

LENGTH

16′ – 18′

WIDTH

102″

DECK HEIGHT

32″

COUPLER

Gooseneck

AXLES

(2) 5,200 Lb

EST. WEIGHT

N/A – N/A Lbs

G.A.W.R.

5,200 Lbs/Axle

GS14 | STANDARD FEATURES

G.V.W.R.	9,990 lbs
G.A.W.R.	5,200 lbs / Axle
NECK	10″ I-Beam
FRAME	8″ I-Beam
AXLES	(2) 5,200 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable Round Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	15” 6-Hole Wheels
TIRES	ST225/75 R15 LRD
SPARE	Fold-down Spare Tire Mount (spare included)
WINCH PLATE	8″ Channel Winch Plate

CROSSMEMBERS	3” Channel, 16” On-center
STORAGE	Full-width, Front Toolbox
DECK	Straight Deck
RAMPS	8′ Slide-In Ramps
FLOOR	Treated Wood Flooring
RUB RAIL	2” Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge are standard on 36’ – 44’ length models. Models 24ft & up standard with (2) 10K jacks.

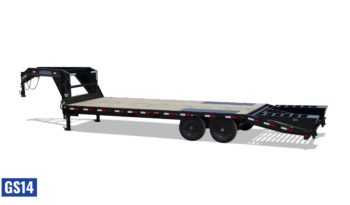

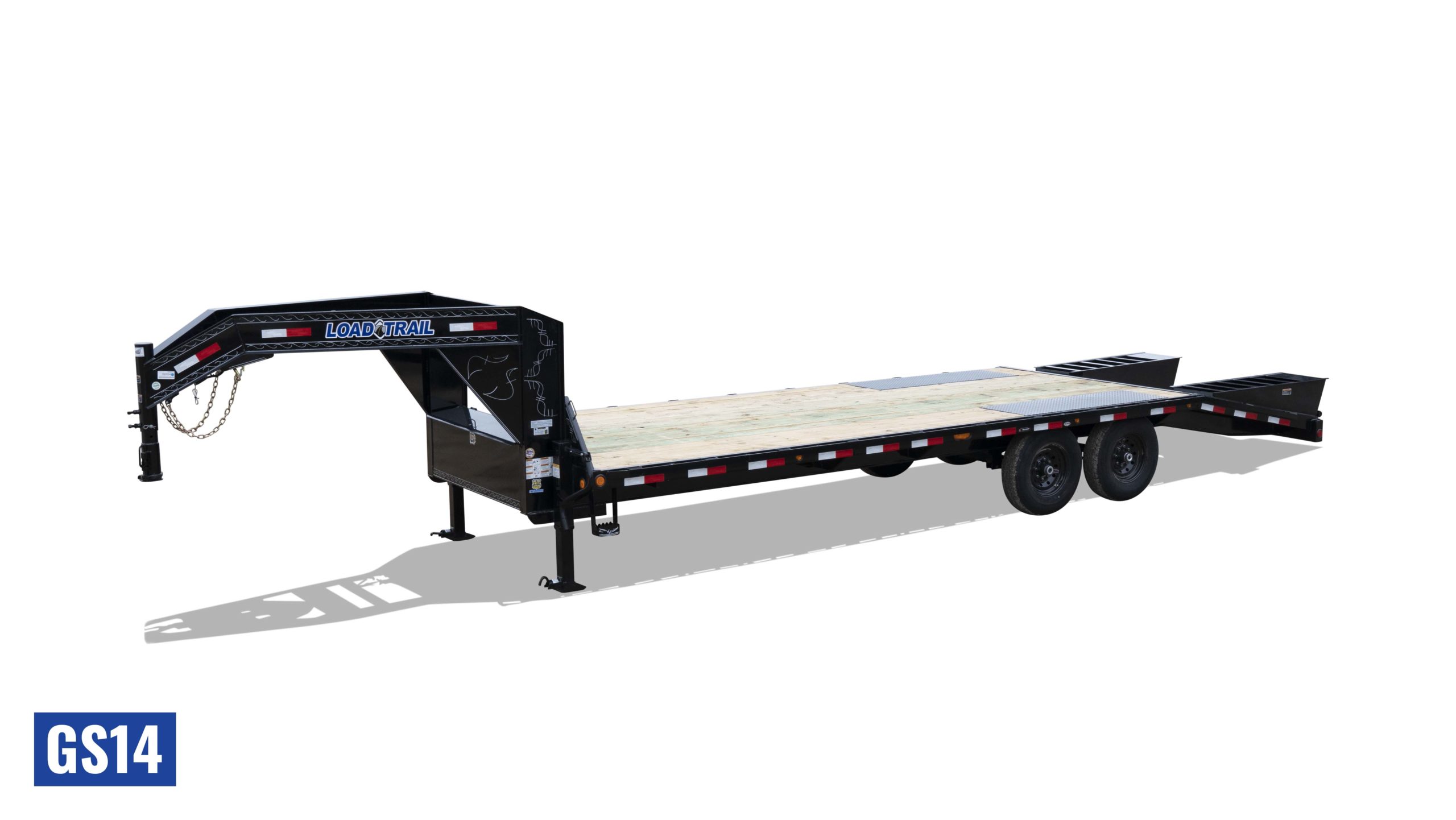

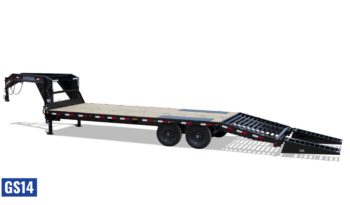

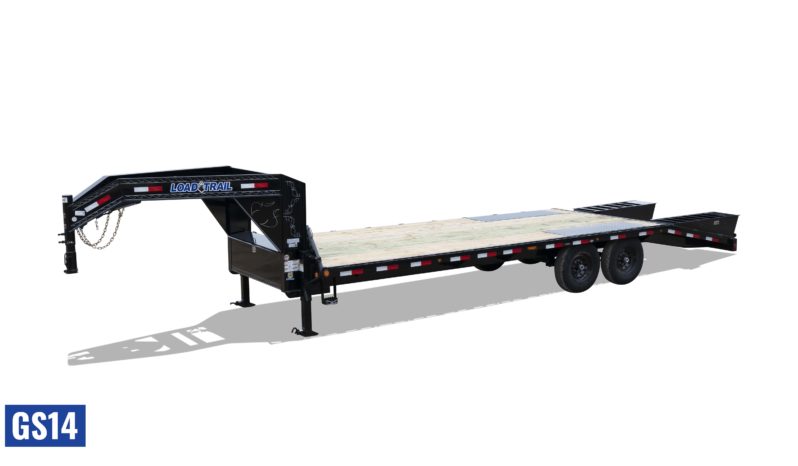

GS14

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

LENGTH

16′ – 30′

WIDTH

102″

DECK HEIGHT

32″

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

4,120 – 5,440 lbs.

G.A.W.R.

7,000 Lbs/Axle

GS14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	10″ I-Beam
FRAME	8″ I-Beam
AXLES	(2) 7,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable Round Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)
WINCH PLATE	8″ Channel Winch Plate

CROSSMEMBERS	3” Channel, 16” On-center
STORAGE	Full-width, Front Toolbox
DECK	Straight Deck
RAMPS	8′ Slide-In Ramps
FLOOR	Treated Wood Flooring
RUB RAIL	2” Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge are standard on 36’ – 44’ length models. Models 24ft & up standard with (2) 10K jacks.

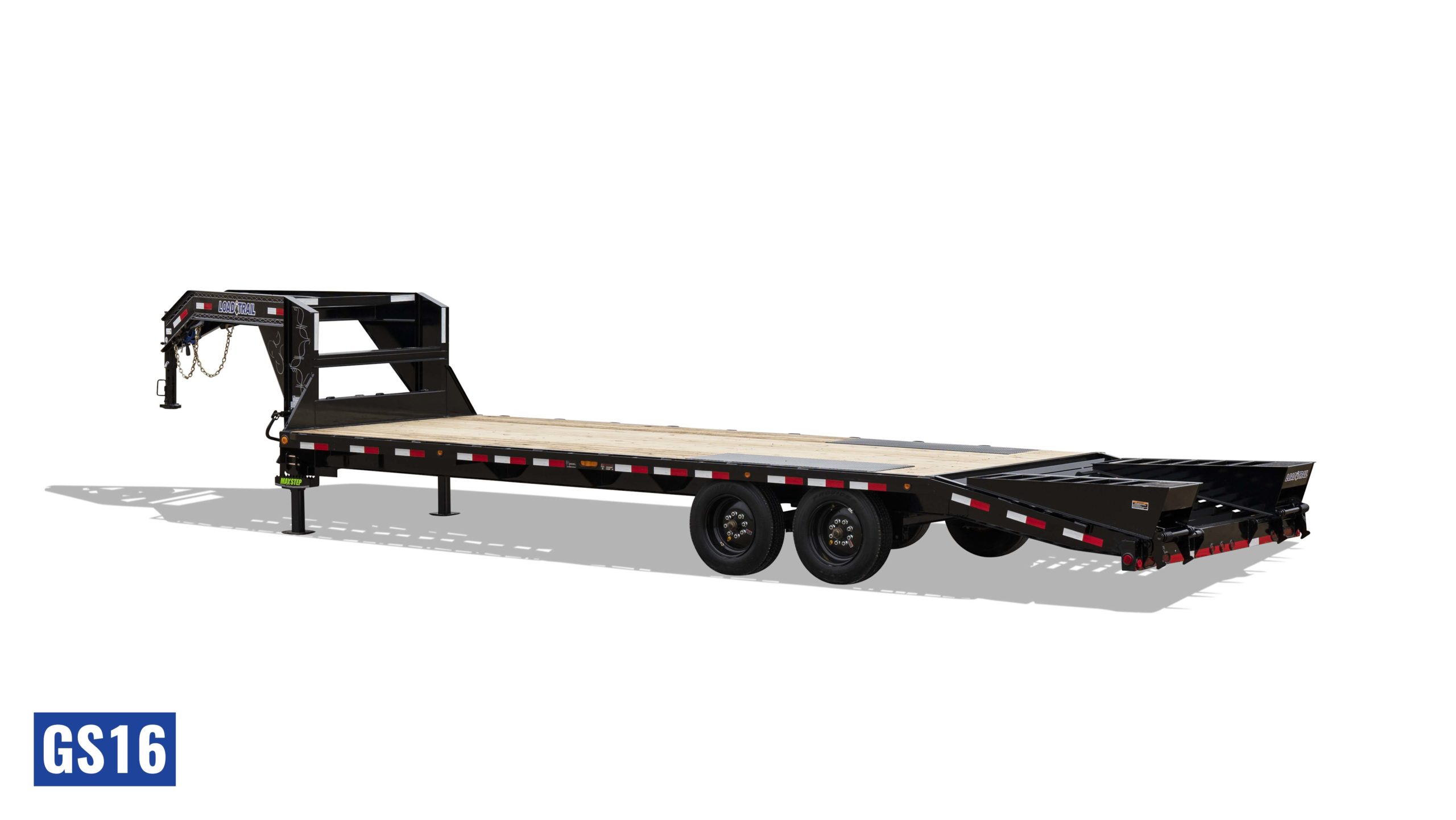

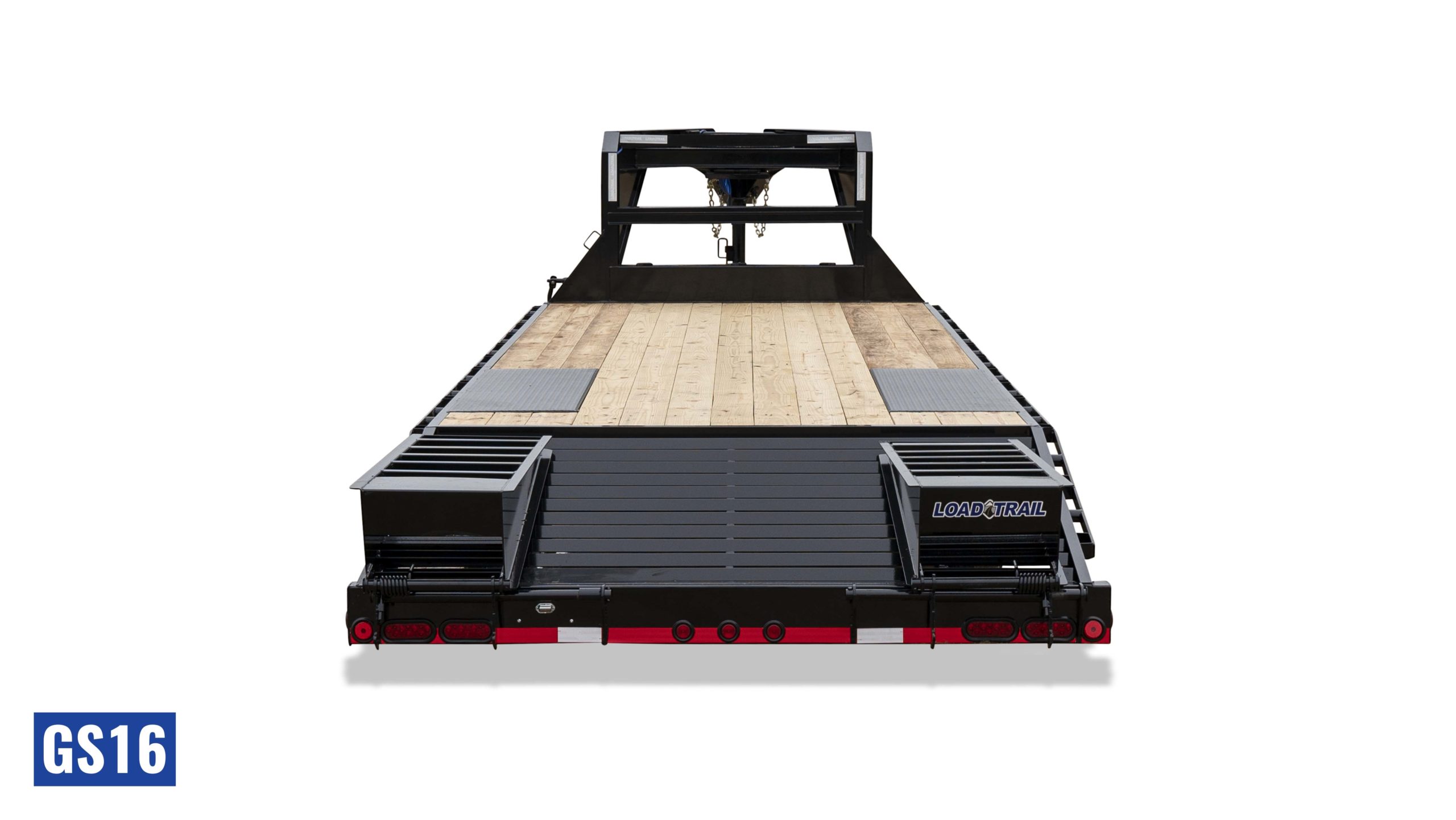

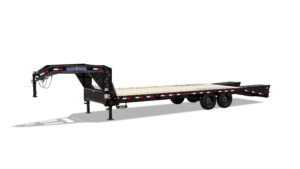

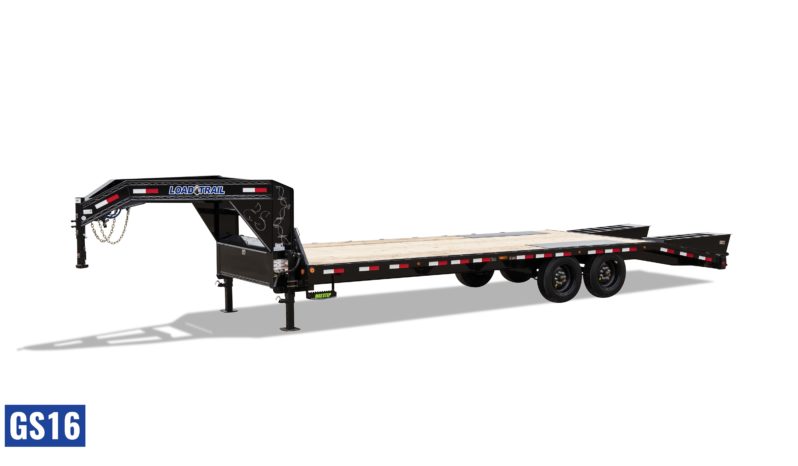

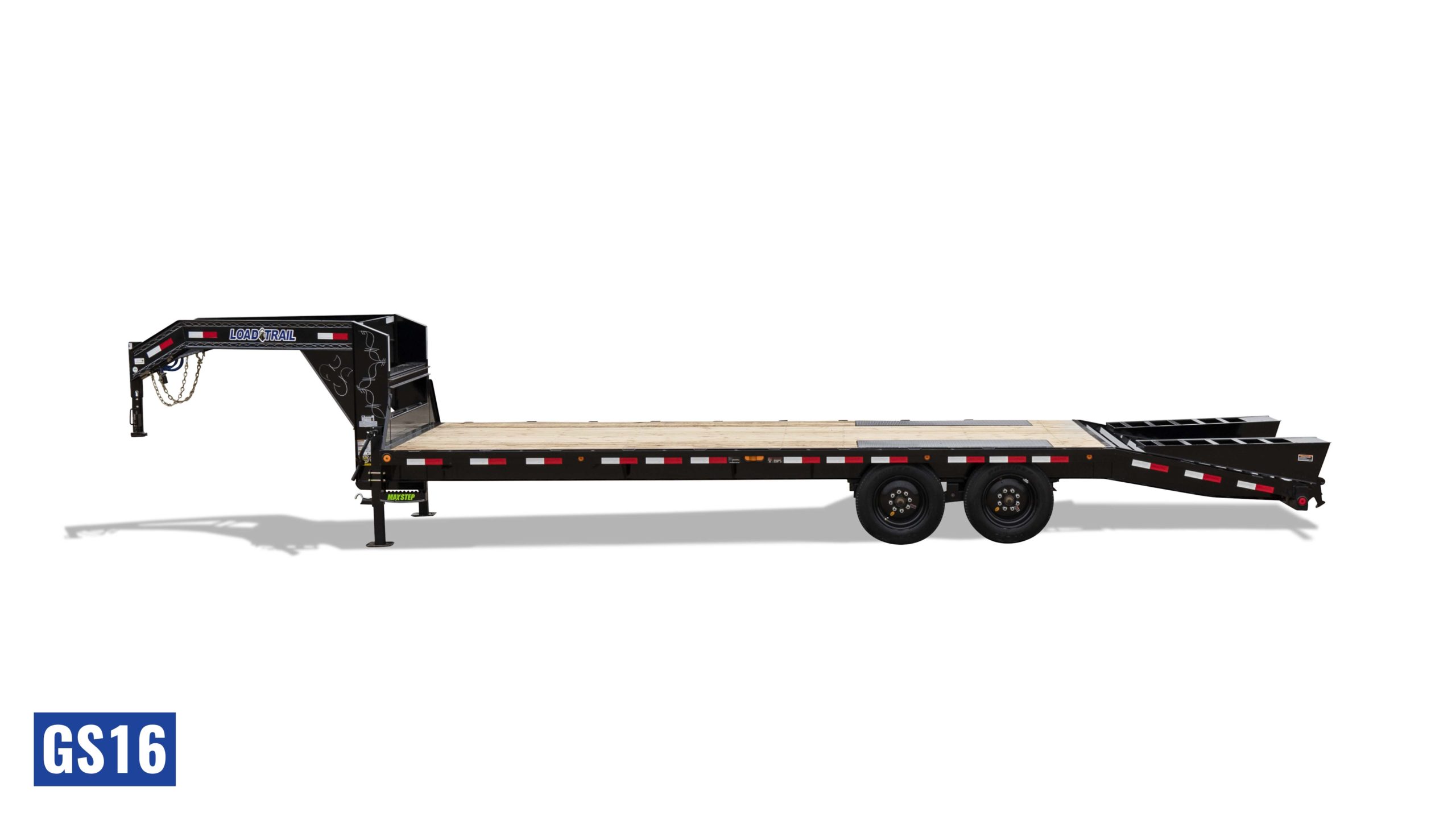

GS16

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

LENGTH

16′ – 30′

WIDTH

102″

DECK HEIGHT

32″

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

4,120 – 5,440 lbs

G.A.W.R.

8,000 Lbs/Axle

GS16 | STANDARD FEATURES

G.V.W.R.	16,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	10″ I-Beam
FRAME	8″ I-Beam
AXLES	(2) 8,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Adjustable Round Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	Fold-down Spare Tire Mount (spare included)
WINCH PLATE	8″ Channel Winch Plate

CROSSMEMBERS	3” Channel, 16” On-center
STORAGE	Full-width, Front Toolbox
DECK	Straight Deck
RAMPS	8′ Slide-In Ramps
FLOOR	Treated Wood Flooring
RUB RAIL	2” Rub Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge are standard on 36’ – 44’ length models. Models 24ft & up standard with (2) 10K jacks.

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLER & NECK

2-5/16” Adjustable Round Gooseneck Coupler	C14
2-5/16” Adjustable Square Gooseneck Coupler	C15
5th Wheel Adjustable Round Kingpin Adapter	C50
5th Wheel Adjustable Square Kingpin Adapter	C51
6” Raised Neck	N01
12” Raised Neck	N02

AXLES & SUSPENSION

2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles Oil Bath	ESBO
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBD
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2D
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Torsion Axles	DT2D
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *Oil Bath	ES2O
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *EZ-Lube	ES2E
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *Oil Bath	ET2D0
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *EZ-Lube	ET2DE
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 8,000 Lb Dexter (2 Hyd. Drum)/Torsion *Oil Bath	HT2DO
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Torsion *Oil Bath	DT2DO
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles	ESC
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles Oil Bath	ESCO
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles	ETCD
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles	HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles	DS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath	DS30
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles	HT3D
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Torsion Axles	DT3D
3 – 7,000 Lb Dexter (3 Elec.)/Air Ride Axles	ESCY18

WHEELS & TIRES

ST235/80 R16 LRE 10 PLY w/Silver Wheels	A05
ST235/80 R16 LRE 10 PLY w/Black Wheels	A28
ST235/85 R16 LRG 14 PLY w/Silver Wheels	A06
ST235/85 R16 LRG 14 PLY w/Black Wheels	A29
ST215/75 R17.5 LRH 16 Ply w/Silver Wheels	A15
ST215/75 R17.5 LRH 16 Ply. *Provider	A38
ST215/75 R17.5 LRH 16 Ply w/Black Wheels	A25

LANDING GEAR

1 – 10K Drop-Leg Jacks

J04

2 – 10K Drop-Leg Jacks

J05

2 – 25K, 2-Speed Drop-Leg Jacks

J06

2 – MAX-Jacks (hydraulic)

J07

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

TAIL & RAMPS

Straight Deck With 8’ Rear Slide-In Ramps	D00
5’ Self-Clean Dove With Slide In Ramps	D10
5’ Self-Clean Dove w/2 Stand-up Ramps	D30
5’ Self-Clean Dove w/3 Stand-up Ramps	D31
5’ Self-Clean Dove With 2 Flip-Over Ramps	D13
5’ Self-Clean Dove With 3 Flip-Over Ramps	D14
5’ Dove With Wood & 2 Slide-In Ramps	DW10
5’ Dove With Wood & 2 Stand-up Ramps	DW30
5’ Dove With Wood & 3 Stand-up Ramps	DW31
5’ Dove With Wood & 2 Flip-Over Ramps	DW13
5’ Dove With Wood & 3 Flip-Over Ramps	DW14
Support Arms For 2 Flip-over Ramps	SR1
Support Arms For 3 Flip-over Ramps	SR2

WINCH UPGRADES

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
16” Cross-Members	I01
12” Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
1 Set of Tool Box Brackets	TB1
Additional Sets of Tool Box Brackets	TB2
48” Side-Mount Tool Box	T03
72” Side-Mount Tool Box	T09
Top Riser Tool Box	T12
Under-Frame Bridge	U01
Pipe Bridge	U02
Under-frame Wood Rack	WR1
Wet Bolt Kit Equalizer Lubrication	EL1
Ratchets (weld-on, 1 every 5 ft)	Z01
Ratchets (adjustable, 1 every 5 ft)	Z02
Ratchet Track (weld-on)	Z03
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
Bumper-attached Receiver Hitch	RH1
Rear Support Stands (tube)	RS2
(1) – 6” Side Step	SS0
(1) – 15” MAX-Step	SM1
Fold-down Spare Tire Mount	TM3
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8

POPULAR OPTIONS

5’ Self-Clean Dove With 2 MAX-Ramps	DW08
ST235/80 R16 LRE 10 Ply w/Black Wheels	A28
15” MAX-Step	SM1
Locking Chain Rack	CR1
102” x 96” Deck-Over-Neck, w/45° Front Corners	Do2
Winch Plate	W01

9,990 GVWR
TANDEM AXLE

GS0216052	102” X 16’	4120
GS0218052	102” X 18’	N/A

14,000 GVWR
TANDEM AXLE

GS0216072	102” X 16’	4120
GS0218072	102” X 18’	N/A
GS0220072	102” X 20’	4245
GS0222072	102” X 22’	4690
GS0224072	102” X 24’	4760
GS0225072	102” X 25’	4920
GS0226072	102” X 26’	5000
GS0228072	102” X 28’	5300
GS0230072	102” X 30’	5440

16,000 GVWR
TANDEM AXLE

GS0216082	102” X 16’	4350
GS0218082	102” X 18’	N/A
GS0220082	102” X 20’	4595
GS0222082	102” X 22’	N/A
GS0224082	102” X 24’	N/A
GS0225082	102” X 25’	N/A
GS0226082	102” X 26’	N/A
GS0228082	102” X 28’	N/A
GS0230082	102” X 30’	N/A

21,000 GVWR
TRIPLE AXLE

GS0218073	102” X 18’	N/A
GS0220073	102” X 20’	N/A
GS0222073	102” X 22’	N/A
GS0224073	102” X 24’	N/A
GS0225073	102” X 25’	N/A
GS0226073	102” X 26’	5,320
GS0228073	102” X 28’	N/A
GS0230073	102” X 30’	5,770

Estimated weights for base models only.

OPTIONS

COUPLER & NECK

2-5/16” Adjustable Round Gooseneck Coupler	C14
2-5/16” Adjustable Square Gooseneck Coupler	C15
5th Wheel Adjustable Round Kingpin Adapter	C50
5th Wheel Adjustable Square Kingpin Adapter	C51
6” Raised Neck	N01
12” Raised Neck	N02

AXLES & SUSPENSION

2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles Oil Bath	ESBO
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBD
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2D
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Torsion Axles	DT2D
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *Oil Bath	ES2O
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *EZ-Lube	ES2E
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *Oil Bath	ET2D0
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *EZ-Lube	ET2DE
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 8,000 Lb Dexter (2 Hyd. Drum)/Torsion *Oil Bath	HT2DO
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Torsion *Oil Bath	DT2DO
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles	ESC
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles Oil Bath	ESCO
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles	ETCD
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles	HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles	DS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath	DS30
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles	HT3D
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Torsion Axles	DT3D
3 – 7,000 Lb Dexter (3 Elec.)/Air Ride Axles	ESCY18

WHEELS & TIRES

ST235/80 R16 LRE 10 PLY w/Silver Wheels	A05
ST235/80 R16 LRE 10 PLY w/Black Wheels	A28
ST235/85 R16 LRG 14 PLY w/Silver Wheels	A06
ST235/85 R16 LRG 14 PLY w/Black Wheels	A29
ST215/75 R17.5 LRH 16 Ply w/Silver Wheels	A15
ST215/75 R17.5 LRH 16 Ply. *Provider	A38
ST215/75 R17.5 LRH 16 Ply w/Black Wheels	A25

LANDING GEAR

1 – 10K Drop-Leg Jacks

J04

2 – 10K Drop-Leg Jacks

J05

2 – 25K, 2-Speed Drop-Leg Jacks

J06

2 – MAX-Jacks (hydraulic)

J07

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

TAIL & RAMPS

Straight Deck With 8’ Rear Slide-In Ramps	D00
5’ Self-Clean Dove With Slide In Ramps	D10
5’ Self-Clean Dove w/2 Stand-up Ramps	D30
5’ Self-Clean Dove w/3 Stand-up Ramps	D31
5’ Self-Clean Dove With 2 Flip-Over Ramps	D13
5’ Self-Clean Dove With 3 Flip-Over Ramps	D14
5’ Dove With Wood & 2 Slide-In Ramps	DW10
5’ Dove With Wood & 2 Stand-up Ramps	DW30
5’ Dove With Wood & 3 Stand-up Ramps	DW31
5’ Dove With Wood & 2 Flip-Over Ramps	DW13
5’ Dove With Wood & 3 Flip-Over Ramps	DW14
Support Arms For 2 Flip-over Ramps	SR1
Support Arms For 3 Flip-over Ramps	SR2

WINCH UPGRADES

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
16” Cross-Members	I01
12” Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
1 Set of Tool Box Brackets	TB1
Additional Sets of Tool Box Brackets	TB2
48” Side-Mount Tool Box	T03
72” Side-Mount Tool Box	T09
Top Riser Tool Box	T12
Under-Frame Bridge	U01
Pipe Bridge	U02
Under-frame Wood Rack	WR1
Wet Bolt Kit Equalizer Lubrication	EL1
Ratchets (weld-on, 1 every 5 ft)	Z01
Ratchets (adjustable, 1 every 5 ft)	Z02
Ratchet Track (weld-on)	Z03
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
Bumper-attached Receiver Hitch	RH1
Rear Support Stands (tube)	RS2
(1) – 6” Side Step	SS0
(1) – 15” MAX-Step	SM1
Fold-down Spare Tire Mount	TM3
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8

POPULAR OPTIONS

POPULAR OPTIONS

5’ Self-Clean Dove With 2 MAX-Ramps	DW08
ST235/80 R16 LRE 10 Ply w/Black Wheels	A28
15” MAX-Step	SM1
Locking Chain Rack	CR1
102” x 96” Deck-Over-Neck, w/45° Front Corners	Do2
Winch Plate	W01

SIZE & WEIGHT

9,990 GVWR
TANDEM AXLE

GS0216052	102” X 16’	4120
GS0218052	102” X 18’	N/A

14,000 GVWR
TANDEM AXLE

GS0216072	102” X 16’	4120
GS0218072	102” X 18’	N/A
GS0220072	102” X 20’	4245
GS0222072	102” X 22’	4690
GS0224072	102” X 24’	4760
GS0225072	102” X 25’	4920
GS0226072	102” X 26’	5000
GS0228072	102” X 28’	5300
GS0230072	102” X 30’	5440

16,000 GVWR
TANDEM AXLE

GS0216082	102” X 16’	4350
GS0218082	102” X 18’	N/A
GS0220082	102” X 20’	4595
GS0222082	102” X 22’	N/A
GS0224082	102” X 24’	N/A
GS0225082	102” X 25’	N/A
GS0226082	102” X 26’	N/A
GS0228082	102” X 28’	N/A
GS0230082	102” X 30’	N/A

21,000 GVWR
TRIPLE AXLE

GS0218073	102” X 18’	N/A
GS0220073	102” X 20’	N/A
GS0222073	102” X 22’	N/A
GS0224073	102” X 24’	N/A
GS0225073	102” X 25’	N/A
GS0226073	102” X 26’	5,320
GS0228073	102” X 28’	N/A
GS0230073	102” X 30’	5,770

Estimated weights for base models only.

GS SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

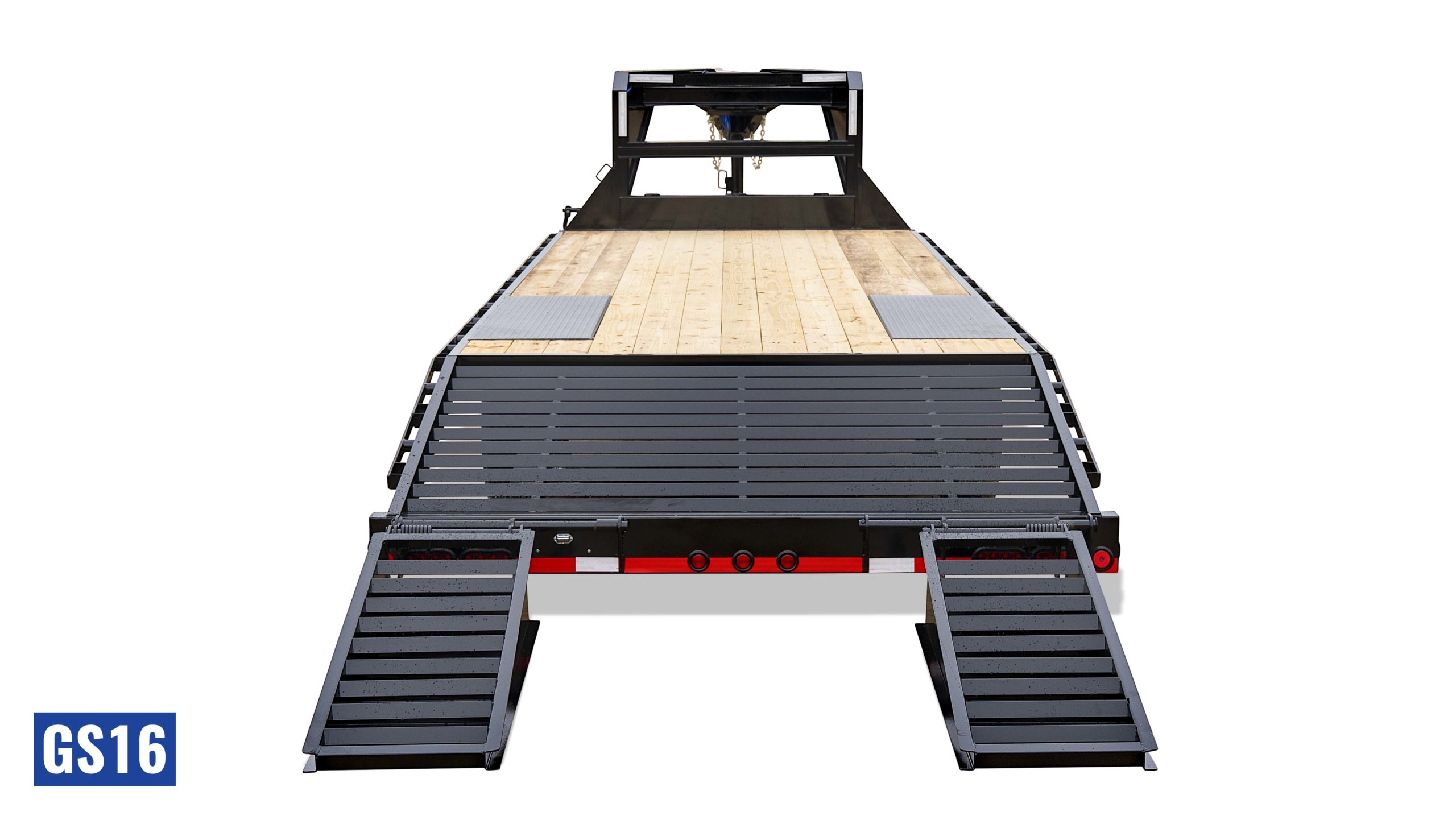

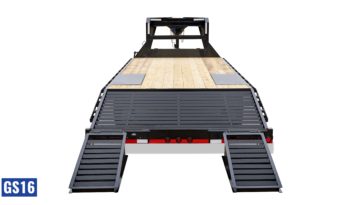

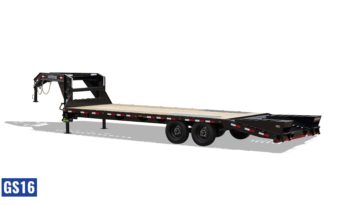

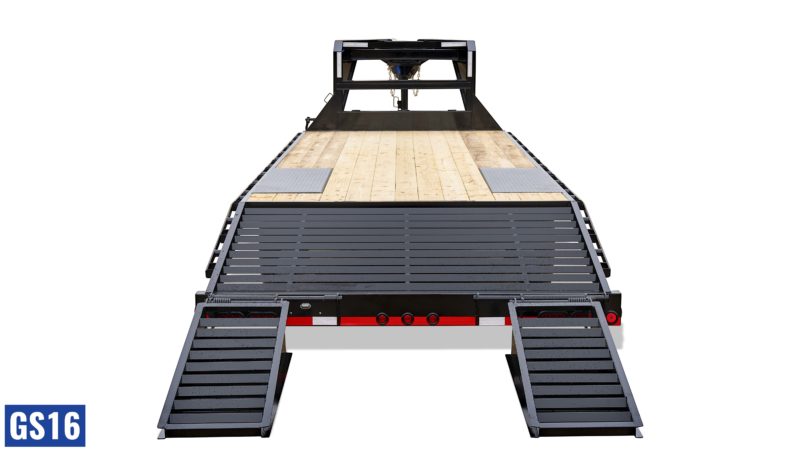

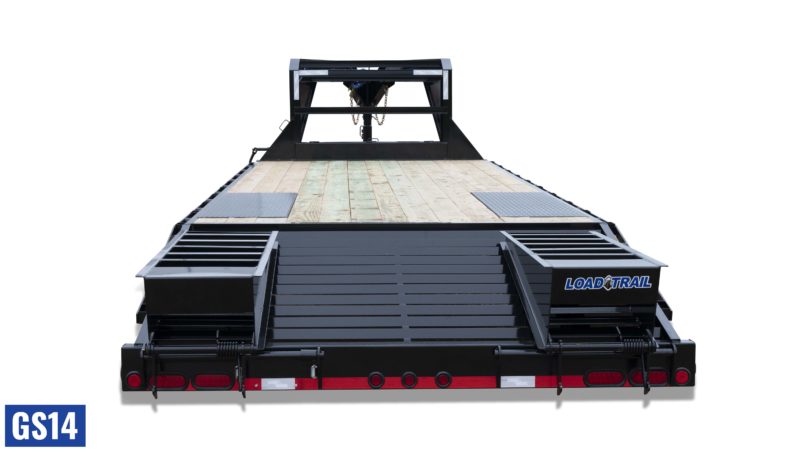

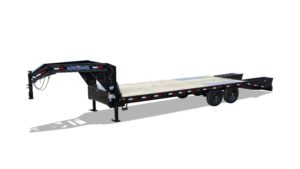

GS | Classic Gooseneck Deckover

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

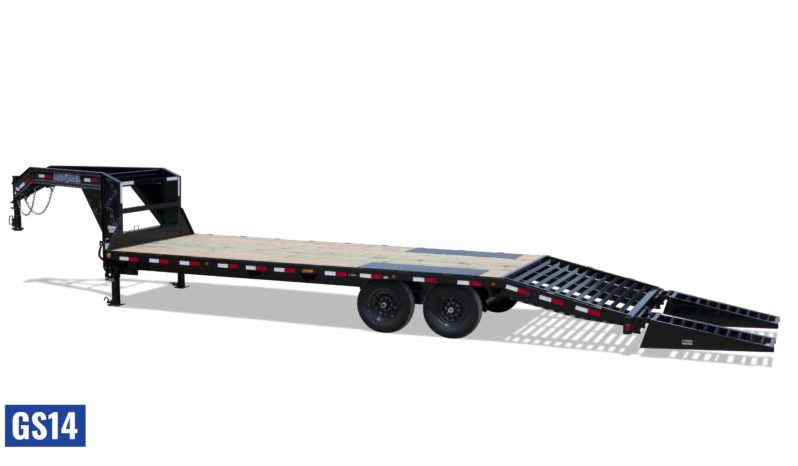

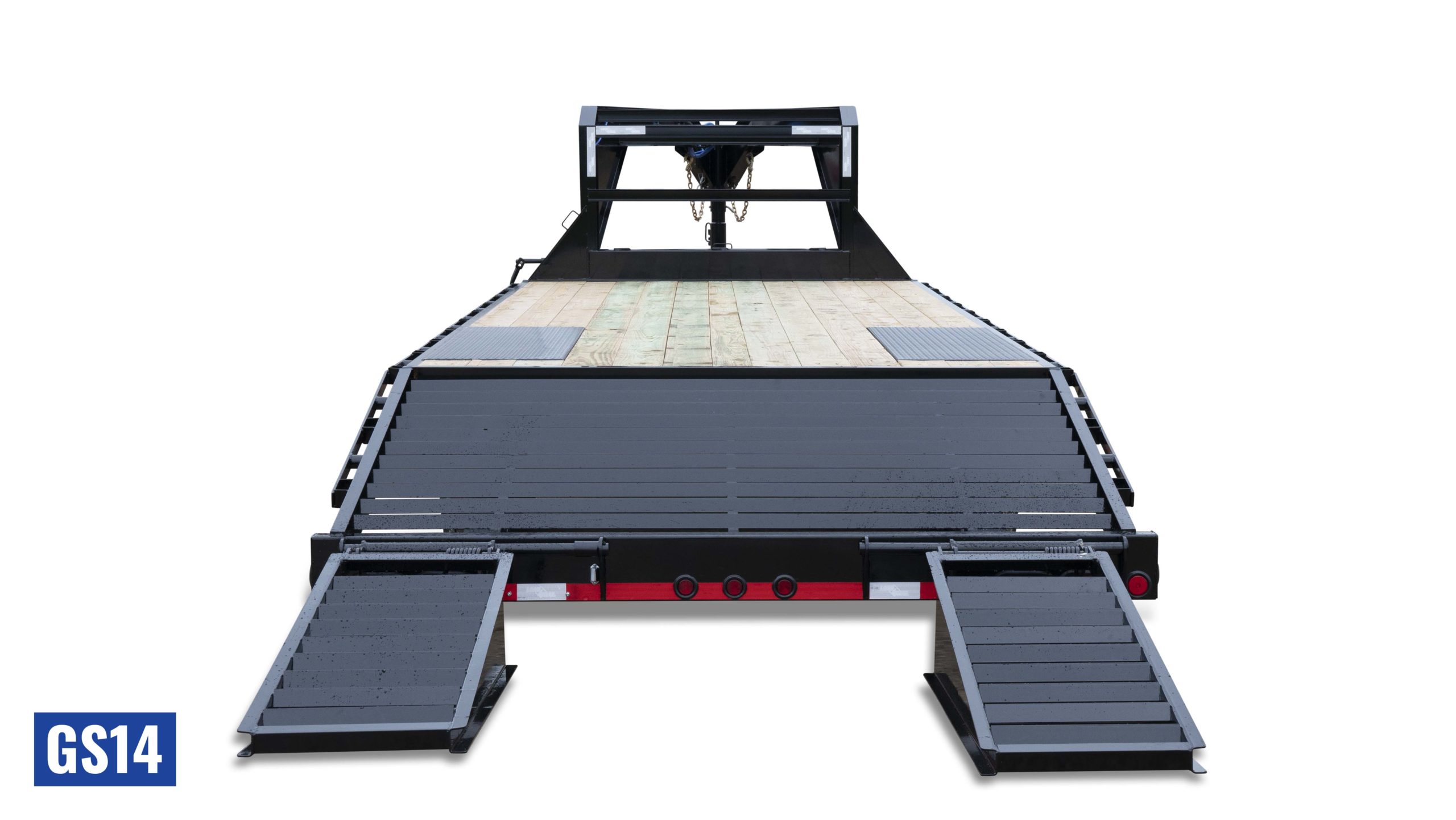

GS14 | STANDARD FEATURES

GS14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GS14 | STANDARD FEATURES

GS14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

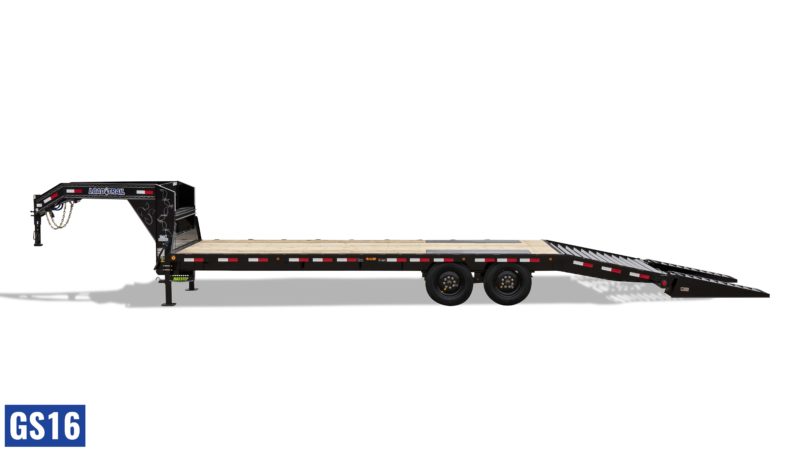

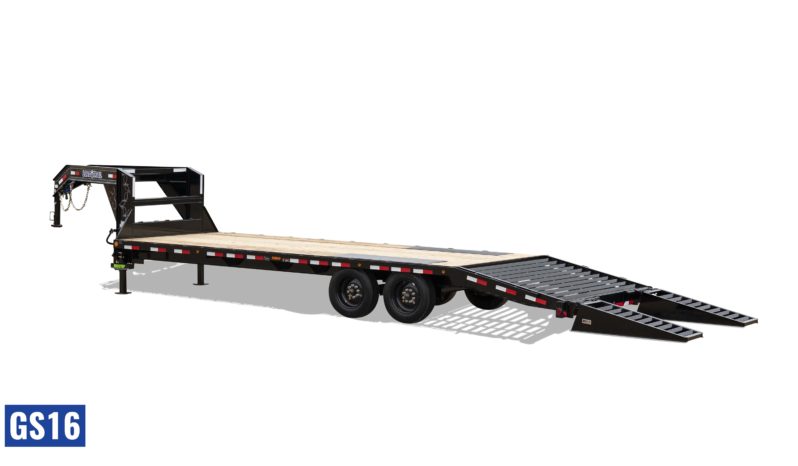

GS16 | STANDARD FEATURES

GS16 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GS14 | STANDARD FEATURES

GS14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GS14 | STANDARD FEATURES

GS14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

COUPLER
