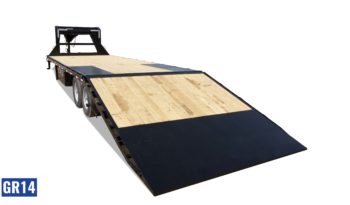

GR | Heavy-Duty Hydraulic Dove w/Singles

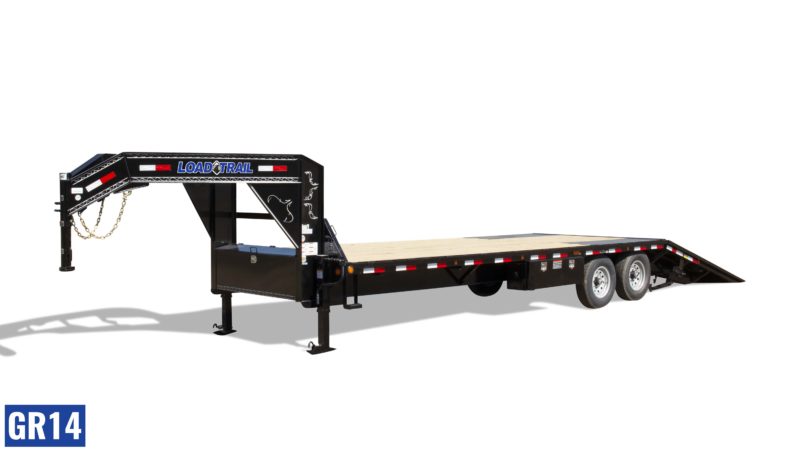

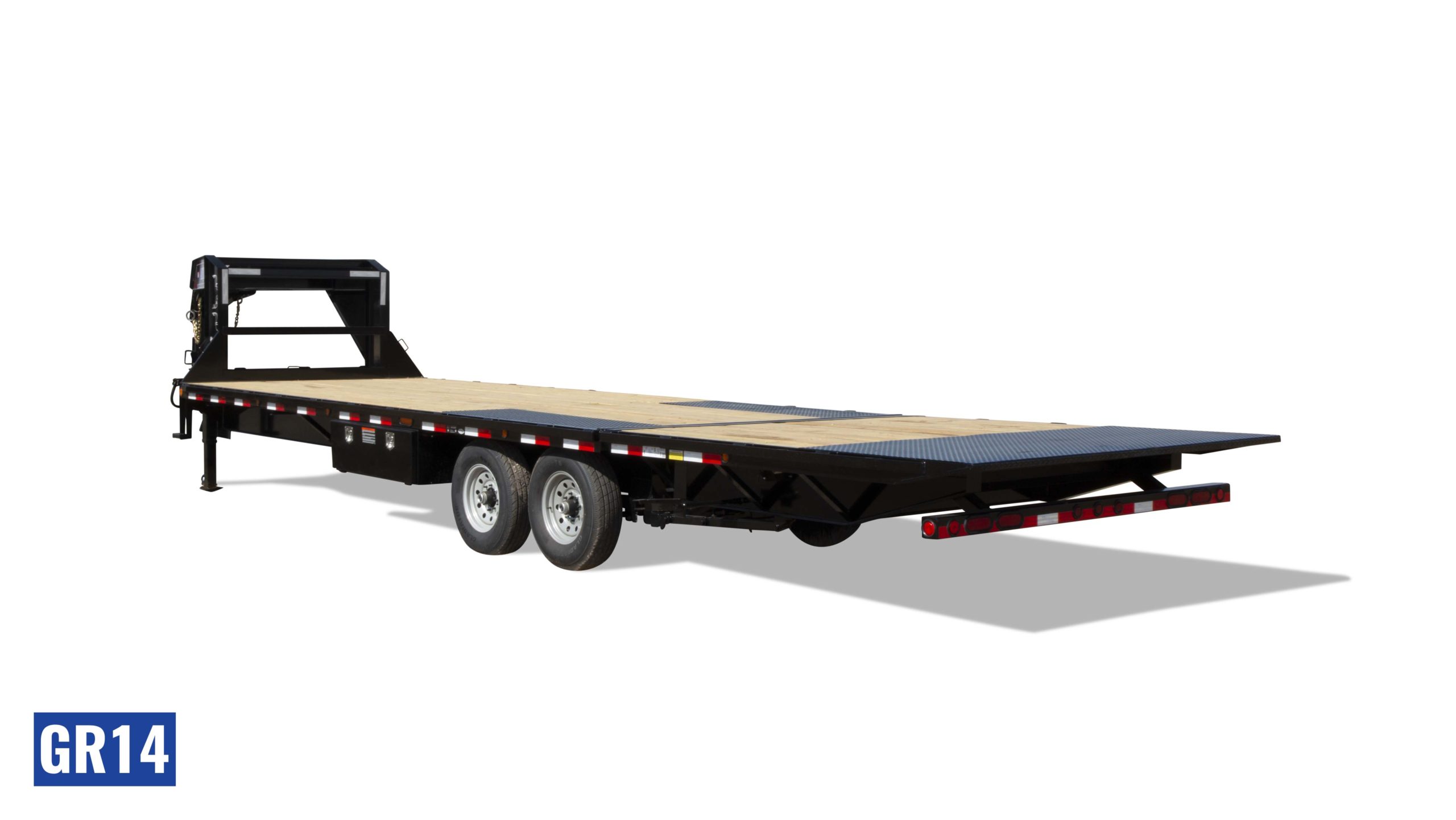

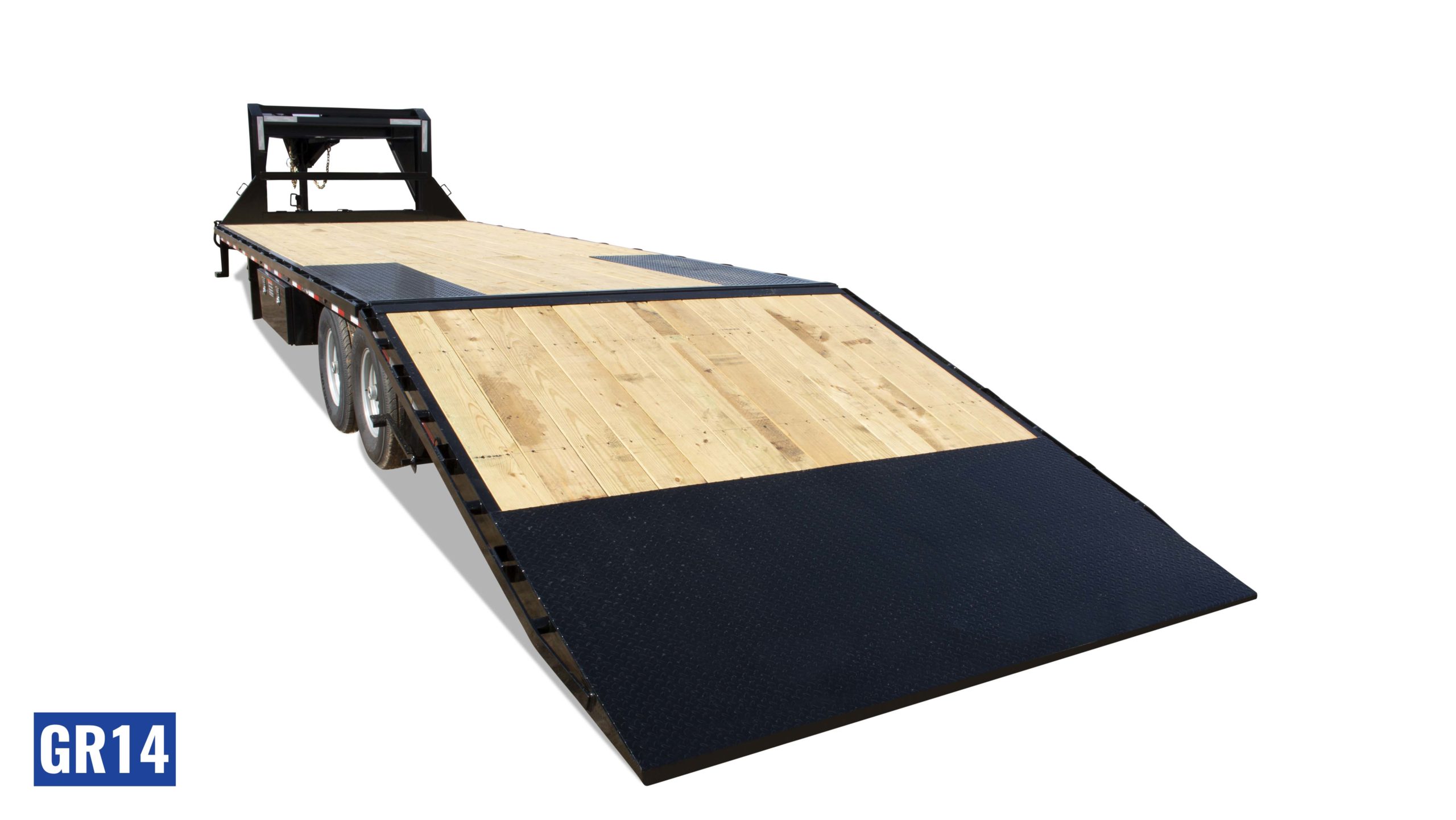

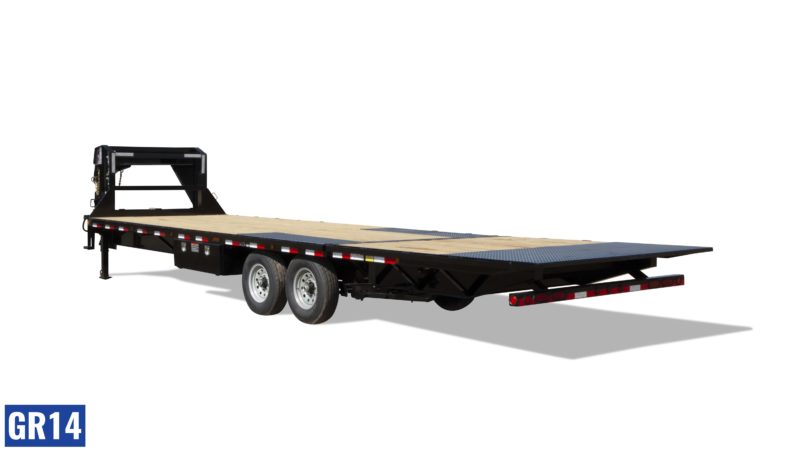

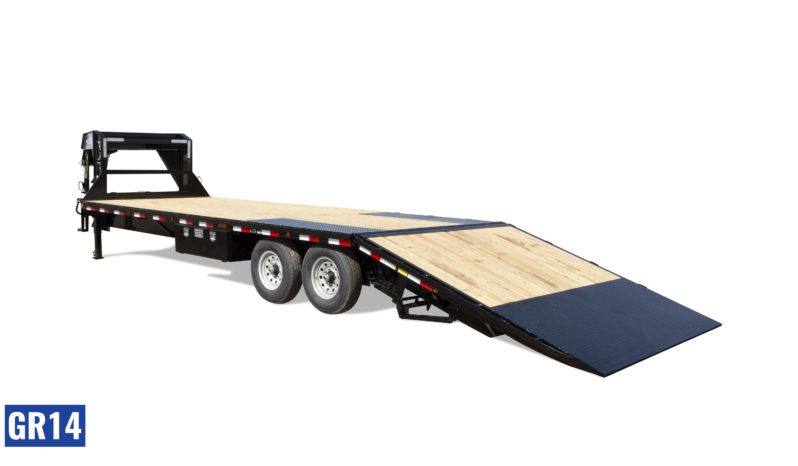

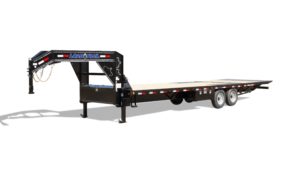

GR14

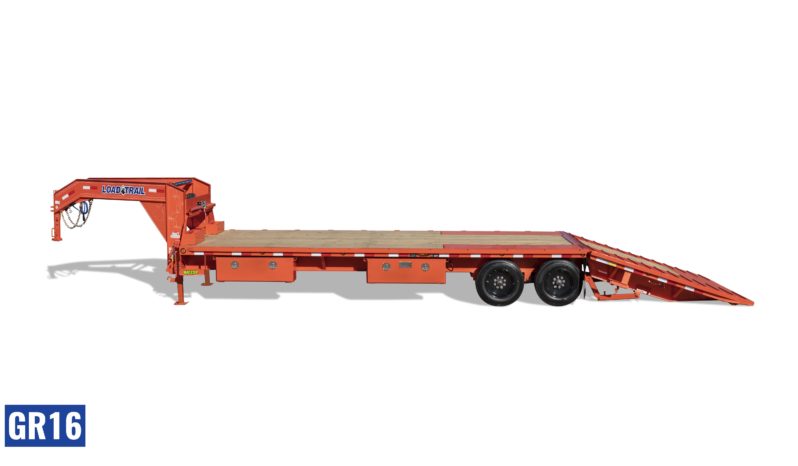

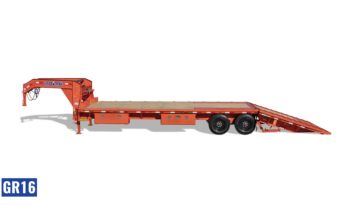

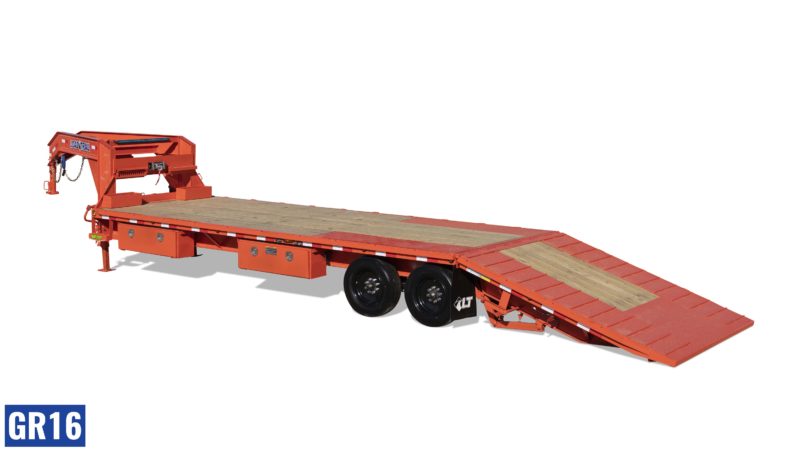

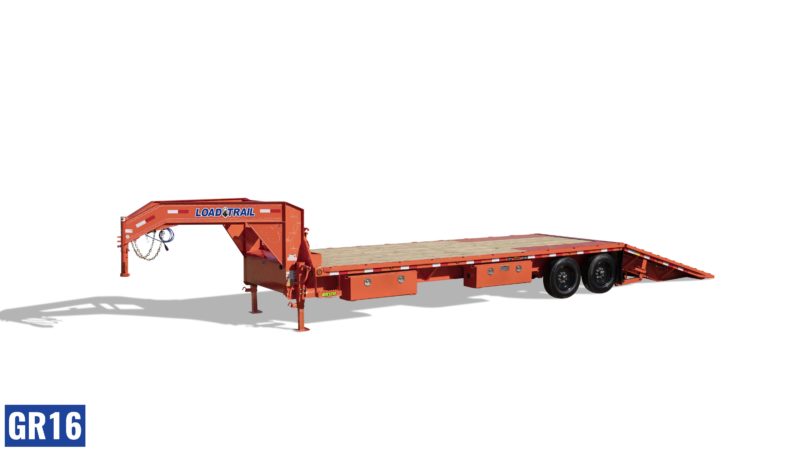

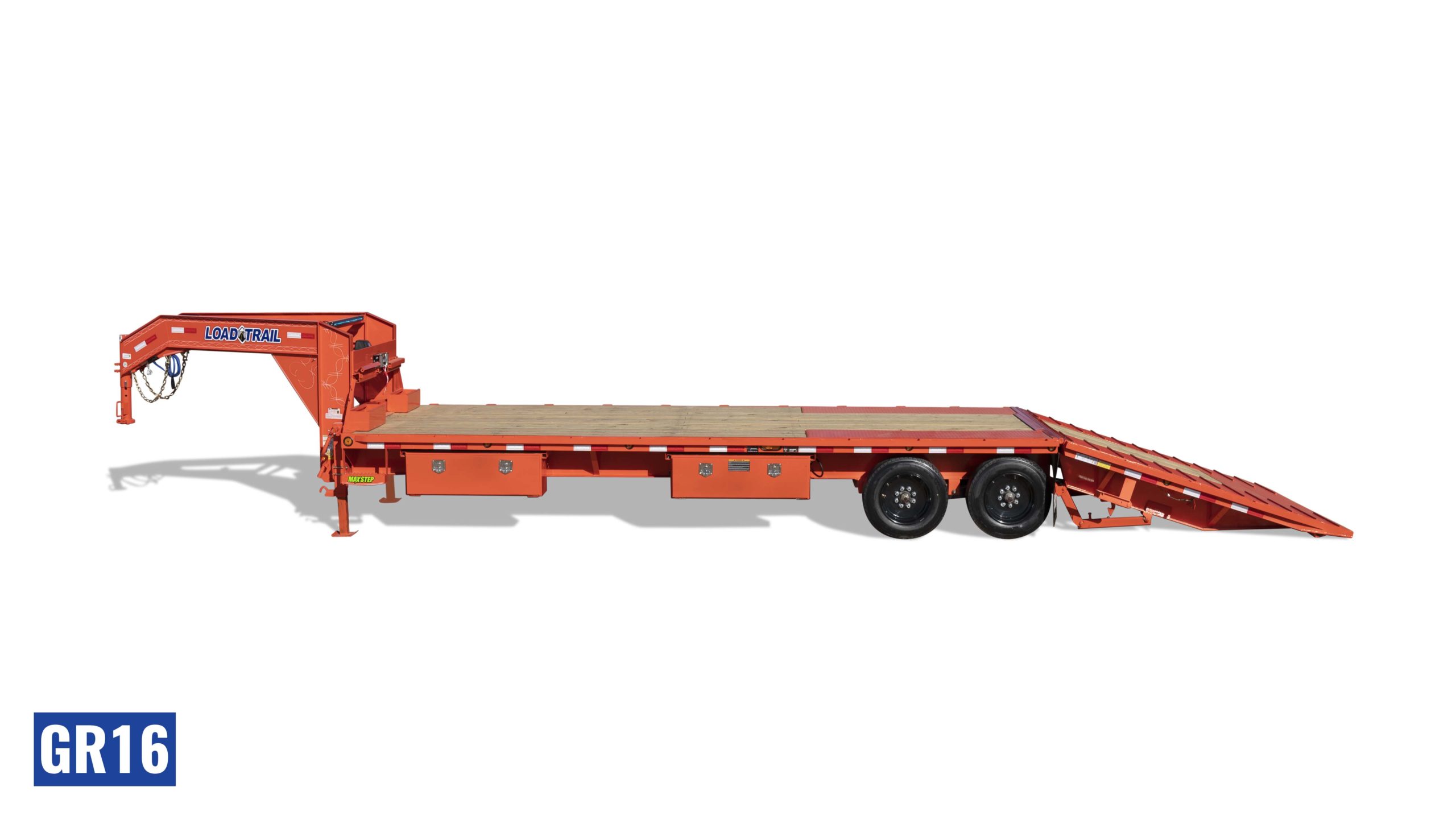

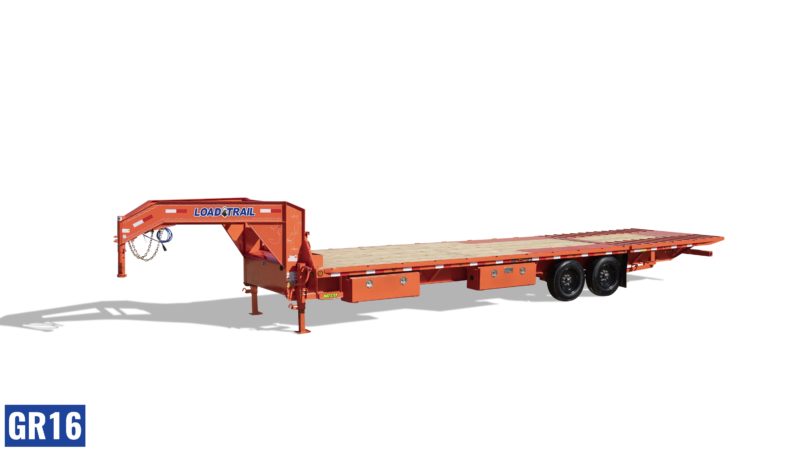

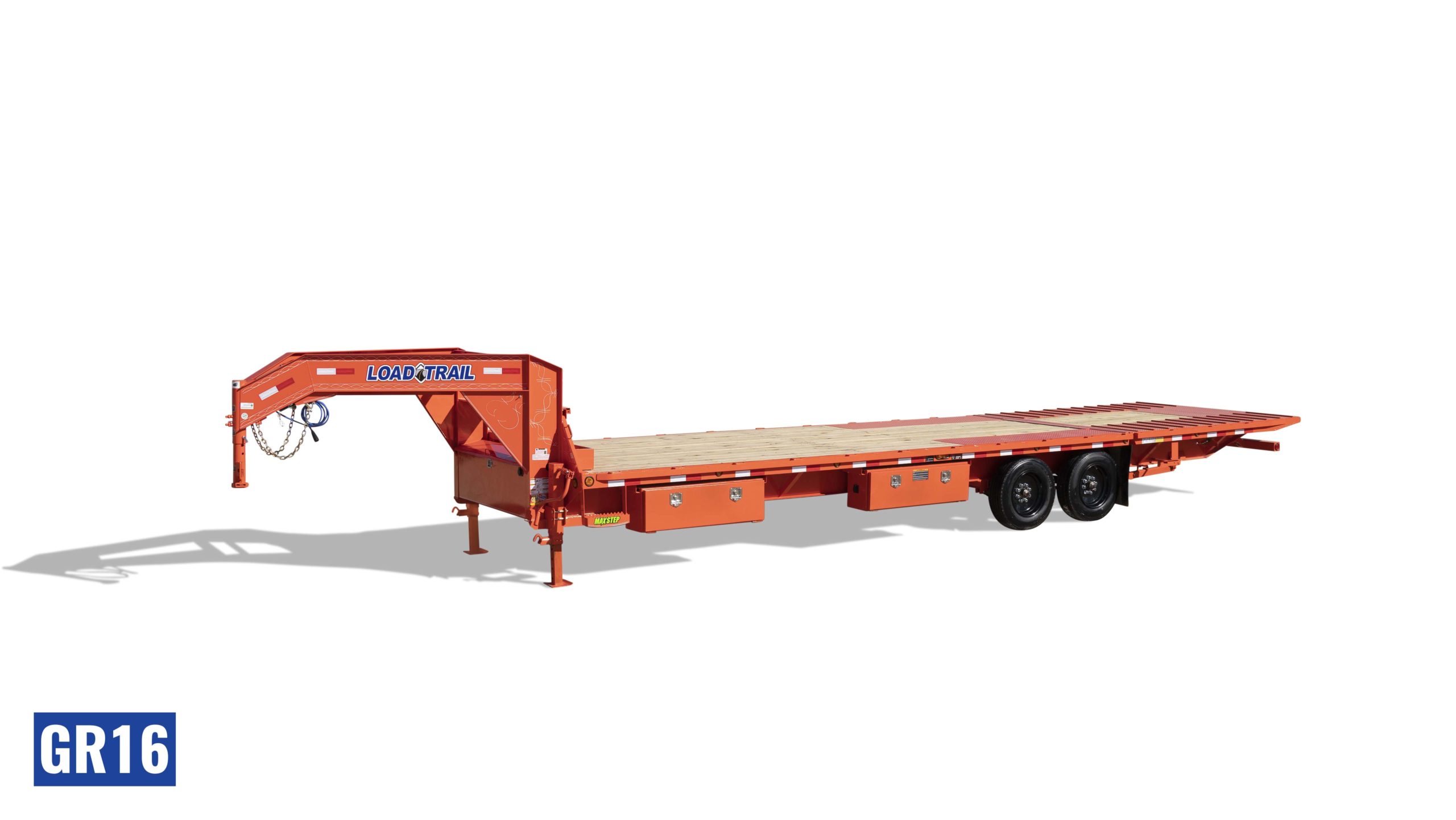

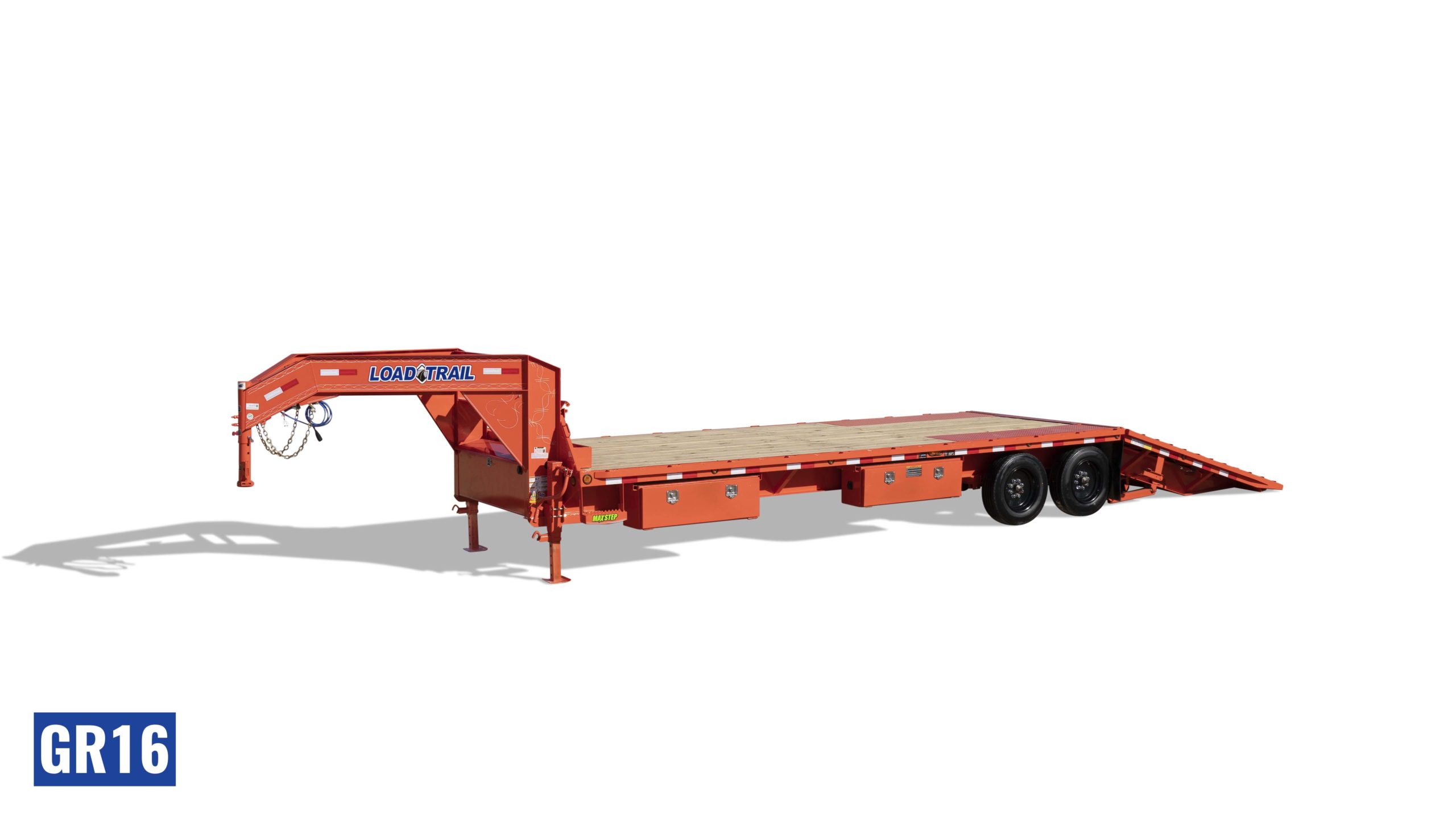

GR16

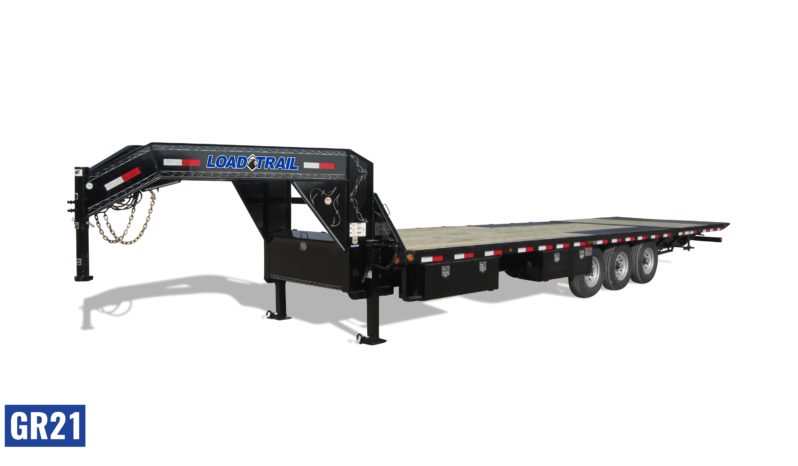

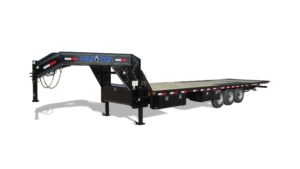

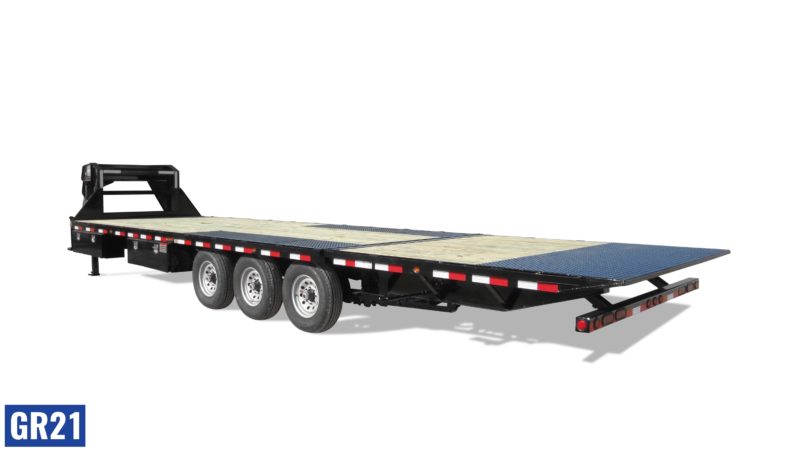

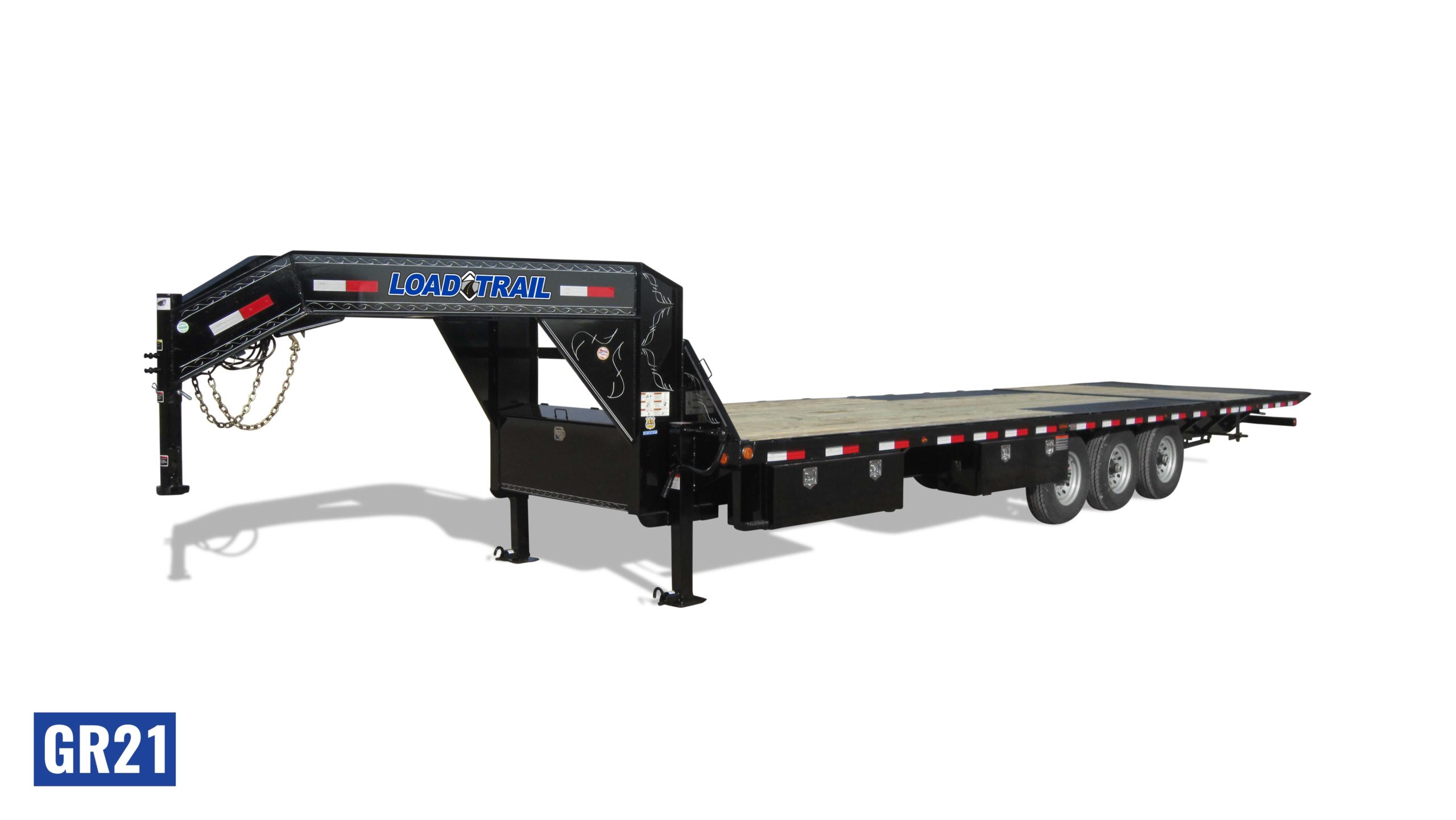

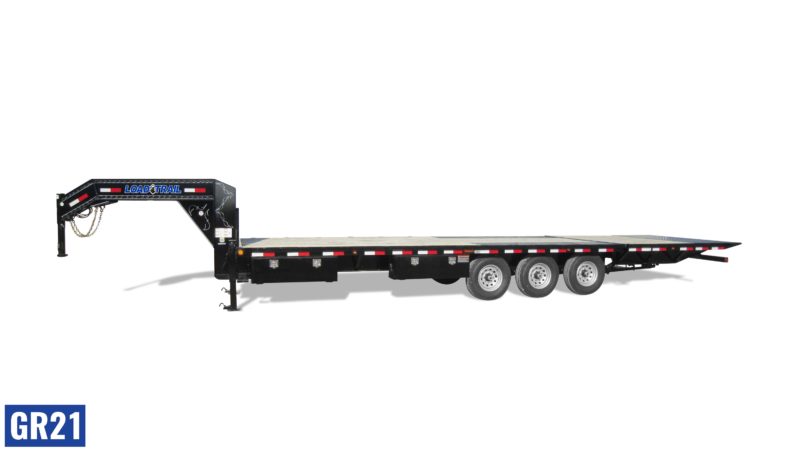

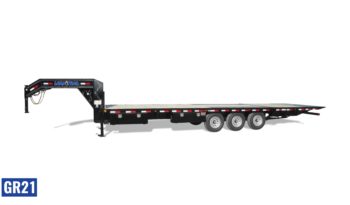

GR21
GR24

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

LENGTH

26′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

6,500 – 7,900 Lbs

G.A.W.R.

7,000 Lbs/Axle

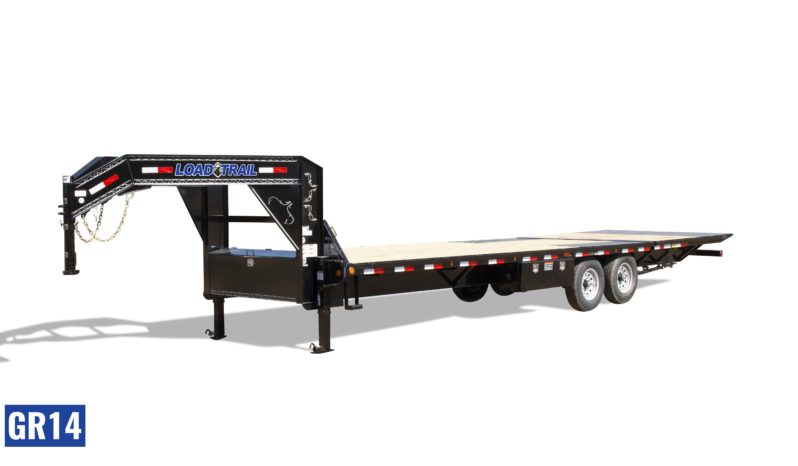

GR14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(2) 7,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

LENGTH

26′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

6,500 – 7,900 Lbs

G.A.W.R.

8,000 Lbs/Axle

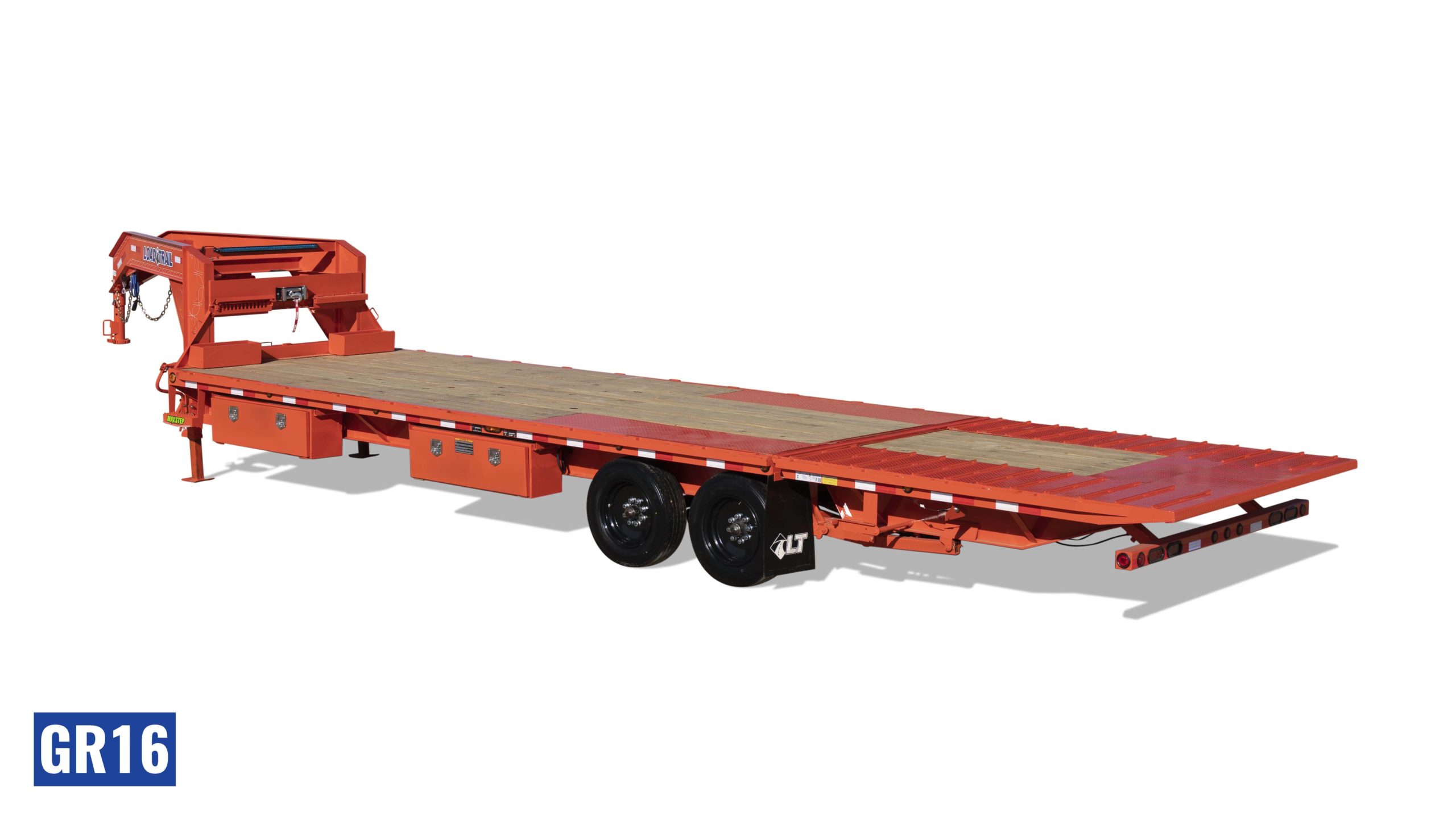

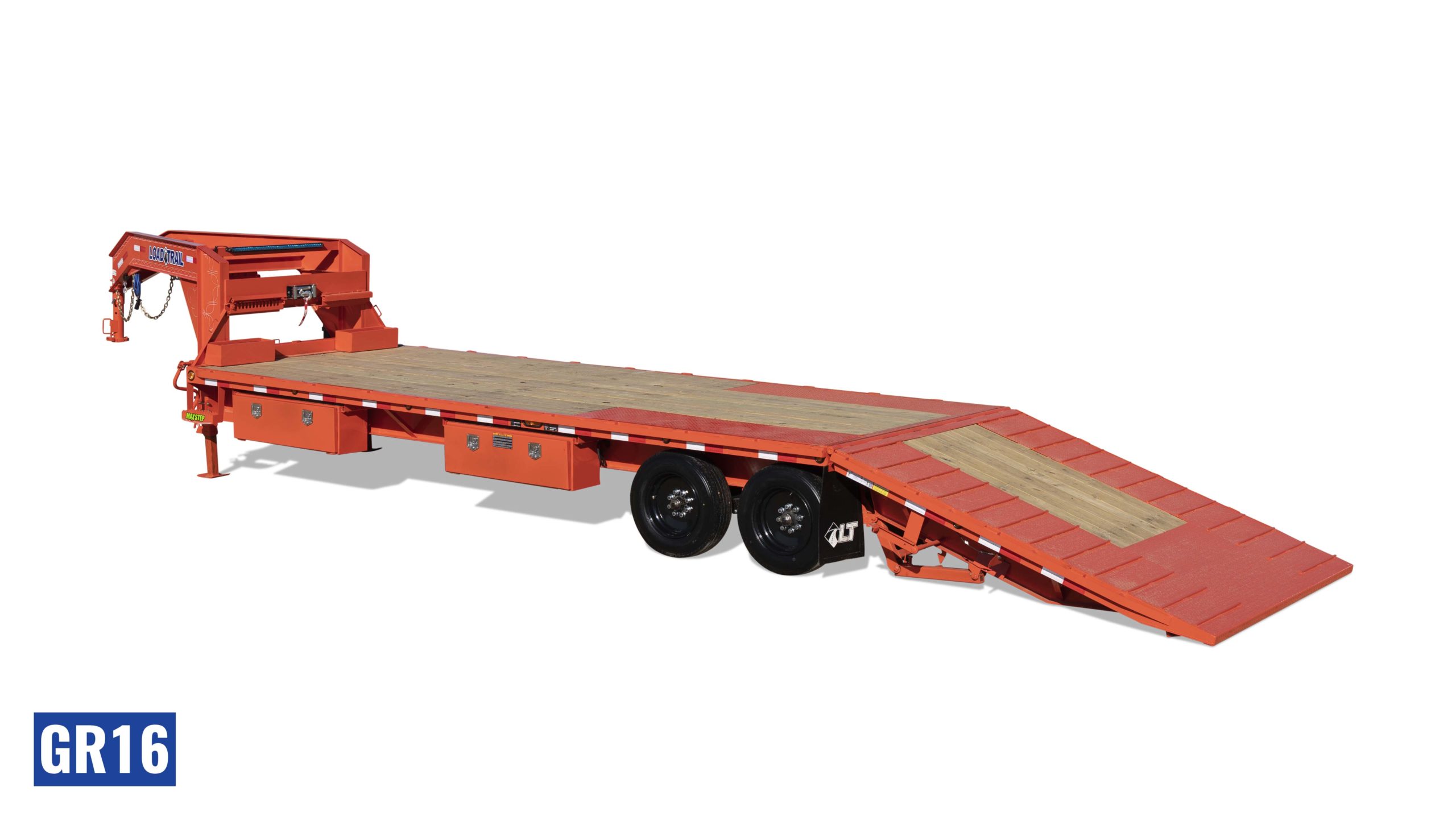

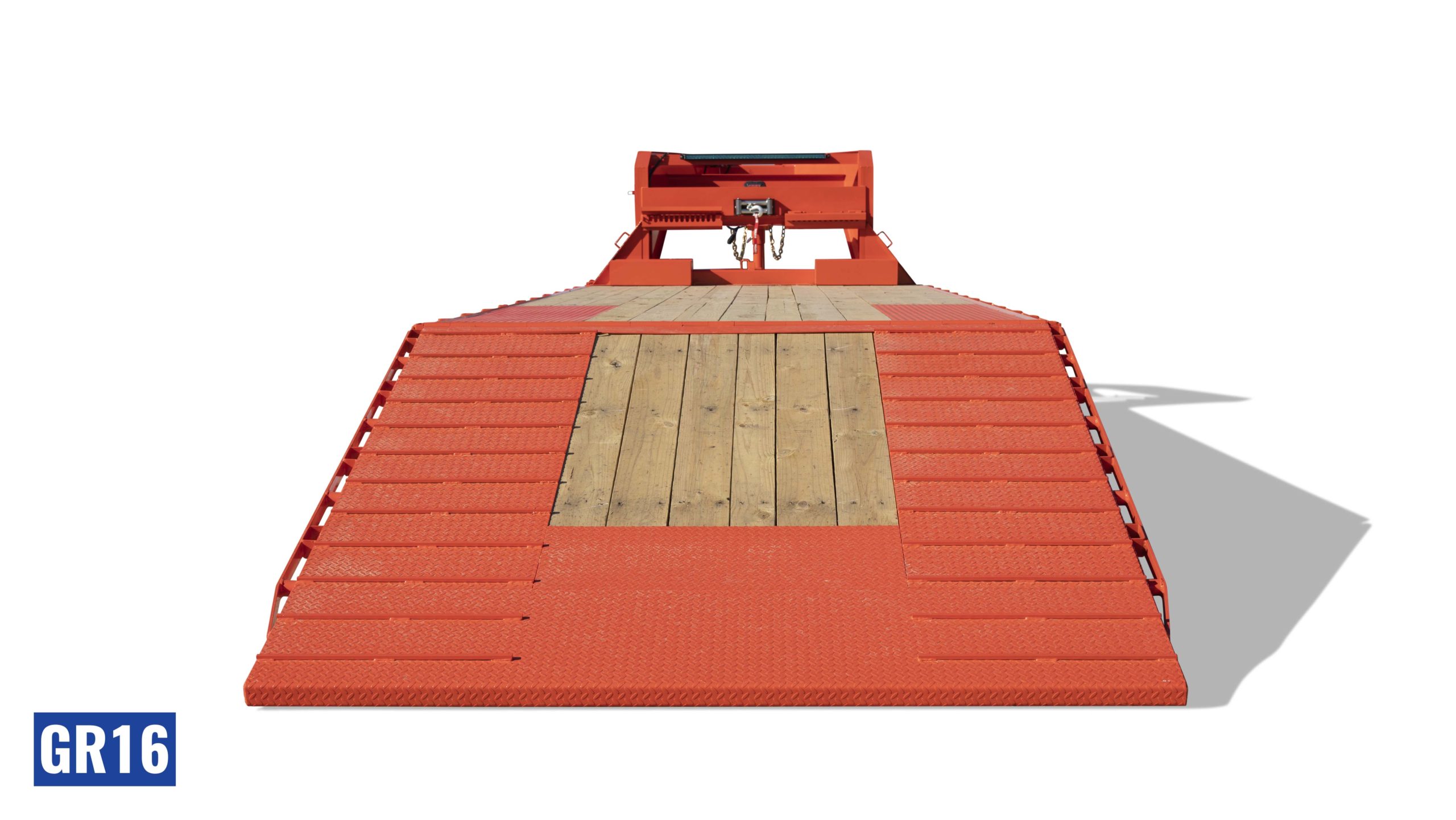

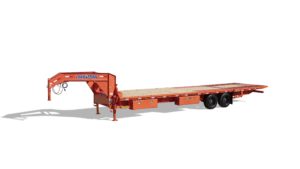

GR16 | STANDARD FEATURES

G.V.W.R.	16,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(2) 8,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

LENGTH

30′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(3) 7,000 Lb

EST. WEIGHT

8,300 – 9,300 Lbs

G.A.W.R.

7,000 Lbs/Axle

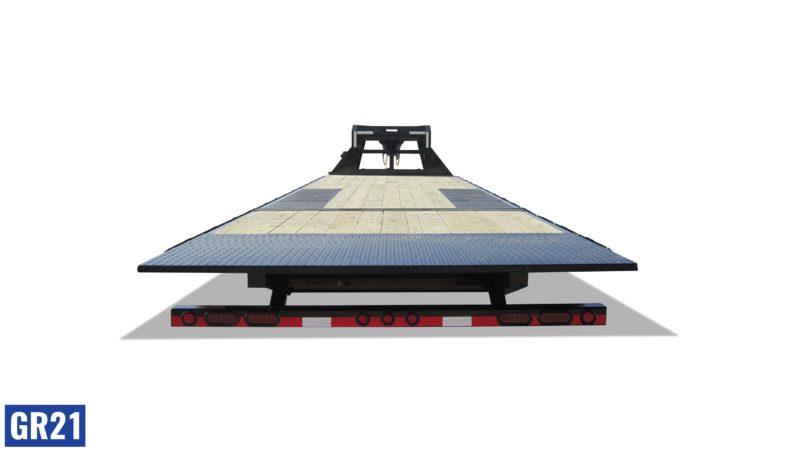

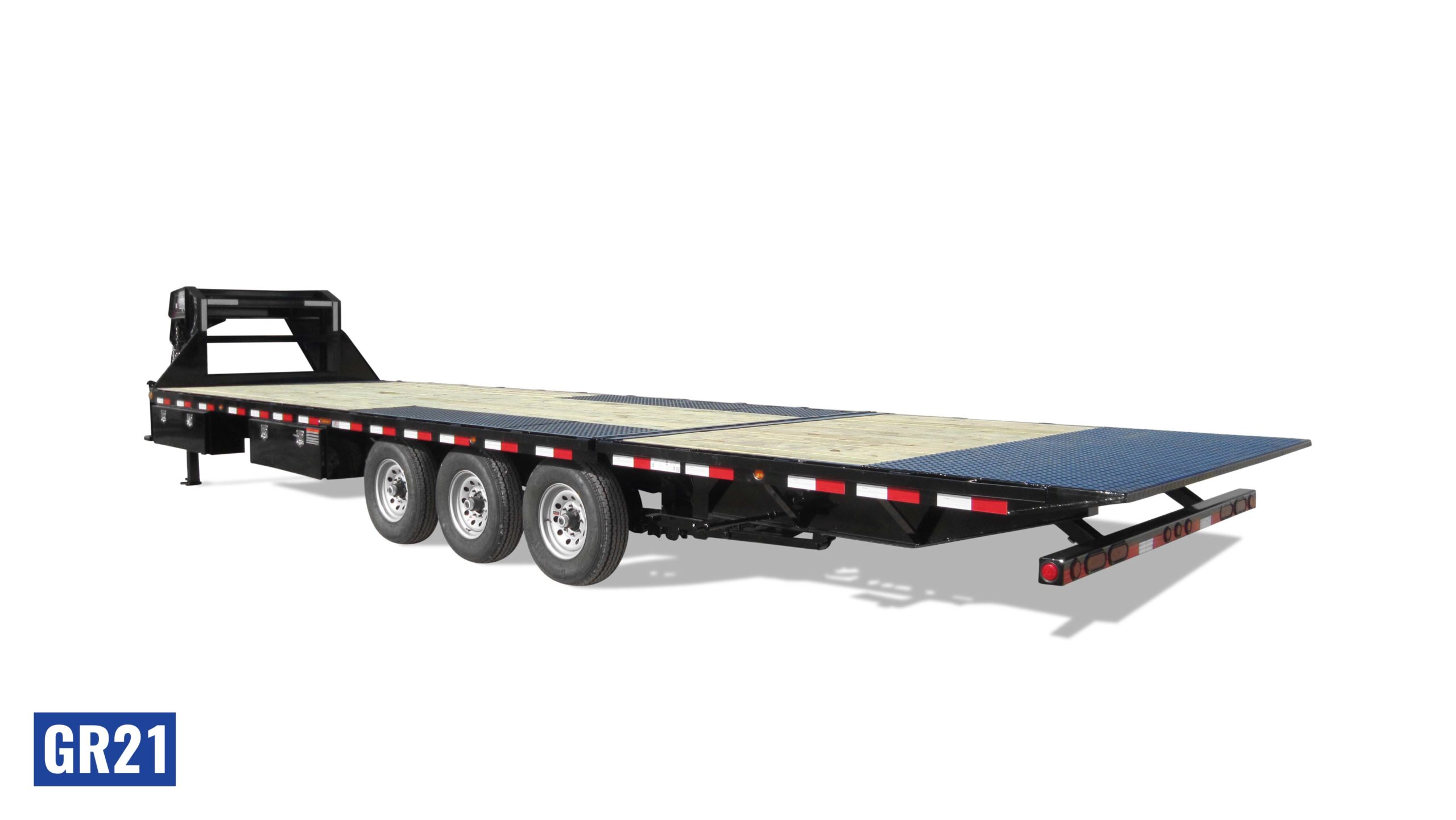

GR21 | STANDARD FEATURES

G.V.W.R.	21,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(3) 7,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

CONFIGURATIONS SUMMARY

G.V.W.R.

24,000 Lbs

LENGTH

30′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(3) 8,000 Lb

EST. WEIGHT

8,300 – 9,300 Lbs

G.A.W.R.

8,000 Lbs/Axle

GR24 | STANDARD FEATURES

G.V.W.R.	24,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(3) 8,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

GR14

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

LENGTH

26′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

6,500 – 7,900 Lbs

G.A.W.R.

7,000 Lbs/Axle

GR14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(2) 7,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

GR16

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

LENGTH

26′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

6,500 – 7,900 Lbs

G.A.W.R.

8,000 Lbs/Axle

GR16 | STANDARD FEATURES

G.V.W.R.	16,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(2) 8,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

GR21

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

LENGTH

30′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(3) 7,000 Lb

EST. WEIGHT

8,300 – 9,300 Lbs

G.A.W.R.

7,000 Lbs/Axle

GR21 | STANDARD FEATURES

G.V.W.R.	21,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(3) 7,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

GR24

CONFIGURATIONS SUMMARY

G.V.W.R.

24,000 Lbs

LENGTH

30′ – 40′

WIDTH

102″

DECK HEIGHT

36″

DOVE ANGLE

N/A

HYDRAULICS

Power Up/Power Down

COUPLER

Gooseneck

AXLES

(3) 8,000 Lb

EST. WEIGHT

8,300 – 9,300 Lbs

G.A.W.R.

8,000 Lbs/Axle

GR24 | STANDARD FEATURES

G.V.W.R.	24,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	12” I-Beam
FRAME	12” I-Beam
AXLES	(3) 8,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION	Multi-Leaf Spring
COUPLER	2-5/16” Round Adjustable Gooseneck Coupler
JACK	(2) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	Fold-Down Spare Tire Mount (spare included)
CROSSMEMBERS	3″ Channel, 16″ On-center
WINCH	8″ Channel Winch Plate
FLOOR	Treated Wood Floor

DECK	Straight Deck w/9 ft Hydraulic Dove Tail
HYDRAULICS	Dual Acting Hyd. Pump w/3″ x 10″ 1.25″ Cylinder
ELECTRICAL	12v Battery + 5amp Charger
FRONT STORAGE	Full-width Front Toolbox
SIDE STORAGE	48″ Side-mount Toolbox (hyd. system storage)
RUB RAIL	2″ Rube Rail, Pipe Spools, & Stake Pockets
STEP	15″ MAX-Step
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS	(2) 5/16” Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

All electric brake axles are forward-self-adjusting. Under-frame bridge/pipe bridge is standard on 36’, 38’, 40’, 42’, & 44’ length models.

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLER & NECK

2-5/16” Adjustable Round Gooseneck Coupler	C14
2-5/16” Adjustable Square Gooseneck Coupler	C15
5th Wheel Adjustable Round Kingpin Adapter	C50
5th Wheel Adjustable Square Kingpin Adapter	C51
6” Raised Neck	N01
12” Raised Neck	N02

AXLES & SUSPENSION

2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles Oil Bath	ESBO
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBD
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2D
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Torsion Axles	DT2D
2 – 7,000 Lb Dexter (2 Elec.)/Air Ride Axles	ESBY18
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *Oil Bath	ES2O
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *EZ-Lube	ES2E
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *Oil Bath	ET2D0
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *EZ-Lube	ET2DE
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 8,000 Lb Dexter (2 Hyd. Drum)/Torsion *Oil Bath	HT2DO
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Torsion *Oil Bath	DT2DO
2 – 8,000 Lb Dexter (2 hyd.disc)/Air Ride Axles *OB	DS2Y19
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Air Ride Axles *Oil Bath With Lift Axle	DT2DO
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles	ESC
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles Oil Bath	ESCO
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles	ETCD
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles	HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles	DS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath	DS30
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles	HT3D
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Torsion Axles	DT3D
3 – 7,000 Lb Dexter (3 Elec.)/Air Ride Axles	ESCY18
3 – 8,000 Lb Dexter (3 Elec.)/Spring Axles *Oil Bath	ES3O
3 – 8,000 Lb Dexter (3 Elec.)/Torsion Axles *Oil Bath	ET3D
3 – 8,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath	DS3O
3 – 8,000 Lb Dexter (3 Hyd. Drum)/Torsion *Oil Bath	HT3DO

WHEELS & TIRES

ST235/80 R16 LRE 10 Ply w/Silver Wheels	A05
ST235/80 R16 LRE 10 Ply w/Black Wheels	A28
ST235/85 R16 LRG 14 Ply w/Silver Wheels	A06
ST235/85 R16 LRG 14 Ply w/Black Wheels	A29
ST215/75 R17.5 LRH 16 Ply w/White Wheels	A15
ST215/75 R17.5 LRH 16 Ply w/Black Wheels	A25

LANDING GEAR

2 – 10K Drop-Leg Jacks	J05
2 – 25K, 2-Speed Drop-Leg Jacks	J06
2 – MAX-Jacks (hydraulic)	J07
2 – 10K Electric Drop-Leg Jacks	J08

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

WINCH PACKAGE

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

DOVETAIL

9’ Hydraulic Dovetail	DH9
9’ Self-Clean Hydraulic Dovetail	DHS
10’ Hydraulic Dovetail	DH10
10’ Self-Clean Hydraulic Dovetail	DHS0
Angle Cleats On DoveTail (outside only)	Cl1
Angle Cleats On DoveTail (whole dovetail)	Cl2
Square Bar Cleats On DoveTail (outside only)	Cl3
Bolt-on Cleats on Dovetail	Cl6
Blackwood On Dovetail	E02BW1
Blackwood PRO On Dovetail	E02BW2

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hy. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charing System (PowerMAX)	BC3
18 Amp Ra[id Battery Wall Charger	BC4

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
16” Cross-Members	I01
12” Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
Set of Tool Box Brackets	TB1
48” Side-Mount Tool Box	T03
72” Side-Mount Tool Box	T09
Top Riser Tool Box	T12
Under-Frame Bridge	U01
Pipe Bridge	U02
Under Frame Bridge & Pipe Bridge	U01U02
Under-frame Wood Rack	WR1
Ratchets (weld-on, 1 every 5 ft)	Z01
Ratchets (adjustable, 1 every 5 ft)	Z02
Ratchet Track (weld-on)	Z03
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
(1) – 8” Side Step	SS0
(1) – 15” MAX-Step	SM1
Spare Tire Mount *universal	TM1
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8
Wheel Simulators	WS1

POPULAR OPTIONS

Locking Chain Rack	CR1
10’ Self-Clean Hydraulic Dovetail	DHS0
15” MAX-Step	SM1
Top Riser Tool Box	T12
17.5K Winch Package	W18
Adjustable Ratchets	Z02

GR14 | 14,000 GVWR
(TANDEM 7K AXLES)

GR0226072	102” X 26’	6500
GR0228072	102” X 28’	6700
GR0230072	102” X 30’	6900
GR0232072	102” X 32’	7100
GR0234072	102” X 34’	7300

GR16 | 16,000 GVWR
(TANDEM 8K AXLES)

GR0226082	102” X 26’	6500
GR0228082	102” X 28’	6700
GR0230082	102” X 30’	6900
GR0232082	102” X 32’	7100
GR0234082	102” X 34’	7300
GR0236082	102” X 36’	7500
GR0238082	102” X 38’	7700

GR21 | 21,000 GVWR
(TRIPLE 7K AXLES)

GR0228073	102” X 28’	N/A
GR0230073	102” X 30’	8300
GR0232073	102” X 32’	8500
GR0234073	102” X 34’	8700
GR0236073	102” X 36’	8900
GR0238073	102” X 38’	9100
GR0240073	102” X 40’	9300
GR0242073	102” X 42’	N/A
GR0244073	102” X 44’	N/A

GR24 | 24,000 GVWR
(TRIPLE 8K AXLES)

GR0228073	102” X 28’	N/A
GR0230073	102” X 30’	8300
GR0232073	102” X 32’	8500
GR0234073	102” X 34’	8700
GR0236073	102” X 36’	8900
GR0238073	102” X 38’	9100
GR0240073	102” X 40’	9300
GR0242073	102” X 42’	N/A
GR0244073	102” X 44’	N/A

Estimated weights for base models only.

OPTIONS

COUPLER & NECK

2-5/16” Adjustable Round Gooseneck Coupler	C14
2-5/16” Adjustable Square Gooseneck Coupler	C15
5th Wheel Adjustable Round Kingpin Adapter	C50
5th Wheel Adjustable Square Kingpin Adapter	C51
6” Raised Neck	N01
12” Raised Neck	N02

AXLES & SUSPENSION

2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles	ESB
2 – 7,000 Lb Dexter (2 Elec.)/Spring Axles Oil Bath	ESBO
2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBD
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Spring Axles	HS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring Axles	DS2
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2D
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Torsion Axles	DT2D
2 – 7,000 Lb Dexter (2 Elec.)/Air Ride Axles	ESBY18
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *Oil Bath	ES2O
2 – 8,000 Lb Dexter (2 Elec.)/Spring Axles *EZ-Lube	ES2E
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *Oil Bath	ET2D0
2 – 8,000 Lb Dexter (2 Elec.)/Torsion Axles *EZ-Lube	ET2DE
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Spring *Oil Bath	DS2O
2 – 8,000 Lb Dexter (2 Hyd. Drum)/Torsion *Oil Bath	HT2DO
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Torsion *Oil Bath	DT2DO
2 – 8,000 Lb Dexter (2 hyd.disc)/Air Ride Axles *OB	DS2Y19
2 – 8,000 Lb Dexter (2 Hyd. Disc)/Air Ride Axles *Oil Bath With Lift Axle	DT2DO
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles	ESC
3 – 7,000 Lb Dexter (3 Elec.)/Spring Axles Oil Bath	ESCO
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles	ETCD
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Spring Axles	HS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring Axles	DS3
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath	DS30
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles	HT3D
3 – 7,000 Lb Dexter (3 Hyd. Disc)/Torsion Axles	DT3D
3 – 7,000 Lb Dexter (3 Elec.)/Air Ride Axles	ESCY18
3 – 8,000 Lb Dexter (3 Elec.)/Spring Axles *Oil Bath	ES3O
3 – 8,000 Lb Dexter (3 Elec.)/Torsion Axles *Oil Bath	ET3D
3 – 8,000 Lb Dexter (3 Hyd. Disc)/Spring *Oil Bath	DS3O
3 – 8,000 Lb Dexter (3 Hyd. Drum)/Torsion *Oil Bath	HT3DO

WHEELS & TIRES

ST235/80 R16 LRE 10 Ply w/Silver Wheels	A05
ST235/80 R16 LRE 10 Ply w/Black Wheels	A28
ST235/85 R16 LRG 14 Ply w/Silver Wheels	A06
ST235/85 R16 LRG 14 Ply w/Black Wheels	A29
ST215/75 R17.5 LRH 16 Ply w/White Wheels	A15
ST215/75 R17.5 LRH 16 Ply w/Black Wheels	A25

LANDING GEAR

2 – 10K Drop-Leg Jacks	J05
2 – 25K, 2-Speed Drop-Leg Jacks	J06
2 – MAX-Jacks (hydraulic)	J07
2 – 10K Electric Drop-Leg Jacks	J08

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

WINCH PACKAGE

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

DOVETAIL

9’ Hydraulic Dovetail	DH9
9’ Self-Clean Hydraulic Dovetail	DHS
10’ Hydraulic Dovetail	DH10
10’ Self-Clean Hydraulic Dovetail	DHS0
Angle Cleats On DoveTail (outside only)	Cl1
Angle Cleats On DoveTail (whole dovetail)	Cl2
Square Bar Cleats On DoveTail (outside only)	Cl3
Bolt-on Cleats on Dovetail	Cl6
Blackwood On Dovetail	E02BW1
Blackwood PRO On Dovetail	E02BW2

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hy. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charing System (PowerMAX)	BC3
18 Amp Ra[id Battery Wall Charger	BC4

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
16” Cross-Members	I01
12” Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
Set of Tool Box Brackets	TB1
48” Side-Mount Tool Box	T03
72” Side-Mount Tool Box	T09
Top Riser Tool Box	T12
Under-Frame Bridge	U01
Pipe Bridge	U02
Under Frame Bridge & Pipe Bridge	U01U02
Under-frame Wood Rack	WR1
Ratchets (weld-on, 1 every 5 ft)	Z01
Ratchets (adjustable, 1 every 5 ft)	Z02
Ratchet Track (weld-on)	Z03
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
(1) – 8” Side Step	SS0
(1) – 15” MAX-Step	SM1
Spare Tire Mount *universal	TM1
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8
Wheel Simulators	WS1

POPULAR OPTIONS

POPULAR OPTIONS

Locking Chain Rack	CR1
10’ Self-Clean Hydraulic Dovetail	DHS0
15” MAX-Step	SM1
Top Riser Tool Box	T12
17.5K Winch Package	W18
Adjustable Ratchets	Z02

SIZE & WEIGHT

GR14 | 14,000 GVWR
(TANDEM 7K AXLES)

GR0226072	102” X 26’	6500
GR0228072	102” X 28’	6700
GR0230072	102” X 30’	6900
GR0232072	102” X 32’	7100
GR0234072	102” X 34’	7300

GR16 | 16,000 GVWR
(TANDEM 8K AXLES)

GR0226082	102” X 26’	6500
GR0228082	102” X 28’	6700
GR0230082	102” X 30’	6900
GR0232082	102” X 32’	7100
GR0234082	102” X 34’	7300
GR0236082	102” X 36’	7500
GR0238082	102” X 38’	7700

GR21 | 21,000 GVWR
(TRIPLE 7K AXLES)

GR0228073	102” X 28’	N/A
GR0230073	102” X 30’	8300
GR0232073	102” X 32’	8500
GR0234073	102” X 34’	8700
GR0236073	102” X 36’	8900
GR0238073	102” X 38’	9100
GR0240073	102” X 40’	9300
GR0242073	102” X 42’	N/A
GR0244073	102” X 44’	N/A

GR24 | 24,000 GVWR
(TRIPLE 8K AXLES)

GR0228073	102” X 28’	N/A
GR0230073	102” X 30’	8300
GR0232073	102” X 32’	8500
GR0234073	102” X 34’	8700
GR0236073	102” X 36’	8900
GR0238073	102” X 38’	9100
GR0240073	102” X 40’	9300
GR0242073	102” X 42’	N/A
GR0244073	102” X 44’	N/A

Estimated weights for base models only.

GR SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

GR | Heavy-Duty Hydraulic Dove w/Singles

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GR14 | STANDARD FEATURES

GR14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GR16 | STANDARD FEATURES

GR16 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GR21 | STANDARD FEATURES

GR21 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GR24 | STANDARD FEATURES

GR24 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

DOVE ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT
