GN | Gooseneck Tilt-N-Go

BEST SELLER

GN14

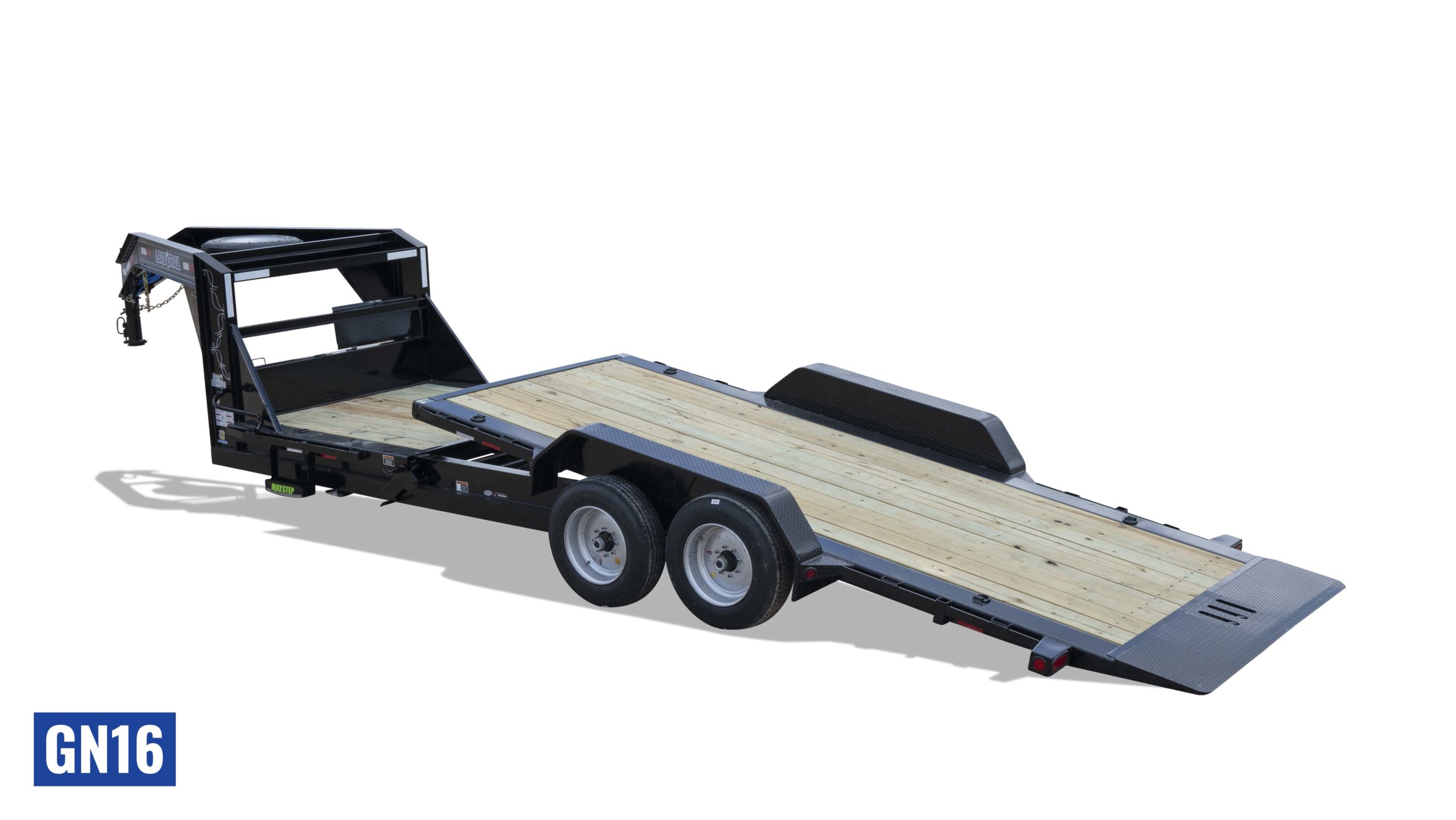

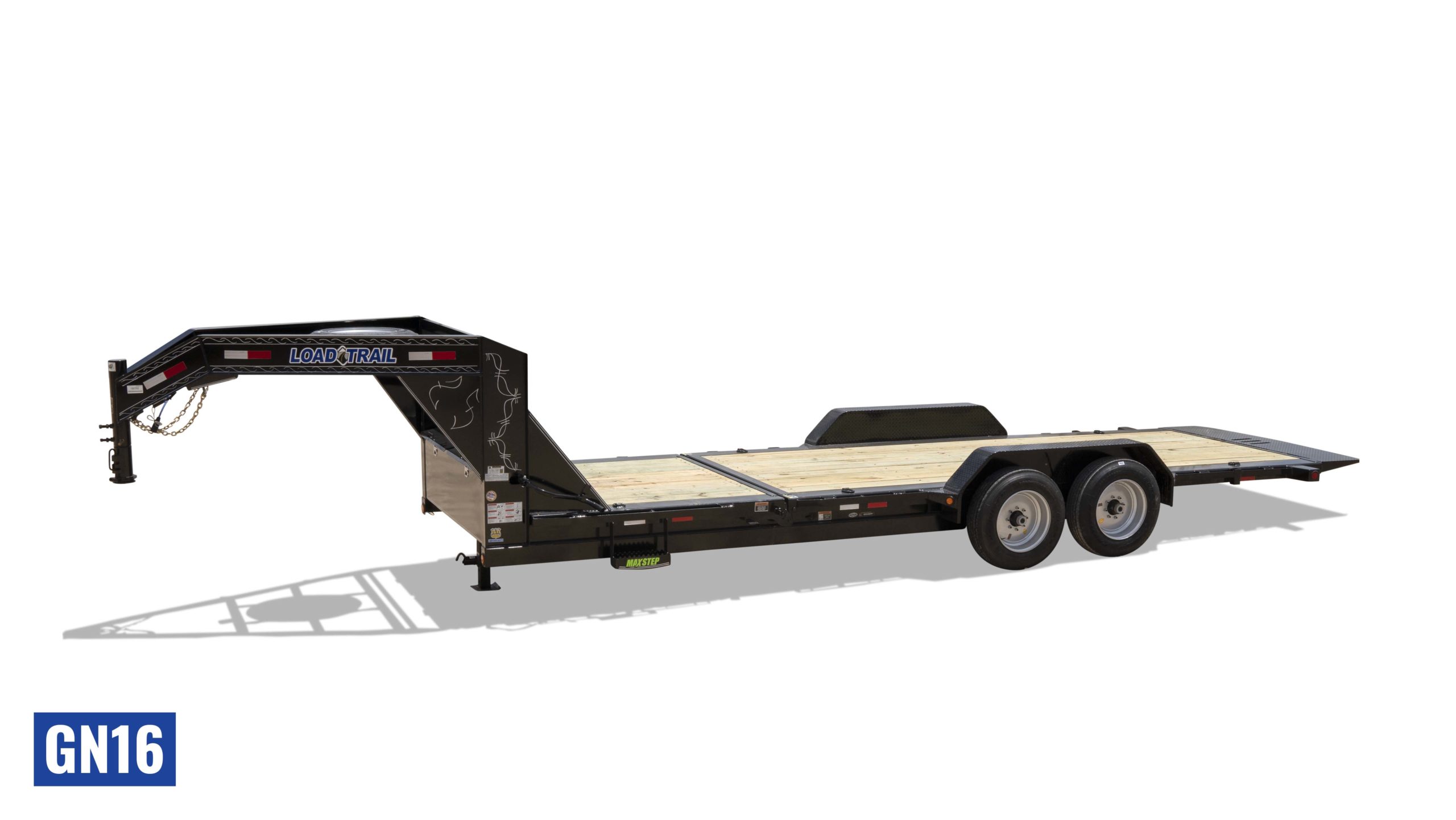

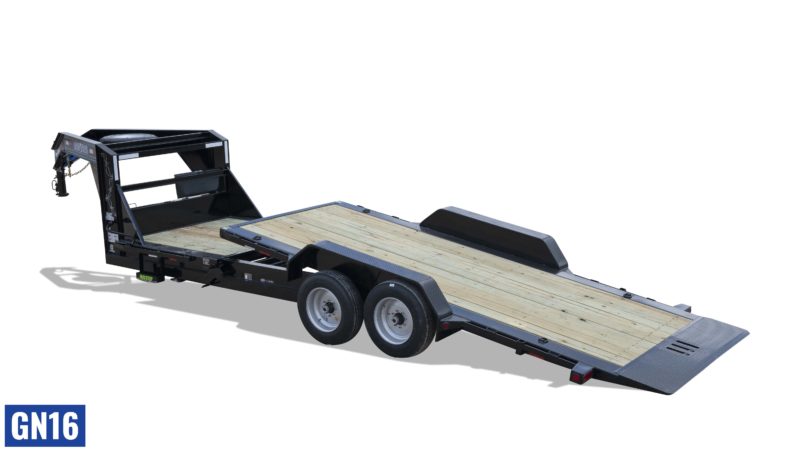

GN16

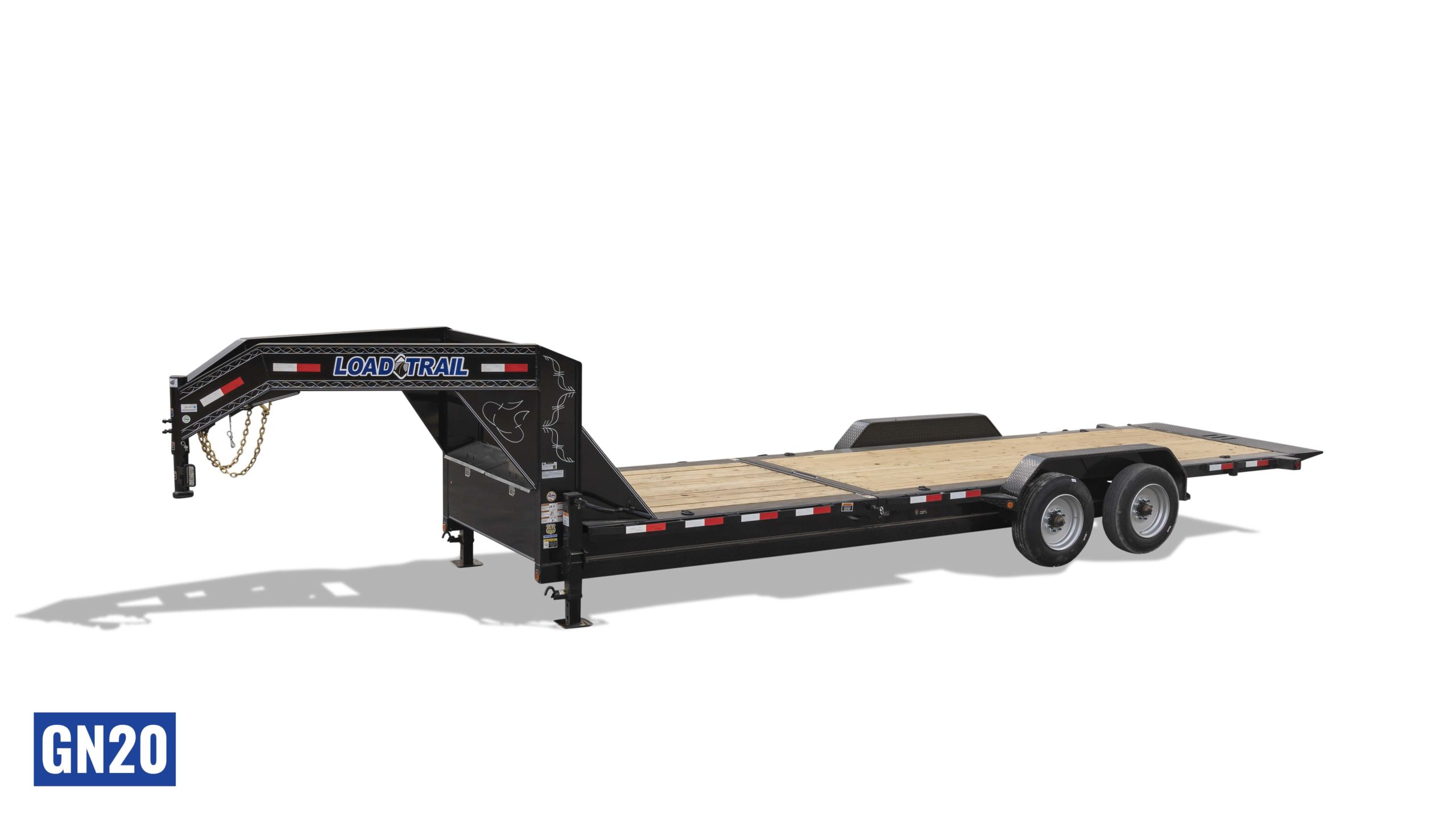

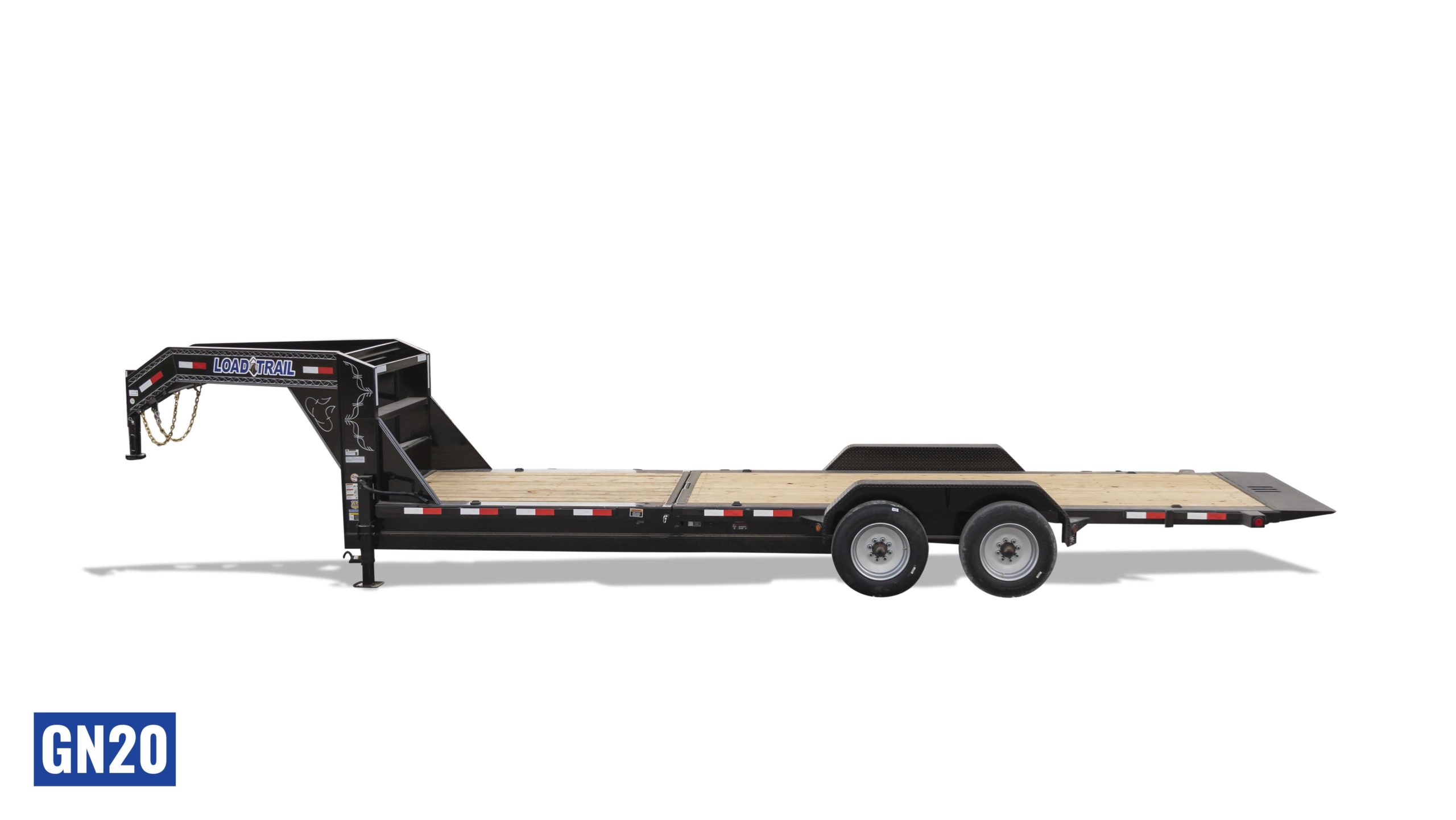

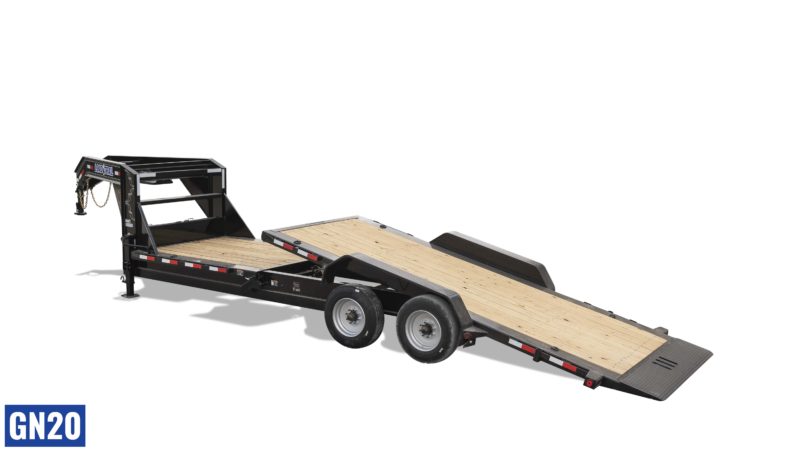

GN20
GN21

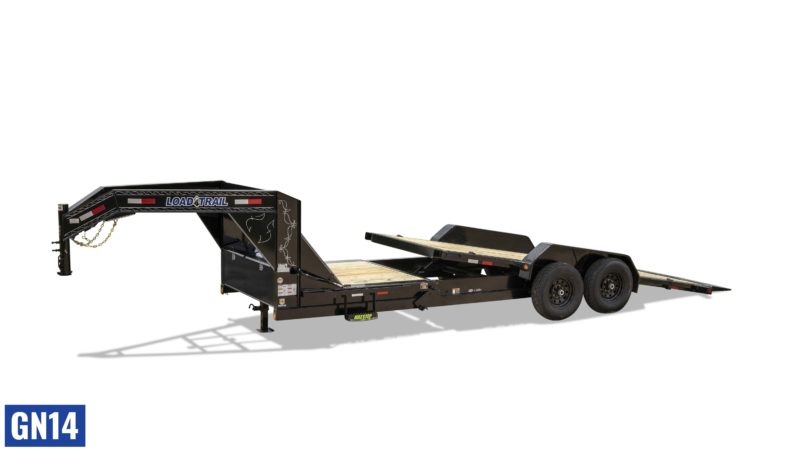

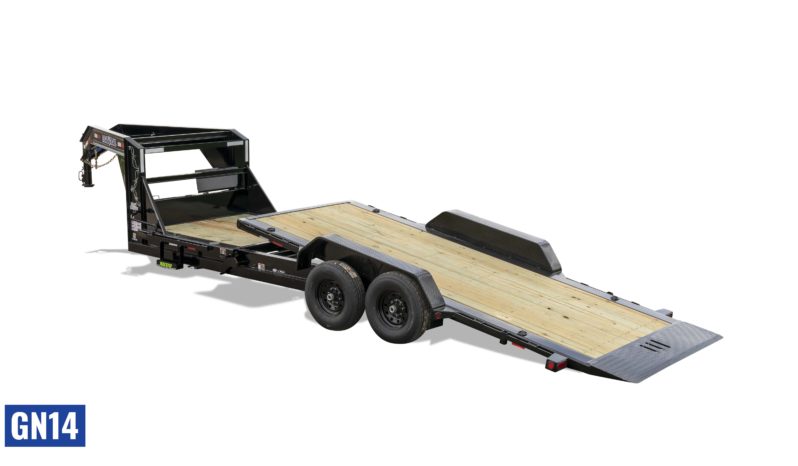

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

LENGTH

18′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

24″

TILT ANGLE

10°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

4,550 – 5,700 lbs

G.A.W.R.

7,000 Lbs/Axle

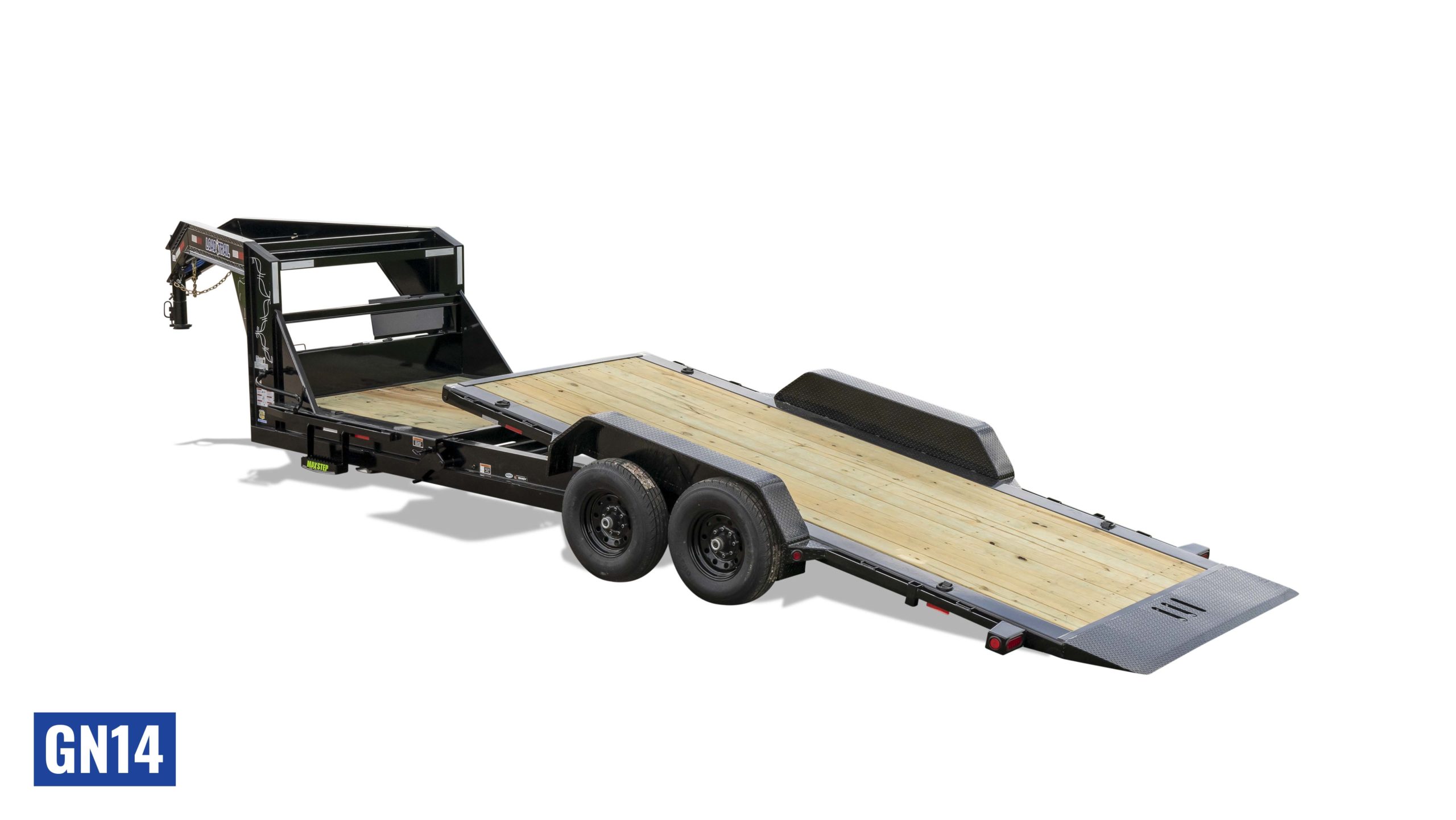

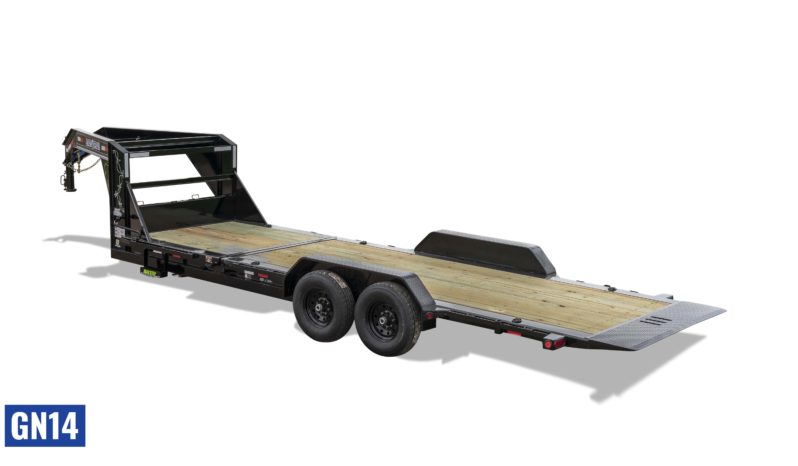

GN14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	10” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 7,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/2ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Brake axles are forward-self-adjusting. 2’ stationary deck is standard on the 18ft model. 4’ stationary deck is standard on the 20ft model. 6’ stationary deck is standard on the 22ft model. 8’ stationary deck is standard on the 24ft model. Tandem 10K jacks standard on models 24ft and up. 102″ wide option is available in lengths 20′-26′.

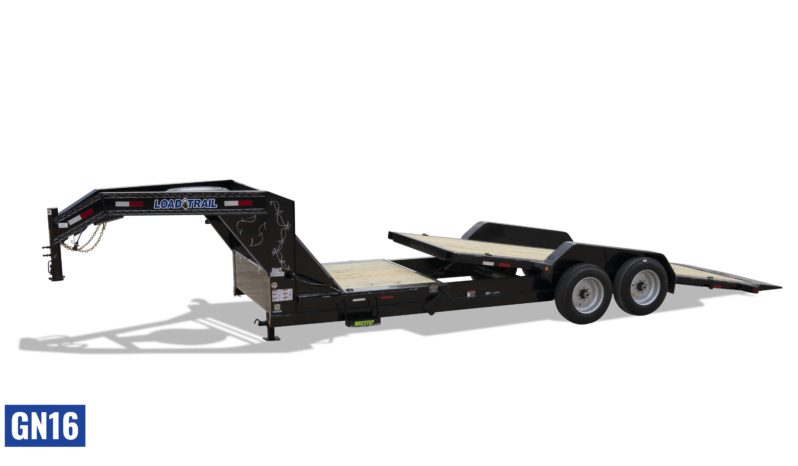

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

LENGTH

18′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

26″

TILT ANGLE

10°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

4,860 – 5,900 lbs

G.A.W.R.

8,000 Lbs/Axle

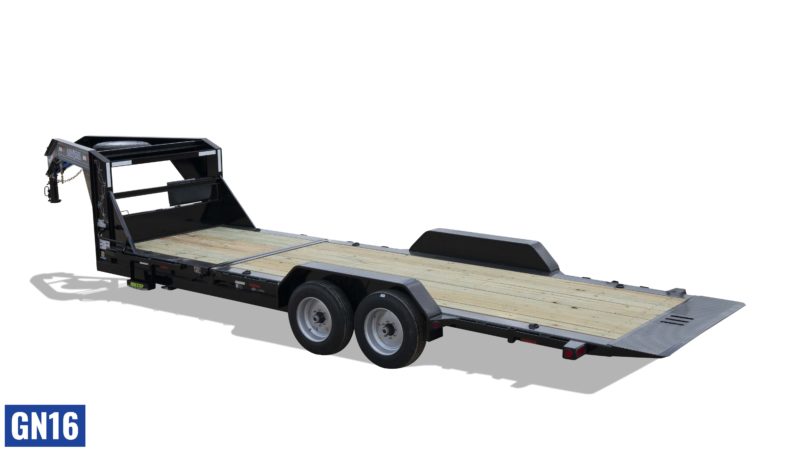

GN16 | STANDARD FEATURES

G.V.W.R.	16,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	10” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 8,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	HD Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/2ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

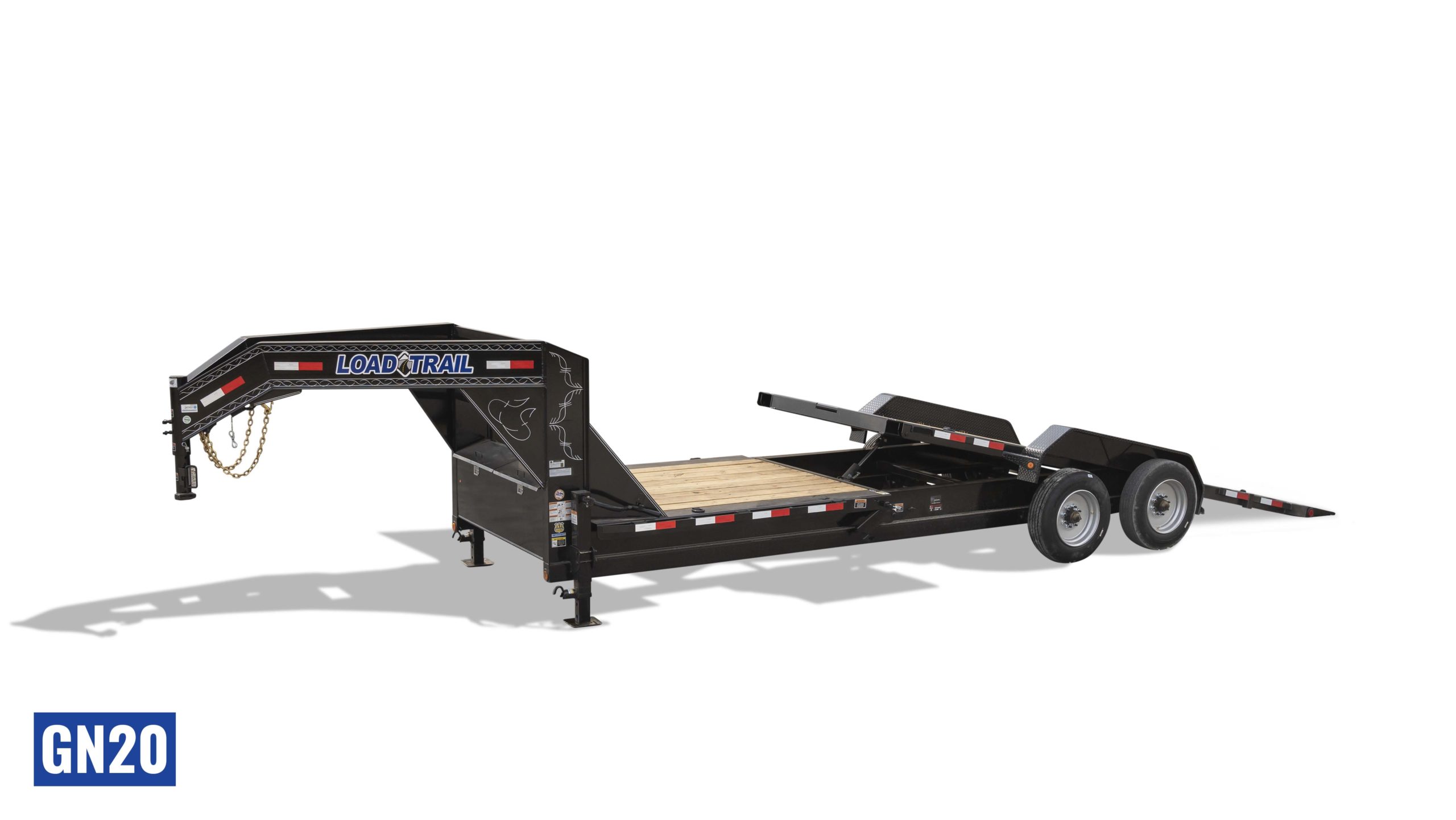

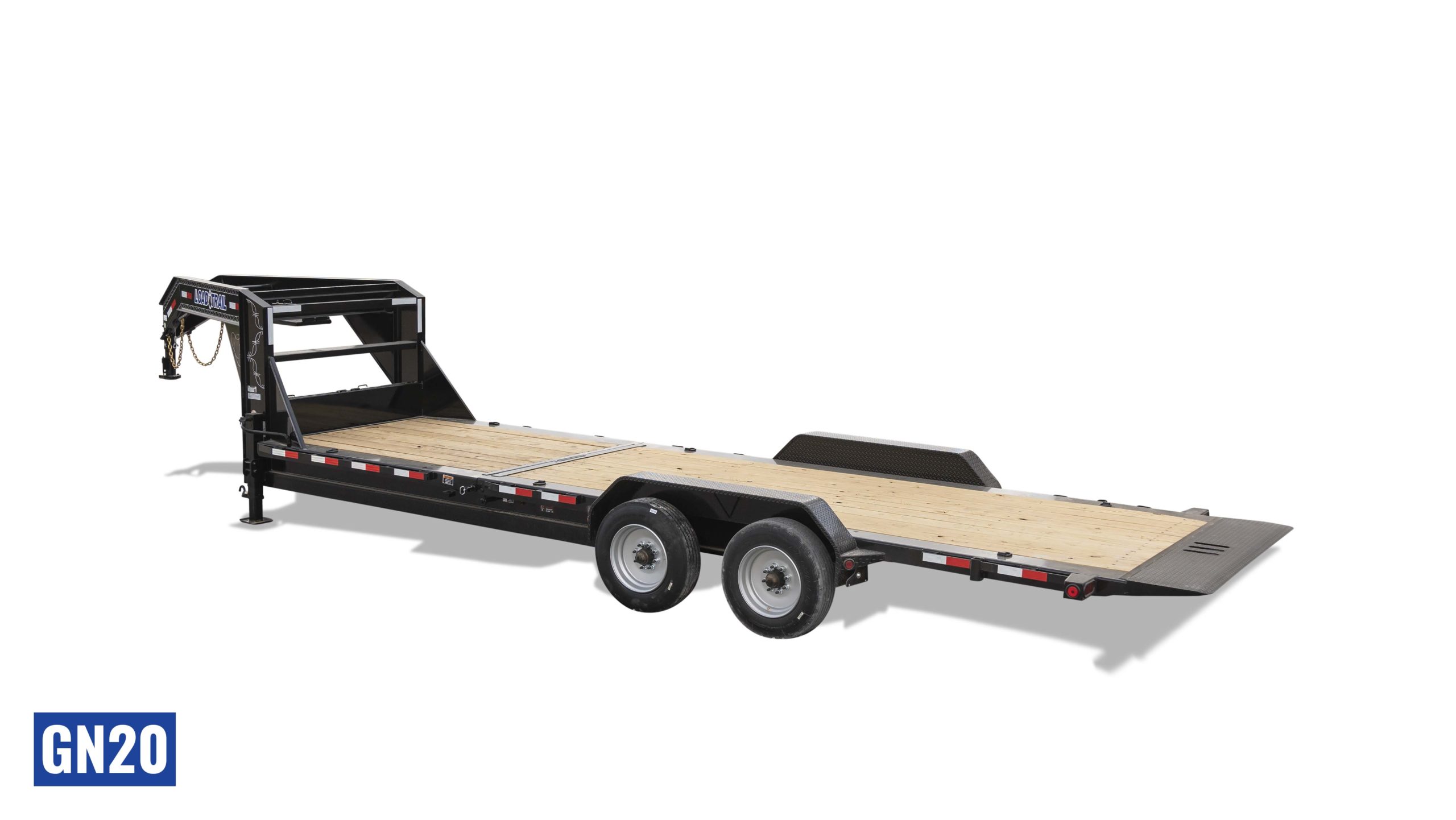

CONFIGURATIONS SUMMARY

G.V.W.R.

20,000 Lbs

LENGTH

20′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

26 3/4″

TILT ANGLE

12°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 10,000 Lb

EST. WEIGHT

N/A

G.A.W.R.

10,000 Lbs/Axle

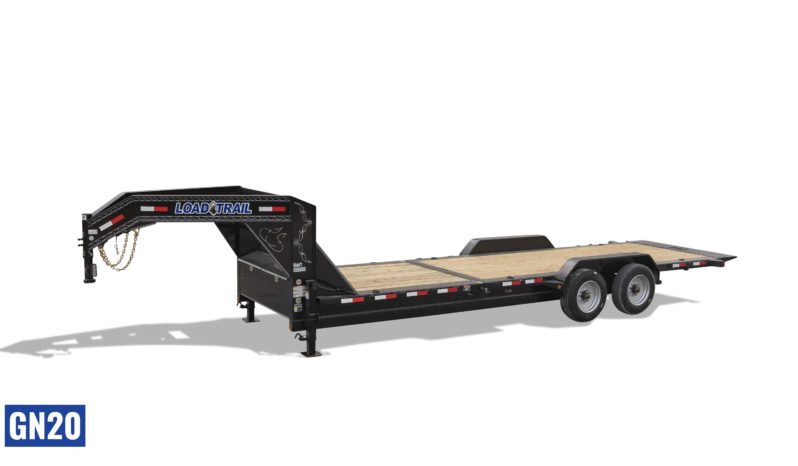

GN20 | STANDARD FEATURES

G.V.W.R.	20,000 lbs
G.A.W.R.	10,000 lbs / Axle
NECK	12” I-Beam
FRAME	10” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 10,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(2) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	HD Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/4ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 3/8″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Brake axles are forward-self-adjusting. 4’ stationary deck is standard on the 20ft model. 6’ stationary deck is standard on the 22ft model. 8’ stationary deck is standard on the 24ft model. Tandem 10K jacks standard on models 24ft and up. 102″ wide option is available in lengths 20′-26′.

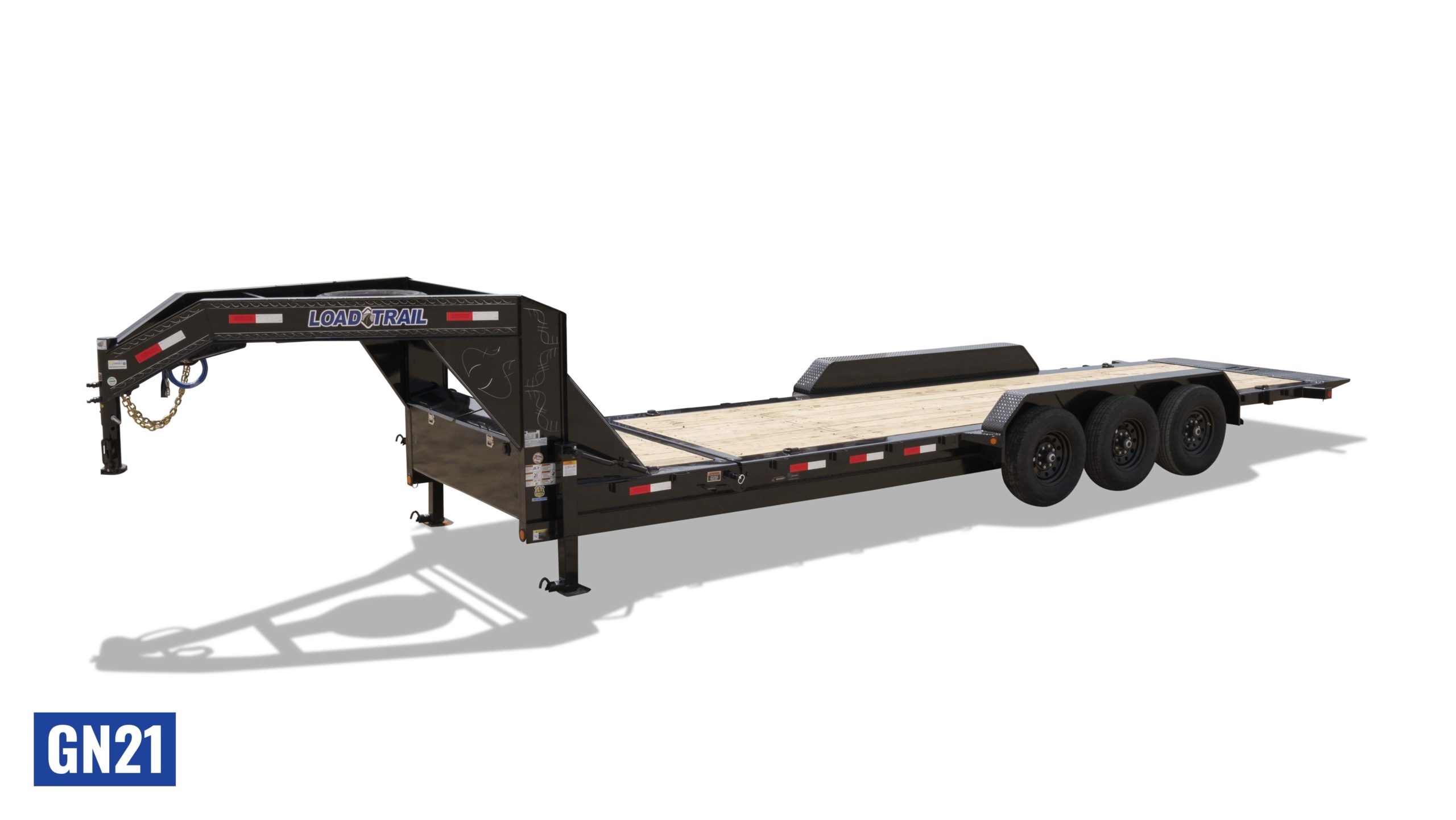

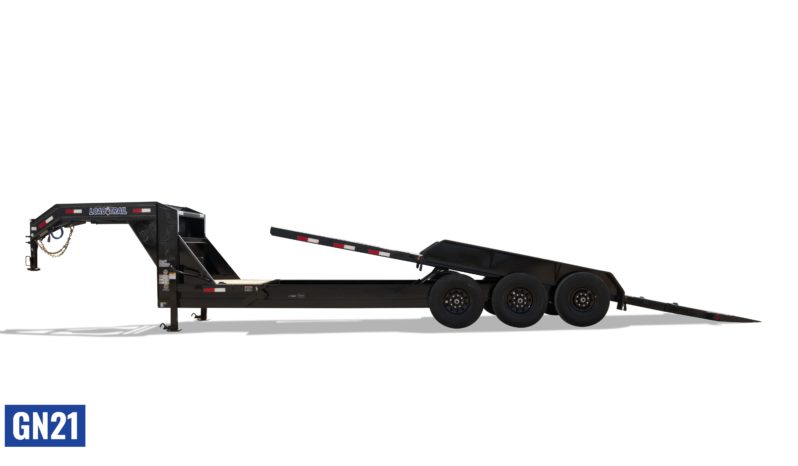

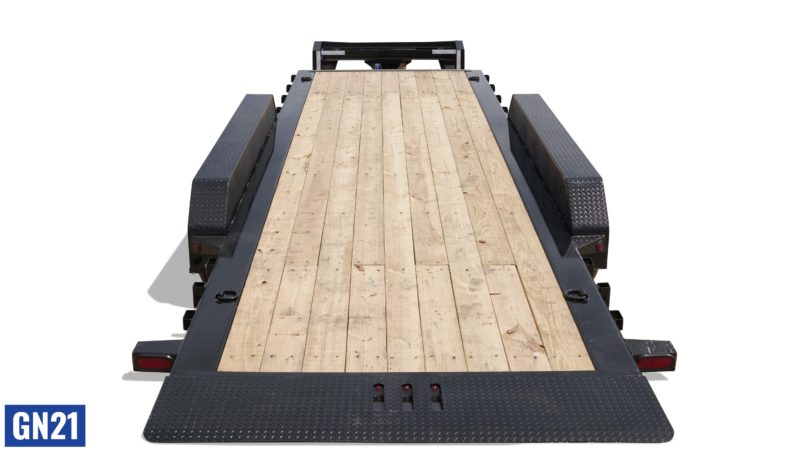

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

LENGTH

20′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

24″

TILT ANGLE

10°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(3) 7,000 Lb

EST. WEIGHT

4,860 – 6,280 lbs

G.A.W.R.

7,000 Lbs/Axle

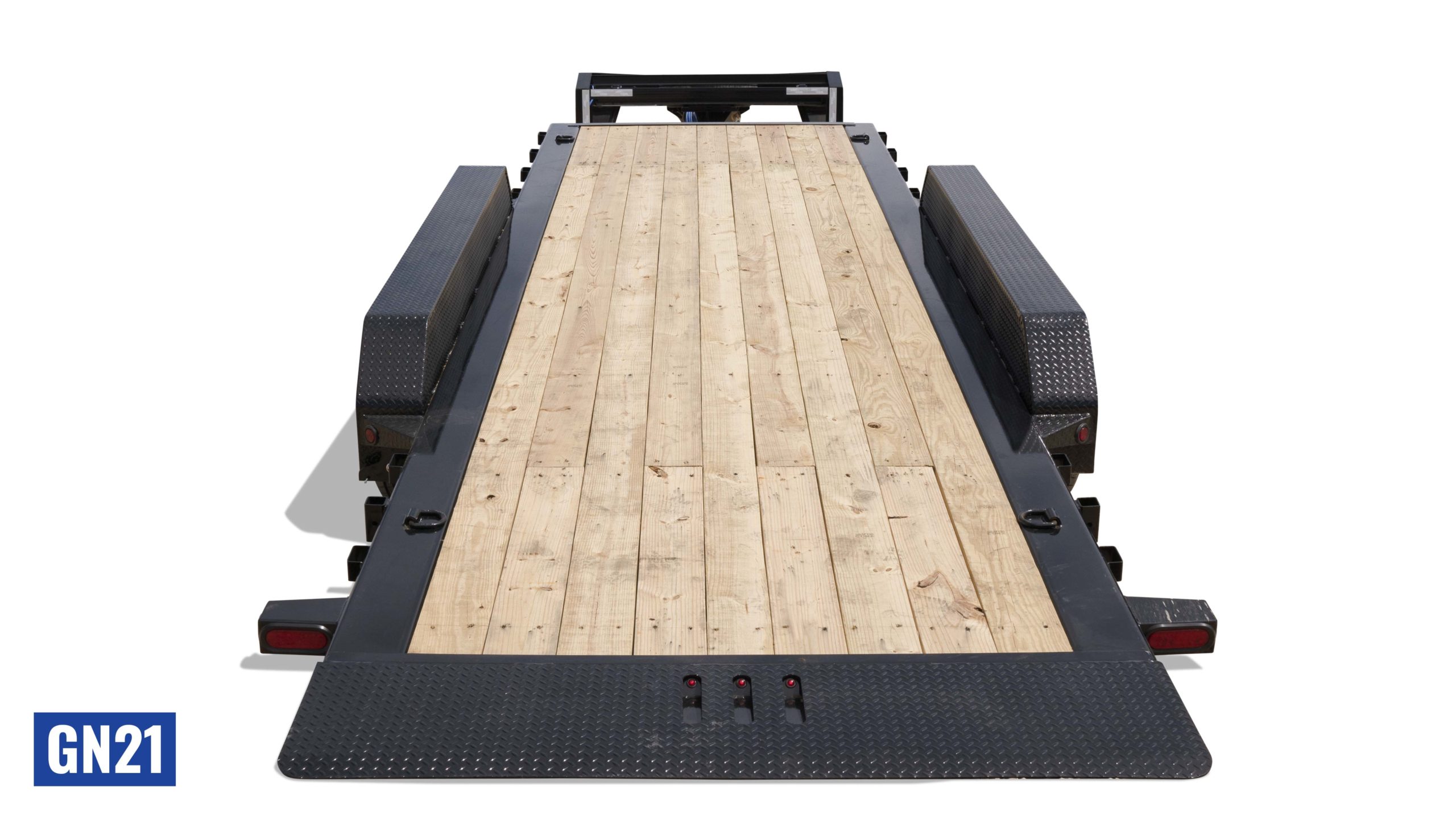

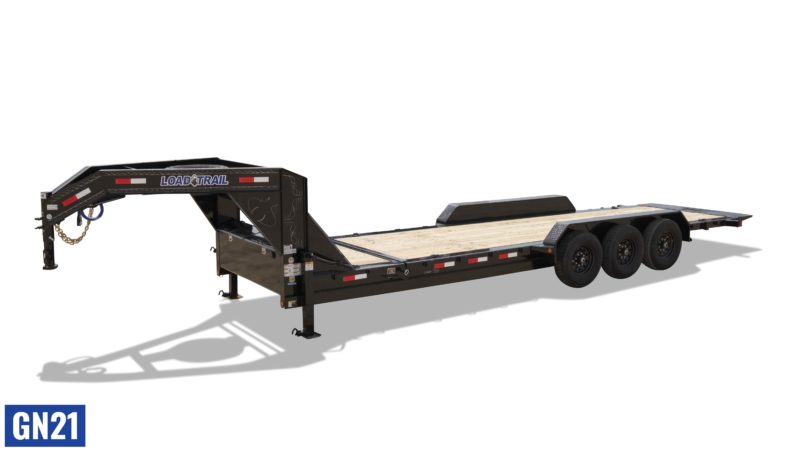

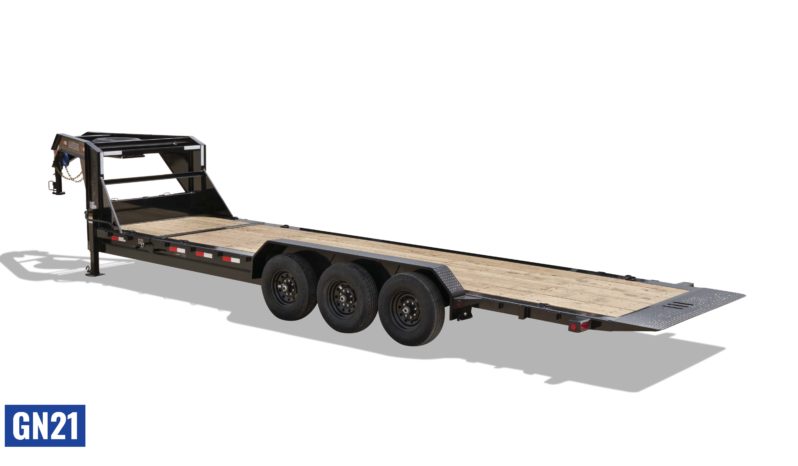

GN21 | STANDARD FEATURES

G.V.W.R.	21,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	10” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(3) 7,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/4ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

GN14

CONFIGURATIONS SUMMARY

G.V.W.R.

14,000 Lbs

LENGTH

18′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

24″

TILT ANGLE

10°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 7,000 Lb

EST. WEIGHT

4,550 – 5,700 lbs

G.A.W.R.

7,000 Lbs/Axle

GN14 | STANDARD FEATURES

G.V.W.R.	14,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	10” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 7,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/2ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

GN16

CONFIGURATIONS SUMMARY

G.V.W.R.

16,000 Lbs

LENGTH

18′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

26″

TILT ANGLE

10°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 8,000 Lb

EST. WEIGHT

4,860 – 5,900 lbs

G.A.W.R.

8,000 Lbs/Axle

GN16 | STANDARD FEATURES

G.V.W.R.	16,000 lbs
G.A.W.R.	8,000 lbs / Axle
NECK	10” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 8,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	HD Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/2ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

GN20

CONFIGURATIONS SUMMARY

G.V.W.R.

20,000 Lbs

LENGTH

20′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

26 3/4″

TILT ANGLE

12°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(2) 10,000 Lb

EST. WEIGHT

N/A

G.A.W.R.

10,000 Lbs/Axle

GN20 | STANDARD FEATURES

G.V.W.R.	20,000 lbs
G.A.W.R.	10,000 lbs / Axle
NECK	12” I-Beam
FRAME	10” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(2) 10,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(2) 10,000 lb Drop-Leg
WHEELS	17.5” 8-Hole Wheels
TIRES	ST215/75 R17.5 LRH
SPARE	HD Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/4ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 3/8″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

GN21

CONFIGURATIONS SUMMARY

G.V.W.R.

21,000 Lbs

LENGTH

20′ – 26′

WIDTH

83″ – 102″

DECK HEIGHT

24″

TILT ANGLE

10°

HYDRAULICS

Gravity – Power Up/Power Down

COUPLER

Gooseneck

AXLES

(3) 7,000 Lb

EST. WEIGHT

4,860 – 6,280 lbs

G.A.W.R.

7,000 Lbs/Axle

GN21 | STANDARD FEATURES

G.V.W.R.	21,000 lbs
G.A.W.R.	7,000 lbs / Axle
NECK	10” I-Beam
FRAME	8” I-Beam
CROSSMEMBERS	3” Channel, 16” On-center
AXLES	(3) 7,000 lb Dexter Electric/Torsion (Forward Self Adjusting)
SUSPENSION	Torsion
COUPLER	2-5/16” Adjustable Gooseneck
JACK	(1) 10,000 lb Drop-Leg
WHEELS	16” 8-Hole Wheels
TIRES	ST235/80 R16 LRE
SPARE	Fold-down Spare Tire Mount (spare included)

HYDRAULICS	3” x 10” x 1.25” Gravity Cylinder
DECK	16ft Tilt-Deck w/4ft Stationary Deck (see notes)
TAIL	1/8″ Steel Diamond Plate Knife Edge
FLOOR	Treated Wood Flooring
FENDERS	Steel Diamond Plate
STORAGE	Full-width Front Toolbox
D-RINGS	(4) Weld-on D-Rings
LIGHTS	LED Stop, Tail, & Clearance Lights
WIRING	16 Ga. 5-Way Double-Insulated Wire Harness
PLUG	7-way Cold Weather Cord
SAFETY CHAINS	(2) 5/16″ Grade 70
PRETREATMENT	Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH	(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

OPTIONS
POPULAR OPTIONS
SIZE & WEIGHT

COUPLER & NECK

2-5/16” Adjustable Round Gooseneck Coupler	C14
2-5/16” Adjustable Square Gooseneck Coupler	C15
5th Wheel Adjustable Round Kingpin Adapter	C50
5th Wheel Adjustable Square Kingpin Adapter	C51
6” Raised Neck	N01
12” Raised Neck	N02

AXLE & SUSPENSION

2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBU
2 – 7,000 Lb Dexter (2 Elec.)/Torsion/Oil Bath	ETBUO
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2U
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Torsion Axles	DT2U
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles	ETCU
3 – 7,000 Lb Dexter (3 Elec.)/Torsion/Oil Bath	ETCUO
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles	HT3U
2 – 8,000 Lb Dexter (2 Elec.)/Torsion/Oil Bath	ET2DO
2 – 8,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2DO

WHEELS & TIRES

ST235/80 R16 LRE 10 Ply With Silver Wheels	A05
ST235/80 R16 LRE 10 Ply With Black Wheels	A28
ST235/85 R16 LRG 14 Ply With Silver Wheels	A06
ST235/85 R16 LRG 14 Ply With Black Wheels	A29
ST215/75 R17.5 LRH 16 Ply With White Wheels	A15
ST215/75 R17.5 LRH 16 Ply With Black Wheels	A25

LANDING GEAR

(1) 10K Drop-Leg Jack	J04
(2) – 10K Drop-leg Jacks	J05
(2) – 25K 2-Speed Drop-leg Jacks	J06
(2) – MAX-Jacks (hydraulic – 4-button)	J07
(2) – 10K Electric Jacks	J08

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hyd. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charging System (PowerMAX)	BC3
18 Amp Rapid Battery Wall Charger	BC4
2nd 12v Battery	BT1
Gravity Up, Gravity Down	K50
Power Up, Power Down	K02
Power Up, Power Down Full Tilt (dual cylinder)	K00CD2

WINCH PACKAGES

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
Diamond Plate Fenders (Weld-On)	F05
Fork Holders	FH1
16” OC Cross-Members	I01
12” OC Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
Top Riser Toolbox	T12
Wet Bolt Kit Equalizer Lubrication	EL1
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
Spare Tire Mount *Fold-down	TM3
HD Spare Tire Mount *Fold-down	TM5
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8

POPULAR OPTIONS

Locking Chain Rack	CR1
Blackwood Floor	E09
Power Up, Power Down Hyd. System	K02
Top Riser Tool Box	T12
17.5K Winch Package	W18
(2) – 10K Drop-Leg Jacks	J05

GN14 | 14,000 GVWR
(TANDEM 7K AXLES)

GN8318072	83” X 18’	4,550
GN8320072	83” X 20’	4,750
GN8322072	83” X 22’	4,950
GN8324072	83” X 24’	5,200
GN8326072	83” X 26’	5,400
GN0218072	102” X 18’	N/A
GN0220072	102” X 20’	N/A
GN0222072	102” X 22’	5,350
GN0224072	102” X 24’	5,400
GN0226072	102” X 26’	5,700

GN16 | 16,000 GVWR
(TANDEM 8K AXLES)

GN8318082	83” X 18’	4,860
GN8320082	83” X 20’	5,160
GN8322082	83” X 22’	5,360
GN8324082	83” X 24’	5,560
GN8326082	83” X 26’	5,760
GN0218082	102” X 18’	N/A
GN0220082	102” X 20’	N/A
GN0222082	102” X 22’	N/A
GN0224082	102” X 24’	N/A
GN0226082	102” X 26’	N/A

GN20 | 20,000 GVWR
(TANDEM 10K AXLES)

GN8320102	83” X 20’	N/A
GN8320102	83” X 22’	N/A
GN8320102	83” X 24’	N/A
GN8320102	83” X 26’	N/A
GN0220102	102” X 20’	N/A
GN0222102	102” X 22’	N/A
GN0224102	102” X 24’	N/A
GN0226102	102” X 26’	N/A

GN21 | 21,000 GVWR
(TRIPLE 7K AXLES)

GN8320073	83” X 20’	4716
GN8322073	83” X 22’	4916
GN8324073	83” X 24’	5216
GN8326073	83” X 26’	5416
GN0220073	102” X 20’	5760
GN0222073	102” X 22’	5760
GN0224073	102” X 24’	6080
GN0226073	102” X 26’	6280

Estimated weights for base models only.

OPTIONS

COUPLER & NECK

2-5/16” Adjustable Round Gooseneck Coupler	C14
2-5/16” Adjustable Square Gooseneck Coupler	C15
5th Wheel Adjustable Round Kingpin Adapter	C50
5th Wheel Adjustable Square Kingpin Adapter	C51
6” Raised Neck	N01
12” Raised Neck	N02

AXLE & SUSPENSION

2 – 7,000 Lb Dexter (2 Elec.)/Torsion Axles	ETBU
2 – 7,000 Lb Dexter (2 Elec.)/Torsion/Oil Bath	ETBUO
2 – 7,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2U
2 – 7,000 Lb Dexter (2 Hyd. Disc)/Torsion Axles	DT2U
3 – 7,000 Lb Dexter (3 Elec.)/Torsion Axles	ETCU
3 – 7,000 Lb Dexter (3 Elec.)/Torsion/Oil Bath	ETCUO
3 – 7,000 Lb Dexter (3 Hyd. Drum)/Torsion Axles	HT3U
2 – 8,000 Lb Dexter (2 Elec.)/Torsion/Oil Bath	ET2DO
2 – 8,000 Lb Dexter (2 Hyd. Drum)/Torsion Axles	HT2DO

WHEELS & TIRES

ST235/80 R16 LRE 10 Ply With Silver Wheels	A05
ST235/80 R16 LRE 10 Ply With Black Wheels	A28
ST235/85 R16 LRG 14 Ply With Silver Wheels	A06
ST235/85 R16 LRG 14 Ply With Black Wheels	A29
ST215/75 R17.5 LRH 16 Ply With White Wheels	A15
ST215/75 R17.5 LRH 16 Ply With Black Wheels	A25

LANDING GEAR

(1) 10K Drop-Leg Jack	J04
(2) – 10K Drop-leg Jacks	J05
(2) – 25K 2-Speed Drop-leg Jacks	J06
(2) – MAX-Jacks (hydraulic – 4-button)	J07
(2) – 10K Electric Jacks	J08

FLOOR

Treated Pine Wood Floor	E02
Steel Diamond Plate Floor	E03
Rough Oak Floor	E05
Douglas Fir Wood Floor	E07
Blackwood Lumber (Classic) Floor	E09
Blackwood Lumber (PRO) Floor	E10

HYDRAULICS & CHARGERS

(1) Solar Panel Charger	SC1
Wireless Remote For Hyd. System (2-button)	RC1
Wireless Remote For Hyd. System (4-button)	RC4
5 Amp Battery Charger	BC1
8 Amp Rapid Battery Charger	BC2
20 Amp In-Line 12v Charging System (PowerMAX)	BC3
18 Amp Rapid Battery Wall Charger	BC4
2nd 12v Battery	BT1
Gravity Up, Gravity Down	K50
Power Up, Power Down	K02
Power Up, Power Down Full Tilt (dual cylinder)	K00CD2

WINCH PACKAGES

Winch Plate (8” Channel) w/roller	W01
1/2” Winch Plate	W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware)	W18

COLORS

Black (w/Primer)	CB2
Metallic Black (w/Primer)	CBM
Gray (w/Primer)	CG3
White (w/Primer)	CW4
Red (w/Primer)	CR5
Blue (w/Primer)	CB6
Green (w/Primer)	CG7
Yellow (w/Primer)	CY8
Mustard Yellow (w/Primer)	CM1
Orange (w/Primer)	C09
OD Army Green (w/Primer)	CA1
Coyote Tan (w/Primer)	CT2
Pink (w/Primer)	CP0
Safety Green (w/Primer)	CNG
Silver (w/Primer)	CS1
Maroon (w/Primer)	CAM
Western Metallic (w/Primer)	WM1
Purple (w/Primer)	CP1
Sky Blue (w/Primer)	CB4
Dirt Bike Green (w/Primer)	CG8
Bomber Gray (w/Primer)	CG4

OTHER UPGRADES

Locking Chain Rack	CR1
Front Toolbox Chain Hanger	CR2
Diamond Plate Fenders (Weld-On)	F05
Fork Holders	FH1
16” OC Cross-Members	I01
12” OC Cross-Members	I02
LED Light Bar, Single Row	L10
LED Light Bar, Dual Row	L11
7-way RV w/Cold Weather Harness	L07
LED Back-up Lights w/Cold Weather Harness	L08
3” Weld-on D-rings	M03
4” Weld-on D-rings	M04
4” Recessed D-rings, 360-Rotational, Bolt-On	M06
3” Removable D-Rings	M33
4” Removable D-Rings	M44
Mud Flaps	MF1
Full-width Front Toolbox	T20
Top Riser Toolbox	T12
Wet Bolt Kit Equalizer Lubrication	EL1
102” x 96” Deck-Over-Neck	D01
102” x 96” Deck-Over-Neck, w/45° Front Corners	D02
102” x 96” Deck-Over-Neck w/Front Rail	D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail	D04
Spare Tire Mount *Fold-down	TM3
HD Spare Tire Mount *Fold-down	TM5
4 – Additional Stake Pockets	SP1
8 – Additional Stake Pockets	SP8

POPULAR OPTIONS

POPULAR OPTIONS

Locking Chain Rack	CR1
Blackwood Floor	E09
Power Up, Power Down Hyd. System	K02
Top Riser Tool Box	T12
17.5K Winch Package	W18
(2) – 10K Drop-Leg Jacks	J05

SIZE & WEIGHT

GN14 | 14,000 GVWR
(TANDEM 7K AXLES)

GN8318072	83” X 18’	4,550
GN8320072	83” X 20’	4,750
GN8322072	83” X 22’	4,950
GN8324072	83” X 24’	5,200
GN8326072	83” X 26’	5,400
GN0218072	102” X 18’	N/A
GN0220072	102” X 20’	N/A
GN0222072	102” X 22’	5,350
GN0224072	102” X 24’	5,400
GN0226072	102” X 26’	5,700

GN16 | 16,000 GVWR
(TANDEM 8K AXLES)

GN8318082	83” X 18’	4,860
GN8320082	83” X 20’	5,160
GN8322082	83” X 22’	5,360
GN8324082	83” X 24’	5,560
GN8326082	83” X 26’	5,760
GN0218082	102” X 18’	N/A
GN0220082	102” X 20’	N/A
GN0222082	102” X 22’	N/A
GN0224082	102” X 24’	N/A
GN0226082	102” X 26’	N/A

GN20 | 20,000 GVWR
(TANDEM 10K AXLES)

GN8320102	83” X 20’	N/A
GN8320102	83” X 22’	N/A
GN8320102	83” X 24’	N/A
GN8320102	83” X 26’	N/A
GN0220102	102” X 20’	N/A
GN0222102	102” X 22’	N/A
GN0224102	102” X 24’	N/A
GN0226102	102” X 26’	N/A

GN21 | 21,000 GVWR
(TRIPLE 7K AXLES)

GN8320073	83” X 20’	4716
GN8322073	83” X 22’	4916
GN8324073	83” X 24’	5216
GN8326073	83” X 26’	5416
GN0220073	102” X 20’	5760
GN0222073	102” X 22’	5760
GN0224073	102” X 24’	6080
GN0226073	102” X 26’	6280

Estimated weights for base models only.

GN SERIES HIGHLIGHTS

Dealer Network

I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

DUMP TRAILERS

5,200 - 30,000 LB. G.V.W.R.

DECKOVER TRAILERS

7,000 - 40,000 LB G.V.W.R.

TILT-DECK TRAILERS

7,000 - 30,000 LB G.V.W.R.

CAR HAULERS

7,000 - 24,000 LB G.V.W.R.

LANDSCAPE & UTILTY

2,990 - 7,000 LB G.V.W.R.

TANK TRAILERS

2,990 - 7,000 LB G.V.W.R.

GN | Gooseneck Tilt-N-Go

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GN14 | STANDARD FEATURES

GN14 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GN16 | STANDARD FEATURES

GN16 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GN20 | STANDARD FEATURES

GN20 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT

G.A.W.R.

GN21 | STANDARD FEATURES

GN21 | STANDARD FEATURES

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

LENGTH

WIDTH

DECK HEIGHT

TILT ANGLE

HYDRAULICS

COUPLER

AXLES

EST. WEIGHT
