GH | Heavy-Duty Gooseneck w/Duals

BEST SELLER
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full
GH | Heavy-Duty Gooseneck w/Duals full

FIND A DEALER

SHOP GH INVENTORY

CUSTOM QUOTE

FINANCING

VIEW BROCHURE

VIEW DRAWING

Heavy-Duty Trailers

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

22,000 Lbs

LENGTH

20′ – 44′

WIDTH

102″

DECK HEIGHT

37″

COUPLER

Gooseneck

AXLES

(2) 10,000 Lb

EST. WEIGHT

5,600 – 8,200 Lbs

G.A.W.R.

10,000 Lbs/Axle

GH22 | STANDARD FEATURES

GH22 | STANDARD FEATURES

G.V.W.R. 22,000 lbs
G.A.W.R. 10,000 lbs / Axle
NECK 12” I-Beam
FRAME 12” I-Beam
AXLES (2) 10,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION Heavy-Duty Suspension System (HDSS)
COUPLER 2-5/16” Adjustable Round Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Tandem Dual Wheels
TIRES ST235/80 R16 LRE
SPARE Fold-down Spare Tire Mount (spare included)
STORAGE Full-width Front Toolbox
CROSSMEMBERS 3” Channel, 16” On-center
DECK Straight Deck
RAMPS 8′ Slide-In Ramps
FLOOR Treated Wood Flooring
WINCH 8″ Channel Winch Plate
RUB RAIL 2” Rub Rail, Pipe Spools, & Stake Pockets
STEP 15″ MAX-Step
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS (2) 5/16” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are forward-self-adjusting. Under frame/pipe bridge standard on models 36 ft & up.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

24,000 Lbs

LENGTH

20′ – 44′

WIDTH

102″

DECK HEIGHT

37″

COUPLER

Gooseneck

AXLES

(2) 12,000 Lb

EST. WEIGHT

5,600 – 8,200 Lbs

G.A.W.R.

12,000 Lbs/Axle

GH24 | STANDARD FEATURES

GH24 | STANDARD FEATURES

G.V.W.R. 24,000 lbs
G.A.W.R. 12,000 lbs / Axle
NECK 12” I-Beam
FRAME 12” I-Beam
AXLES (2) 12,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION Heavy-Duty Suspension System (HDSS)
COUPLER 2-5/16” Adjustable Round Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Tandem Dual Wheels
TIRES ST235/80 R16 LRE
SPARE Fold-down Spare Tire Mount (spare included)
STORAGE Full-width Front Toolbox
CROSSMEMBERS 3” Channel, 16” On-center
DECK Straight Deck
RAMPS 8′ Slide-In Ramps
FLOOR Treated Wood Flooring
WINCH 8″ Channel Winch Plate
RUB RAIL 2” Rub Rail, Pipe Spools, & Stake Pockets
STEP 15″ MAX-Step
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are forward-self-adjusting. Under frame/pipe bridge standard on models 36 ft & up.

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

30,000 Lbs

LENGTH

20′ – 44′

WIDTH

102″

DECK HEIGHT

37″

COUPLER

Gooseneck

AXLES

(2/3) 10,000 – 15,000 Lb

EST. WEIGHT

6,450 – 9,900 Lbs

G.A.W.R.

10,000 – 15,000 Lbs/Axle

GH30 | STANDARD FEATURES

GH30 | STANDARD FEATURES

G.V.W.R. 30,000 lbs
G.A.W.R. 10,000 lbs / Axle
NECK 12” I-Beam
FRAME 12” I-Beam
AXLES (3) 10,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION Heavy-Duty Suspension System (HDSS)
COUPLER 2-5/16” Adjustable Round Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Tandem Dual Wheels
TIRES ST235/80 R16 LRE
SPARE Fold-down Spare Tire Mount (spare included)
STORAGE Full-width Front Toolbox
CROSSMEMBERS 3” Channel, 16” On-center
DECK Straight Deck
RAMPS 8′ Slide-In Ramps
FLOOR Treated Wood Flooring
WINCH 8″ Channel Winch Plate
RUB RAIL 2” Rub Rail, Pipe Spools, & Stake Pockets
STEP 15″ MAX-Step
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are forward-self-adjusting. Under frame/pipe bridge standard on models 36 ft & up.

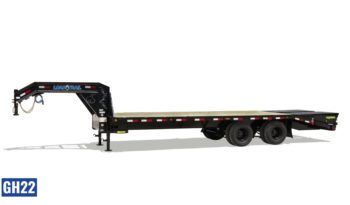

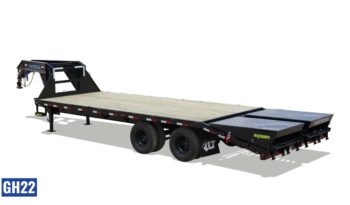

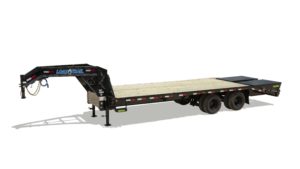

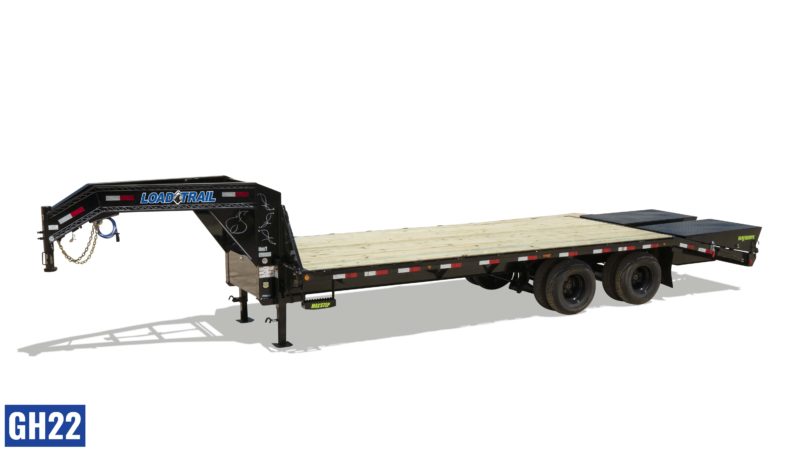

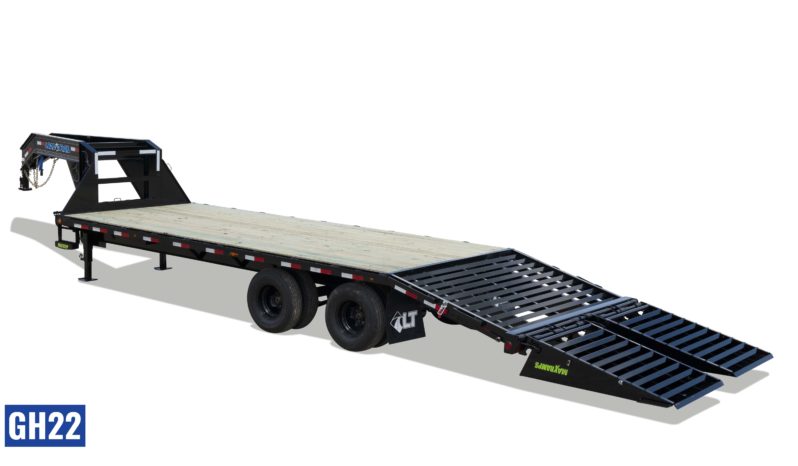

GH22
Heavy-Duty Trailers

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

22,000 Lbs

LENGTH

20′ – 44′

WIDTH

102″

DECK HEIGHT

37″

COUPLER

Gooseneck

AXLES

(2) 10,000 Lb

EST. WEIGHT

5,600 – 8,200 Lbs

G.A.W.R.

10,000 Lbs/Axle

GH22 | STANDARD FEATURES

GH22 | STANDARD FEATURES

G.V.W.R. 22,000 lbs
G.A.W.R. 10,000 lbs / Axle
NECK 12” I-Beam
FRAME 12” I-Beam
AXLES (2) 10,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION Heavy-Duty Suspension System (HDSS)
COUPLER 2-5/16” Adjustable Round Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Tandem Dual Wheels
TIRES ST235/80 R16 LRE
SPARE Fold-down Spare Tire Mount (spare included)
STORAGE Full-width Front Toolbox
CROSSMEMBERS 3” Channel, 16” On-center
DECK Straight Deck
RAMPS 8′ Slide-In Ramps
FLOOR Treated Wood Flooring
WINCH 8″ Channel Winch Plate
RUB RAIL 2” Rub Rail, Pipe Spools, & Stake Pockets
STEP 15″ MAX-Step
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS (2) 5/16” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are forward-self-adjusting. Under frame/pipe bridge standard on models 36 ft & up.

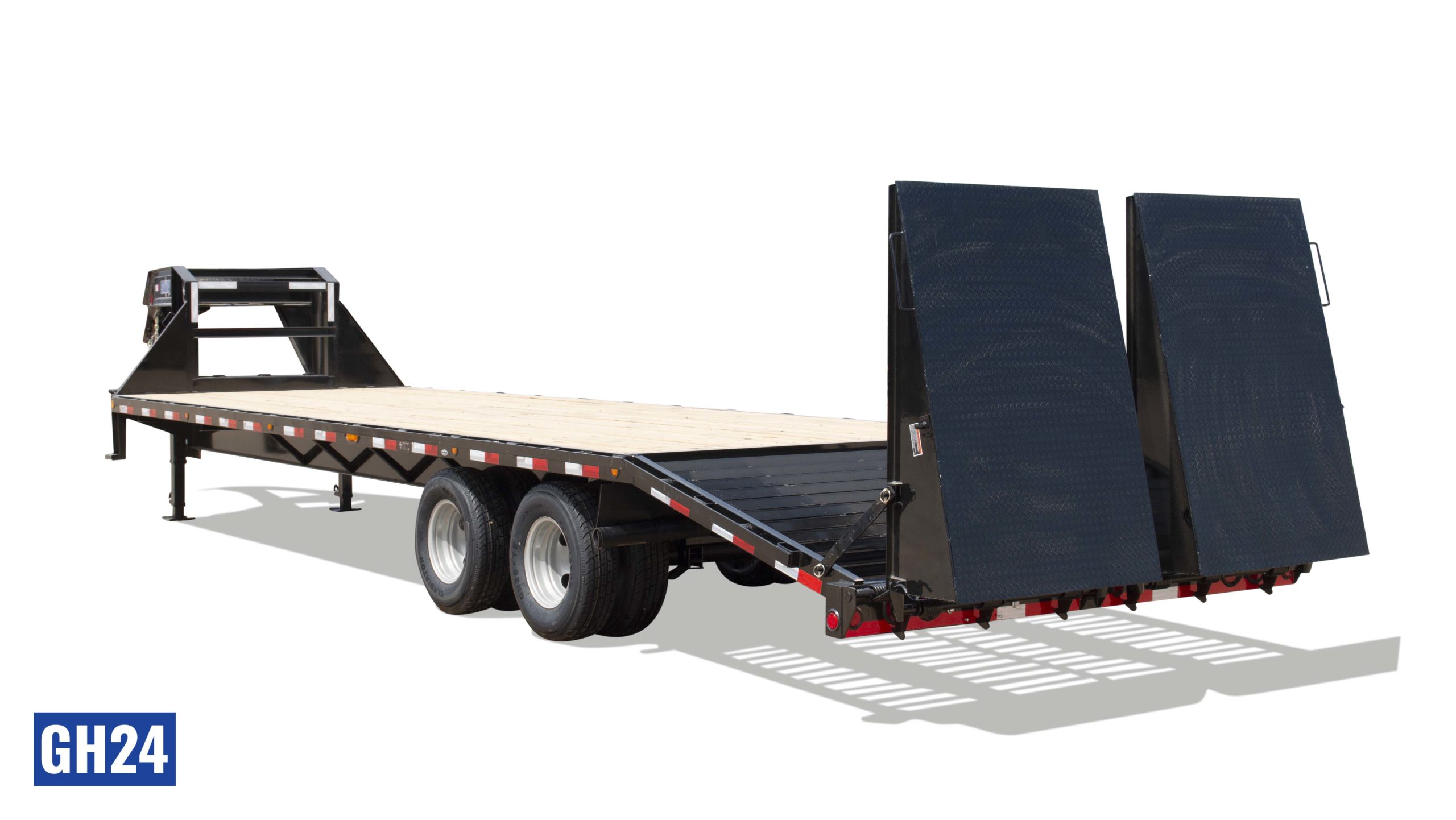

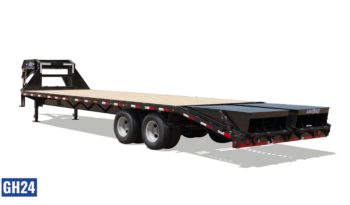

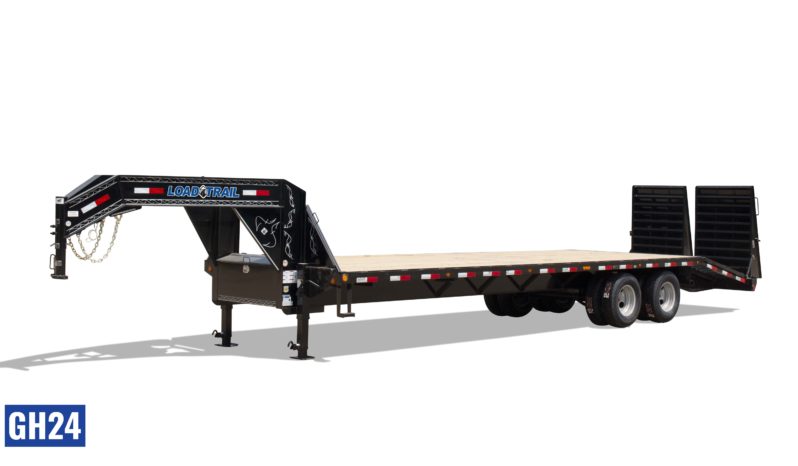

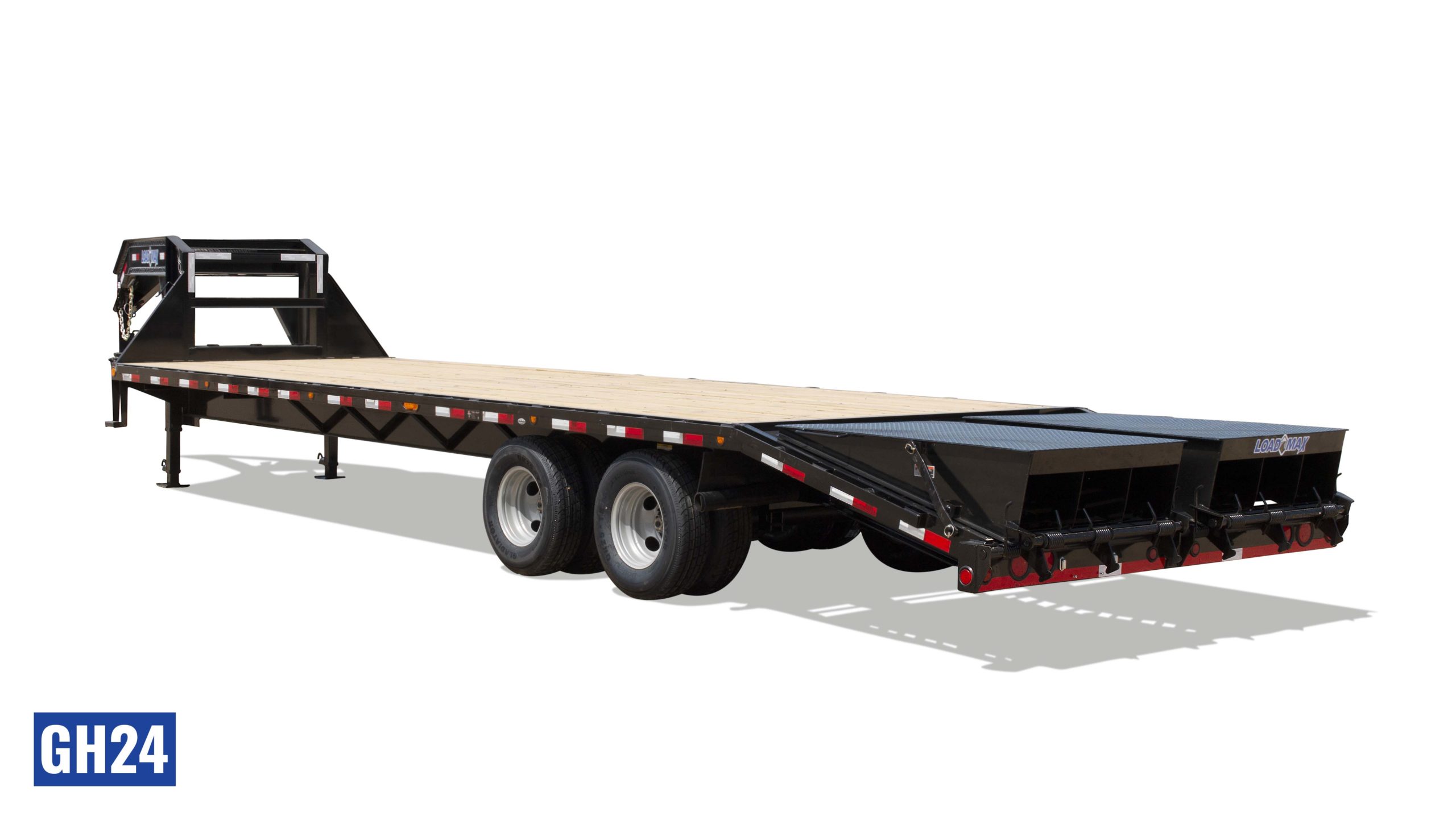

GH24

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

24,000 Lbs

LENGTH

20′ – 44′

WIDTH

102″

DECK HEIGHT

37″

COUPLER

Gooseneck

AXLES

(2) 12,000 Lb

EST. WEIGHT

5,600 – 8,200 Lbs

G.A.W.R.

12,000 Lbs/Axle

GH24 | STANDARD FEATURES

GH24 | STANDARD FEATURES

G.V.W.R. 24,000 lbs
G.A.W.R. 12,000 lbs / Axle
NECK 12” I-Beam
FRAME 12” I-Beam
AXLES (2) 12,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION Heavy-Duty Suspension System (HDSS)
COUPLER 2-5/16” Adjustable Round Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Tandem Dual Wheels
TIRES ST235/80 R16 LRE
SPARE Fold-down Spare Tire Mount (spare included)
STORAGE Full-width Front Toolbox
CROSSMEMBERS 3” Channel, 16” On-center
DECK Straight Deck
RAMPS 8′ Slide-In Ramps
FLOOR Treated Wood Flooring
WINCH 8″ Channel Winch Plate
RUB RAIL 2” Rub Rail, Pipe Spools, & Stake Pockets
STEP 15″ MAX-Step
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are forward-self-adjusting. Under frame/pipe bridge standard on models 36 ft & up.

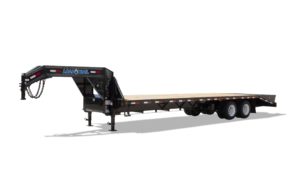

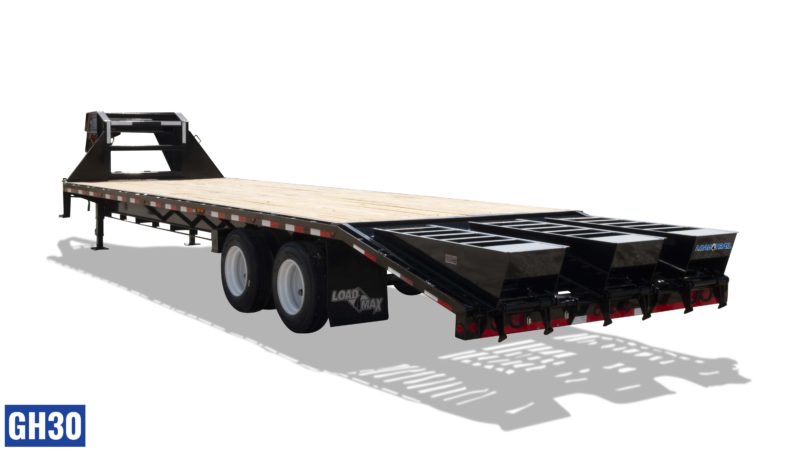

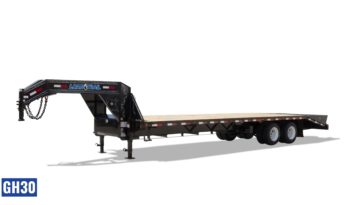

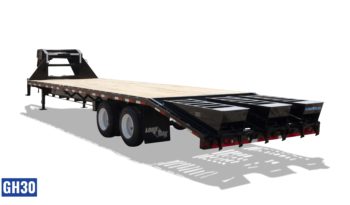

GH30

CONFIGURATIONS SUMMARY

CONFIGURATIONS SUMMARY

G.V.W.R.

30,000 Lbs

LENGTH

20′ – 44′

WIDTH

102″

DECK HEIGHT

37″

COUPLER

Gooseneck

AXLES

(2/3) 10,000 – 15,000 Lb

EST. WEIGHT

6,450 – 9,900 Lbs

G.A.W.R.

10,000 – 15,000 Lbs/Axle

GH30 | STANDARD FEATURES

GH30 | STANDARD FEATURES

G.V.W.R. 30,000 lbs
G.A.W.R. 10,000 lbs / Axle
NECK 12” I-Beam
FRAME 12” I-Beam
AXLES (3) 10,000 lb Dexter Electric Brake (Forward Self Adjusting)
SUSPENSION Heavy-Duty Suspension System (HDSS)
COUPLER 2-5/16” Adjustable Round Gooseneck
JACK (2) 10,000 lb Drop-Leg
WHEELS 16” 8-Hole Tandem Dual Wheels
TIRES ST235/80 R16 LRE
SPARE Fold-down Spare Tire Mount (spare included)
STORAGE Full-width Front Toolbox
CROSSMEMBERS 3” Channel, 16” On-center
DECK Straight Deck
RAMPS 8′ Slide-In Ramps
FLOOR Treated Wood Flooring
WINCH 8″ Channel Winch Plate
RUB RAIL 2” Rub Rail, Pipe Spools, & Stake Pockets
STEP 15″ MAX-Step
LIGHTS LED Stop, Tail, & Clearance Lights
WIRING 16 Ga. 5-Way Double-Insulated Wire Harness
PLUG Cold Weather Harness w/7-Way RV Plug
SAFETY CHAINS (2) 3/8” Grade 70
PRETREATMENT Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
All electric brake axles are forward-self-adjusting. Under frame/pipe bridge standard on models 36 ft & up.
COUPLER &  NECK
2-5/16” Adjustable Round Gooseneck Coupler C14
2-5/16” Adjustable Square Gooseneck Coupler C15
5th Wheel Adjustable Round Kingpin Adapter C50
5th Wheel Adjustable Square Kingpin Adapter C51
6” Raised Neck N01
12” Raised Neck N02
AXLES & SUSPENSION
2 – 10000 Lb Dexter (2 Elec.)/Spring Axles ES2Y15
2 – 10000 Lb Dexter (2 Hyd. Disc)/Spring Axles HS2Y15
2 – 10000 Lb Dexter (2 Elec.)/Torsion Axles ET2D
2 – 10000 Lb Dexter (2 Hyd. Drum)/Torsion Axles HT2L
2 – 10000 Lb Dexter (2 Air Brake)/Spring Axles AS2Y15
2 – 10000 Lb Dexter (2 Elec)/Air Ride Axles ES2Y18
2 – 10000 Lb Dexter (2 Hyd. Disc)/Air Ride Axles HS2Y18
2 – 10000 Lb Dexter (2 Elec)/Air Ride w/Lift Axle ES2Y19
2 – 10000 Lb Dexter (2 Hyd.Disc)/Air Ride w/Lift Axle HS2Y19
2 – 12000 Lb Dexter (2 Elec.)/Spring Axles ES2Y15
2 – 12000 Lb Dexter (2 Hyd. Disc)/Spring Axles HS2Y15
2 – 12000 Lb Dexter (2 Air Brake)/Spring Axles AS2Y15
2 – 12000 Lb Dexter (2 Elec)/Air Ride Axles ES2Y18
2 – 12000 Lb Dexter (2 Hyd.Disc)/Air Ride HS2Y18
2 – 12000 Lb Dexter (2 Elec)/Air Ride w/Lift Axle ES2Y19
2 – 15000 Lb Dexter (2 Elec.)/Spring Axles ES2Y15
2 – 15000 Lb Dexter (2 Hyd. Disc)/Spring Axles HS2Y15
2 – 15000 Lb Dexter (2 Air Brake)/Spring Axles AS2Y15
2 – 15000 Lb Dexter (2 Elec)/Air Ride Axles ES2Y18
2 – 15000 Lb Dexter (2 Hyd.Disc)/Air Ride HS2Y18
2 – 15000 Lb Dexter (2 Elec)/Air Ride w/Lift Axle ES2Y19
2 – 15000 Lb Dexter (2 Hyd.Drum)/Air Ride w/Lift HS2Y19
3 – 10000 Lb Dexter (3 Elec.)/Spring Axles ES3Y18
3 – 10000 Lb Dexter (3 Hyd. Disc)/Spring Axles HS3Y18
3 – 10000 Lb Dexter (3 Air Brake)/Spring Axles AS3
3 – 10000 Lb Dexter (3 Elec)/Air Ride Axles ES3Y18
3 – 10000 Lb Dexter (3 Hyd. Disc)/Air Ride Axles HS2Y18
3 – 10000 Lb Dexter (3 Elec)/Air Ride w/Lift Axle ES3Y19
3 – 10000 Lb Dexter (3 Hyd.Disc)/Air Ride w/Lift Axle HS3Y19
3 – 12000 Lb Dexter (3 Elec.)/Spring Axles ES3Y15
3 – 12000 Lb Dexter (3 Hyd. Disc)/Spring Axles HS3Y15
3 – 12000 Lb Dexter (3 Air Brake)/Spring Axles AS3
3 – 12000 Lb Dexter (3 Elec)/Air Ride Axles ES3Y18
3 – 12000 Lb Dexter (3 Hyd.Disc)/Air Ride HS3Y18
3 – 12000 Lb Dexter (3 Elec)/Air Ride w/Lift Axle ES3Y19
3 – 12000 Lb Dexter (3 Hyd.Disc)/Air Ride w/Lift Axle HS3Y19
3 – 15000 Lb Dexter (3 Elec.)/Spring Axles ES3Y15
3 – 15000 Lb Dexter (3 Hyd. Drum)/Spring Axles HS3Y15
3 – 15000 3 – 15000 Lb Dexter (3 Elec)/Air Ride AxlesLb Dexter (3 Air Brake)/Spring Axles AS3
3 – 15000 Lb Dexter (3 Hyd.Disc)/Air Ride ES3Y18
3 – 15000 Lb Dexter (3 Hyd.Disc)/Air Ride HS3Y18
72” Axle Spread YO2
WHEELS & TIRES
ST235/80 R16 LRE 10 Ply w/Silver Duals A05
ST235/80 R16 LRE 10 Ply w/Black Duals A33
ST235/85 R16 LRG 14 Ply w/Silver Duals A06
ST235/85 R16 LRG 14 Ply w/Black Duals A42
ST215/75 R17.5 LRH 16 Ply w/White Duals A21
ST215/75 R17.5 LRH 16 Ply w/Black Duals A35
LANDING GEAR
2 – 10K Drop-Leg Jacks J05
2 – 25K, 2-Speed Drop-Leg Jacks J06
2 – MAX-Jacks (hydraulic) J07
2 – 10K Electric Drop-Leg Jacks J08
FLOOR
Treated Pine Wood Floor E02
Steel Diamond Plate Floor E03
Rough Oak Floor E05
Douglas Fir Wood Floor E07
Blackwood Lumber (Classic) Floor E09
Blackwood Lumber (PRO) Floor E10
TAIL & RAMPS
Straight Deck With 8’ Rear Slide-In Ramps D00
5’ Self-Clean Dove With Slide In Ramps D10
5’ Self-Clean Dove w/2 Stand-up Ramps D30
5’ Self-Clean Dove w/3 Stand-up Ramps D31
5’ Self-Clean Dove With 2 Flip-Over Ramps D13
5’ Self-Clean Dove With 3 Flip-Over Ramps D14
5’ Dove With Wood & 2 Slide-In Ramps DW10
5’ Dove With Wood & 2 Stand-up Ramps DW30
5’ Dove With Wood & 3 Stand-up Ramps DW31
5’ Dove With Wood & 2 Flip-Over Ramps DW13
5’ Dove With Wood & 3 Flip-Over Ramps DW14
Support Arms For 2 Flip-over Ramps SR1
Support Arms For 3 Flip-over Ramps SR2
WINCH PACKAGE
Winch Plate (8” Channel) w/roller W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Locking Chain Rack CR1
Front Toolbox Chain Hanger CR2
16” Cross-Members I01
12” Cross-Members I02
LED Light Bar, Single Row L10
LED Light Bar, Dual Row L11
7-way RV w/Cold Weather Harness L07
LED Back-up Lights w/Cold Weather Harness L08
3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
Full-width Front Toolbox T20
1 Set of Tool Box Brackets TB1
Additional Set of Tool Box Brackets TB2
48” Side-Mount Tool Box T03
72” Side-Mount Tool Box T09
Top Riser Tool Box T12
Under-Frame Bridge U01
Pipe Bridge U02
Under-frame Wood Rack WR1
Ratchets (weld-on, 1 every 5 ft) Z01
Ratchets (adjustable, 1 every 5 ft) Z02
Ratchet Track (weld-on) Z03
102” x 96” Deck-Over-Neck D01
102” x 96” Deck-Over-Neck, w/45° Front Corners D02
102” x 96” Deck-Over-Neck w/Front Rail D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail D04
(1) – 6” Side Step SS0
(1) – 15” MAX-Step SM1
Spare Tire Mount *Fold-down TM3
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
Wheel Simulators WS1
POPULAR OPTIONS
Locking Chain Rack CR1
Blackwood Lumber Decking E09
15” MAX-Step SM1
Top Riser Tool Box T12
17.5K Winch Package W18
Adjustable Ratchets Z02
GH22 | 22,000 GVWR
(TANDEM 10K AXLES)
GH0216102 102” X 16’ N/A
GH0218102 102” X 18’ N/A
GH0220102 102” X 20’ 5600
GH0222102 102” X 22’ 5800
GH0224102 102” X 24’ 6000
GH0225102 102” X 25’ 6200
GH0226102 102” X 26’ 6400
GH0228102 102” X 28’ 6600
GH0230102 102” X 30’ 6800
GH0232102 102” X 32’ 7000
GH0234102 102” X 34’ 7200
GH0236102 102” X 36’ 7400
GH0238102 102” X 38’ 7600
GH0240102 102” X 40’ 7800
GH0242102 102” X 42’ 8000
GH0244102 102” X 44’ 8200
GH24 | 24,000 GVWR
(TANDEM 12K AXLES)
GH0216122 102” X 16’ N/A
GH0218122 102” X 18’ N/A
GH0220122 102” X 20’ 5600
GH0222122 102” X 22’ 5800
GH0224122 102” X 24’ 6000
GH0225122 102” X 25’ 6200
GH0226122 102” X 26’ 6400
GH0228122 102” X 28’ 6600
GH0230122 102” X 30’ 6800
GH0232122 102” X 32’ 7000
GH0234122 102” X 34’ 7200
GH0236122 102” X 36’ 7400
GH0238122 102” X 38’ 7600
GH0240122 102” X 40’ 7800
GH0242122 102” X 42’ 8000
GH0244122 102” X 44’ 8200
GH30 | 30,000 GVWR
(TANDEM 15K AXLES)
GH0216152 102” X 16’ N/A
GH0218152 102” X 18’ N/A
GH0220152 102” X 20’ 6450
GH0222152 102” X 22’ 6750
GH0224152 102” X 24’ 7050
GH0225152 102” X 25’ 7350
GH0226152 102” X 26’ 7650
GH0228152 102” X 28’ 7950
GH0230152 102” X 30’ 8220
GH0232152 102” X 32’ 8400
GH0234152 102” X 34’ 8600
GH0236152 102” X 36’ 8840
GH0238152 102” X 38’ 9140
GH0240152 102” X 40’ 9440
GH30 | 30,000 GVWR
(TRIPLE 10K AXLES)
GH0220103 102” X 20’ N/A
GH0222103 102” X 22’ N/A
GH0224103 102” X 24’ N/A
GH0225103 102” X 25’ N/A
GH0226103 102” X 26’ N/A
GH0228103 102” X 28’ N/A
GH0230103 102” X 30’ N/A
GH0232103 102” X 32’ N/A
GH0234103 102” X 34’ N/A
GH0236103 102” X 36’ 9100
GH0238103 102” X 38’ 9300
GH0240103 102” X 40’ 9500
GH0242103 102” X 42’ 9700
GH0244103 102” X 44’ 9900
GH30 | 30,000 GVWR
(TRIPLE 12K AXLES)
GH0220123 102” X 20’ N/A
GH0222123 102” X 22’ N/A
GH0224123 102” X 24’ N/A
GH0225123 102” X 25’ N/A
GH0226123 102” X 26’ N/A
GH0228123 102” X 28’ N/A
GH0230123 102” X 30’ N/A
GH0232123 102” X 32’ N/A
GH0234123 102” X 34’ N/A
GH0236123 102” X 36’ 9100
GH0238123 102” X 38’ 9300
GH0240123 102” X 40’ 9500
GH0242123 102” X 42’ 9700
GH0244123 102” X 44’ 9900
GH30 | 30,000 GVWR
(TRIPLE 15K AXLES)
GH0220153 102” X 20’ N/A
GH0222153 102” X 22’ N/A
GH0224153 102” X 24’ N/A
GH0225153 102” X 25’ N/A
GH0226153 102” X 26’ N/A
GH0228153 102” X 28’ N/A
GH0230153 102” X 30’ N/A
GH0232153 102” X 32’ N/A
GH0234153 102” X 34’ N/A
GH0236153 102” X 36’ 9100
GH0238153 102” X 38’ 9300
GH0240153 102” X 40’ 9500
GH0242153 102” X 42’ 9700
GH0244153 102” X 44’ 9900
Estimated weights for base models only.
OPTIONS
COUPLER &  NECK
2-5/16” Adjustable Round Gooseneck Coupler C14
2-5/16” Adjustable Square Gooseneck Coupler C15
5th Wheel Adjustable Round Kingpin Adapter C50
5th Wheel Adjustable Square Kingpin Adapter C51
6” Raised Neck N01
12” Raised Neck N02
AXLES & SUSPENSION
2 – 10000 Lb Dexter (2 Elec.)/Spring Axles ES2Y15
2 – 10000 Lb Dexter (2 Hyd. Disc)/Spring Axles HS2Y15
2 – 10000 Lb Dexter (2 Elec.)/Torsion Axles ET2D
2 – 10000 Lb Dexter (2 Hyd. Drum)/Torsion Axles HT2L
2 – 10000 Lb Dexter (2 Air Brake)/Spring Axles AS2Y15
2 – 10000 Lb Dexter (2 Elec)/Air Ride Axles ES2Y18
2 – 10000 Lb Dexter (2 Hyd. Disc)/Air Ride Axles HS2Y18
2 – 10000 Lb Dexter (2 Elec)/Air Ride w/Lift Axle ES2Y19
2 – 10000 Lb Dexter (2 Hyd.Disc)/Air Ride w/Lift Axle HS2Y19
2 – 12000 Lb Dexter (2 Elec.)/Spring Axles ES2Y15
2 – 12000 Lb Dexter (2 Hyd. Disc)/Spring Axles HS2Y15
2 – 12000 Lb Dexter (2 Air Brake)/Spring Axles AS2Y15
2 – 12000 Lb Dexter (2 Elec)/Air Ride Axles ES2Y18
2 – 12000 Lb Dexter (2 Hyd.Disc)/Air Ride HS2Y18
2 – 12000 Lb Dexter (2 Elec)/Air Ride w/Lift Axle ES2Y19
2 – 15000 Lb Dexter (2 Elec.)/Spring Axles ES2Y15
2 – 15000 Lb Dexter (2 Hyd. Disc)/Spring Axles HS2Y15
2 – 15000 Lb Dexter (2 Air Brake)/Spring Axles AS2Y15
2 – 15000 Lb Dexter (2 Elec)/Air Ride Axles ES2Y18
2 – 15000 Lb Dexter (2 Hyd.Disc)/Air Ride HS2Y18
2 – 15000 Lb Dexter (2 Elec)/Air Ride w/Lift Axle ES2Y19
2 – 15000 Lb Dexter (2 Hyd.Drum)/Air Ride w/Lift HS2Y19
3 – 10000 Lb Dexter (3 Elec.)/Spring Axles ES3Y18
3 – 10000 Lb Dexter (3 Hyd. Disc)/Spring Axles HS3Y18
3 – 10000 Lb Dexter (3 Air Brake)/Spring Axles AS3
3 – 10000 Lb Dexter (3 Elec)/Air Ride Axles ES3Y18
3 – 10000 Lb Dexter (3 Hyd. Disc)/Air Ride Axles HS2Y18
3 – 10000 Lb Dexter (3 Elec)/Air Ride w/Lift Axle ES3Y19
3 – 10000 Lb Dexter (3 Hyd.Disc)/Air Ride w/Lift Axle HS3Y19
3 – 12000 Lb Dexter (3 Elec.)/Spring Axles ES3Y15
3 – 12000 Lb Dexter (3 Hyd. Disc)/Spring Axles HS3Y15
3 – 12000 Lb Dexter (3 Air Brake)/Spring Axles AS3
3 – 12000 Lb Dexter (3 Elec)/Air Ride Axles ES3Y18
3 – 12000 Lb Dexter (3 Hyd.Disc)/Air Ride HS3Y18
3 – 12000 Lb Dexter (3 Elec)/Air Ride w/Lift Axle ES3Y19
3 – 12000 Lb Dexter (3 Hyd.Disc)/Air Ride w/Lift Axle HS3Y19
3 – 15000 Lb Dexter (3 Elec.)/Spring Axles ES3Y15
3 – 15000 Lb Dexter (3 Hyd. Drum)/Spring Axles HS3Y15
3 – 15000 3 – 15000 Lb Dexter (3 Elec)/Air Ride AxlesLb Dexter (3 Air Brake)/Spring Axles AS3
3 – 15000 Lb Dexter (3 Hyd.Disc)/Air Ride ES3Y18
3 – 15000 Lb Dexter (3 Hyd.Disc)/Air Ride HS3Y18
72” Axle Spread YO2
WHEELS & TIRES
ST235/80 R16 LRE 10 Ply w/Silver Duals A05
ST235/80 R16 LRE 10 Ply w/Black Duals A33
ST235/85 R16 LRG 14 Ply w/Silver Duals A06
ST235/85 R16 LRG 14 Ply w/Black Duals A42
ST215/75 R17.5 LRH 16 Ply w/White Duals A21
ST215/75 R17.5 LRH 16 Ply w/Black Duals A35
LANDING GEAR
2 – 10K Drop-Leg Jacks J05
2 – 25K, 2-Speed Drop-Leg Jacks J06
2 – MAX-Jacks (hydraulic) J07
2 – 10K Electric Drop-Leg Jacks J08
FLOOR
Treated Pine Wood Floor E02
Steel Diamond Plate Floor E03
Rough Oak Floor E05
Douglas Fir Wood Floor E07
Blackwood Lumber (Classic) Floor E09
Blackwood Lumber (PRO) Floor E10
TAIL & RAMPS
Straight Deck With 8’ Rear Slide-In Ramps D00
5’ Self-Clean Dove With Slide In Ramps D10
5’ Self-Clean Dove w/2 Stand-up Ramps D30
5’ Self-Clean Dove w/3 Stand-up Ramps D31
5’ Self-Clean Dove With 2 Flip-Over Ramps D13
5’ Self-Clean Dove With 3 Flip-Over Ramps D14
5’ Dove With Wood & 2 Slide-In Ramps DW10
5’ Dove With Wood & 2 Stand-up Ramps DW30
5’ Dove With Wood & 3 Stand-up Ramps DW31
5’ Dove With Wood & 2 Flip-Over Ramps DW13
5’ Dove With Wood & 3 Flip-Over Ramps DW14
Support Arms For 2 Flip-over Ramps SR1
Support Arms For 3 Flip-over Ramps SR2
WINCH PACKAGE
Winch Plate (8” Channel) w/roller W01
1/2” Winch Plate W02
10K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W20
12K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W15
17.5K Winch Package (1/2” winch plate, 12v battery 5 amp charger & mounting hardware) W18
COLORS
Black (w/Primer) CB2
Metallic Black (w/Primer) CBM
Gray (w/Primer) CG3
White (w/Primer) CW4
Red (w/Primer) CR5
Blue (w/Primer) CB6
Green (w/Primer) CG7
Yellow (w/Primer) CY8
Mustard Yellow (w/Primer) CM1
Orange (w/Primer) C09
OD Army Green (w/Primer) CA1
Coyote Tan (w/Primer) CT2
Pink (w/Primer) CP0
Safety Green (w/Primer) CNG
Silver (w/Primer) CS1
Maroon (w/Primer) CAM
Western Metallic (w/Primer) WM1
Purple (w/Primer) CP1
Sky Blue (w/Primer) CB4
Dirt Bike Green (w/Primer) CG8
Bomber Gray (w/Primer) CG4
OTHER UPGRADES
Locking Chain Rack CR1
Front Toolbox Chain Hanger CR2
16” Cross-Members I01
12” Cross-Members I02
LED Light Bar, Single Row L10
LED Light Bar, Dual Row L11
7-way RV w/Cold Weather Harness L07
LED Back-up Lights w/Cold Weather Harness L08
3” Weld-on D-rings M03
4” Weld-on D-rings M04
4” Recessed D-rings, 360-Rotational, Bolt-On M06
3” Removable D-Rings M33
4” Removable D-Rings M44
Mud Flaps MF1
Full-width Front Toolbox T20
1 Set of Tool Box Brackets TB1
Additional Set of Tool Box Brackets TB2
48” Side-Mount Tool Box T03
72” Side-Mount Tool Box T09
Top Riser Tool Box T12
Under-Frame Bridge U01
Pipe Bridge U02
Under-frame Wood Rack WR1
Ratchets (weld-on, 1 every 5 ft) Z01
Ratchets (adjustable, 1 every 5 ft) Z02
Ratchet Track (weld-on) Z03
102” x 96” Deck-Over-Neck D01
102” x 96” Deck-Over-Neck, w/45° Front Corners D02
102” x 96” Deck-Over-Neck w/Front Rail D03
102” x 96” Deck-Over-Neck/45°Corners/Front Rail D04
(1) – 6” Side Step SS0
(1) – 15” MAX-Step SM1
Spare Tire Mount *Fold-down TM3
4 – Additional Stake Pockets SP1
8 – Additional Stake Pockets SP8
Wheel Simulators WS1
POPULAR OPTIONS
POPULAR OPTIONS
Locking Chain Rack CR1
Blackwood Lumber Decking E09
15” MAX-Step SM1
Top Riser Tool Box T12
17.5K Winch Package W18
Adjustable Ratchets Z02
SIZE & WEIGHT
GH22 | 22,000 GVWR
(TANDEM 10K AXLES)
GH0216102 102” X 16’ N/A
GH0218102 102” X 18’ N/A
GH0220102 102” X 20’ 5600
GH0222102 102” X 22’ 5800
GH0224102 102” X 24’ 6000
GH0225102 102” X 25’ 6200
GH0226102 102” X 26’ 6400
GH0228102 102” X 28’ 6600
GH0230102 102” X 30’ 6800
GH0232102 102” X 32’ 7000
GH0234102 102” X 34’ 7200
GH0236102 102” X 36’ 7400
GH0238102 102” X 38’ 7600
GH0240102 102” X 40’ 7800
GH0242102 102” X 42’ 8000
GH0244102 102” X 44’ 8200
GH24 | 24,000 GVWR
(TANDEM 12K AXLES)
GH0216122 102” X 16’ N/A
GH0218122 102” X 18’ N/A
GH0220122 102” X 20’ 5600
GH0222122 102” X 22’ 5800
GH0224122 102” X 24’ 6000
GH0225122 102” X 25’ 6200
GH0226122 102” X 26’ 6400
GH0228122 102” X 28’ 6600
GH0230122 102” X 30’ 6800
GH0232122 102” X 32’ 7000
GH0234122 102” X 34’ 7200
GH0236122 102” X 36’ 7400
GH0238122 102” X 38’ 7600
GH0240122 102” X 40’ 7800
GH0242122 102” X 42’ 8000
GH0244122 102” X 44’ 8200
GH30 | 30,000 GVWR
(TANDEM 15K AXLES)
GH0216152 102” X 16’ N/A
GH0218152 102” X 18’ N/A
GH0220152 102” X 20’ 6450
GH0222152 102” X 22’ 6750
GH0224152 102” X 24’ 7050
GH0225152 102” X 25’ 7350
GH0226152 102” X 26’ 7650
GH0228152 102” X 28’ 7950
GH0230152 102” X 30’ 8220
GH0232152 102” X 32’ 8400
GH0234152 102” X 34’ 8600
GH0236152 102” X 36’ 8840
GH0238152 102” X 38’ 9140
GH0240152 102” X 40’ 9440
GH30 | 30,000 GVWR
(TRIPLE 10K AXLES)
GH0220103 102” X 20’ N/A
GH0222103 102” X 22’ N/A
GH0224103 102” X 24’ N/A
GH0225103 102” X 25’ N/A
GH0226103 102” X 26’ N/A
GH0228103 102” X 28’ N/A
GH0230103 102” X 30’ N/A
GH0232103 102” X 32’ N/A
GH0234103 102” X 34’ N/A
GH0236103 102” X 36’ 9100
GH0238103 102” X 38’ 9300
GH0240103 102” X 40’ 9500
GH0242103 102” X 42’ 9700
GH0244103 102” X 44’ 9900
GH30 | 30,000 GVWR
(TRIPLE 12K AXLES)
GH0220123 102” X 20’ N/A
GH0222123 102” X 22’ N/A
GH0224123 102” X 24’ N/A
GH0225123 102” X 25’ N/A
GH0226123 102” X 26’ N/A
GH0228123 102” X 28’ N/A
GH0230123 102” X 30’ N/A
GH0232123 102” X 32’ N/A
GH0234123 102” X 34’ N/A
GH0236123 102” X 36’ 9100
GH0238123 102” X 38’ 9300
GH0240123 102” X 40’ 9500
GH0242123 102” X 42’ 9700
GH0244123 102” X 44’ 9900
GH30 | 30,000 GVWR
(TRIPLE 15K AXLES)
GH0220153 102” X 20’ N/A
GH0222153 102” X 22’ N/A
GH0224153 102” X 24’ N/A
GH0225153 102” X 25’ N/A
GH0226153 102” X 26’ N/A
GH0228153 102” X 28’ N/A
GH0230153 102” X 30’ N/A
GH0232153 102” X 32’ N/A
GH0234153 102” X 34’ N/A
GH0236153 102” X 36’ 9100
GH0238153 102” X 38’ 9300
GH0240153 102” X 40’ 9500
GH0242153 102” X 42’ 9700
GH0244153 102” X 44’ 9900
Estimated weights for base models only.

GH SERIES HIGHLIGHTS

null

Dealer Network
Image is not available
I NEED A PRICE

We're a wholesale company, so we do not sell retail direct. You must go through a dealer for pricing. Use the dealer locator below to find a dealer near you. Our vast network of dealers in the U.S. and Canada can help you with a quote. Many of our dealers carry a large selection of on-hand inventory at all times. If they don't have exactly what you're looking for, they can help you with a quote.

Image is not available
FACTORY-DIRECT

Because we’re committed to backing our dealer network, we do not sell retail-direct. If you’d like to get a quote for a trailer, you can find a dealer in your area by entering your zip code in the dealer locator below. If you're looking for a quote on a custom trailer, complete our online quote request. Your request will be sent to the dealer you select on the quote request form. The dealer will then contact you directly.

Image is not available
DEALER NETWORK

Our dealer network includes over 400 independently owned and operated dealers in the US and Canada. Every customer has their own set of needs and expectations for a new trailer. An independent dealer can take the time to answer questions and help make sure the trailer you buy is exactly what you need. Each dealer provides expert service and knowledgeable advice.

null
null
null
null

All of the information contained on this website are based upon current knowledge available at time of publication and are subject to change without notice. Load Trail assumes no responsibility for changes in specifications. Load Trail assumes no responsibility for any inaccuracies, opinions, or omissions on this website. ©2023 Load Trail, LLC

Left Menu Icon
